14 bolt front axle?????

Discussion in 'The Garage' started by unclematty, Jun 23, 2004.

  1. unclematty

    unclematty 1/2 ton status

    Joined:
    Jan 24, 2003
    Posts:
    3,164
    Likes Received:
    0
    Location:
    SLC UT
    THIS MIGHT BE REPOST, but I couldn't find it. I know that I saw somewhere a 14 bolt front axle, and I know that set up as usual would mean runnng on the coast side of the r&p gears, and upside down, might cause an oiling problem, so the ??? remains, can I use a 14 bolt in a front axle configuration. /forums/images/graemlins/dunno.gif /forums/images/graemlins/dunno.gif /forums/images/graemlins/dunno.gif /forums/images/graemlins/dunno.gifand if not here can I come by some d60 inner steering knuckles

  2. outlaw612

    outlaw612 1/2 ton status

    Joined:
    Feb 11, 2001
    Posts:
    2,342
    Likes Received:
    0
    Location:
    Springfield, Illinois
    It would be more cost effective to just buy a D60. From what I can remember it was megabucks since everything has to be custom made. You could probably buy a 60 with 35 spline top end axles and CTM's for alot less.

  3. tarussell

    tarussell 1/2 ton status

    Joined:
    Dec 28, 2002
    Posts:
    1,354
    Likes Received:
    0
    Location:
    Bagdad , FL
    The "chunck" would not be running upside down but it would run on the coast side of the gear . It is no different than a standard GM Dana 60 version in the front - the gear would simply be running in reverse when the truck is going forward . The Dana 60 , Dana 44 and GM 10 Bolts are all running in reverse ( from a rear axle point of view ) in a front axle application - the gear knows no difference if it is in a front axle or a rear axle housing .
    The drive side of the gear is the strongest but it is acceptable to run on the coast side in a front axle application . A hi-pinion reverse cut gear is stronger in a front axle application only when going forward but a standard rotation housing ( or chunk ) will not accept a gear that is designed for a reverse cut application .
    Yes - you can use it in a front axle application with no oiling problems but as said above it will be exspensive if you have to pay for the tube and knuckle work .
    You can order custom inner axles for the GM 30 spline 14 bolt application .
    I hope this clears your question up a little bit .
    Tom

  4. hi pinion

    hi pinion 3/4 ton status

    Joined:
    Sep 25, 2003
    Posts:
    5,354
    Likes Received:
    0
    Location:
    **PLUMBING THE WORLD**
    Always a rare treat to hear your posts Tom /forums/images/graemlins/waytogo.gifJake

  5. rjfguitar

    rjfguitar 3/4 ton status GMOTM Winner

    Joined:
    Aug 28, 2002
    Posts:
    9,097
    Likes Received:
    144
    Location:
    california
    If I remember right it was MONSTERK5CHEVY that has a front 14 bolt and got some unfair criticizm when he posted pics of it. I thought it was pretty cool!....something different than a D60/14BFF for once.

  6. sled_dog

    sled_dog 1 ton status

    Joined:
    Sep 3, 2002
    Posts:
    16,870
    Likes Received:
    0
    Location:
    Austin, TX
    different sure, but if I were to do it I would offset the housing, his is centered as it is in the rear. Problem is 14 bolts ground clearance, would be better closer to a tire. Require even more custom shaft work though.

  7. unclematty

    unclematty 1/2 ton status

    Joined:
    Jan 24, 2003
    Posts:
    3,164
    Likes Received:
    0
    Location:
    SLC UT
    I had a thought before all this, that they work the same as any other axle, so why not? just need to get a hold of a couple of inner knuckles, any Ideers?? /forums/images/graemlins/waytogo.gif

  8. sled_dog

    sled_dog 1 ton status

    Joined:
    Sep 3, 2002
    Posts:
    16,870
    Likes Received:
    0
    Location:
    Austin, TX
    Are you asking where to come up with inner cs? Deadenbear and Crane High Clearance make high strength 60 inner Cs. Perfect place to start a hardcore axle build up.

  9. hi pinion

    hi pinion 3/4 ton status

    Joined:
    Sep 25, 2003
    Posts:
    5,354
    Likes Received:
    0
    Location:
    **PLUMBING THE WORLD**
    if its centered in the front.... how in the heck does it connect to the tranfer case then?Weird /forums/images/graemlins/thinking.gif

  10. SkulzNBonz

    SkulzNBonz 1/2 ton status

    Joined:
    Feb 20, 2002
    Posts:
    4,522
    Likes Received:
    0
    Location:
    OKC, Oklahoma
  11. sled_dog

    sled_dog 1 ton status

    Joined:
    Sep 3, 2002
    Posts:
    16,870
    Likes Received:
    0
    Location:
    Austin, TX
    I believe he plans to rotate his 241 straight down.

  12. K5MONSTERCHEV

    K5MONSTERCHEV 1/2 ton status

    Joined:
    Jan 27, 2003
    Posts:
    3,254
    Likes Received:
    0
    Location:
    Castro Valley, CA

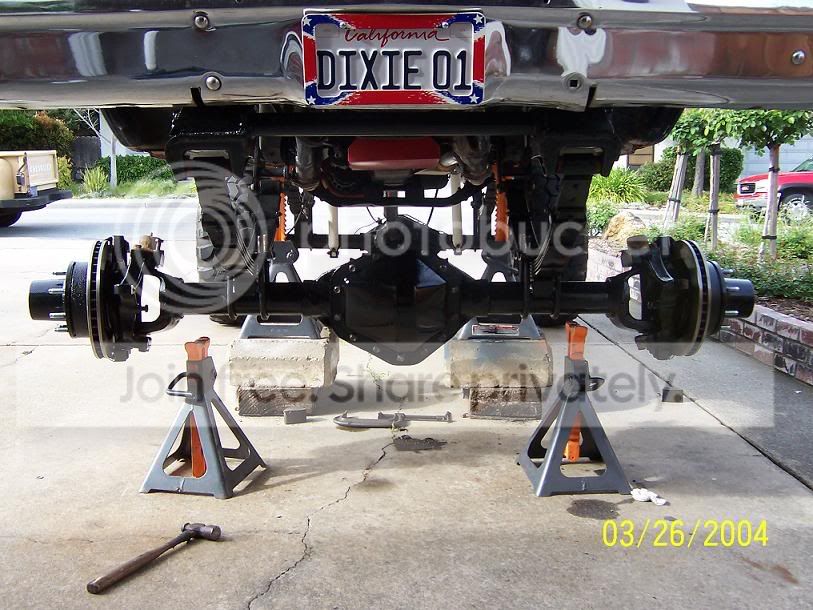

    [​IMG]

    Like this? /forums/images/graemlins/waytogo.gif

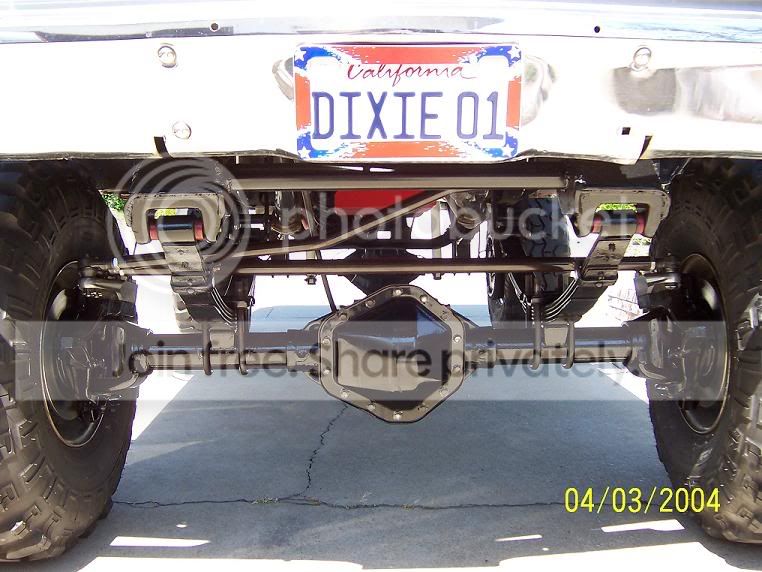

    [​IMG]

    The only thing that made it cost more then a 60 will be getting the inner shafts made, with everyhitng else I have done it hasnt cost more then a 60 would have.

    I had thought about retubing a HP 60 putting it off to the correct side, but with what I have planned for the truck the 14B was better, cheaper, differrent and a lot cooler, but as rjfguitar said earlier, not everyone will agree.

    I have talked to a few companies who build center drop T cases for monster trucks and that what Im going to run in the end. I was going to use the 205 clocked, but the shift rails are in the way. For now im going to clock a 243 straight down.

  13. hi pinion

    hi pinion 3/4 ton status

    Joined:
    Sep 25, 2003
    Posts:
    5,354
    Likes Received:
    0
    Location:
    **PLUMBING THE WORLD**
    Hey thats really cool man, definatly a treat to see /forums/images/graemlins/thumb.gif are you the only one who has done this?How has everything held up so far? /forums/images/graemlins/thumb.gif

  14. bluejeep

    bluejeep 1/2 ton status

    Joined:
    Jan 9, 2004
    Posts:
    106
    Likes Received:
    0
    Location:
    Des Moines, IA
    [ QUOTE ]
    I have talked to a few companies who build center drop T cases for monster trucks and that what Im going to run in the end. I was going to use the 205 clocked, but the shift rails are in the way. For now im going to clock a 243 straight down.


    [/ QUOTE ]

    243, so you're going to have push-button 4wd?

  15. CyberSniper

    CyberSniper 1/2 ton status Premium Member

    Joined:
    Apr 21, 2003
    Posts:
    2,257
    Likes Received:
    5
    Location:
    Chelsea, MI
    [ QUOTE ]
    different sure, but if I were to do it I would offset the housing, his is centered as it is in the rear. Problem is 14 bolts ground clearance, would be better closer to a tire. Require even more custom shaft work though.

    [/ QUOTE ]

    He's only got to plow one path through the mud.

    The driveshaft doesn't really give two rips where it goes, it's the angle that matters. Unless I'm mistaken, he'd actually need less slip in his driveshaft with the transfercase in the stock orientation with the differential in the center. I'd have to think about it a little more, I'm busy studying for a Geological Sciences (rocks for jocks) exam.

    Since he put his in the middle he can put the transfercase down in the middle as well. Just about any transfercase will handle being dropped down.

  16. CyberSniper

    CyberSniper 1/2 ton status Premium Member

    Joined:
    Apr 21, 2003
    Posts:
    2,257
    Likes Received:
    5
    Location:
    Chelsea, MI
    [ QUOTE ]
    [ QUOTE ]
    I have talked to a few companies who build center drop T cases for monster trucks and that what Im going to run in the end. I was going to use the 205 clocked, but the shift rails are in the way. For now im going to clock a 243 straight down.


    [/ QUOTE ]

    243, so you're going to have push-button 4wd?

    [/ QUOTE ]

    I believe a 243 is just like all of GM's other pushbutton cases, it has a fancy-pants electric motor with gear reduction and quarter gears to turn the shaft and then uses little indexing sensors to tell what gear it is. It's real easy to eliminate that setup and run a regular shifter. Or, he can keep it, and if it fails just shift the case with a pair of vice grips.

  17. joez

    joez 1/2 ton status

    Joined:
    Oct 21, 2003
    Posts:
    2,512
    Likes Received:
    0
    Location:
    New Lenox, Illinois
    Question, why not just run a ford T-case? Since the pinion is already offset a bit to the drivers side, you could run a driver side drop ford (or even 94-up dodge) T-case clocked slightly down. You would have a very slight compound angle, but not enough to worry about.

  18. K5MONSTERCHEV

    K5MONSTERCHEV 1/2 ton status

    Joined:
    Jan 27, 2003
    Posts:
    3,254
    Likes Received:
    0
    Location:
    Castro Valley, CA
    [ QUOTE ]
    Hey thats really cool man, definatly a treat to see /forums/images/graemlins/thumb.gif are you the only one who has done this?How has everything held up so far? /forums/images/graemlins/thumb.gif

    [/ QUOTE ]

    Thanks, im glad ya like it! /forums/images/graemlins/thumb.gif As far as I know besides the WMS 14b, that are offset, this is the only one I have seen. I have seen a centered Dana 60 though.

    Everyhitng has been just fine, no problems or anything. I have been busy and havent gotten shafts or a T case yet for it, but its next on the list.


    [ QUOTE ]
    243, so you're going to have push-button 4wd?

    [/ QUOTE ]

    Correct, for now. A 243 is basically an electric shift 241. Im using that because, well its easier to shift when clocked straight down.

  19. bluejeep

    bluejeep 1/2 ton status

    Joined:
    Jan 9, 2004
    Posts:
    106
    Likes Received:
    0
    Location:
    Des Moines, IA
    NP243C Push Button

    Have you figured out the wiring for that yet? I wonder if it'll be very complex?!?.

  20. K5MONSTERCHEV

    K5MONSTERCHEV 1/2 ton status

    Joined:
    Jan 27, 2003
    Posts:
    3,254
    Likes Received:
    0
    Location:
    Castro Valley, CA
    Dont see why it would be? as long as I have the switch to control it.


Share This Page
