14FF guys, PICS of mine, and my noob question of the day

Discussion in 'The Garage' started by 78Suburban, Jul 30, 2006.

  1. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia

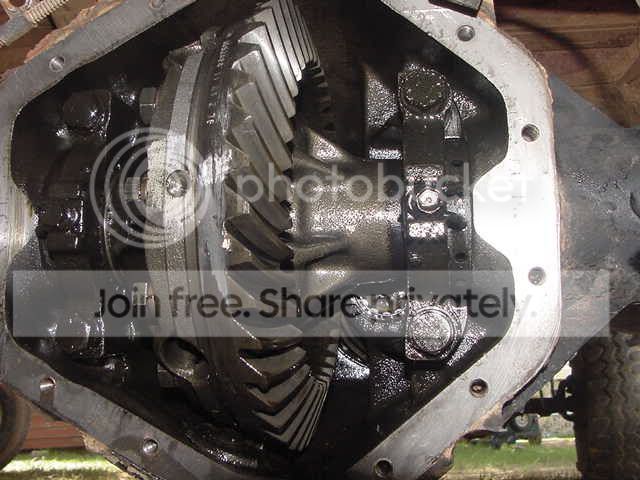

    I'm going to take my open carrier out to have it welded in the next week or two. I know there are some kinda adjuster collers I need to mark.. can somebody mark them on paint in the same place I need to mark, because I'm having a hard time picturing what I'm supposed to mark. Also, which bolts am I supposed to count the turns of as I take them out? Anything that I need to mark woud be good to know, because I surely don't wanna mess up gear pattern in any way.. Feel free to photochop this pic to show me what I need to mark/ count turns of

    [​IMG]

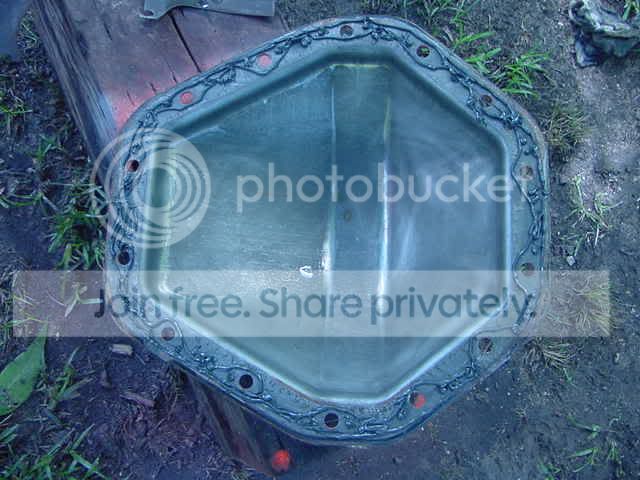

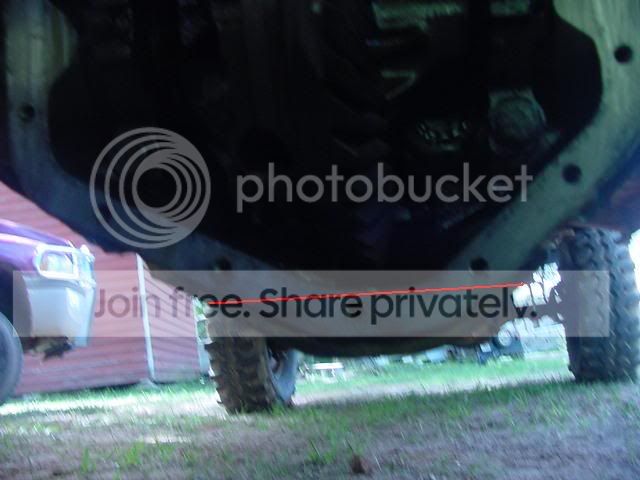

    I'm wanting to shave the bottom lip, but if I shave much at all, won't it take out my bottom bolt hole? Then how does the cover seal, just use alot of RVT down there? I guess I would have to shave to cover as well...

    [​IMG]


    How are my RVT skills?

    [​IMG]

  2. hack500

    hack500 1/2 ton status

    Joined:
    Sep 16, 2005
    Posts:
    523
    Likes Received:
    0
    Location:
    Templeton, Ma
    also while you have the cover off you should put a drain and a fill plug in it...

    exteremly usefull if you like mud.

  3. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Uh....He already has a fill plug.

  4. hack500

    hack500 1/2 ton status

    Joined:
    Sep 16, 2005
    Posts:
    523
    Likes Received:
    0
    Location:
    Templeton, Ma
    I meant into the cover itself... just for a more convenient spot to fill it.

  5. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Here ya go.

    Remove the bolt in the center of the bearing cap that holds the locking retainer in place. Pull the retainer out. Mark the relation of the collar against the side of the housing. I just used a center punch and put dots next to each other. Then the collar clockwise as viewed from the carrier. This will thread it farther into the housing and loosen the load on the carrier. I went two complete turns on each side, just to make things easy. You can turn the adjusting collar by shoving a punch into the holes and prying down on it.


  6. divorced

    divorced 3/4 ton status

    Joined:
    Jul 20, 2004
    Posts:
    5,115
    Likes Received:
    0
    Location:
    .
    That's a good explanation. For us newb's, how does it go back together?

  7. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Here's a non attached version for those non members.

    [​IMG]

    And a better pic showing the adjusters with the carrier removed.
    [​IMG]

    Some other pics that give a little insight as to how far I shaved it. It's completely smooth on the bottom, and I still have the bolt hole.
    [​IMG]

    [​IMG]

    [​IMG]

  8. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Well once you put the carrier back in, just run the adjusters back in counter clockwise until you get them right back to where they used to be. That's why you mark the positions before you adjust them. Then just slap the bearing caps back on, install the retainer and bolt, and put the cover back on. Pretty easy. Took me less than an hour to remove and replace when doing my detroit install.

  9. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Oh and I know my pics are kinda far away, but if you click on them you can see the super huge versions that will give you the detail you need. And yes, there's a lot of metal dust created when you shave a 14 bolt. It's a dirty job.

  10. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    As always Paul, EXCELLENT explanation. Really sheds some light on what was kinda confusing with just words. Thanks for the help :bow:

  11. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    No problem. You should give yourself some credit too, you make a lot of threads that are used as reference later for other people. There's several people who follow your progress and learn as you go, you ask a lot of good questions.

  12. big dan

    big dan 1/2 ton status Premium Member

    Joined:
    Aug 1, 2005
    Posts:
    2,656
    Likes Received:
    29
    Location:
    Arkansas
    and in case you didnt know, make sure to break the ring gear bolts loose will its still in the housing. thats where I screwed up cause it took 2 people to hold down the diff and one to break them loose once we had it out. much easier to do when is still installed.

  13. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    I don't think he'll be taking the ring gear off the carrier.

  14. YZEATER

    YZEATER 1/2 ton status

    Joined:
    Jan 21, 2005
    Posts:
    2,358
    Likes Received:
    0
    Location:
    TARENTUM, PA
    if he's going to have the spiders welded up, you have to take the carrier apart and the ring gear comes off in the process.

  15. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Ah that's right, I was thinking of semifloater for some reason. I just used an impact and didn't have an issue.

  16. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    Finally!!

    I've been so busy that I just now got around to pulling the carrier today.. Man, I was amazed at how easy that was!! nobody should be intimidated to pull the carrier on a 14ff!!!

    As for seperating the carrier bolts, I don't have an impact, but I used a pull handle, held it between my legs, and hit the pull handle with a 3lb BFH.. worked awesome!! Now I just gotta bring it by Columbus Custom Exhaust and get it welded up :D

  17. hack500

    hack500 1/2 ton status

    Joined:
    Sep 16, 2005
    Posts:
    523
    Likes Received:
    0
    Location:
    Templeton, Ma
    just be prepared for tire screeching and more funny looks when you drive it on the street. :D :whistle:

  18. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Well, that kind of IS an impact, just a more primitive version. :p: Good job though, you just took another big step toward not being a noob.:D

  19. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,126
    Likes Received:
    53
    Location:
    Powell, Wy
    Good job, I knew you could do it!!! I am gonna weld another one up this weekend for my 71 I'll try to take some pics of every step for future reference for ya'll! Make sure to count and WRITE DOWN then number of turns to loosen the collar for each side. A friends thought he could remember and then when he went back together apparently he forgot or got switched on sides. That R&P lasted about 2 weeks.

  20. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    I made marks and did 2 turns on both sides, just to keep it simple :D
