82dieselburb's 75 Jimmy Crawler project

Discussion in 'The Garage' started by 82dieselburb, Jan 7, 2005.

  1. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    82dieselburb's 76 Jimmy Crawler project [PICS]

    My new years resolution is to get my jimmy done for a spring trip to Tellico:D
    I picked it up last summer and have been slowly working on it.
    I totaly disassembled it and sand blasted the frame.
    I put the 52" springs that were on the rear on the front.
    It now has 63"s in the rear.Should have tons of flex:D :D
    Dana 60 and 14 bolt FF w/disc brakes and planning on F&R Detroit lockers.
    I order some 17" double beadlocks wheels from Stazworks to go with the new 39.5 Irock's I have.I won't get the wheels untill the begining of Feb.
    Rebuilt SM465-203-205 ORD doubler.ORD cross over steering
    I haven't decided which engine I'm going to put in it.I have an extra 6.2 diesel and a sb 400 in my garage.
    I narrowed the rear body 10" and am planning on narrowing the front also.
    In a few weeks I'm going to twist up a full famly cage.
    This weekend I'm planning on replacingthe rusty floor boards with diamond plate and put the doubler set up in so I can measure for new drive shafts.I also need to fab up a double crossmember .I'll post more pics this weekend.

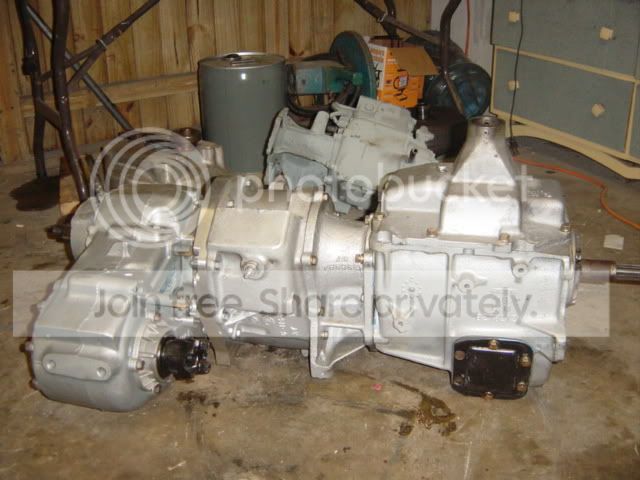

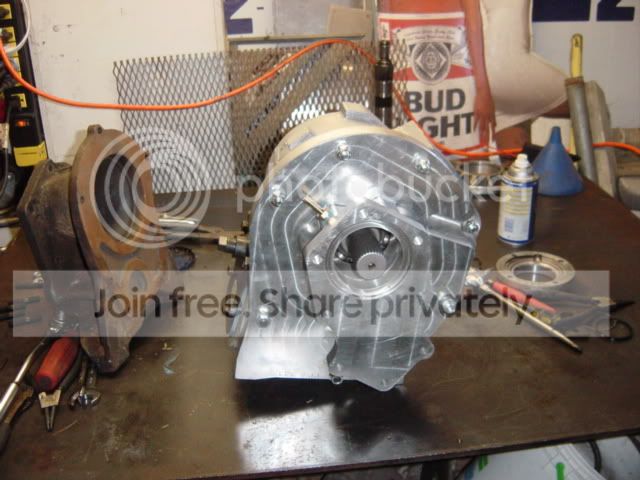

    ORD doubler set up
    [​IMG]

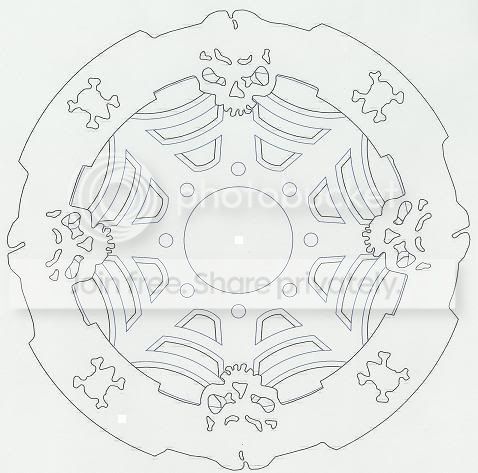

    Cad drawing of my wheelswith skull rock rings
    [​IMG]

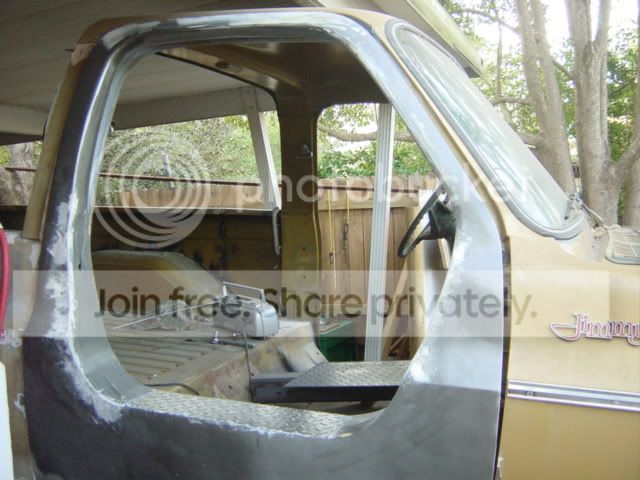

    Half door almost done
    [​IMG]

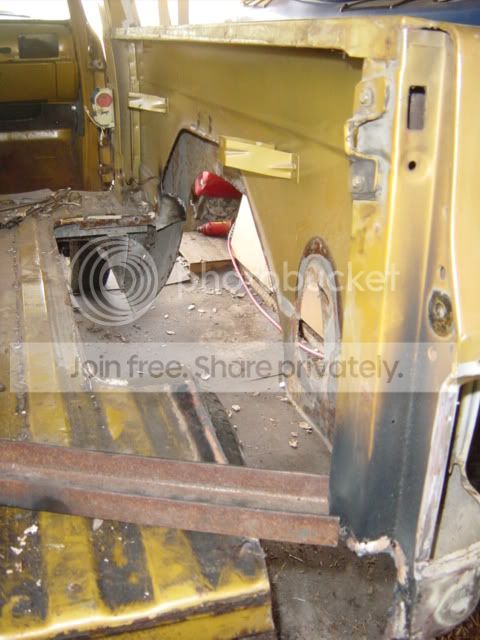

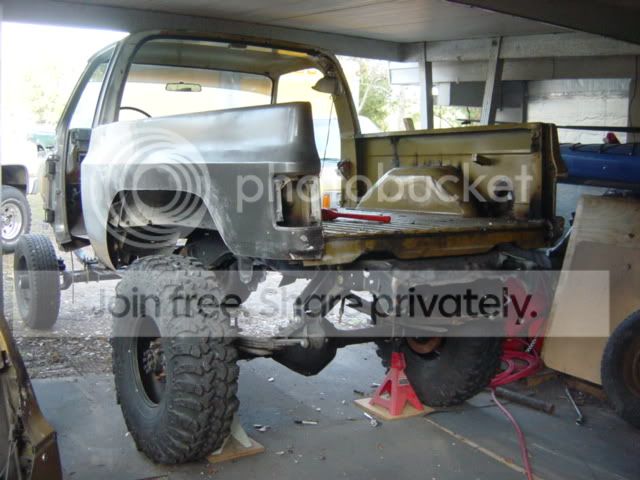

    Hard to tell in this pic Rear narrowed 10"
    [​IMG]
    Note no rear wheels
    [​IMG]

    [​IMG]
    [​IMG]

    Last edited: Jan 8, 2005
  2. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida

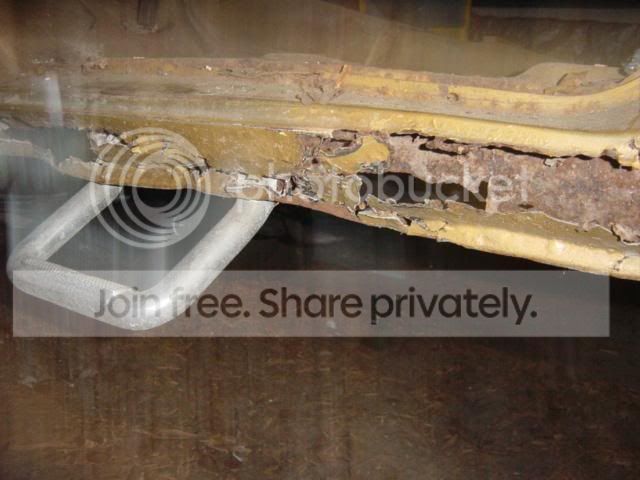

    Here is a before pic

    [​IMG]

  3. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,169
    Likes Received:
    1,372
    Location:
    E-town baby!
    Looks like a 76 or 77 to me...75's were full convertable still.


    Cool project at any rate! I'd drop the 6.2 in there...awesome motors for crawling and already fuel injected. :)

    Rene

  4. BSav

    BSav Registered Member

    Joined:
    Nov 4, 2002
    Posts:
    41
    Likes Received:
    0
    Location:
    South East N.H. USA
    floors

    I would love to see pics of the dimond plate floor, when you are done.

    88 GMC Jimmy, 2in tuff country, chrome wheels for speed:grin:

  5. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    You are correct it is a 76,I'll edit it .I'm leaning toward the 6.2.I just need to get the injection pump rebuilt and new injectors.I need to make a wiring harness for it also,which I don't thing would be too hard.I love my 6.2 in my surburban. :D :D

  6. southernspeed

    southernspeed 1/2 ton status GMOTM Winner

    Joined:
    Dec 24, 2003
    Posts:
    4,395
    Likes Received:
    50
    Location:
    VA
    That's going to look great! You're a brave man!!!

    Love the doors. Won't work over here tho.......too much rain. (and that's just our summers!:mad: )

    post up when you're done, good luck.:waytogo:

  7. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,169
    Likes Received:
    1,372
    Location:
    E-town baby!
    Try www.accuratediesel.com for injector pump and injectors. I got my IP rebuilt and a set of injectors from them for $347 including shipping...and the truck works great. The guys name is Tim and his customer service is second to none.

    Rene

  8. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    I had Tim rebuild my IP and injectors on my suburban.I will use him again,I was happy with his work and the price was right.

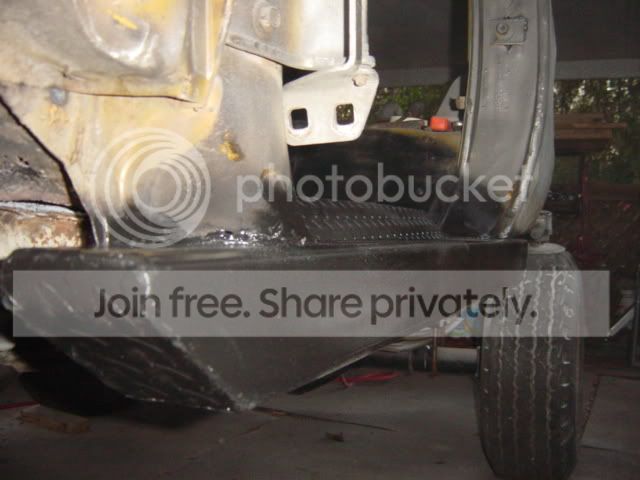

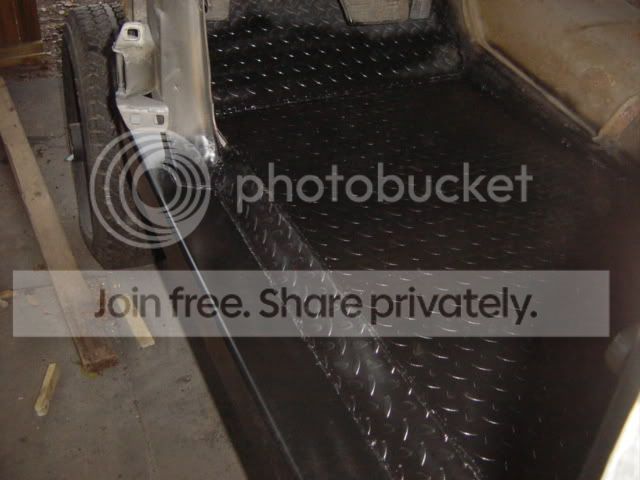

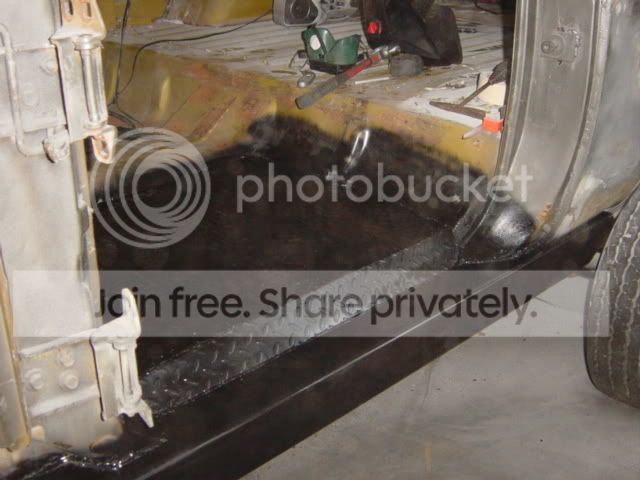

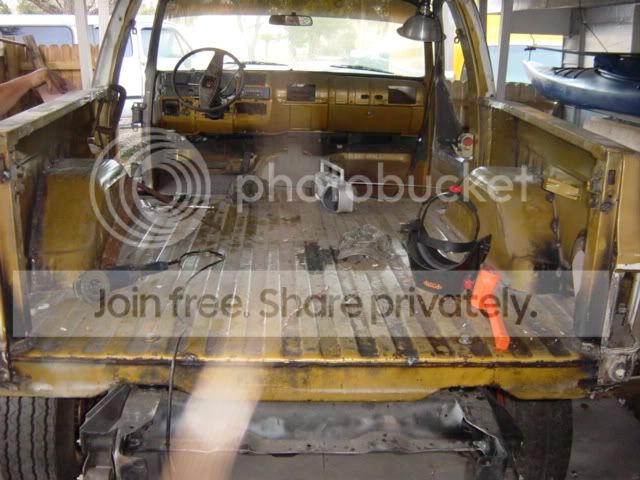

    Well today I got the drivers side floor and slider in.The slider is 5 feet long and made out of 4x4 1/4 inch tube.I'm planning on welding some round tubing on the out side of the sliders.The bottom of the slider sits about 2 inches above the frame rail.I'm planning on tying the slider to the frame with two pieces of tubing with bushing on both sides.
    Before [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

  9. crazytegger

    crazytegger Newbie

    Joined:
    Mar 20, 2007
    Posts:
    1
    Likes Received:
    0
    Location:
    Madison, WI
    Your truck is friggin sweet. What sort of welding are you doing for the cage and sliders?

  10. OffRoad

    OffRoad 1/2 ton status

    Joined:
    Dec 8, 2002
    Posts:
    852
    Likes Received:
    0
    Location:
    New Brunswick, Canada
    your floor and rocker look effing awesome. thanks for posting pics of that. was it as hard as it looks?

  11. BlazerBud

    BlazerBud 1/2 ton status

    Joined:
    Jun 14, 2006
    Posts:
    473
    Likes Received:
    0
    Location:
    Chattanooga
    He has Skilz, it's easy for him. Some good ideas on the doors and floors, I'll keep that in mind.
