Axe and Shovel Mount: My solution.

Discussion in 'The Garage' started by CarnivoreMan, Sep 23, 2006.

  1. CarnivoreMan

    CarnivoreMan Registered Member

    Joined:
    May 29, 2005
    Posts:
    46
    Likes Received:
    0
    Location:
    Ferndale, WA
    Hey all! A while back I began a thread asking about Search & Rescue equipment. One of the topics of conversation was how to mount a fullsize shovel and Axe.

    Well after reading some suggestions and after far too much over-complicating the situation, I have managed to get my shovel and axe mounted sufficiently I believe. We'll find out for sure I guess when I head out on the trail.

    Anyway, I figured I'd share some pictures incase anyone is interested.

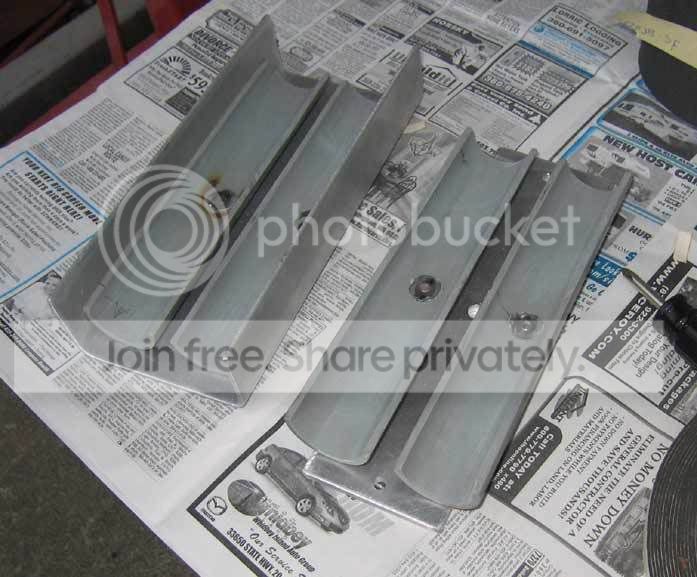

    I found some Aluminium channel and plate down in the barn.. chopped it to about 10". Found some plastic conduit pipe layin around.. cut that to 2 2 pieces about 9" each or so. Then I pulled out my end grinder and cut the pipes in half lengthwise. The aluminium plate will be bolted down to the top of the back wheel well so I needed the base of it to be flat. So, on that piece I countersunk the holes for the screws I'm using to hold the pipe halves on. To fasten the screws to the pipe, I used some little threaded thingies with three little teethies poking out which are intended to sink into and grab wood.. not meant for plastic at all.. buuuut, I used the torch to heat'm up so the little spikes/teeth things would melt into the plastic for a grip.Then I tightened them down tight and ground off the excess screw hangin through so it'd be flush and not interfier with the handle of my shovel or axe. Same on the piece of channel minus the countersinking.
    [​IMG]


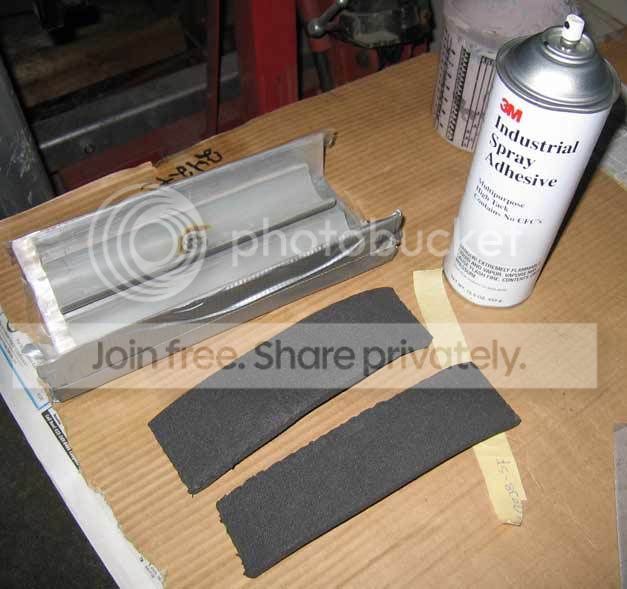

    I used the 3M Spray Adhesive shown here on both the pipe halves and 3/8"(I think.. somewhere around that thickness) foam strips I have sittin there. I then pressed the pieces of foam into the pipe halves. I put the handles of some wieney roaster sticks in place and then a weight ontop of those to keep the foam pressed hard & evenly against the pipe so it would have a chance to dry good.. kinda.. I got impatient after a while though... anyway..
    [​IMG]

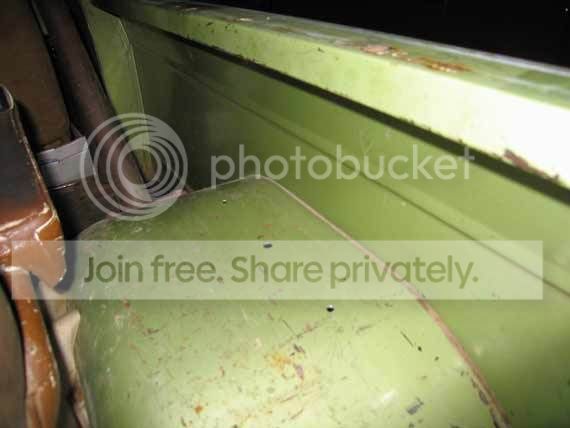

    These are the mountin holes. The outer 2 hold the Aluminium plate down. The center is the stud for torquing down the top halve(the aluminium channel)
    [​IMG]


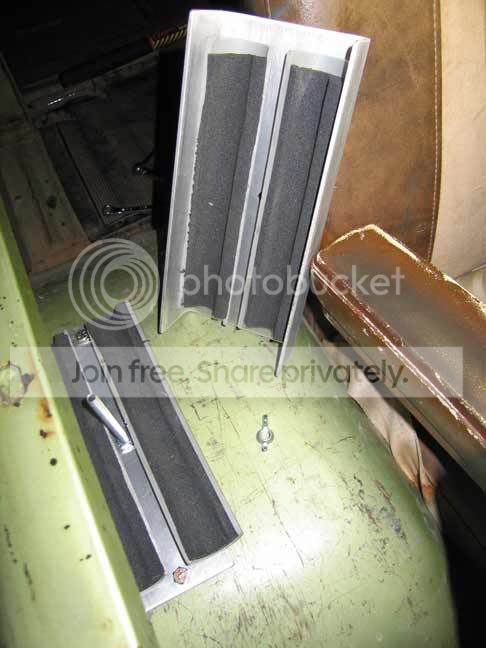

    Bottom half bolted on with the center stud in place.. so pretty much ready to try it out at this point.
    [​IMG]

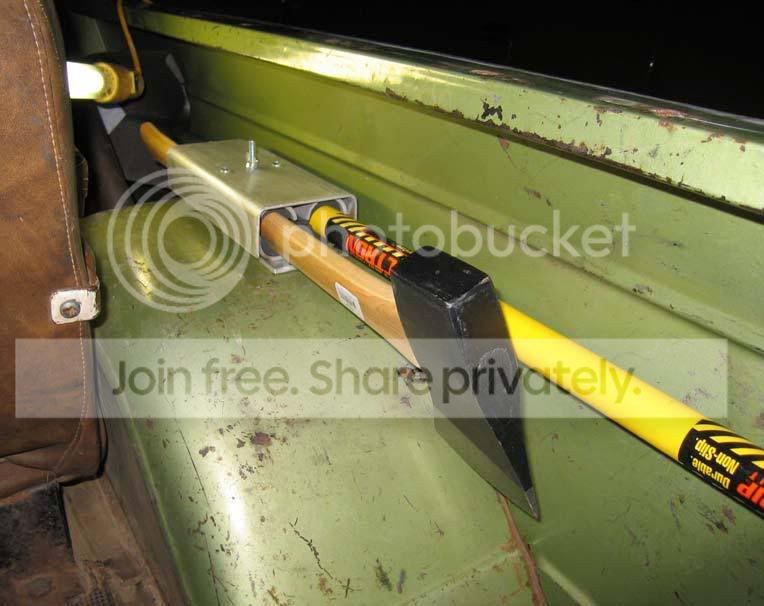

    Shovel and Axe in place.
    [​IMG]


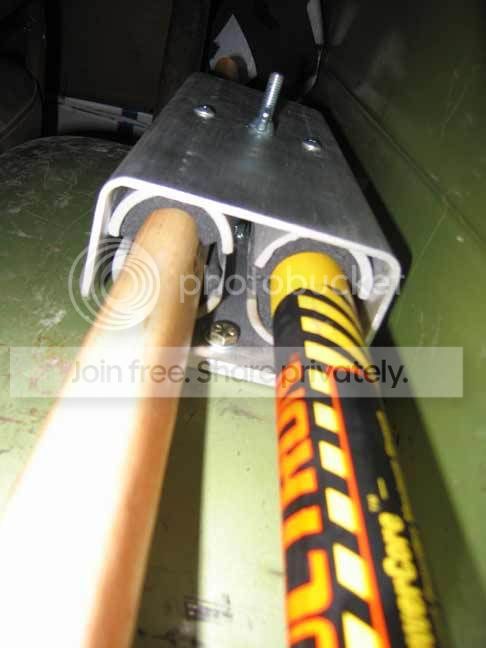

    Better view.
    [​IMG]


    now the head of the shovel is about a quarter inch from the inner fender wall. I was planning to have it like this and will be putting some of the foam on the wall there to snug up the fit and keep the head from bangin around.
    If things flex around too much with bumps I may add a head support for the axe..

    Both tools wobble a little, but they seem like the'll work well. Feel free to ask if you have any questions.


    It was nice to have something turn out moderatly well for once.. =)

  2. CDA 455

    CDA 455 3/4 ton status

    Joined:
    Jun 2, 2006
    Posts:
    8,598
    Likes Received:
    0
    Location:
    43rd State
    Nice work!!

  3. southernspeed

    southernspeed 1/2 ton status GMOTM Winner

    Joined:
    Dec 24, 2003
    Posts:
    4,395
    Likes Received:
    50
    Location:
    VA
    Really neat idea!

  4. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    That looks great. Nice simple design.

  5. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    29,622
    Likes Received:
    1,374
    Location:
    Jersey Shore
    I like... Nice work.... :D

  6. SkulzNBonz

    SkulzNBonz 1/2 ton status

    Joined:
    Feb 20, 2002
    Posts:
    4,522
    Likes Received:
    0
    Location:
    OKC, Oklahoma
    I've been trying to come up with a way to mount my gear. Nice clean idea.

    John

  7. GotLabs

    GotLabs 1/2 ton status GMOTM Winner

    Joined:
    Jul 30, 2005
    Posts:
    2,795
    Likes Received:
    0
    Location:
    Transient, USA
    Cool idea, simple and functional.

  8. badmix

    badmix 1/2 ton status

    Joined:
    Nov 7, 2004
    Posts:
    4,205
    Likes Received:
    60
    Location:
    West Virginia
    Cool idea. I thought long and hard on how to do an axe/shovel mount myself. I ended up getting this mount from an online company that deals with firefighter gear. What I like about your idea is its, easier to get the stuff out. The way mine is mounted, you have to juggle both axe/shovel to get it tight, yours jus lay it down, easy enuff.

    [​IMG]

  9. walla2k5

    walla2k5 1/2 ton status

    Joined:
    Sep 5, 2004
    Posts:
    2,054
    Likes Received:
    1
    Location:
    Walla Walla, WA
    Nice idea,mind if I steal it ??? I did something similar to the second mount for my Hi-Lift.:D

  10. Cricket

    Cricket 3/4 ton status

    Joined:
    Nov 29, 2004
    Posts:
    8,224
    Likes Received:
    0
    Location:
    Colorado
    As Wily E Coyote would say.......Genius.

  11. uao85

    uao85 1/2 ton status

    Joined:
    Jan 2, 2004
    Posts:
    1,867
    Likes Received:
    0
    Location:
    Edge of insanity
    Cool idea, yeah whenever I get my mount setup for a hatchet and highlift, then I will pb be using a dual strap design with a couple of latches out of an old tool box. I will pb be using the same type of rubberized foam for a padding affect though. Good job, looks good.

    Remington

  12. the beast

    the beast 1/2 ton status

    Joined:
    Oct 15, 2003
    Posts:
    535
    Likes Received:
    0
    Location:
    Providence, RI
    Looks good. Nice and clean looking.

    Incase anyone is looking for other options I was turned on to these by a guy in one of my Associations' clubs.

    [​IMG]

    http://www.synergyoffroad.com/Quickfists.html

    They make a larger version too.

    [​IMG]

  13. badmix

    badmix 1/2 ton status

    Joined:
    Nov 7, 2004
    Posts:
    4,205
    Likes Received:
    60
    Location:
    West Virginia
    I actually have a couple of those I got from Cabelas. They seem okay. but really only if ya mount them flat and put some washers to keep any bolts from pulling thru the rubber. That was my first intent when I was researching axe/shovel mounts, once I got them, I decided they werent sturdy enuff for 4x4ing, etc. They may hold up, I dunno. I didnt really do anything with mine, jus sitting in tool box. I may use them to secure a maglight or something like that, but not anything heavy.

  14. chevyfumes

    chevyfumes Court jester

    Joined:
    Feb 24, 2000
    Posts:
    38,584
    Likes Received:
    266
    Location:
    Watch for the muzzleflash!
    Nice....

  15. Metrodps

    Metrodps Strange but nice guy Premium Member GMOTM Winner Author

    Joined:
    Jan 4, 2006
    Posts:
    9,726
    Likes Received:
    108
    Location:
    earth
    Found these I might try to modify the roof rack one \/ and mount inside if I dont run 2 side boxes in rear.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    This is what I will more than likely do using the quick fist. \/
    [​IMG]

  16. lunchbox

    lunchbox 1/2 ton status

    Joined:
    Jan 22, 2006
    Posts:
    309
    Likes Received:
    0
    Location:
    novato,california
    bravo awsome ideas

  17. RockinChevy

    RockinChevy 1/2 ton status GMOTM Winner

    Joined:
    May 9, 2005
    Posts:
    2,313
    Likes Received:
    2
    Location:
    Chandler, AZ
    [​IMG]
    What company supplies this kit? I'm curious and want to look into it before buying.... none of the links are routing me to this kit.

  18. MaxPF

    MaxPF 1/2 ton status

    Joined:
    Apr 13, 2006
    Posts:
    2,207
    Likes Received:
    0
    Location:
    Chandler, Arizona
    All I have to say is :waytogo:

  19. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    I would like that link too.

  20. steve_kibbe

    steve_kibbe 1/2 ton status

    Joined:
    Feb 4, 2004
    Posts:
    2,895
    Likes Received:
    2
    Location:
    Spartanburg, SC
