    I'm sick of my battery trays breaking. My truck sees a lot of Forest service roads on the way to trails. These are usually quite rutted and full of potholes. The constant jarring just beats the crap out of the stock mounting system and creates a serious safety hazard IMO.

    I recently had a small fire when an oil cooler line blew (See "caught my junk on fire"). Not much damage, but in a way it was a blessing in disguise. While the trail fix was going on I noticed that both my battery trays had broken loose.

    So, I could weld up the busted mounts on the trays and bolt them back up with larger washers but I no longer have any confidence that it'll stay fixed for long. It seems like this'd be a good time to move the battery's to a better location. I'm thinking of a couple of recessed wells just ahead of the rear fenderwell. One battery on each side.

    First question is do I have to worry about fumes from the batteries inside the truck? Second question is how much ventilation should a battery have? I can make sealed lids to keep fumes out of the truck if it's needed...and strategic vent holes also.

    Rene

  2. chevyfumes

    chevyfumes Court jester

    Joined:
    Feb 24, 2000
    Posts:
    38,584
    Likes Received:
    266
    Location:
    Watch for the muzzleflash!
    I didn't want to ride in yer stoopid truck anyway...:p:

  3. ryan22re

    ryan22re 1/2 ton status

    Joined:
    Feb 5, 2005
    Posts:
    3,368
    Likes Received:
    0
    Location:
    Irmo, SC
    I'd make sealed lids and vent them to the underside of the truck, or run Optima's.

  4. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,180
    Likes Received:
    1,388
    Location:
    E-town baby!
    Are you lost Rob?

    The Lounge is the second one from the top...:haha:

    Rene

  5. nvrenuf

    nvrenuf NONE shall pass! Premium Member

    Joined:
    Jan 7, 2002
    Posts:
    13,081
    Likes Received:
    250
    Location:
    Mobile, Al.
  6. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,180
    Likes Received:
    1,388
    Location:
    E-town baby!
    No offense, but I'm not about to drop close to $200 US for two plastic boxes...I don't care if their certified by NASA. :haha:

    Rene

  7. ryan22re

    ryan22re 1/2 ton status

    Joined:
    Feb 5, 2005
    Posts:
    3,368
    Likes Received:
    0
    Location:
    Irmo, SC
    I used a Marine battery box from Walmart. If i remember correctly they were less than $20 a pop. Plus a remote battery mount kit (wiring) from Summit. Bought it years ago for another project, but just was a bunch of 1 gauge wiring.

    But mines any Optima in an open top k5, so no worries about fumes.

  8. Emmettology 101

    Emmettology 101 3/4 ton status

    Joined:
    May 9, 2000
    Posts:
    8,126
    Likes Received:
    0
    Location:
    FL
    Ya, if you dont have some sort of sealed battery, I'd put them in a box for extra security from fumes. And for added protection from something possibly falling on them and arching...

  9. Citizen Rider

    Citizen Rider 1/2 ton status

    Joined:
    May 5, 2005
    Posts:
    1,415
    Likes Received:
    0
    Location:
    Plano, Texas
    Wal-mart has plastic marine boxes for around 5 or 10 bucks. I was messing with them the other night and id cut 1 of the clips that hold it down off cause you get one undone and the other doesnt want to let go, Id just strap the top down so it wouldnt go nowhere.

  10. 4X4HIGH

    4X4HIGH 1 ton status Premium Member GMOTM Winner

    Joined:
    Dec 14, 2001
    Posts:
    22,063
    Likes Received:
    70
    Location:
    Pleasanton, CA.
    Your best bet for cables is welding cable, there are many strands of wire and good copper wire to boot.

  11. pauly383

    pauly383 Daddy383 Staff Member Moderator

    Joined:
    Jul 22, 2001
    Posts:
    16,217
    Likes Received:
    1
    Location:
    Mesa , Arizona USA
    In this very old pic ( when just got home ) I found my the P/O on Marvs advice moved the battery here . I do plan on wrapping my exhaust headers , and wrapping the battery with a blanket from Summit .

    [​IMG]

  12. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,180
    Likes Received:
    1,388
    Location:
    E-town baby!
    Thanks guys, good info. Looks like I'll be building a couple of sealed integral boxes for my batteries then. No more having to worry about the trays breaking, and it get's 100+ plus lbs in a lower more central location. Every little bit helps, and I've never been happy with that much weight up that high and so far forward anyways.

    I'll post some pic's when I get it done.

    Rene

  13. liv24wheel

    liv24wheel Registered Member

    Joined:
    Jan 20, 2005
    Posts:
    64
    Likes Received:
    0
    Location:
    Albuquerque, NM
    So when running the wires back to the batteries, should you wrap them in anything if they are being run on the underside of the truck? Or are they ok? Also, do you just run straight wires as they are run factory? Or do you need to do something since their is such a long length of wire and you may loose some power?

  14. cybrfire

    cybrfire 1 ton status Vendor GMOTM Winner

    Joined:
    Dec 15, 2002
    Posts:
    15,142
    Likes Received:
    568
    Location:
    Iowa
    You may want to insulate them if they pass near exhaust in close proximity. Never hurts to use some loom to protect them form rubbing. Definitely protect them if they pass through a hole.

    Use large welding cable like previously mentioned. The bigger cable will have much less loss.

    Don't use the frame as a ground cable.

  15. liv24wheel

    liv24wheel Registered Member

    Joined:
    Jan 20, 2005
    Posts:
    64
    Likes Received:
    0
    Location:
    Albuquerque, NM
    What would be a good way of mounting the batter box behind the rear seat of a K5? I am thinking of making a couple of metal brackets that will slide down over the box then drill holes in the tub, slide bolts through them with washers and weld them to the body then bolting the brackets down. Any other ideas?

  16. jekbrown

    jekbrown I am CK5 Premium Member GMOTM Winner Author

    Joined:
    May 19, 2001
    Posts:
    45,031
    Likes Received:
    366
    Location:
    Vancouver, WA, USA
    venting schmenting.

    [​IMG]

    from summit... $24.99

    j

  17. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,180
    Likes Received:
    1,388
    Location:
    E-town baby!
    I used cable ties and 'P' clamps on the cables underneath the body to keep them where they need to be. I did wrap a few sections with the corrugated wire loom where they go over anything with an edge that might chafe the insulation.

    My longest cable goes to the starter and is only about 18" longer than the stock piece it replaced...but it's much heavier gauge.

    Regarding using the frame as a ground, it might not be ideal but i already had the cables made up and installed before reading that it wasn't the best. FWIW, even using the frame as a ground I have much better cranking speed and shorter 'glow times' when starting the truck now. I will eventually run a pair of ground cables right up to the starter. :rolleyes:

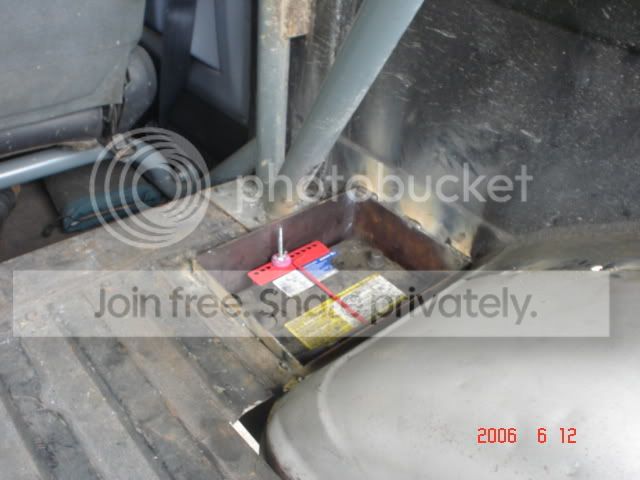

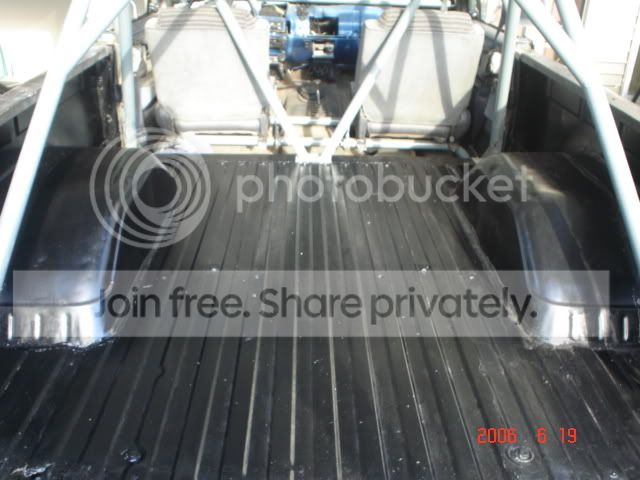

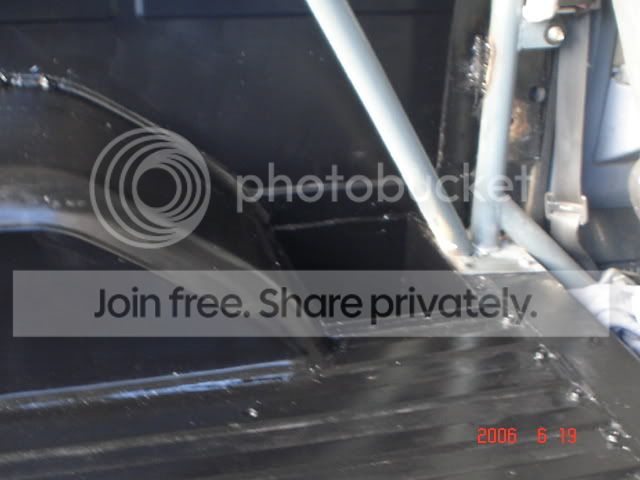

    A couple of pic's:

    [​IMG]

    [​IMG]

    [​IMG]

    I have no fender creaks anymore either, even though i have quite a few bsuted spot welds where the inner and outer parts of the fender meet. Without the weight of the batteries up front there is very little to get the fenders to creak and groan anymore.

    Rene

  18. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    That looks great. How does it look from the outside?

  19. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,180
    Likes Received:
    1,388
    Location:
    E-town baby!
    From the outside.

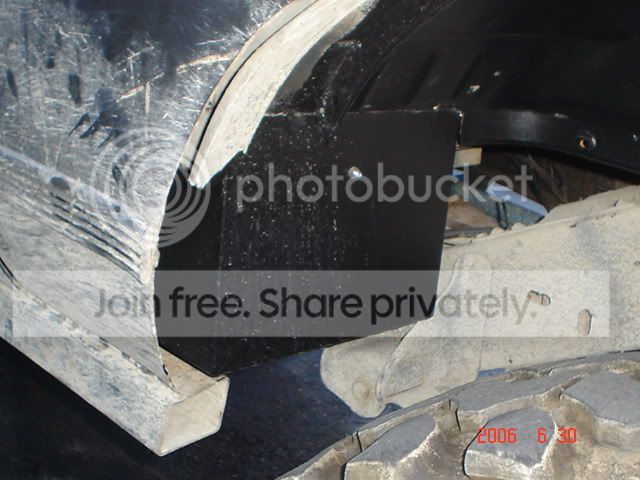

    Driver's side looking forward:

    [​IMG]

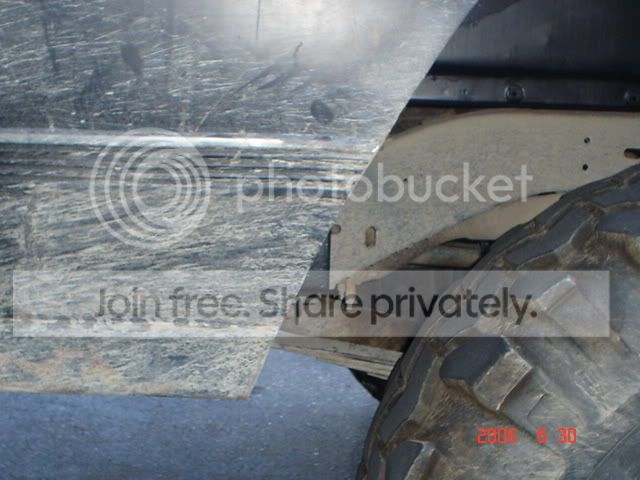

    Dead on from the side, you can just see the bottom corner of the batt box peeking out. My rear fenders are cut pretty agressively though. I plan on some low profile rubber fender edging/flairs in an effort to keep the truck more legalish. :p:

    [​IMG]

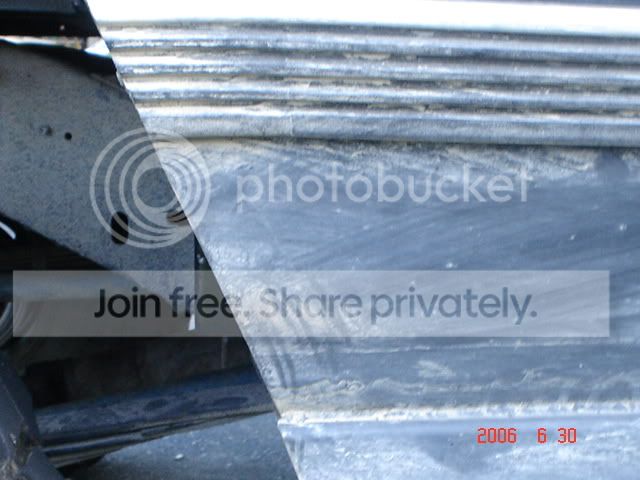

    Passenger side, same view:

    [​IMG]

    Dunno how clear this is, but it shows the fender well edge just about even with the end of the upper shock stud.

    [​IMG]




    Rene

  20. RootBreaker

    RootBreaker 3/4 ton status Premium Member

    Joined:
    Nov 29, 2001
    Posts:
    5,118
    Likes Received:
    173
    Location:
    Williamstown, NJ USA

    and to add to that... search ebay.. I got 3/0 welding cable for $1.70 a foot..... for my winch.... :bow:
