Blown 14bff carrier? (pics)

Discussion in 'The Garage' started by midnitewarya, Dec 18, 2005.

  1. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal

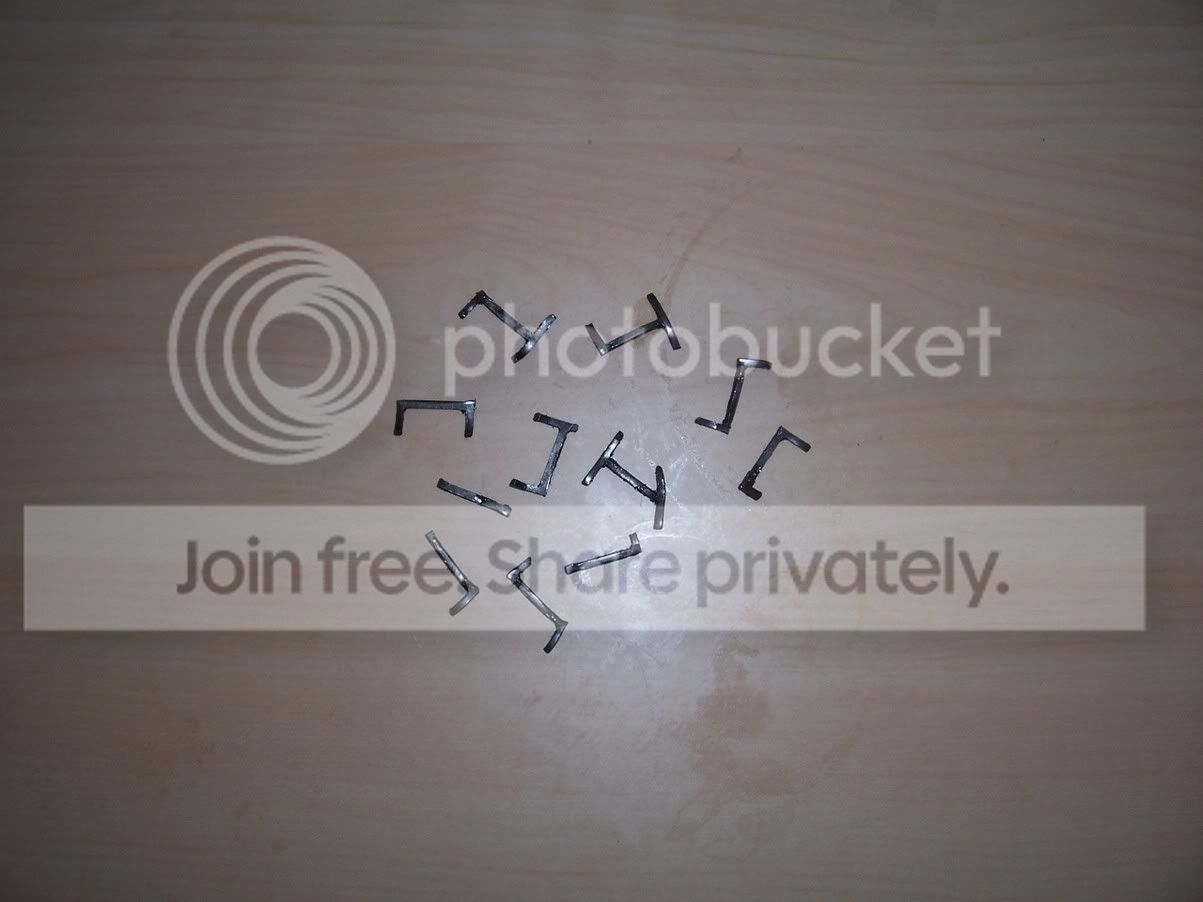

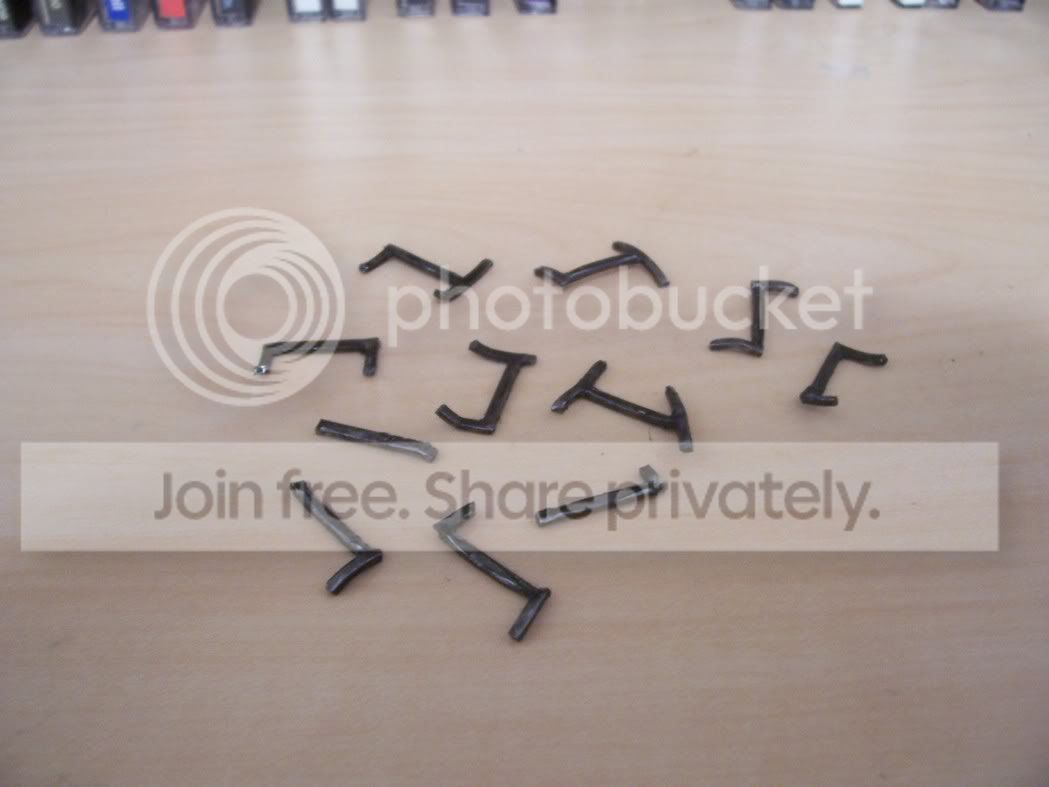

    I'm almost done with my 14bff rebuild. I pulled off the diff cover and found these strange little metal pieces stuck to the magnet. I have no idea what they are and what they are supposed to do. Everything in the pumpkin looks fine, there is no grininding or clicking when I turn the pinion. Anyone know what these things are? It's a '98 14b 3/4 ton.

    [​IMG]



    [​IMG]

  2. stock93

    stock93 Registered Member

    Joined:
    Feb 18, 2004
    Posts:
    68
    Likes Received:
    0
    Location:
    Huntsville, AL
    Those pieces look like bearing cage.

    John

  3. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    If it is the cage, does it require a rebuild? Is it okay to run without it? How does this piece fail (what kind of driving caused it)? Sorry for so many questions. I'm just a little frustrated. My K5 has been parked for 4 months and I thought I was finally at the end of the tunnel.

  4. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    Yep looks to be a bearing cage(or whats left of one). You NEED to re-build it or atleast pull it out and see which bearing is gone and replace it.

  5. 6.2puller

    6.2puller 1/2 ton status

    Joined:
    Jul 8, 2004
    Posts:
    569
    Likes Received:
    0
    Location:
    New England
    It definatly looks like a bearing cage, question is wich one. You definatly need to replace atleast one bearing. I would pull the carrier and check the carrier bearings for starters. Mark the preload spanners befor you back them off and count how many turns on each side you back them off. That way you can put it back and not change the backlash.
    If the carrier bearings are good than it is one of your two big pinion bearings, the small end pinion bearing doesn't use a cage like that so that rules it out.

  6. stock93

    stock93 Registered Member

    Joined:
    Feb 18, 2004
    Posts:
    68
    Likes Received:
    0
    Location:
    Huntsville, AL
    If you need to see a breakdown of the axle go over to pirate4x4.com and look at their 14 bolt tech article. I would suggest replacing all 5 of the bearings while you have it apart. The kit is only around $150 for BCA bearings. You will need access to a press for the bearings. Its not hard to do just requires some patience. Make sure you check the gears closely. Also check their pattern with some marking compound.

    John

  7. sandawgk5

    sandawgk5 3/4 ton status

    Joined:
    Oct 28, 2003
    Posts:
    6,881
    Likes Received:
    1
    Location:
    Kitsap County PACNORWEST
    More than likely it is the third pinion bearing. That is the only one that seems to grenade on its own and would also not provide any indication of a problem as it only supports the "nose" of the pinion. There are no rollers floating around in your dif?

    Ira

  8. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    Nope, no bearings rolling around inside, or any other cage pieces. I think it's from the 3rd pinion bearing. Thanks for all the help guys.

  9. 6.2puller

    6.2puller 1/2 ton status

    Joined:
    Jul 8, 2004
    Posts:
    569
    Likes Received:
    0
    Location:
    New England
    the third pinion bearings I have installed have all been straight needle bearings and not roller bearings that have a cage like in the pic. If the inner pinion bearing went and the 3rd support bearings was good it would not feel bad spinning by hand. It would probably make a lot of noise on the road but your axle is not installed correct?
    I don't think it is the support bearing.

  10. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    No, it's not on yet. It was going to go on over Christmas weekend, but I think that will have to wait. It kind of works out for the better this way. It is a 4.10 and up front I have 4.56. So now I an excuse for the wife to let me get a new ring and pinion and bearings. :wink1:

    Al

  11. sweetk30

    sweetk30 professional hooker Premium Member

    Joined:
    Nov 1, 2004
    Posts:
    25,536
    Likes Received:
    532
    Location:
    horseheads , ny 14845
    all the older axles used the rollers, then the change was in that bearing i think.

  12. HarryH3

    HarryH3 1 ton status Author

    Joined:
    May 31, 2000
    Posts:
    10,384
    Likes Received:
    2
    Location:
    Georgetown, TX
    Looks just like the pieces that the pinion support bearing spit out on my 1974 14 bolt FF. :(

  13. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Yep, definitely cage pieces, that is a very bad thing. Saw those in my wheel bearing one time, that truck was all over the road in a scary way.

  14. afroman006

    afroman006 1/2 ton status

    Joined:
    Aug 21, 2002
    Posts:
    2,876
    Likes Received:
    0
    Location:
    College Station & Kingsville, Texas
    I can almost garuntee its the third pinion bearing. I've seen two come apart in the diff myself and one was in my DD crewcab. There was absolutely no indication anything was wrong untill I popped the cover for a routine fluid change. Luckily its a fairly easy repair.
