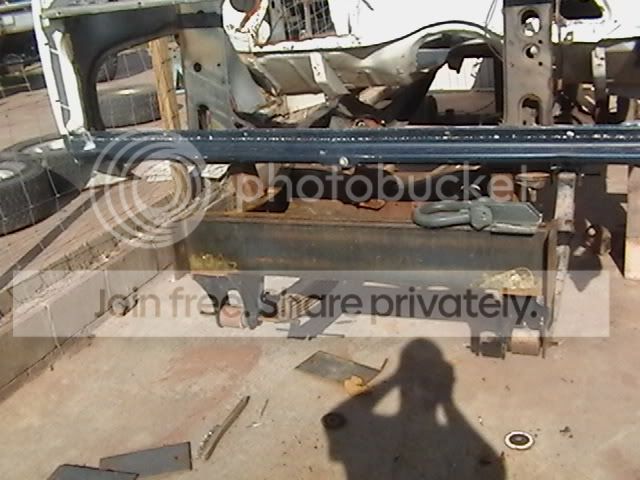

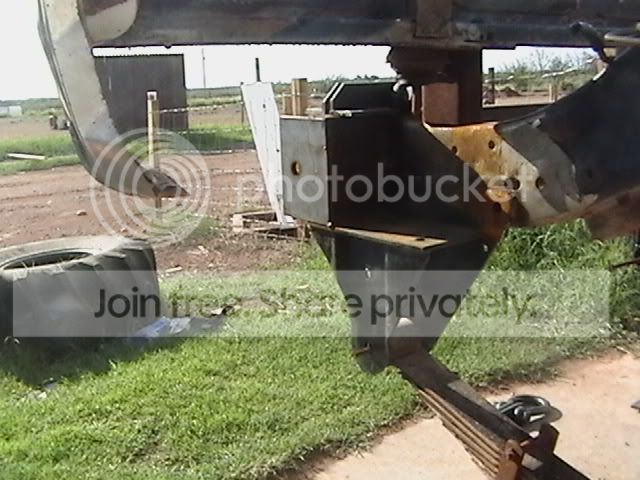

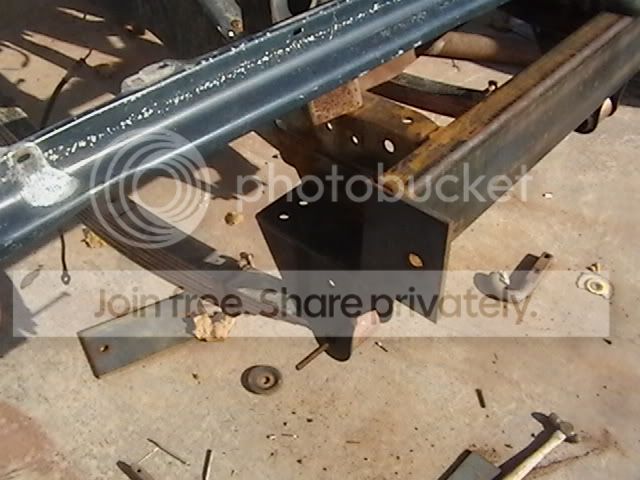

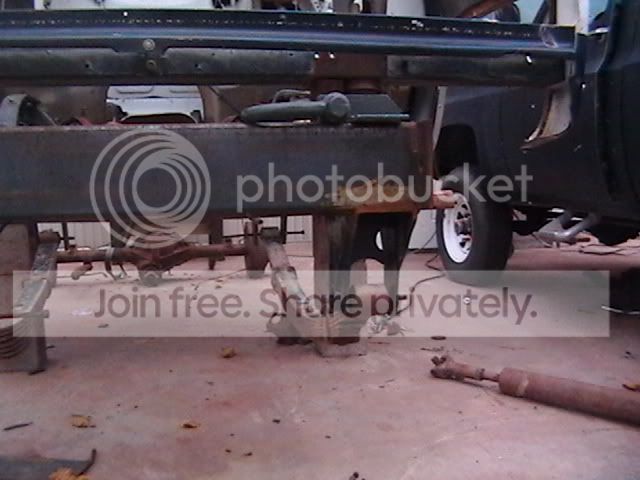

    Well I was half way through my 56" spring swap on my the front of my K20 Bogger project . I got to mocking up the front hangers and I said to my self " Self , this **** ain't gonna be stout enough" and my Self replied "your right better beef it up some".
    So I figured I'd go with a B-52 kit from DIY.... not a bad price but I need a little more "beef" about that time My buddy drops buy and gives me a set of Fabtech front spring hangers for a Super Duty and says "hey man you should put these on your F-350" cool I thought I'll just buy the rest of the kit and......... "aw ****" I'm planning on trading the Ford on a new 6.7 Cummins -no sense putting money in this thing. So I got these brackets and a welder and nothing to do on a Saturday.................
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

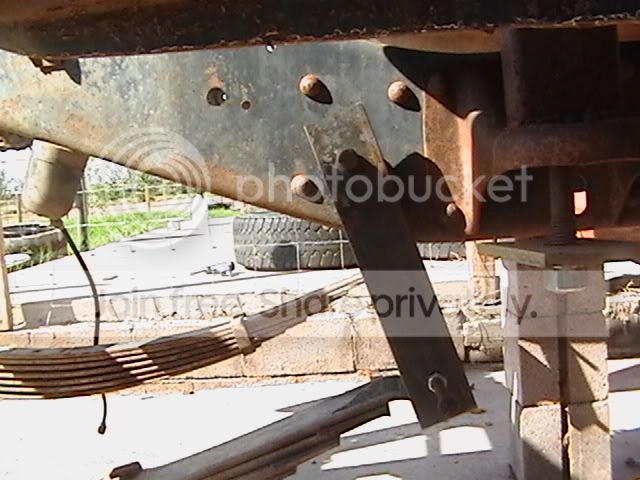

    Ok my welds suck this I know I have a hard time welding vertically and all my rod is very old . and the square tube is for "mock-up" purposes only . it's gonna have a 3" Body lift. I'm also welding outside ..... dodging monsoons any Ideas/complaints????? I'm a bit concerned about my shackle angle it seems to much for absolutely no load

  2. Citizen Rider

    Citizen Rider 1/2 ton status

    Joined:
    May 5, 2005
    Posts:
    1,415
    Likes Received:
    0
    Location:
    Plano, Texas
    Did you move the front hangers forward any? That angle is alot, with load its gonna be all up in that body mount.

  3. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,602
    Likes Received:
    553
    Location:
    Wasilla AK,
    yeah there actually 1/2" forward of were the "stock" brackets would be if swapped to the front of the core support mount I might end up using a set of 52" springs instead of the 56"
    I'm also going to be grinding the front cab mounts of and moving them up to flush with the top of the frame which should give me enough room ??????

  4. beater_k20

    beater_k20 Banned

    Joined:
    Dec 9, 2003
    Posts:
    10,276
    Likes Received:
    0
    Location:
    Elkhart, IN
    nice body lift. :rolleyes:

  5. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,602
    Likes Received:
    553
    Location:
    Wasilla AK,
    like I said for "mock up purposes only" the P.O. did that they were welded to the frame.

  6. Slapperbar

    Slapperbar Retired Navy NDT Examiner Premium Member

    Joined:
    Nov 29, 2005
    Posts:
    2,747
    Likes Received:
    3
    Location:
    Harrison City, Pennsylvania
    Bake the rod in the oven for a few hours to dry it out. That'll help.

  7. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,602
    Likes Received:
    553
    Location:
    Wasilla AK,
    Thanks I'll try that I've got like 20 pounds of it hate to throw it away I bought a big tupperware container to keep it in the other day so this don't happen again

  8. beater_k20

    beater_k20 Banned

    Joined:
    Dec 9, 2003
    Posts:
    10,276
    Likes Received:
    0
    Location:
    Elkhart, IN
    also, if you really plan on running a shackle that long, you may consider crossbracing the plates, looks like you'll pretzel them in no time.

  9. SCOOBYDANNN

    SCOOBYDANNN 1/2 ton status

    Joined:
    Sep 4, 2001
    Posts:
    2,129
    Likes Received:
    21
    Location:
    El Paso, TEXAS
    I think you will be happier if you move the front hanger foreward, or since you are relocationg the body mount move the shackle hanger to where with no weight on it it is at a 90.

    looks good

  10. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,602
    Likes Received:
    553
    Location:
    Wasilla AK,
    Beater,the shackles are 1/2 inch barstock and are only 7.5 " between the holes (1/4" more than DIY shackles ) they shouldn't bend ..... but they will get a crossbar anyways
    Scooby, That's a good Idea about movig the rear mount i think what happen is that I didn't account for the front of the spring being lower now even though the hole is forward of where it would be using the relocated stock brackets I think that's what's pushing my shackle angle back so far
    as it sits via plumb bob measuring form a referance point on the frame (center hole of the bumpstop mount) the front axle will be 3" forward of the stock location

  11. beater_k20

    beater_k20 Banned

    Joined:
    Dec 9, 2003
    Posts:
    10,276
    Likes Received:
    0
    Location:
    Elkhart, IN
    they look so much longer than my 6.25" shackles did. how wide are they? are those 9/16" bolts?


  12. beater_k20

    beater_k20 Banned

    Joined:
    Dec 9, 2003
    Posts:
    10,276
    Likes Received:
    0
    Location:
    Elkhart, IN
    the fact that mine were moved forward in the frame might have something to do with that too. :dunno:

  13. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,602
    Likes Received:
    553
    Location:
    Wasilla AK,
    2" wide 1/2" barstock 7.5" from center to center the bolts are just junk I had laying around in fact one of them is a broken Allen wrench:eek1: the whole truck is in "mock up" I'll be pulling it apart for paint and the Cab will be having the cage Insatlled and then replaced

  14. beater_k20

    beater_k20 Banned

    Joined:
    Dec 9, 2003
    Posts:
    10,276
    Likes Received:
    0
    Location:
    Elkhart, IN
    hmmm, mine were actually 7.25" ctr to ctr. i just came across the post in the classifieds from when i sold my bushings.

  15. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,602
    Likes Received:
    553
    Location:
    Wasilla AK,
    It's kind of an Eyef#ck really I made them 11" overall that way I could round of the corners and still have plenty of material that might be what makes them look longer
