Can you name this cross member?

Discussion in 'The Garage' started by chvyhs, Mar 27, 2004.

  1. chvyhs

    chvyhs 1/2 ton status

    Joined:
    Feb 12, 2001
    Posts:
    1,469
    Likes Received:
    0
    Location:
    Murrieta, California
    This is the cross member I'm using under my Doubler adapter. The holes line up real well. I need to know which mount to buy.

    [​IMG]

    [​IMG]

    Here's the big pics:
    Fullsize pics

  2. Muddytazz

    Muddytazz 1 ton status

    Joined:
    Jun 30, 2002
    Posts:
    20,073
    Likes Received:
    0
    Location:
    Salem, Or.
    Looks like a 203 crossmember to me...I don't have a doubler, but i believe the 203 crossmember is what you need.

  3. CyberSniper

    CyberSniper 1/2 ton status Premium Member

    Joined:
    Apr 21, 2003
    Posts:
    2,257
    Likes Received:
    5
    Location:
    Chelsea, MI
    Looks like the one on my 84K10 with 700R4/NP208 and no skidplate.

    There are two pieces of rubber that go underneath that are rectangular and two pieces shaped like a "C" that straddle the crossmember on top. Somewhere I have pictures but I can't seem to find them.

    Anyway, the holes in it look like mine.

    EDIT:
    Found them.

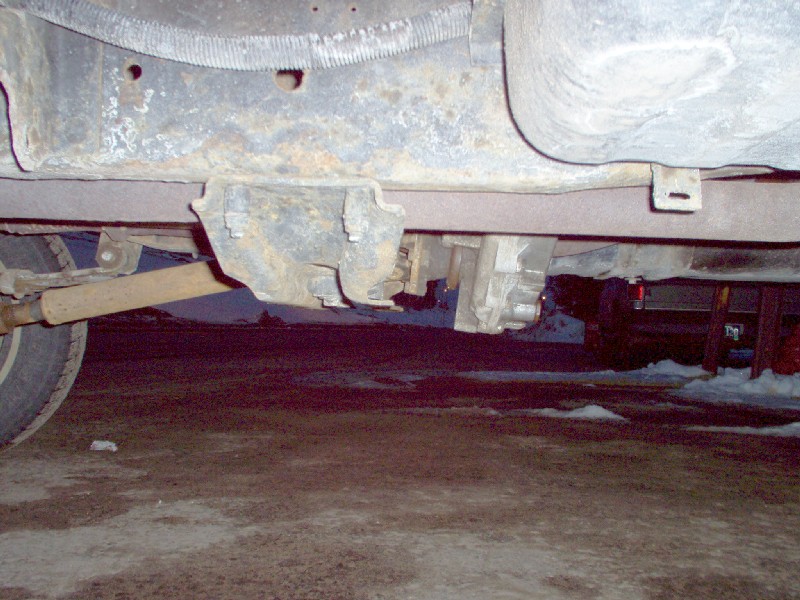

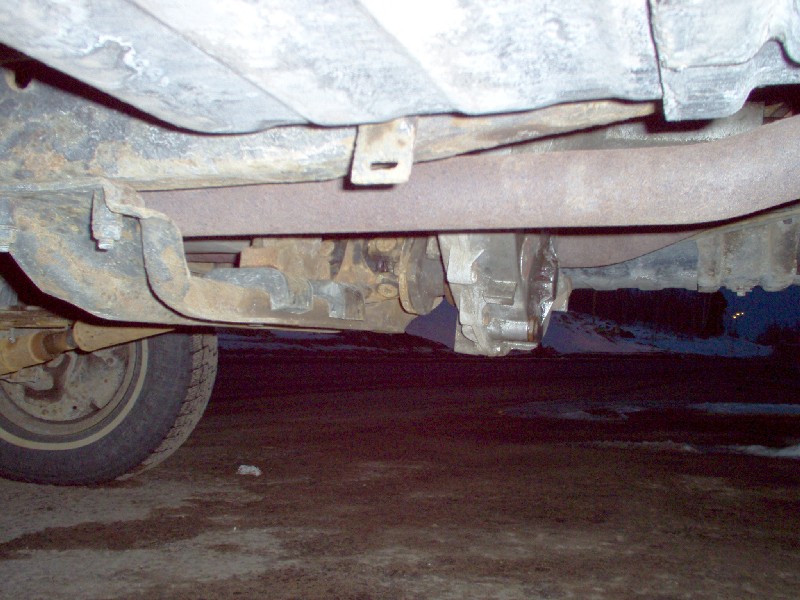

    [​IMG]
    [​IMG]

  4. chvyhs

    chvyhs 1/2 ton status

    Joined:
    Feb 12, 2001
    Posts:
    1,469
    Likes Received:
    0
    Location:
    Murrieta, California
    I thought the cross member is out from under a 203 or 208. I can't remember. I did have one piece of a rectangular mount and I do have the rectangular skid plate.

  5. thatK30guy

    thatK30guy 1 ton status Premium Member

    Joined:
    Jan 12, 2001
    Posts:
    32,076
    Likes Received:
    55
    Location:
    .
    There is no such thing as a specific crossmember for each t-case. They are separated by the years.

    Up to '84 are all "flat" crossmembers like the pictures show. But the '81 to '84 crossmembers are flat and look a little different than the '80 and older members. Either will work as both are flat. The 203, 205 and 208 t-cases were all employed on these flat crossmembers. All will interchange with the other.

    The '85 and newer crossmembers are a different design. They look like "double humps". You cannot use an '84 or older t-case adaptor on the '85 and newer crossmember.

    1 ton crossmembers up to '84 are flat but different as they are shorter in heigth to compensate for the frame height. Again, the 1 ton members will not work because they will put your t-case up higher if you use one on anything other than a K30/3500.

  6. 84_Chevy_K10

    84_Chevy_K10 Banned

    Joined:
    May 30, 2001
    Posts:
    17,669
    Likes Received:
    0
    Location:
    IL, USA
    All figure 8 pattern trucks use the same crossmember and trans mounts.

  7. MTBLAZER89

    MTBLAZER89 3/4 ton status GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    237
    Location:
    Oak Harbor, WA
    I just bought mounts for my X-member just like that. I told them it was for an 82 K5 with a TH350. You need two uppers and two lowers. About $25 at Autozone. /forums/images/graemlins/peace.gif

  8. pauly383

    pauly383 Daddy383 Staff Member Moderator

    Joined:
    Jul 22, 2001
    Posts:
    16,217
    Likes Received:
    1
    Location:
    Mesa , Arizona USA
    Copy and paste from my post on the post-your-part-numbers thread:

    Tranny/case mounts @ Autozone 2 pieces: #2107 and #2108. You need 2 of each, 1 set for each side of crossmember. Made all the difference after swapping out oil soaked spongy original mounts. These are for 700r4 and np 208 combo 82-85. May fit other trucks.


    /forums/images/graemlins/thumb.gif

  9. chvyhs

    chvyhs 1/2 ton status

    Joined:
    Feb 12, 2001
    Posts:
    1,469
    Likes Received:
    0
    Location:
    Murrieta, California
    I'm running poly engine and tranny mounts. I want poly for this mount too. Does anyone have the number for the poly mounts?

  10. pauly383

    pauly383 Daddy383 Staff Member Moderator

    Joined:
    Jul 22, 2001
    Posts:
    16,217
    Likes Received:
    1
    Location:
    Mesa , Arizona USA
    Right off of Energy Suspensions site Click me for list of Poly Bushings I run their greasable swaybar bushings and they work well. I ran their bushings on stock springs for 2 years and they still look good (in my yard). I run Autozone rubber on trans mounts as that what my motor mounts are.


    1985-00
    Transmission Mount (V8- automatic transmission)
    3.1129

    1968-84
    K10, K20, K30 Transmission Mounts (2 per set)
    3.1106

    1983-00
    Motor & Transmssion Mount Set, includes 2 motor mounts & one transmission mount (V8 w/automatic transmission only)
    3.1131

    1960-75
    K10, K20, K30 Transfer Case Torque Arm Mount
    3.1107 <font color="red"> </font>
