Coil spring conversion progress pictures

Discussion in 'Vendor Forum' started by balterbuilt, Jul 26, 2006.

  1. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    here is some floor mock up pictures, still need to make some brackets for the track bar and rod ends

    [​IMG]
    [​IMG]

  2. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    1
    Location:
    Ct
    how much lift?

  3. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    how much you want? It's adjustable up to around 15"

  4. BL1TZKRIEG

    BL1TZKRIEG 1/2 ton status

    Joined:
    Jan 4, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    OREGON
    thats badass
    how much is the final going to go for ?

  5. chosen(1)

    chosen(1) 1/2 ton status

    Joined:
    Nov 19, 2002
    Posts:
    206
    Likes Received:
    0
    Location:
    Michigan
    Track Bar? Why not triangulate and eliminate it?

  6. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    simplicity and lower cost to the customer. No final price as of right now, but i think it will be hovering about 1300.00. I started tearing down the truck today but due to lack of motivation (and a hangover) i didn't get far :doah:

  7. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    sitting on coils now, yee haw:D

    [​IMG]
    [​IMG]
    [​IMG]





    I used to work for a bank stacking dimes professionally

    [​IMG]

  8. muddermilitia

    muddermilitia ThatTrazerGuy GMOTM Winner

    Joined:
    Nov 10, 2005
    Posts:
    5,742
    Likes Received:
    76
    Location:
    NE Illinois
    Looking good, can't wait to see some flex pics. What are those springs out of?

  9. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    a jeep...hahahahaha. But no seriously they are out of the front of a jeep wrangler rubi. perfect for a blazer with a lgiht rearend. For the big boys with the big tires etc. I might be offering a heavy duty kit with some 2" tube larger heims, and stiffer springs.

  10. TRAILTOYZ

    TRAILTOYZ 1/2 ton status

    Joined:
    May 21, 2005
    Posts:
    106
    Likes Received:
    0
    Location:
    Wasilla, AK
    Sweet looking innovation there. You should add a couple simple tabs for limit straps. Think you'll need a track bar to eliminate side to side movement?

    Last edited: Aug 3, 2006
  11. neverendingproject

    neverendingproject 1/2 ton status

    Joined:
    Jul 24, 2005
    Posts:
    1,637
    Likes Received:
    0
    Location:
    Tulsa, OK
    Does that track bar bolt up to the stock spring location?

  12. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    yeah there is going to be a panhard rod, just haven't had time to build it yet. The links mount to the stock front springs hnager ,but you have to cut the rivets off and move it forward about 18" because the links are 4' long. Limiting straps will probably be needed. Not sure if the 'ol rubi jeep srpings will be stiff enough, but i will enjoy the overly soft ride for a while just for a change from the way too stiff springs! Ugh, i can't wait for the floating feeling.

    I think this kit will be adaptable to the front axle (with heavier springs) but i'm going to keep leafs up front for dependability. I think with all the issues involved around doing link front it's not worth it, just use some 52, or 57's out of a dodge for super flexyness.

  13. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    alrighty, made a little progress today... got the links done, decided to change the design from the super beefy way I was going to do it to a more high clearance design. Should be stout enough...that's what testings for!
    also started making the panhard bar mounts on the frame. Tomorrow if i have time I will make the panhard bar mount on hte axle then make the panhard bar. The drivers side should go together in no time once all that's done...right :blink:
    [​IMG]
    sorry bout the blurry picture :crazy:
    [​IMG]
    [​IMG]

  14. sledheadak

    sledheadak 1/2 ton status GMOTM Winner

    Joined:
    Apr 29, 2005
    Posts:
    1,283
    Likes Received:
    1
    Location:
    anchorage,alaska
    any updated pic? the old ones dont show anymore

  15. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa

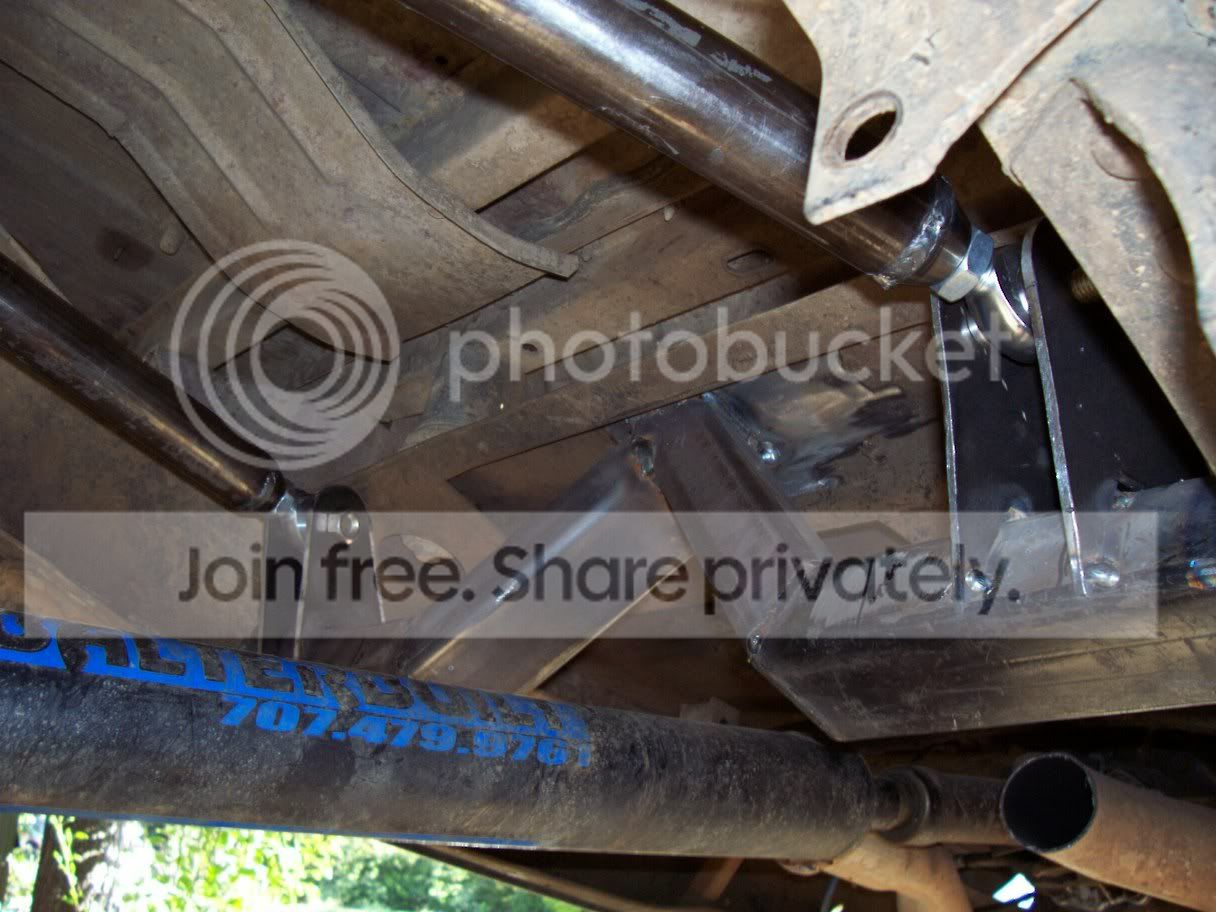

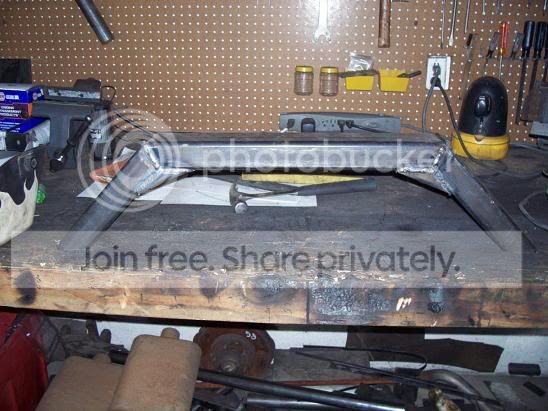

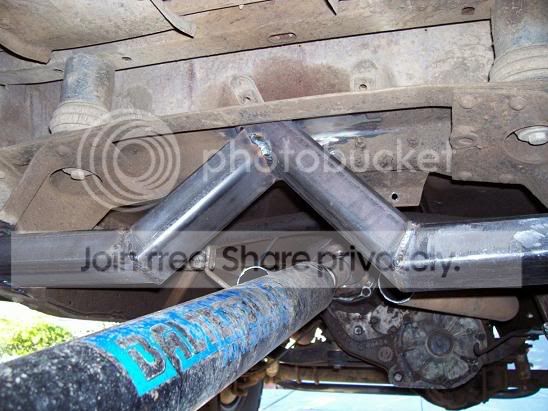

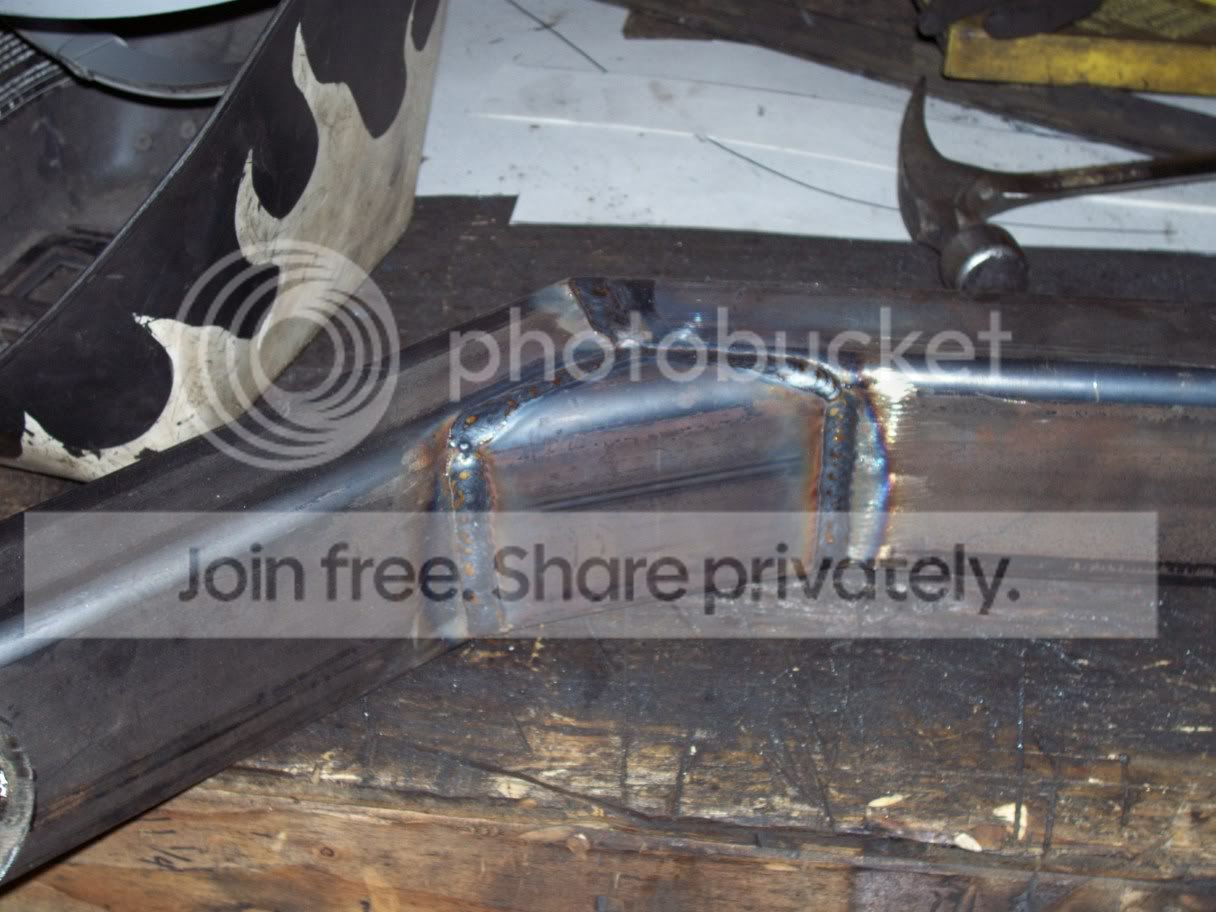

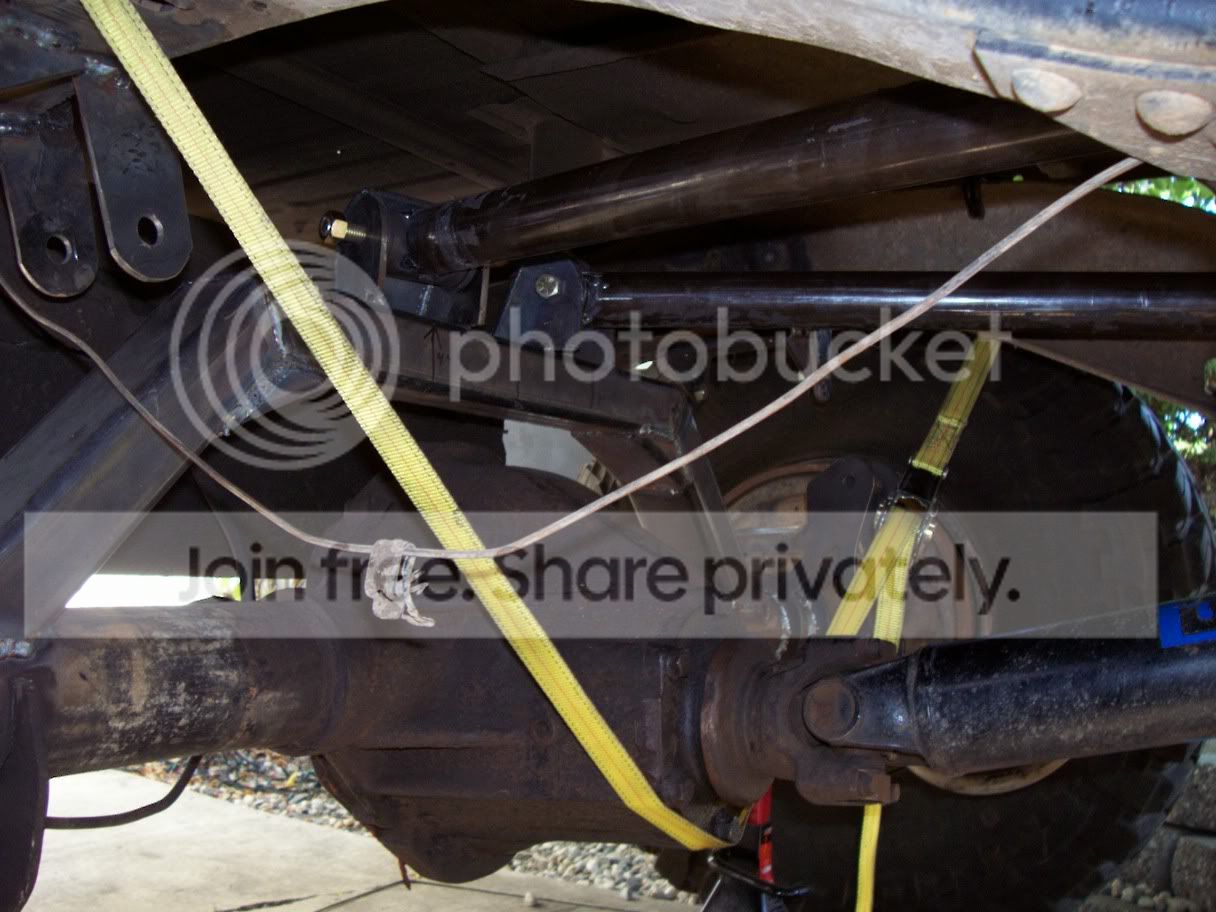

    unfortunatly i have been delayed from waiting for parts but here are some pics of the axle bridges and upper link, might have it done begining of next week or over the weekend....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  16. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa

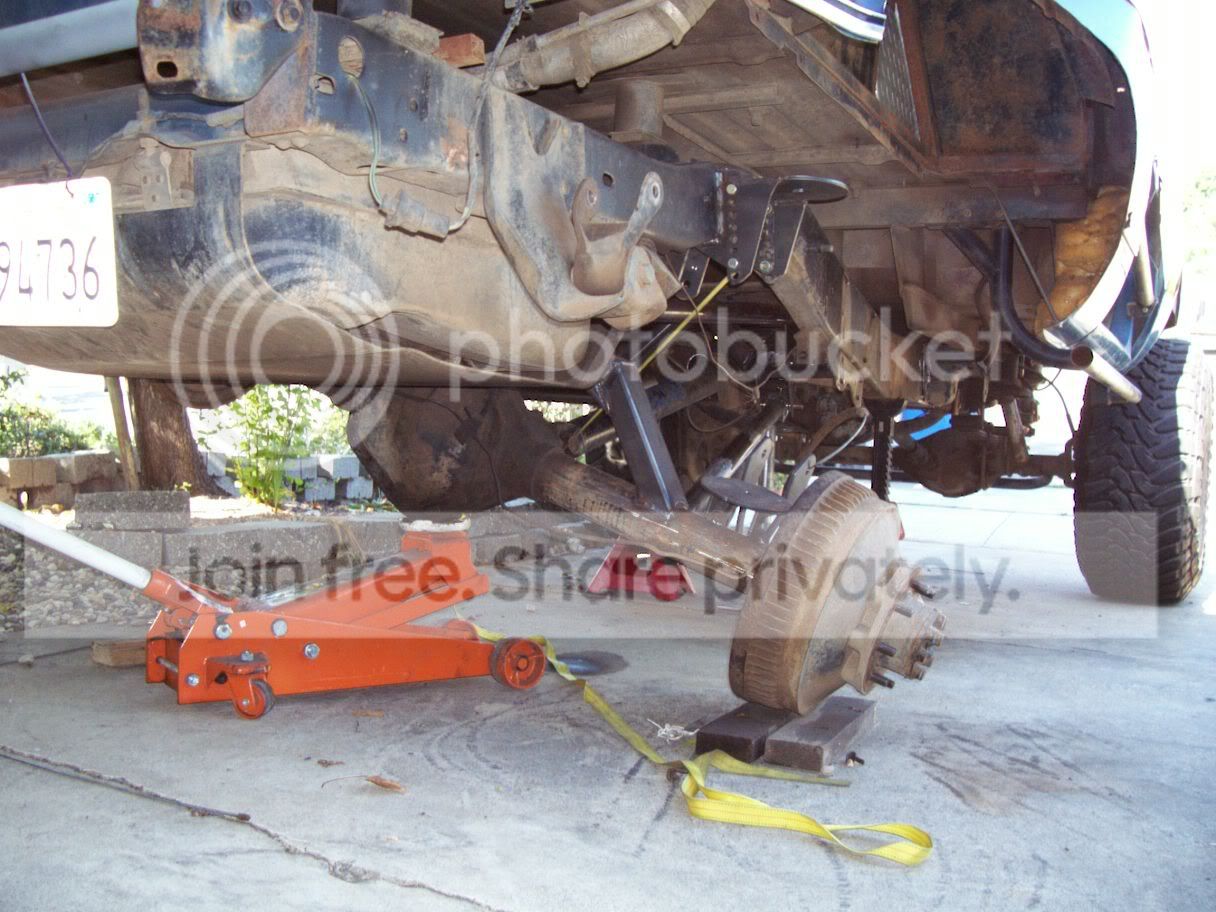

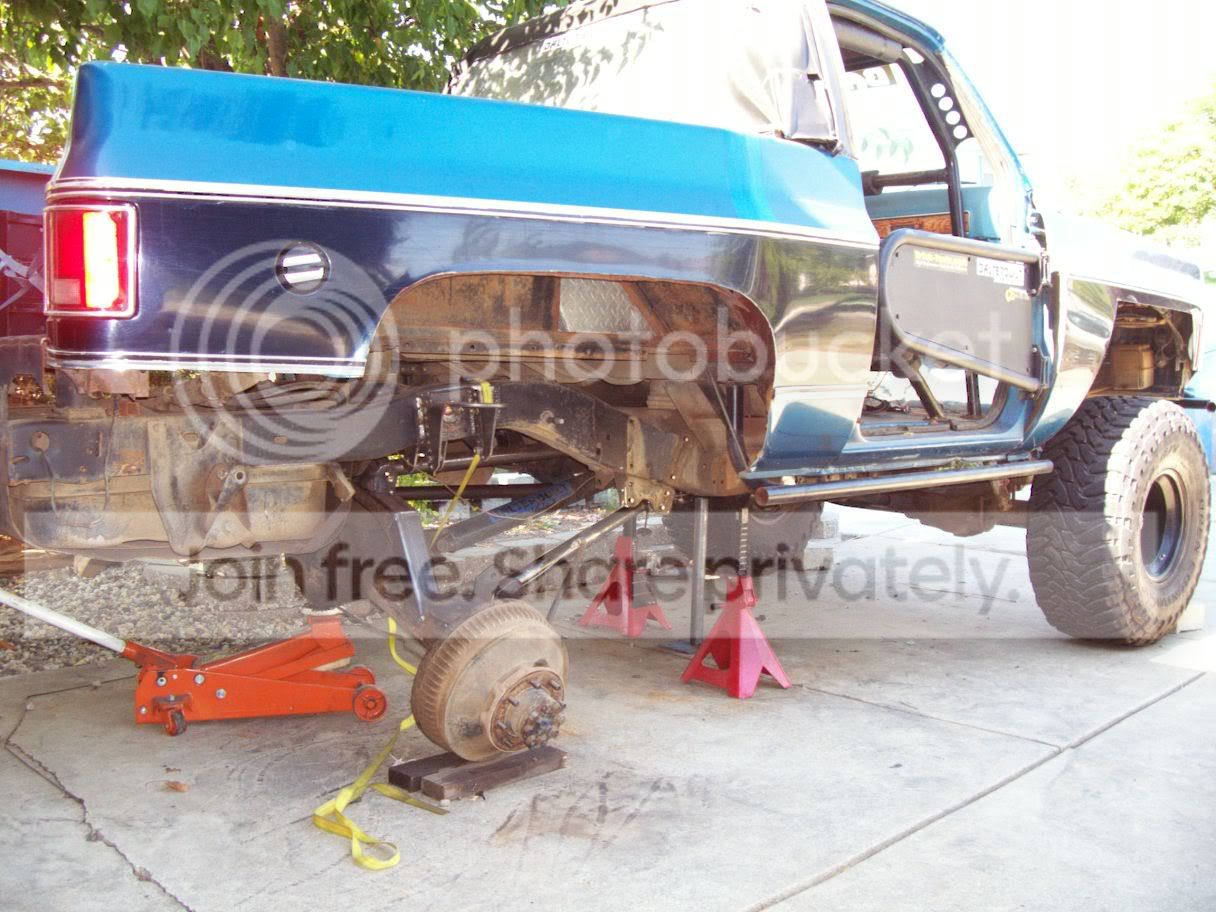

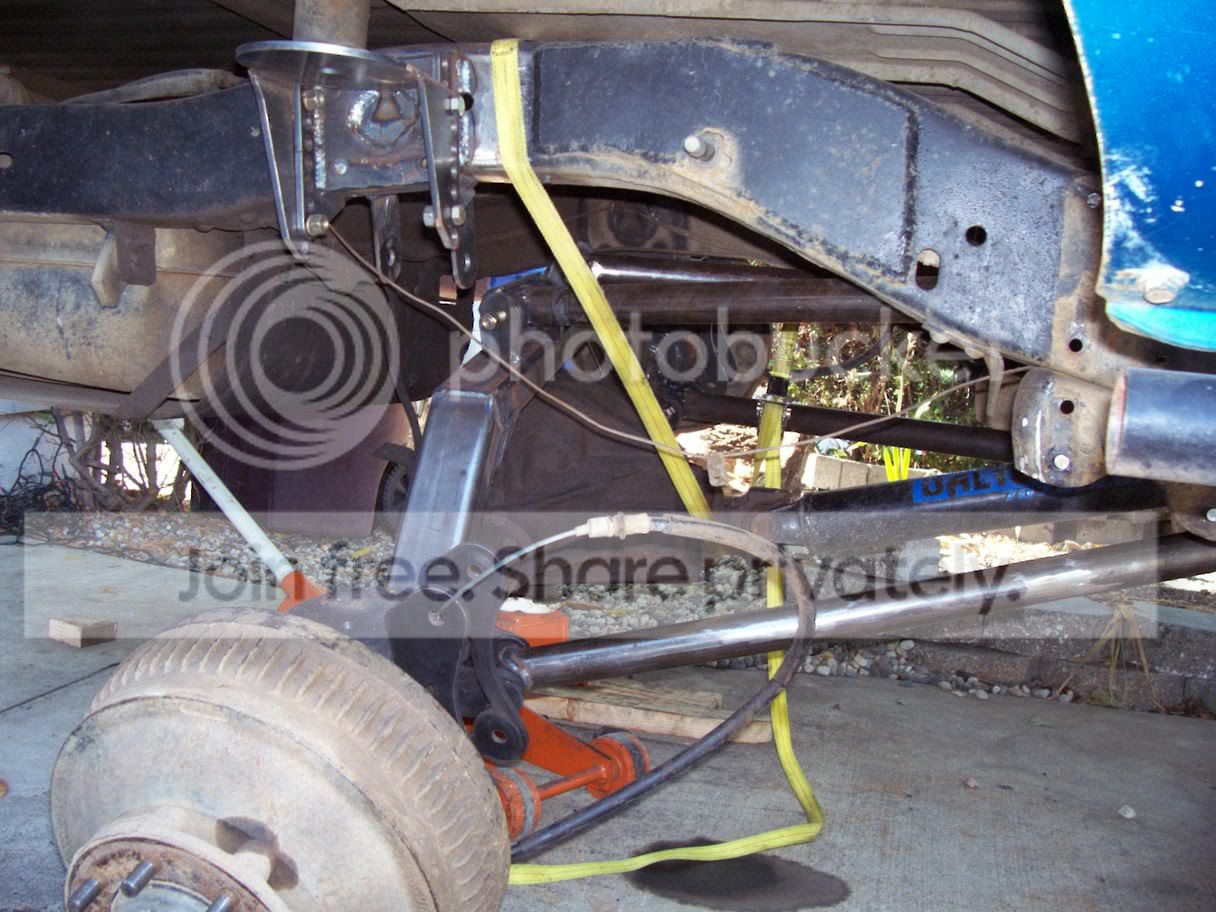

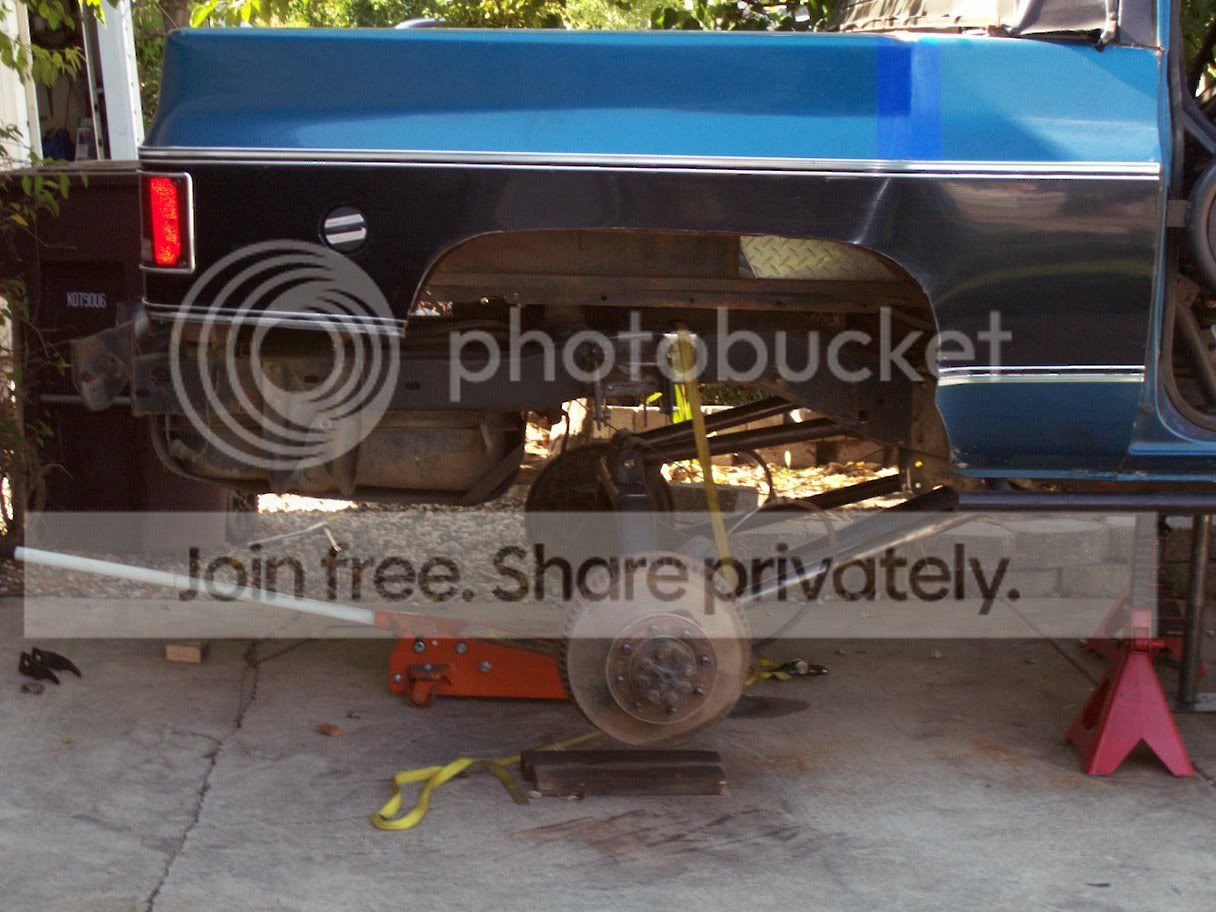

    flexed it out today. Only thing that kept it from articulating was the ground. I couldn't make it bind up, seems to have lots of travel got about 20" verticle until the axle hit the ground. We'll see what it gets with the shocks and springs on it.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  17. TeK

    TeK 1/2 ton status

    Joined:
    Jan 3, 2005
    Posts:
    170
    Likes Received:
    0
    Location:
    Greenwood, IN
    think this would work with a set of 14" Travel coilovers?

  18. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    yes definetly

  19. TeK

    TeK 1/2 ton status

    Joined:
    Jan 3, 2005
    Posts:
    170
    Likes Received:
    0
    Location:
    Greenwood, IN
    well how much longer till this is ready for production and how much $$$$. I'm needing a rear setup for my truck.

  20. balterbuilt

    balterbuilt 1/2 ton status

    Joined:
    May 10, 2004
    Posts:
    385
    Likes Received:
    0
    Location:
    Santa Rosa
    :Dnot sure still need to take her out and beat it fro a bit....oh get your minds out of the gutter...:D
