Dash...How to start

Discussion in 'The Garage' started by mtnman210, May 27, 2005.

  1. mtnman210

    mtnman210 1/2 ton status

    Joined:
    May 30, 2003
    Posts:
    3,880
    Likes Received:
    0
    Location:
    Northridge, Ca
    I've been looking at the empty dash for half an hour. I really like the dash in ORD's green blazer...
    [​IMG]
    I just don't know where to start. Right now I have an empty metal frame of the original dash. Should I cut it out completly or should I leave some of it and build the new one off the existing? any suggestoins would help.

  2. k5freak44

    k5freak44 1/2 ton status

    Joined:
    Jun 1, 2004
    Posts:
    2,164
    Likes Received:
    0
    Location:
    Plano, TX
    if it were me, i would make one out of cardboard and tape first, fit it in how you need it, then use that as plans for a metal one, so u dont end up wasteing any metal.

    just my 2Cents

  3. RustBuket

    RustBuket 1/2 ton status

    Joined:
    Feb 21, 2003
    Posts:
    1,618
    Likes Received:
    0
    Location:
    Saskatchewan, Canada
    Rip it out!!! Fab up something new and different and give us pics.

  4. mtnman210

    mtnman210 1/2 ton status

    Joined:
    May 30, 2003
    Posts:
    3,880
    Likes Received:
    0
    Location:
    Northridge, Ca
    I like the sound of that
    This is where I'm at right now.
    [​IMG]

    Last edited: May 27, 2005
  5. Jew Pimpin

    Jew Pimpin Registered Member

    Joined:
    Apr 12, 2005
    Posts:
    69
    Likes Received:
    0
    Location:
    Richmond, VA
    I was there right there afew weeks ago...


  6. mtnman210

    mtnman210 1/2 ton status

    Joined:
    May 30, 2003
    Posts:
    3,880
    Likes Received:
    0
    Location:
    Northridge, Ca
    just a quick question thats way off topic--I can't view any of the pictures from anybody when they're linked like that, is it because I'm not a member? ok I'm done hi-jacking my own post :grin:

  7. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida

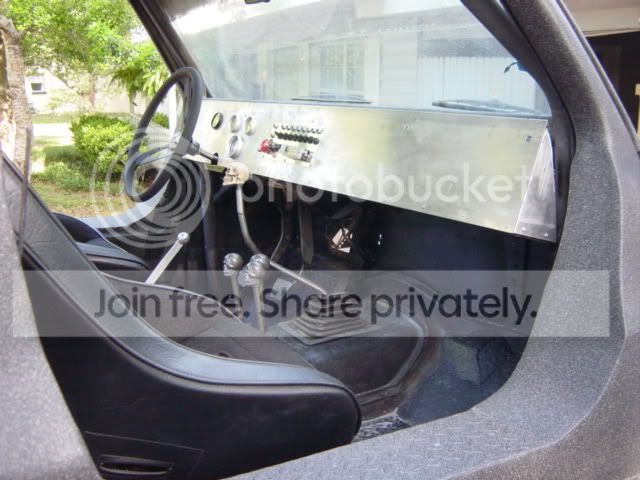

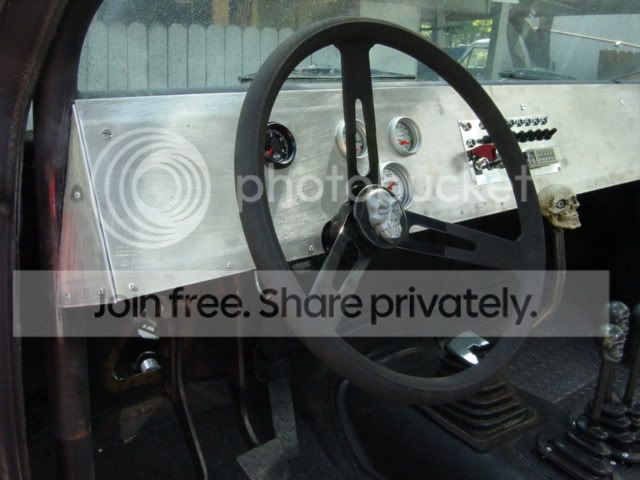

    I'd rip it all out and start from scratch.Here is a pic of the dash I just finished in my Jimmy.I used a piece of 1/8 X 8 aluminum.I just made a frame out of 3/4 inch tubing and welded to the cage.It was pretty easy and only took about 2 hours to complete.

    [​IMG]

    [​IMG]

  8. mtnman210

    mtnman210 1/2 ton status

    Joined:
    May 30, 2003
    Posts:
    3,880
    Likes Received:
    0
    Location:
    Northridge, Ca
    that looks awesome...nice work

  9. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    1
    Location:
    Ct
    I ripped everything out to build mine. Built the frame out of 1x1"steel and then used .063 diamond plate for the passanger side and top and .125 flat aluminum for the gauge panel. if you have anyquestions feel free to ask
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  10. mtnman210

    mtnman210 1/2 ton status

    Joined:
    May 30, 2003
    Posts:
    3,880
    Likes Received:
    0
    Location:
    Northridge, Ca
    cool thanks

  11. jekbrown

    jekbrown I am CK5 Premium Member GMOTM Winner Author

    Joined:
    May 19, 2001
    Posts:
    45,029
    Likes Received:
    362
    Location:
    Vancouver, WA, USA
    some good examples there... if you want to see another, check out the thread on "Project Freak" over on pirate. That dude put some serious time into his dash. Way nicer than anything I'll probably ever have. lol!

    j

  12. ronnny

    ronnny 1/2 ton status

    Joined:
    Nov 22, 2004
    Posts:
    838
    Likes Received:
    0
    Location:
    Newnan GA
    Did not see where anyone put a spot for the defrost vents. That would leave me with only a floor vent on my dd. But cutting the holes and such for that sould not be a problem. I just need to happen up on a fuel gauge since that is all that works on my dash anyway.

  13. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    1
    Location:
    Ct
    I made mine to run defrost on the top peice, the picture just doesnt show it. the pics are from atest fit and i just hadn't cut the hole for the defrost yet, but it is there

  14. seschev3

    seschev3 1/2 ton status

    Joined:
    Jan 19, 2005
    Posts:
    308
    Likes Received:
    0
    Location:
    clayton, ca
    How well does that diamond plate do when the sun hits it? Seems like you would have a hell of a glare. Looks great though.

  15. 3rdshiftdesign

    3rdshiftdesign 1/2 ton status

    Joined:
    Feb 6, 2005
    Posts:
    259
    Likes Received:
    0
    Location:
    Bucks County, PA
    i've heard of people clear coating, or some sort of spray on for diamond plate and such to keep the glare down. anyone try it?

  16. mtnman210

    mtnman210 1/2 ton status

    Joined:
    May 30, 2003
    Posts:
    3,880
    Likes Received:
    0
    Location:
    Northridge, Ca
    got the metal dash out finally. I decided now to wait and tie the dash into the roll cage instead of building it's own frame. So next comes the cage---I think.
    [​IMG]
    [​IMG]
