Drill Press rebuild

Discussion in 'The Tool Shed' started by mofugly13, Apr 23, 2007.

  1. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco

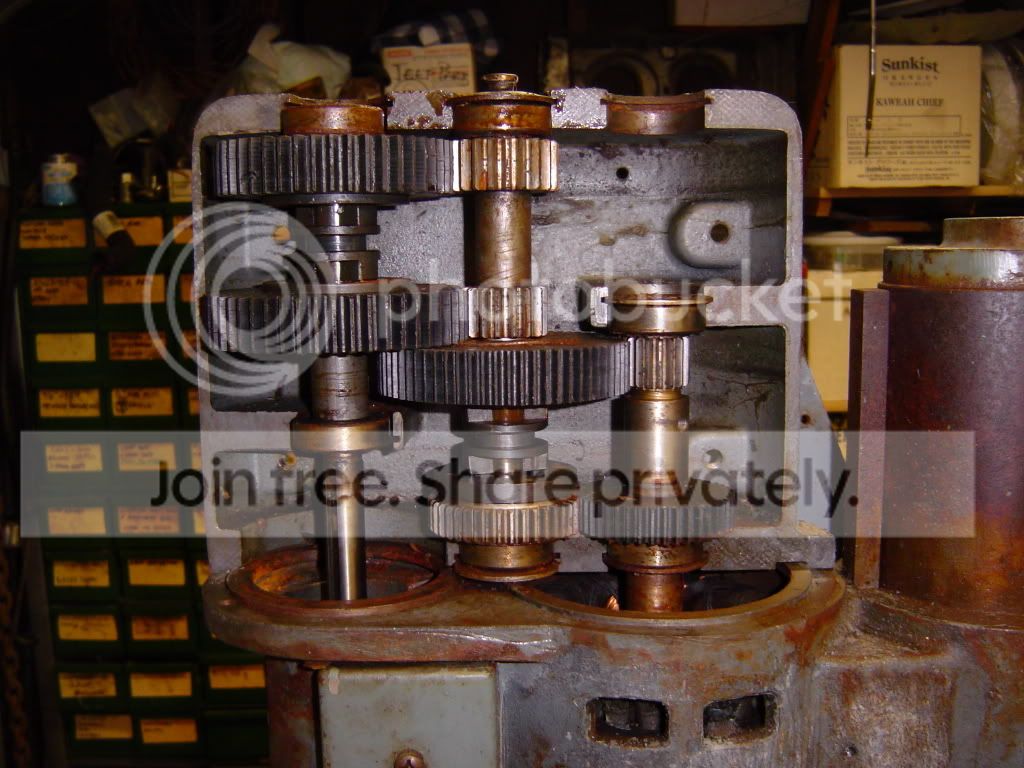

    I just started by getting the gear box apart, doesn't look too bad. Some surface rust and siezed/rusty bearings, but a little cleanup and new bearings should do the trick.

    [​IMG]

    [​IMG]

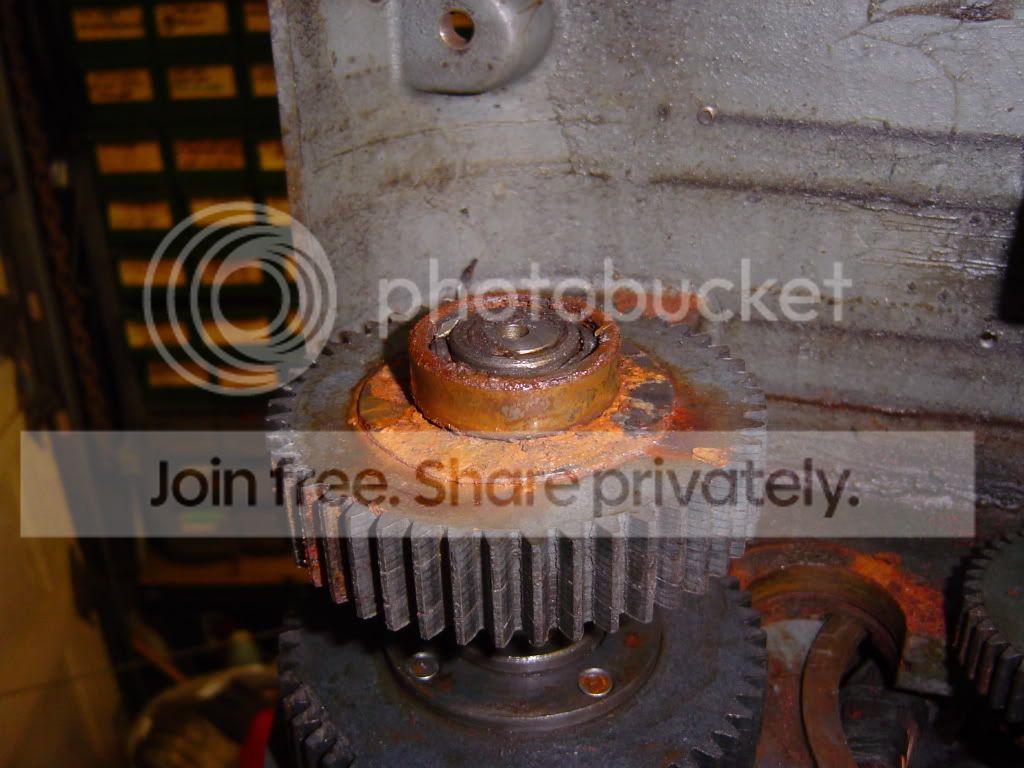

    Most of this stuff wiped right off with some WD40 and a rag.
    [​IMG]

  2. 4X4HIGH

    4X4HIGH 1 ton status Premium Member GMOTM Winner

    Joined:
    Dec 14, 2001
    Posts:
    22,060
    Likes Received:
    69
    Location:
    Pleasanton, CA.
    That thing is going to be pretty damn cool once you get it back to working order. When i first seen this thing being given away i wanted it but didn't think i could manage getting it here. Fortunately you did get it here and you've got one of the baddest drill presses there are. Nothing beats a gear driven drill press.

  3. chevyfumes

    chevyfumes Court jester

    Joined:
    Feb 24, 2000
    Posts:
    38,584
    Likes Received:
    266
    Location:
    Watch for the muzzleflash!
    Niiiice Matt, I wanted to crack that case so bad, me and UYB could hardly contain ourselves....;)

  4. CDA 455

    CDA 455 3/4 ton status

    Joined:
    Jun 2, 2006
    Posts:
    8,598
    Likes Received:
    0
    Location:
    43rd State
    Wow!!!

    All that to drill precise holes :eek1: :eek1: :bow: :bow: !

    Or in 'Fumes case, mix drinks!!!!

  5. colbystephens

    colbystephens 1 ton status GMOTM Winner

    Joined:
    Feb 24, 2005
    Posts:
    10,924
    Likes Received:
    20
    Location:
    Oregon
    that's killer man. how will you replace the bearings? i mean, where will you get bearings for something that old?

  6. 4X4HIGH

    4X4HIGH 1 ton status Premium Member GMOTM Winner

    Joined:
    Dec 14, 2001
    Posts:
    22,060
    Likes Received:
    69
    Location:
    Pleasanton, CA.
    That's the easy part. You simply buy them from dimensions not by a part number.

  7. colbystephens

    colbystephens 1 ton status GMOTM Winner

    Joined:
    Feb 24, 2005
    Posts:
    10,924
    Likes Received:
    20
    Location:
    Oregon
    makes sense. who is a good supplier of something like that?

  8. 4X4HIGH

    4X4HIGH 1 ton status Premium Member GMOTM Winner

    Joined:
    Dec 14, 2001
    Posts:
    22,060
    Likes Received:
    69
    Location:
    Pleasanton, CA.
    Any auto parts store can get those bearings. We do that at work all the time. There is also a place here in Fremont called Applied Industrial Technology that is a good source for stuff like that.

  9. colbystephens

    colbystephens 1 ton status GMOTM Winner

    Joined:
    Feb 24, 2005
    Posts:
    10,924
    Likes Received:
    20
    Location:
    Oregon
  10. TSGB

    TSGB 1 ton status

    Joined:
    Apr 22, 2002
    Posts:
    12,527
    Likes Received:
    0
    Location:
    Centralia, Washington
    Let us know how the motor looks when you get there. :D

  11. kennyw

    kennyw N9PHW Premium Member

    Joined:
    Jun 9, 2002
    Posts:
    13,223
    Likes Received:
    94
    Location:
    Stevens Pass Highway, WA
    AIT can probably get most automotive bearings cheaper than Napa as well... at least if you can use your company account there and tell them your paying with petty cash :whistle:

  12. UseYourBlinker

    UseYourBlinker 1 ton status

    Joined:
    Jun 7, 2000
    Posts:
    11,117
    Likes Received:
    0
    Location:
    .
    :wink1: :laugh: :D Should be a runner.. :haha:

  13. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco

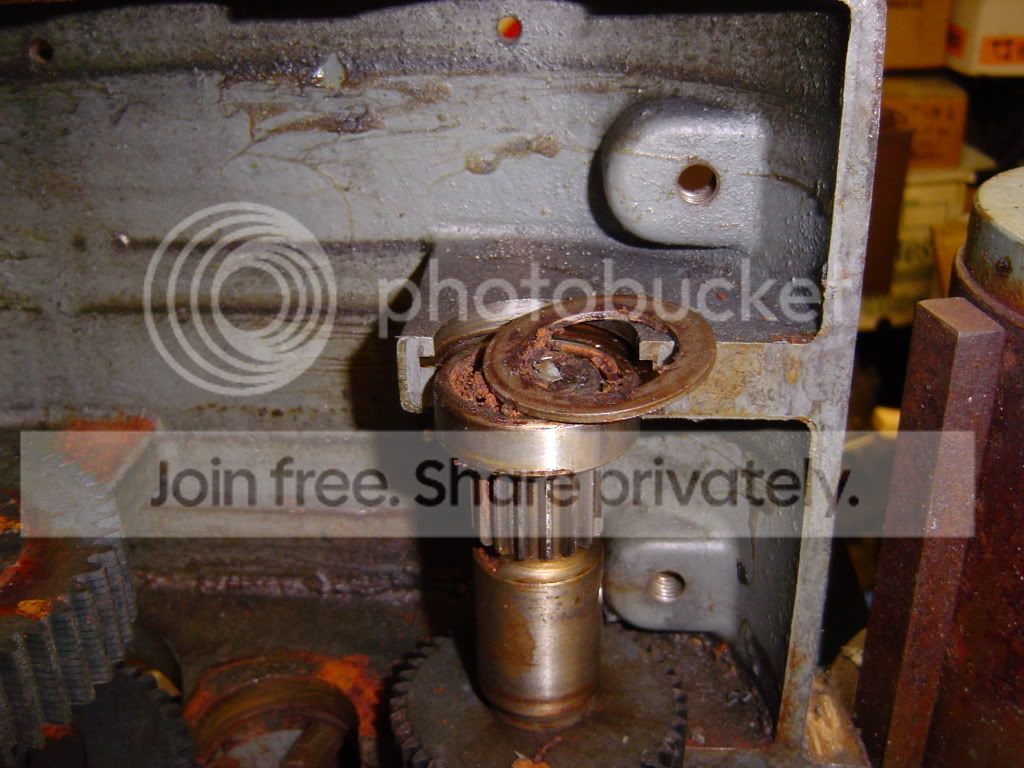

    I havent figured out how to get the motor off yet, but I'm running downstairs in a minute to see if the Kroil has freed up anything else. The second photo is of the end of the motor shaft, and I think it is slipped over an inner shaft on the armature. I gave it a try pulling it off last night, but I figured I'd douse it with oil and and let it sit overnight and see if anything comes loose. Dont want to force anything on this guy, it looks like the large gears are fiber, they look like laminated fiber by the photo.

    I need to mention that the armature spins freely and there dont seem to be any shorts in the stator winding, I hope all I have to do is give it a fresh bearing.

  14. BigEasy

    BigEasy 1/2 ton status

    Joined:
    Dec 18, 2006
    Posts:
    418
    Likes Received:
    0
    Location:
    U-jeen, Oragun
    Good to see you digging right in! Gear box looks good, and that little bit of rust may have been from the rain on the drive down south. If anyone ever asks about your sig line, are you gonna give them a link to this thread? :rotfl:

  15. colbystephens

    colbystephens 1 ton status GMOTM Winner

    Joined:
    Feb 24, 2005
    Posts:
    10,924
    Likes Received:
    20
    Location:
    Oregon
    ummm... jeep parts? in your garage???

  16. ntsqd

    ntsqd 1/2 ton status

    Joined:
    Nov 28, 2002
    Posts:
    3,381
    Likes Received:
    0
    Location:
    So. CA
    Not to mention that they're nation-wide. They also have automotive applications parts book(s) so you shouldn't need to know the dimensions for the common bearings.

  17. rdn2blazer

    rdn2blazer 1 ton status Premium Member

    Joined:
    Jun 9, 2004
    Posts:
    16,486
    Likes Received:
    1,191
    Location:
    So Cal.
    congrats Matt on the drill press! very interested in how good an old dog like that will be after a freshining up. being all gear drive like it is it should be great.

    I bought a 69' Powermatic four head gang drill press (4 single heads) from a machine shop I once worked at bout 7 years ago for 400 bucks. the 4 heads sat on a 2 ft X 5 ft Blanchard ground cast iron table with a coolant trough cast around the perifery of the table. the table top alone is about 550 lbs!

    I rebuilt one head, new bearings and new single faze Baldor motor. it was a belt drive head. gave one to my bud for helping me rewire it and my compressor. junked the other two heads.

    it ended up being ok but it was just too hi RPM for steel. so I junked it, but kept the motor which now runs my lathe. I still have the table which is great for precision jig and fixture type work with it being groud like it is.

    I priced a new table exactly like the one I have out of MSC industrial with no drill heads ofcourse and it was 1600 bucks! so my 400 dollar plus the motor and bearings and time was worth it even though I eventually junked the drill head.

    have fun with your project, I know you will, as I did.

  18. rdn2blazer

    rdn2blazer 1 ton status Premium Member

    Joined:
    Jun 9, 2004
    Posts:
    16,486
    Likes Received:
    1,191
    Location:
    So Cal.
    as far as bearings go call APPLIED INDUSTRIAL TECHNONOGIES, 13723 Harvard Place, Gardena Ca. 90249. 1 310 515 5882. also sc0847@applied.com.

    they are the local bearing house that have been supplying the south bay machine industry for decades. every machine shop I have ever worked at has had an account with this company. its where I got bearings for my press. also have bought many bearings for shops I have been at here, never did they not have what we needed.

  19. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco
    I got all the siezed bearings loose, and spinning freely, just a bit of rust was binding them up. I bet that if I greased the bearings and put it back together now, It would operate fine. But since I have it all apart, I might as well replace the bearings. I can handle the spindle bearings, but I might need to go to a shop to have the gear shaft bearings replaced. That is unless I can figure out a good way to press them all off. I don't have a press by the way, yet...The good thing, is that all the roller bearings in the picture appear to be the same.

    I scraped all that peeling paint off, and it looks pretty damn decent underneath, still plenty of original paint left, that is NOT peeling. I had a bunch of rain while driving into the city, also, so that probably contributed to the rust as well.

    Yeah there's jeep parts in my garage, they're fo another turd I have, a '45-'56 or so Willys MB, CJ2, CJ3 heap that's been sitting for twenty years now, I'll get to her one day......

  20. chevyfumes

    chevyfumes Court jester

    Joined:
    Feb 24, 2000
    Posts:
    38,584
    Likes Received:
    266
    Location:
    Watch for the muzzleflash!
    fock it dood free it up and run it, that was my thinking. I figured the bearings were toast anyway, now atleast you know.
    I'd repack and get it going. Now get to drilling holes...:D
