Finally, the axle truss is complete

Discussion in 'The Garage' started by JK5, Jun 27, 2006.

  1. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    I've beeen tickering around with a combination axle truss/anti-wrap set-up for a couple weeks now, here's what I've done.

    [​IMG]

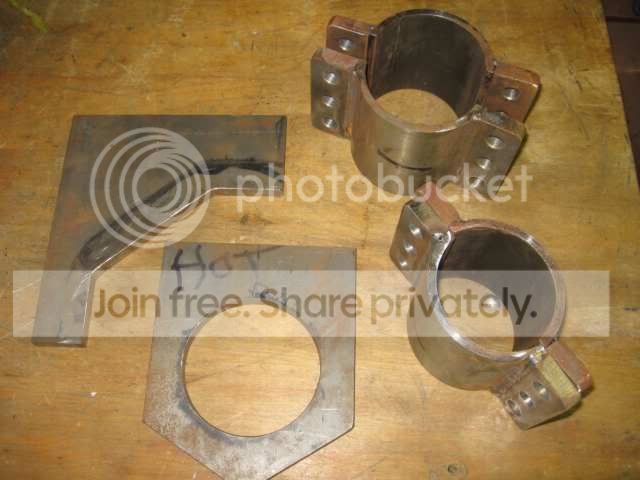

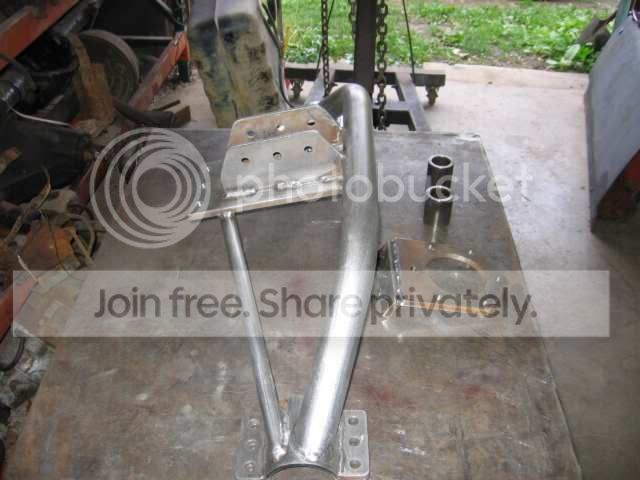

    It took some time to build, here's some of the pieces I had to machine. After everything was made, I jigged the pieces to a 14bff housing I had laying around.

    [​IMG]

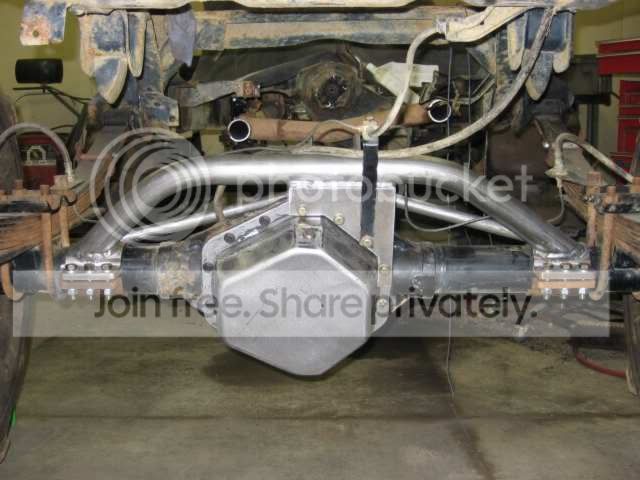

    Now that it's welded and ground, time for install.

    [​IMG]

    Installed and ready for anti-wrap bar... shocks.

  2. sapper

    sapper 1/2 ton status GMOTM Winner

    Joined:
    Jul 11, 2001
    Posts:
    3,052
    Likes Received:
    0
    Location:
    NoVa
    Man that looks good. I see alot of people doing the clamp thing, is that for any reason? Any chance of it moving?

  3. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    Thanks

    I clamped it on, so it can be removed if I have problems with the axle.
    Plus...to remove the cover, the truss needs to be removed or rolled back.

  4. hunterguy86

    hunterguy86 1/2 ton status

    Joined:
    Jan 10, 2005
    Posts:
    2,477
    Likes Received:
    0
    Location:
    San Marcos, Texas
    Thats freakin sweet!:saweet: :saweet: :saweet: :saweet: :saweet: :saweet:

  5. rdn2blazer

    rdn2blazer 1 ton status Premium Member

    Joined:
    Jun 9, 2004
    Posts:
    16,496
    Likes Received:
    1,203
    Location:
    So Cal.
    looks good man! all this truss stuff is going on right now is cool. man I need to get mine finished too. great job on yours.

  6. perp

    perp 1/2 ton status

    Joined:
    Jul 14, 2005
    Posts:
    569
    Likes Received:
    0
    Location:
    Chandler AZ
    got a pic of the front where it mounts to the pinion (i assume)?

  7. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    No...I don't..I'll get some tonight.:wink1:

    rdn2blazer let's see some pics.;)

  8. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh

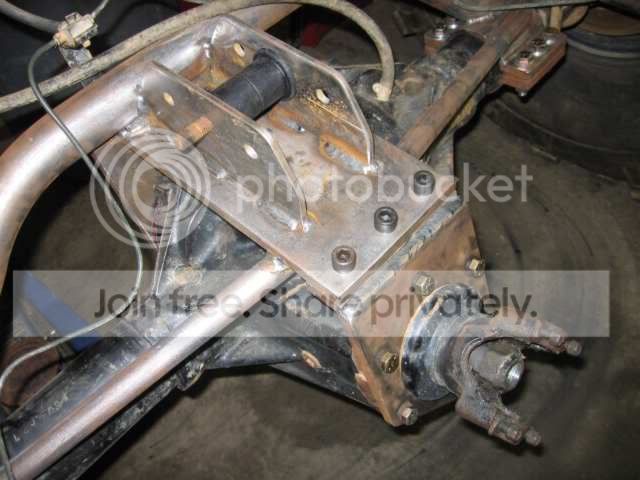

    [​IMG]

    I'll be adding yoke guards also.

  9. dontoe

    dontoe 3/4 ton status GMOTM Winner

    Joined:
    May 7, 2004
    Posts:
    9,070
    Likes Received:
    0
    Location:
    Hickory, N.C.
    Tuff looking SOB ya made!!! :bow: :bow: :bow: :bow: :bow:

  10. perp

    perp 1/2 ton status

    Joined:
    Jul 14, 2005
    Posts:
    569
    Likes Received:
    0
    Location:
    Chandler AZ
    Very nice job, the clamps remind me of parts of pipe supports that were made at a metal fab shop i once estimated for. Very beefy

  11. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    I was pretty lucky to find some 4"x.250" DOM tube, 1/2"th CR plate,1" DOM for free...In fact I spent $0 building this...anyone could build it.

    The hardest task was boring the 3 1/2" hole into the pinion plate that was machined on a bridgeport mill. The 2" tube was bent on a pro-tools 105 bender. A craftsman drill press and a old school chop saw, was used for cutting and drilling. The clamps were cut with the bridgeport also.

    Last edited: Jun 28, 2006
  12. gzzgfw

    gzzgfw 1/2 ton status

    Joined:
    Feb 26, 2003
    Posts:
    505
    Likes Received:
    0
    Not bad for a Engineer! Nice government job....

    I was almost in your area last week. I bought a Camaro on Ebay and picked it up in Canton and hauled it home.

    Does that blazer have any panels left on her?

    Last edited by a moderator: Jun 28, 2006
  13. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    LOL...Engineer!!!! Actually I'm in sales now...:D

    You were about 15 miles from me...you could have seen my gem in person.:p:

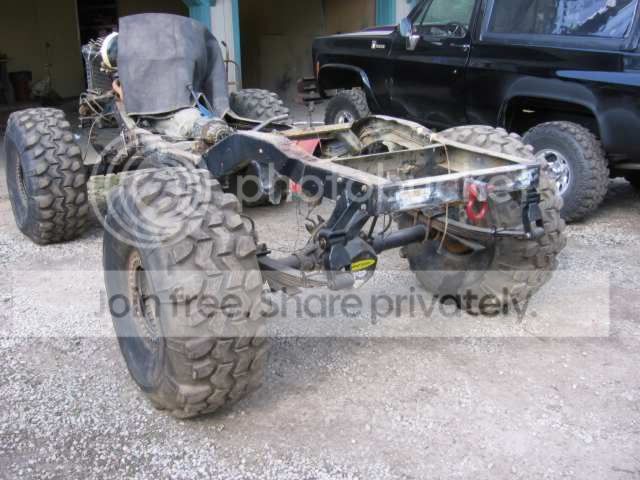

    This should answer some questions....

    [​IMG]

  14. gzzgfw

    gzzgfw 1/2 ton status

    Joined:
    Feb 26, 2003
    Posts:
    505
    Likes Received:
    0
    Sales? Well with a hobby like ours you gotta go where the money is.

    I have no more questions because "a picture is worth a thousand words."

  15. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    Yah..sales..
    I saw a chance to get outta the factory...and took it.:wink1:
