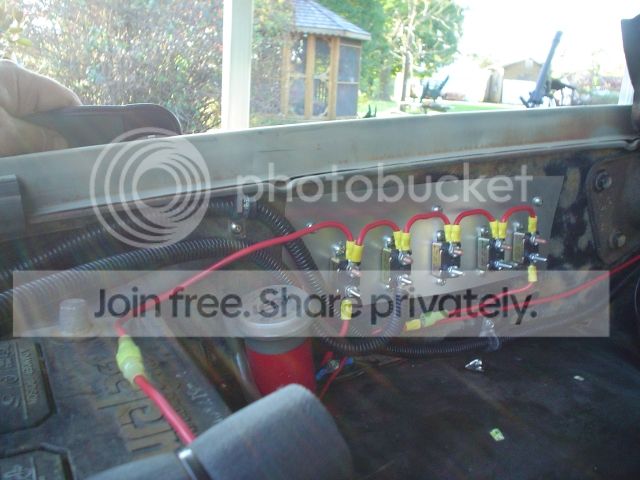

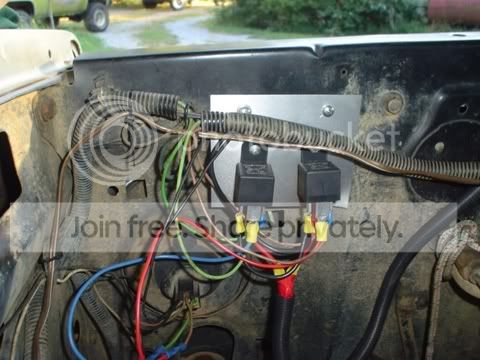

    Finally got off my butt and did my headlight relays. Gotta finish tyeing up the wiring harness tomorrow! Man, made a big difference! Oh did a circuit breaker panel for it and and other accessories too.


    [​IMG]


    [​IMG]

  2. BozoWise

    BozoWise 1/2 ton status

    Joined:
    Mar 28, 2002
    Posts:
    1,224
    Likes Received:
    0
    Location:
    Lubbock, TX
    Looks good now stick the crimp terminals in some dialectic grease and heat shrink around them and you won't have to redo them later when they corode.

  3. R77K10

    R77K10 Banned

    Joined:
    Mar 15, 2006
    Posts:
    564
    Likes Received:
    0
    Location:
    Lincoln IL
    where you get those breakers from and what amperage ?

    how much they cost


    also what color are the low beam wires

    light green or dark green or brown ? or ?

    for single round bulb rigs


    thanks

  4. wraenking

    wraenking 1/2 ton status

    Joined:
    Apr 30, 2003
    Posts:
    1,493
    Likes Received:
    0
    Location:
    Toms River, NJ
    i went to the junk yard for my relays. most are 30 amos with the circuit breakers the same.

  5. R77K10

    R77K10 Banned

    Joined:
    Mar 15, 2006
    Posts:
    564
    Likes Received:
    0
    Location:
    Lincoln IL
    junkyard ofr relays

    what relays you find in a yard ?

    pic ?

    thanks

  6. HarryH3

    HarryH3 1 ton status Author

    Joined:
    May 31, 2000
    Posts:
    10,384
    Likes Received:
    2
    Location:
    Georgetown, TX
    Randy, check out my lighting article on the tech page. Towards the bottom I have a pic of the GM relay set that I picked up in a JY. It now controls the lights on my '90 Suburban. :)

  7. R77K10

    R77K10 Banned

    Joined:
    Mar 15, 2006
    Posts:
    564
    Likes Received:
    0
    Location:
    Lincoln IL
    those are factory ?
    what vehicles they on ??

    how many spades ?

    how you figure out which spade does what ?

    with multitester ?

    i have all kinds of gm relays like that laying around and some chrysler ones too,

    from part outs and stuff,

    hum

    thanks

  8. HarryH3

    HarryH3 1 ton status Author

    Joined:
    May 31, 2000
    Posts:
    10,384
    Likes Received:
    2
    Location:
    Georgetown, TX
    Hope that helps! :cool1:

  9. wraenking

    wraenking 1/2 ton status

    Joined:
    Apr 30, 2003
    Posts:
    1,493
    Likes Received:
    0
    Location:
    Toms River, NJ
    i grabbed mine out of a 95 ford windstar. really any vehicle you can pop the cover of the elec panel under the hood and find at least four. just make sure they are 30 amp. i thnk most of them are anyways
