!HELP! 700R4 shift problems!!

Discussion in 'The Garage' started by the beast, Dec 20, 2005.

  1. the beast

    the beast 1/2 ton status

    Joined:
    Oct 15, 2003
    Posts:
    535
    Likes Received:
    0
    Location:
    Providence, RI
    The 700R4 in my 89 developed some problems last night. As I went around a corner I heard a loud squeal for about a second and then the truck wouldn't move. It's like it was in neutral. I shifted it into 1st and it moved. Upshift to 2nd, it's still going, up shift to 3rd (or drive) and it still goes. If I put it directly into 3rd from park, it won't go. It's like it's in neutral. Haven't trid 4th (overdrive) yet

    Fluid level and condition appears fine.

    This transmission has been beefed with a heavy duty shift kit, Corvette sprag, extra band in the packs, etc. It's very stout as its behind a 383.

    But I'm at a loss on this one. I need ideas because this is my work truck. :confused:

  2. Derf00

    Derf00 1/2 ton status

    Joined:
    Jul 25, 2000
    Posts:
    1,683
    Likes Received:
    0
    Location:
    Abilene, TX
    There is a domed shaped cover on the driver's side of the trans, it can be removed with a screwdriver. Pop that off and take a look at the govenor gear, it is plastic and sounds like it is stripped.

  3. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    If the govenor was stripped it wouldn't shift out of 1st.
    Wouldn't hurt to check it though.

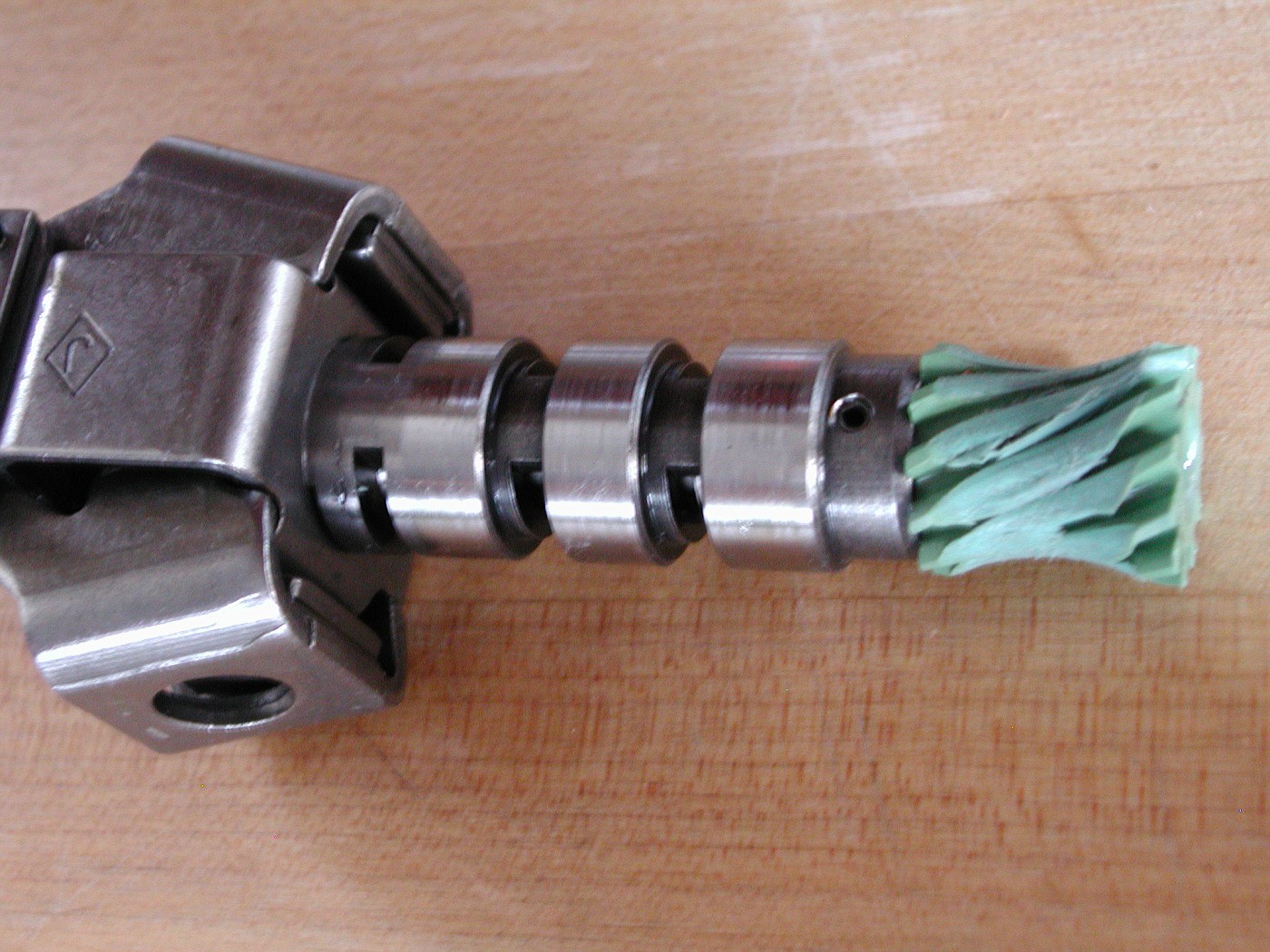

    When mine stripped out I was on the freeway doing 70mph.All of a sudden the the 700r4 slams into 1st.
    This is what happened.
    [​IMG]

  4. the beast

    the beast 1/2 ton status

    Joined:
    Oct 15, 2003
    Posts:
    535
    Likes Received:
    0
    Location:
    Providence, RI
    I'll take a look, but what I heard definately wasn't a plastic sound.

    I can shift through all the gears manually and it seems to be fine. It just won't shift on its own.:dunno:

  5. gauder

    gauder Banned

    Joined:
    Aug 26, 2005
    Posts:
    1,613
    Likes Received:
    0
    Location:
    done
    TV cable?

  6. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan
    shouldn't be the governor gear or the TV cable. a loose TV cable will have a lazy shift, tight would make it not shift, but shifting manually would not work. a governor would not allow you to shift manually either.

    the only thing i can think that would make it so you can shift manually but not shift automaticly, would be a broken spring in the valve body. or possibly a bushing spun around one of the valves and isn't allowing fluid to pass.

    if thats it, its not a fix that just anybody can do, you have to know what your doing to fix it. time to take it to a tranny shop.
