How I raised my top to the roof.(PIC'S)

Discussion in '1969-1972 K5 Blazer | Truck | Suburban' started by BobK, Jun 28, 2004.

  1. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    How I raised my top to the roof.(PIC\'S)

    I picked up a 880lb. capacity hoist at Harbor Freight for $70.00,cheap I think.
    [​IMG]

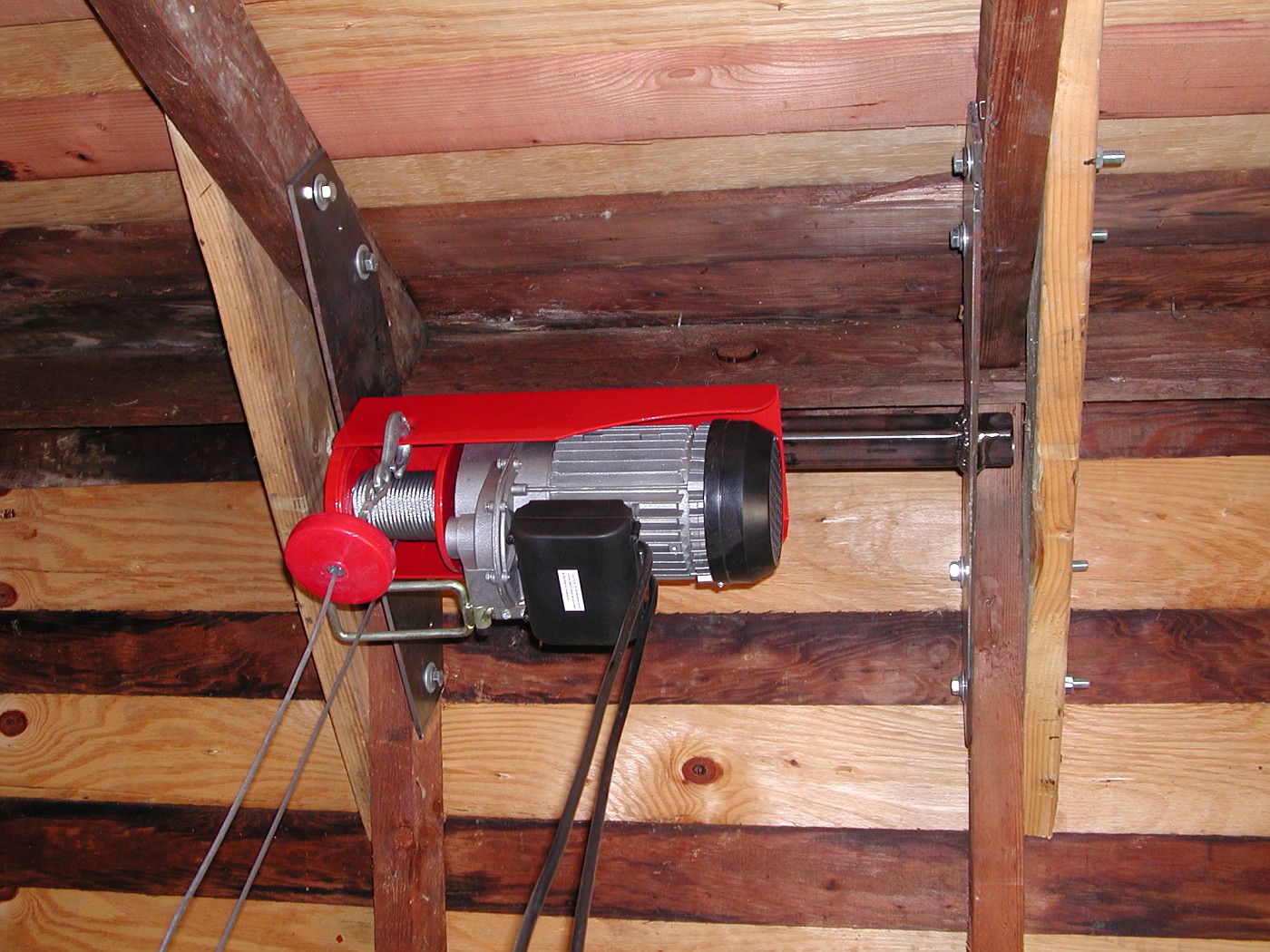

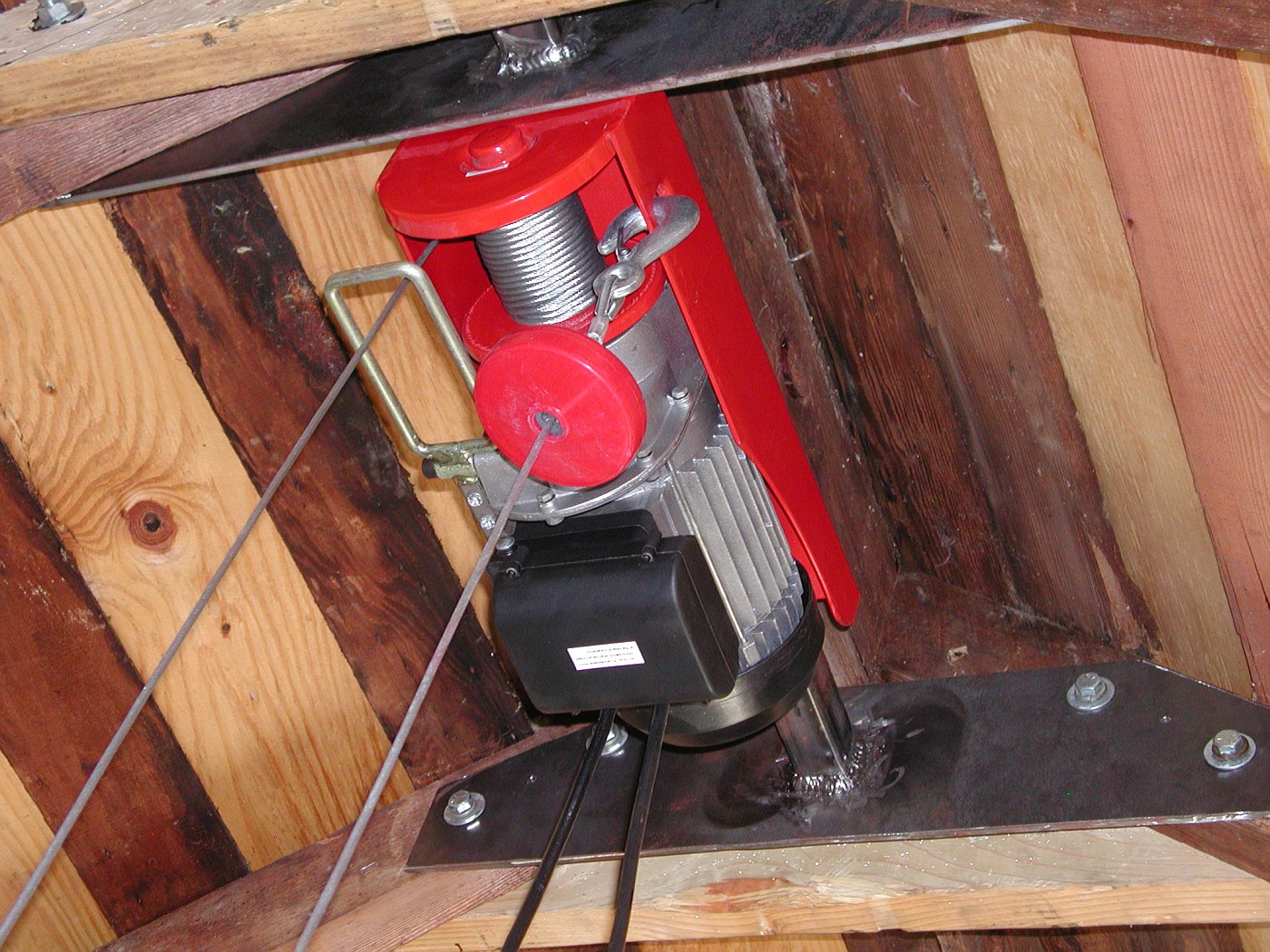

    I welded up a bracket and mounted it in the rafters of my single car garage.

    [​IMG]
    [​IMG]



    The bracket is made from 1/4" plate and the square tubing is 1.5" square with 1/4" wall thickness.I made cuts in the plate and fed the square tubing through it then welded it all up.

    [​IMG]





    Made some cables from 5/32" aircraft wire cable then raised her to the roof.

    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]



    Works great and is REAL easy on my back! /forums/images/graemlins/grin.gif

    Last edited: May 3, 2010
  2. BranndonC

    BranndonC 3/4 ton status

    Joined:
    Mar 18, 2002
    Posts:
    8,591
    Likes Received:
    0
    Location:
    Anaheim, Ca
    Re: How I raised my top to the roof.(PIC\'S)

    looks nice, i need to figure something similar out for mine so i dont need to find a guy to help me every time i want to remove the top /forums/images/graemlins/thumb.gif

  3. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,954
    Likes Received:
    444
    Location:
    East of San Francisco
    Re: How I raised my top to the roof.(PIC\'S)

    One word: Sweeeeeeeeeeeeet.

    I bought the earlier one of those lifts -- the 220/440 pound one (or 100/200kg variety, for you northerners) -- but mounting it inside the roof peak never occurred to me... hmmm /forums/images/graemlins/thinking.gif /forums/images/graemlins/thinking.gif

    -- A

  4. Yukon Jack

    Yukon Jack 1/2 ton status

    Joined:
    Jul 25, 2002
    Posts:
    1,984
    Likes Received:
    0
    Location:
    Rose Hill, KS
    Re: How I raised my top to the roof.(PIC\'S)

    Pretty sweet - looks like that is a way to make that job easy!

  5. mudslinger97116

    mudslinger97116 1/2 ton status

    Joined:
    Mar 13, 2003
    Posts:
    315
    Likes Received:
    0
    Location:
    F.G.OREGON
    Re: How I raised my top to the roof.(PIC\'S)

    great idea i was thinking of using a comealong but power never occured to me /forums/images/graemlins/thinking.gif.that would open alot of room up on the shop floor.thanks for the pik's and details i'm sure you helped a few of us out. /forums/images/graemlins/waytogo.gif

  6. kennyw

    kennyw N9PHW Premium Member

    Joined:
    Jun 9, 2002
    Posts:
    13,223
    Likes Received:
    94
    Location:
    Stevens Pass Highway, WA
    Re: How I raised my top to the roof.(PIC\'S)

    What are you using to hold it up incase of a winch failure? Something like a safety chain tied to the rafters you could hook up after it is raised would work great I think

  7. clubba68

    clubba68 1/2 ton status

    Joined:
    Dec 6, 2002
    Posts:
    1,511
    Likes Received:
    0
    Location:
    Eugene-Portland, Oregon
    Re: How I raised my top to the roof.(PIC\'S)

    [ QUOTE ]
    What are you using to hold it up incase of a winch failure? Something like a safety chain tied to the rafters you could hook up after it is raised would work great I think

    [/ QUOTE ]

    And then let the tension out of the winch line.

  8. TONYP

    TONYP 1/2 ton status

    Joined:
    Aug 13, 2002
    Posts:
    2,116
    Likes Received:
    0
    Location:
    so cal
    Re: How I raised my top to the roof.(PIC\'S)

    very nice work, can you come over a build me one? /forums/images/graemlins/hack.gif /forums/images/graemlins/grind.gif /forums/images/graemlins/weld.gif

  9. Burt4x4

    Burt4x4 3/4 ton status

    Joined:
    Feb 17, 2000
    Posts:
    6,854
    Likes Received:
    0
    Location:
    California (Modesto area)
    Re: How I raised my top to the roof.(PIC\'S)

    YYYYYYYYYEEEEEEEEEEHHHHHHHHHAAAAAAAAAAAAAAAAAAA!!!!
    Nice BobO

    Good seein you agin too /forums/images/graemlins/waytogo.gif
    Burt

  10. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: How I raised my top to the roof.(PIC\'S)

    Well I modified my design today.As you can see the cables rubbed up against the sides of the top.I wasn't too crazy about that in the 1st place.Plus it didn't allow me to get the top up as high as I wanted.

    SO...this is what I did.
    I bought some 1.5",.120 wall square tubeing and made a "I" shaped frame.

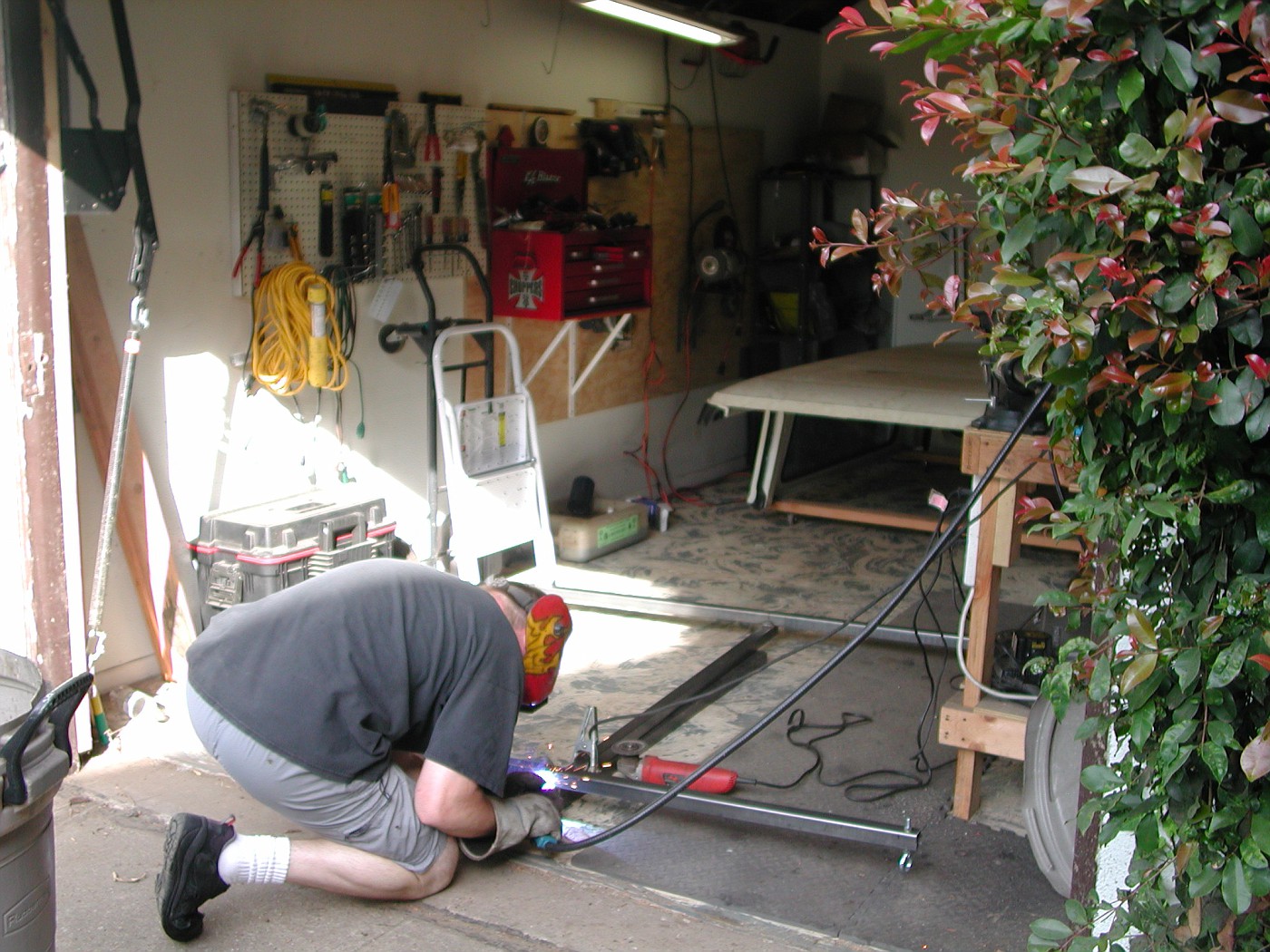

    Here I am welding it up.

    [​IMG]
    [​IMG]

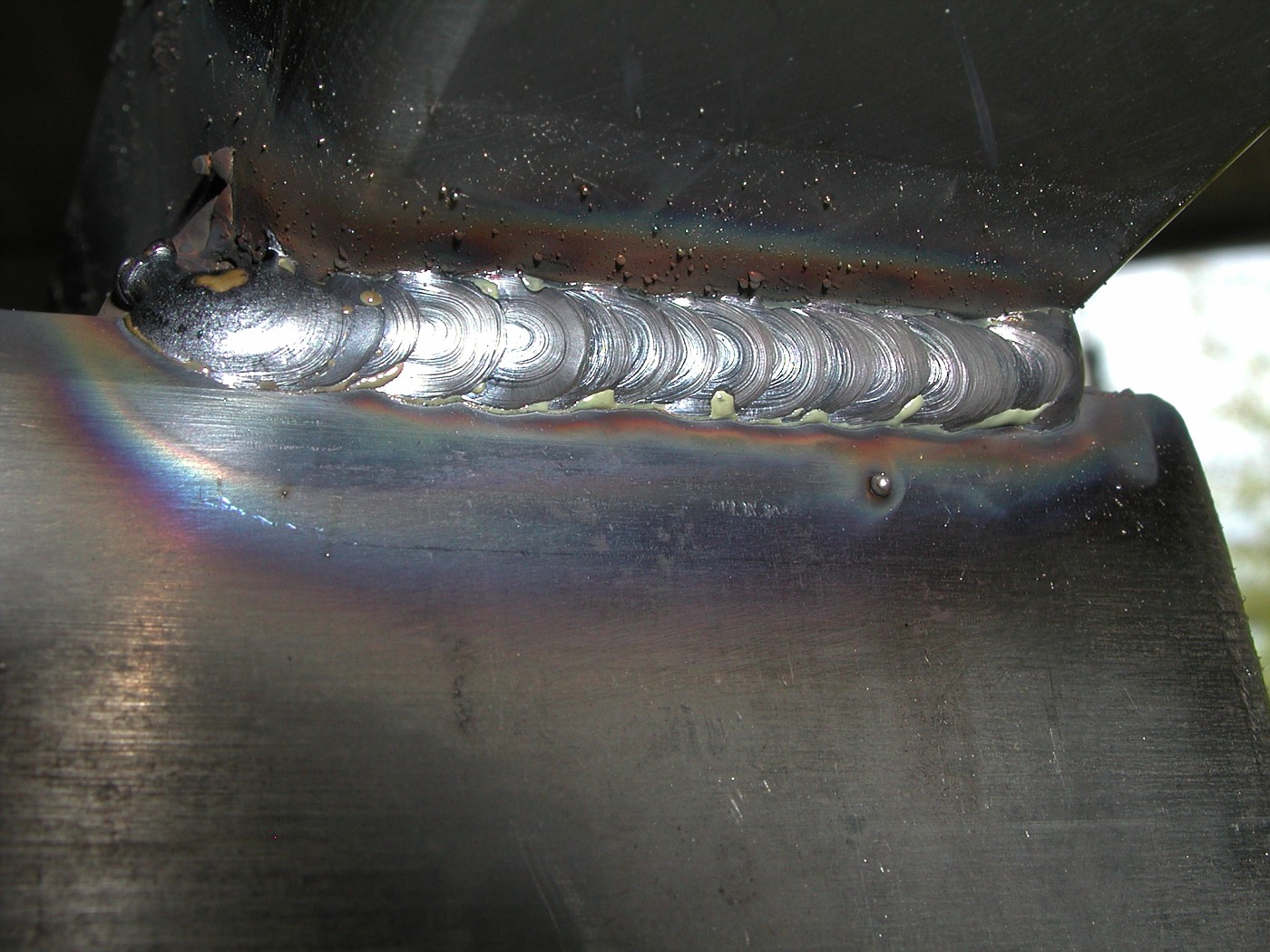

    An example of that welding
    [​IMG]




    Painted it up and added some eye bolts.

    [​IMG]
    [​IMG]




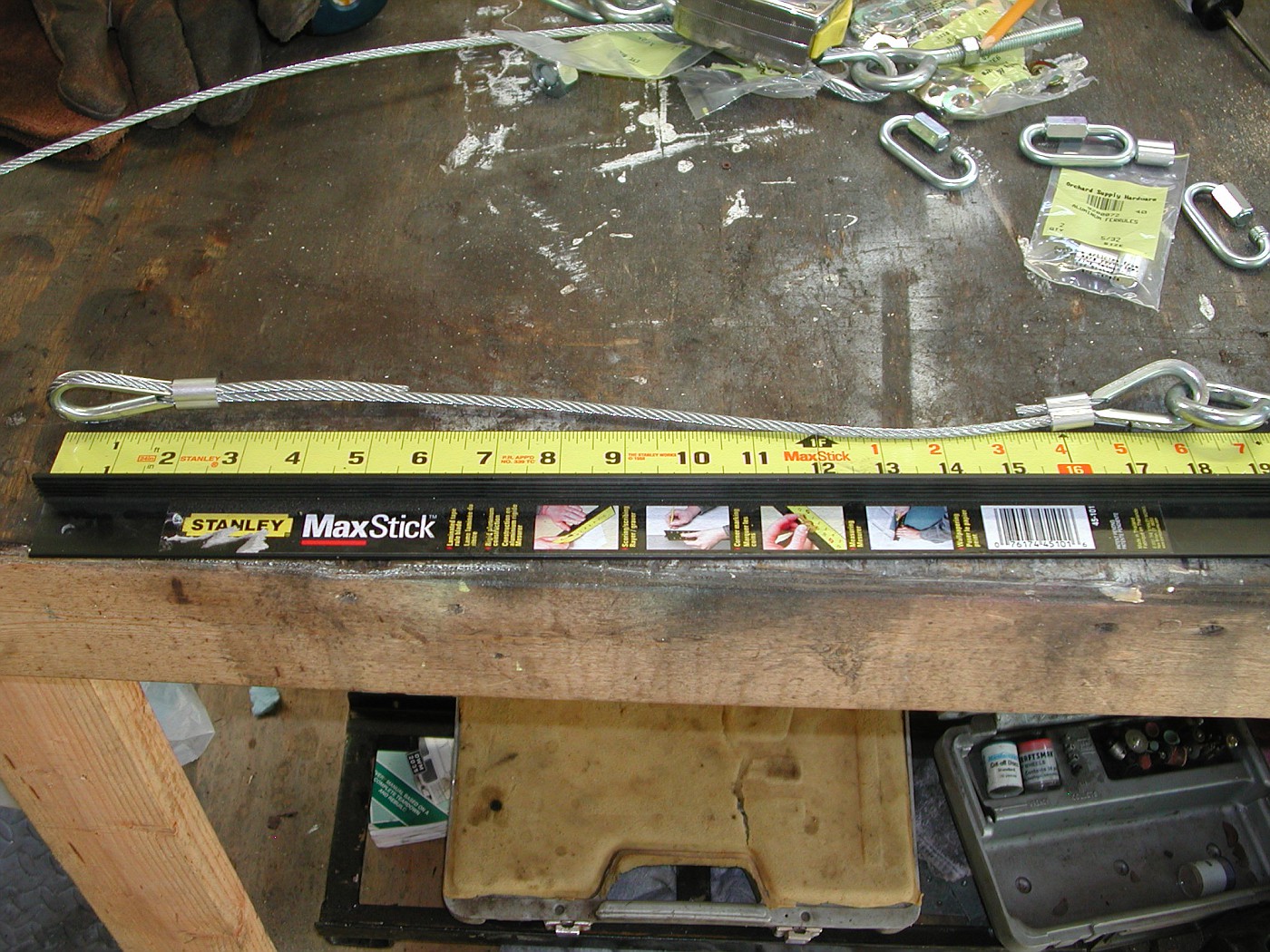

    I then shortend the cables to about 18" long.

    [​IMG]
    [​IMG]



    Here's how I actually made the cables.

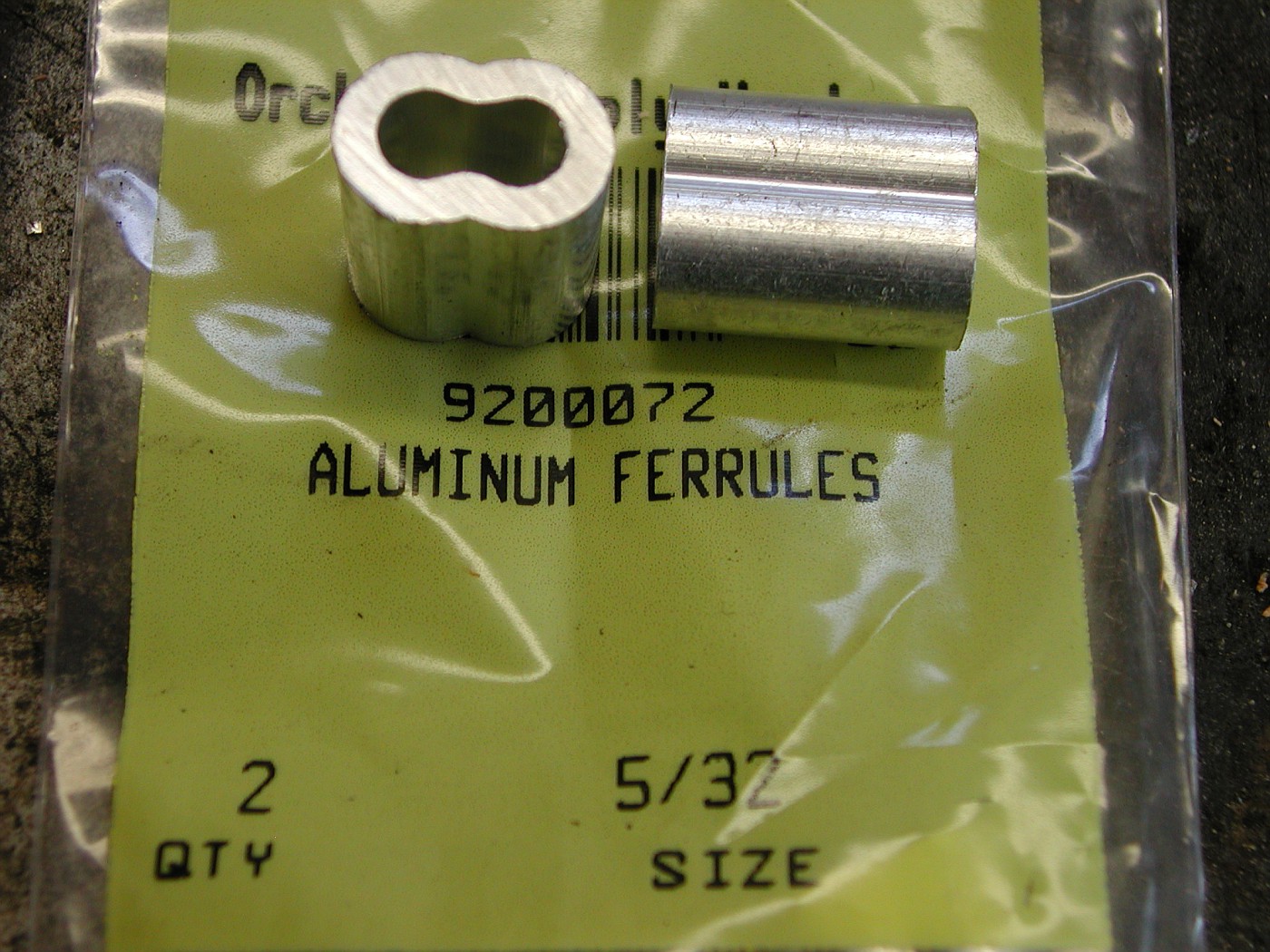

    1st I got the appropriate sized ferrules.5/32" in this case.Same size as the cable.

    [​IMG]


    [​IMG]

    Made sure I used these teardrop looking things(sorry I don't know the name of them).It helps support the loop part of the cable.

    [​IMG]
    [​IMG]

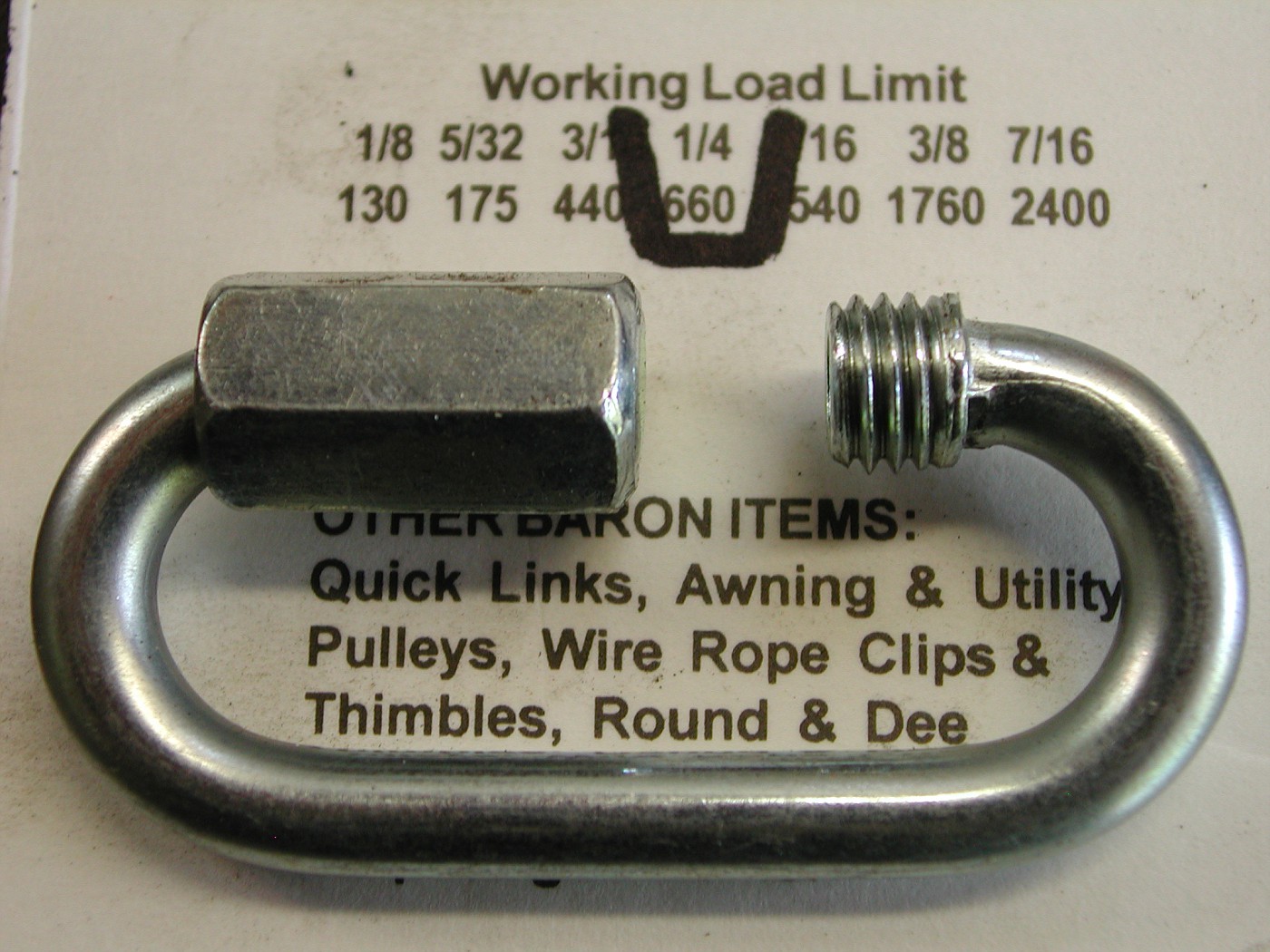

    I used these 1/4" links to connect the cables to the frames eye bolts.You'll note the working wt of this 1/4" link(600lbs).

    [​IMG]
    [​IMG]

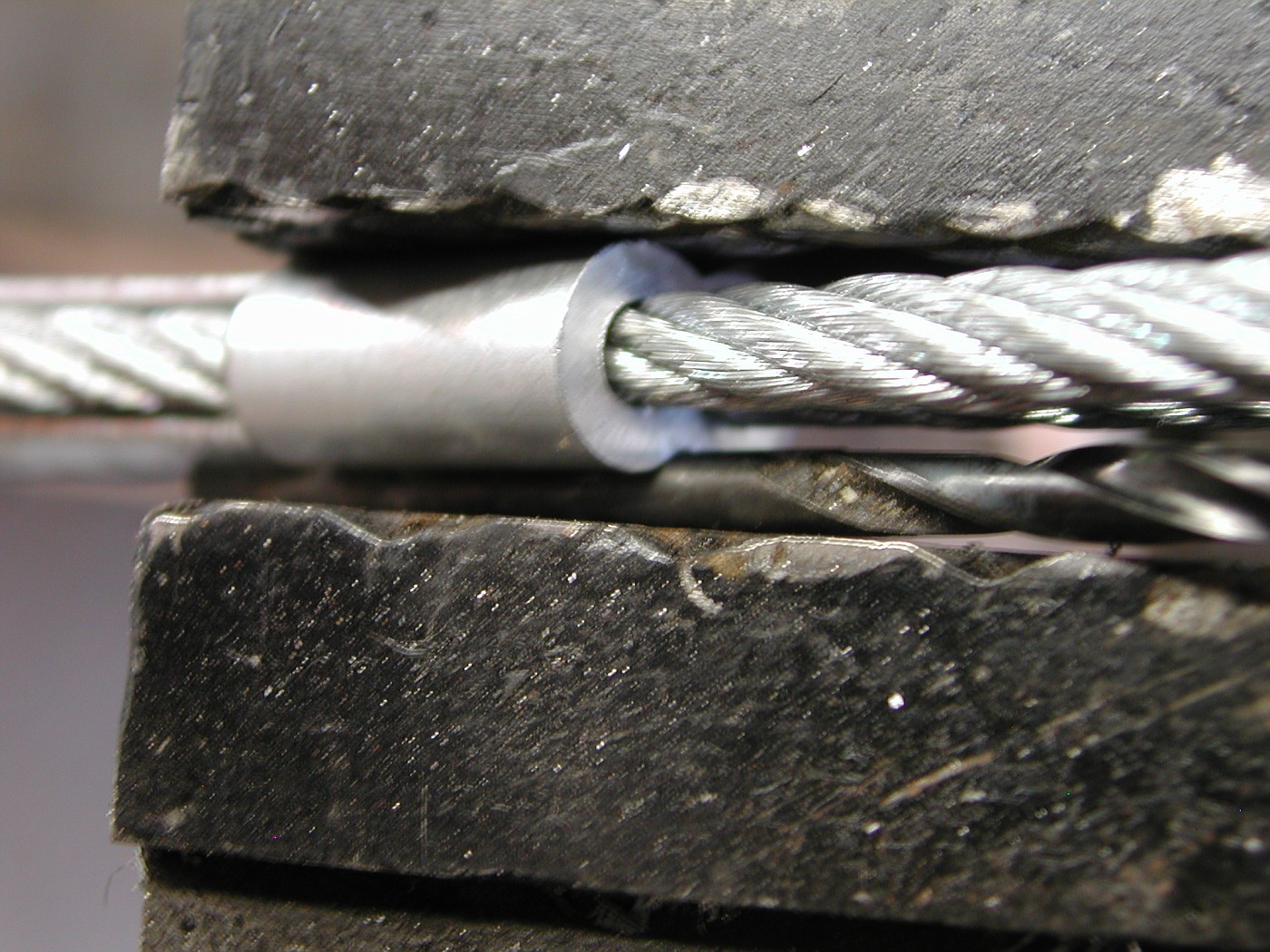

    I crimped the ferrules onto the cable using my vice and a 1/8" drill bit so it doesn't Flatten the ferrule but make it meet in the middle.

    [​IMG]
    [​IMG]



    Here's what the crimp looks like.I crimped each side of the ferrule so the "indentation" in the middle is on both sides.

    [​IMG]
    [​IMG]

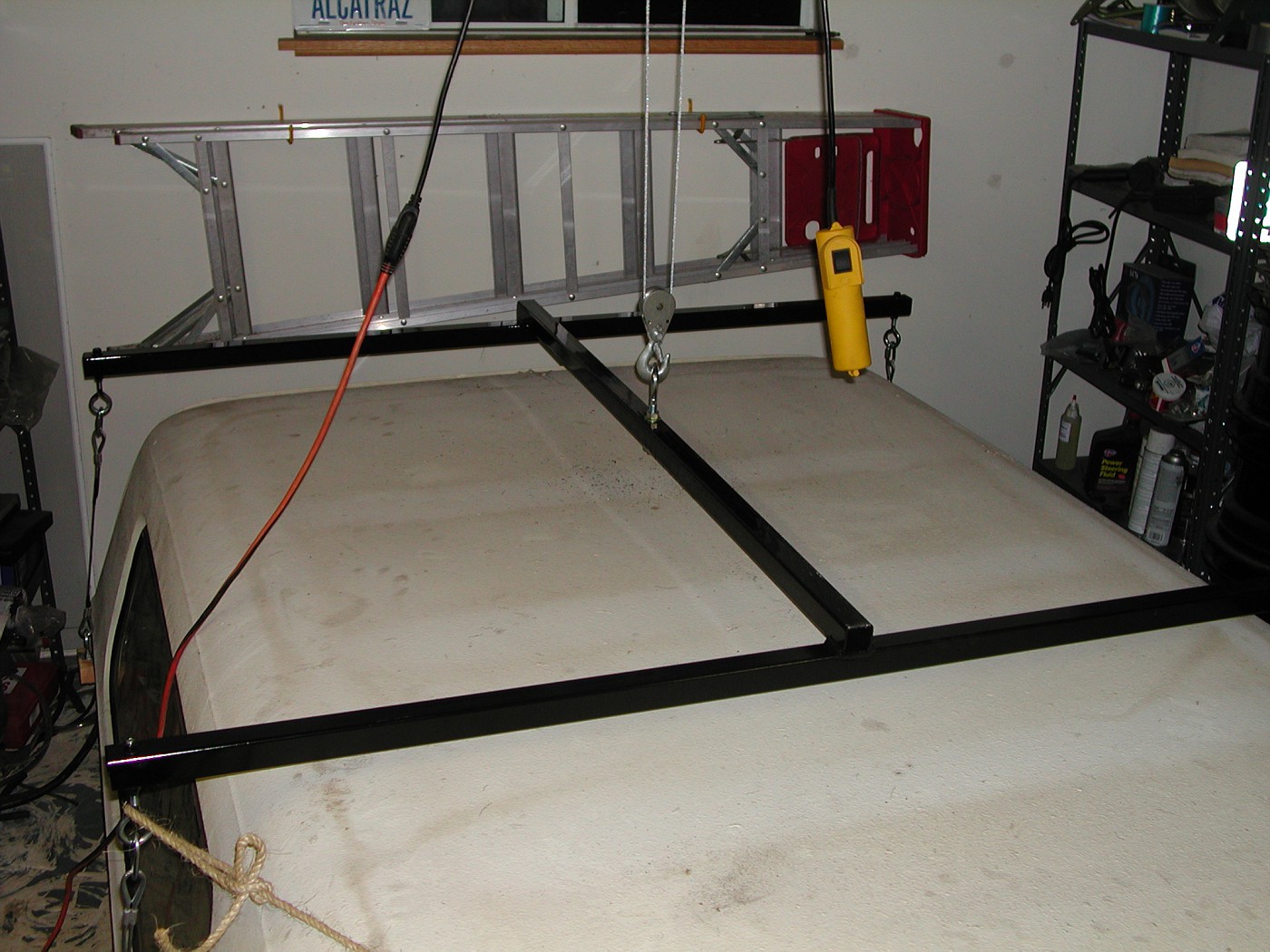

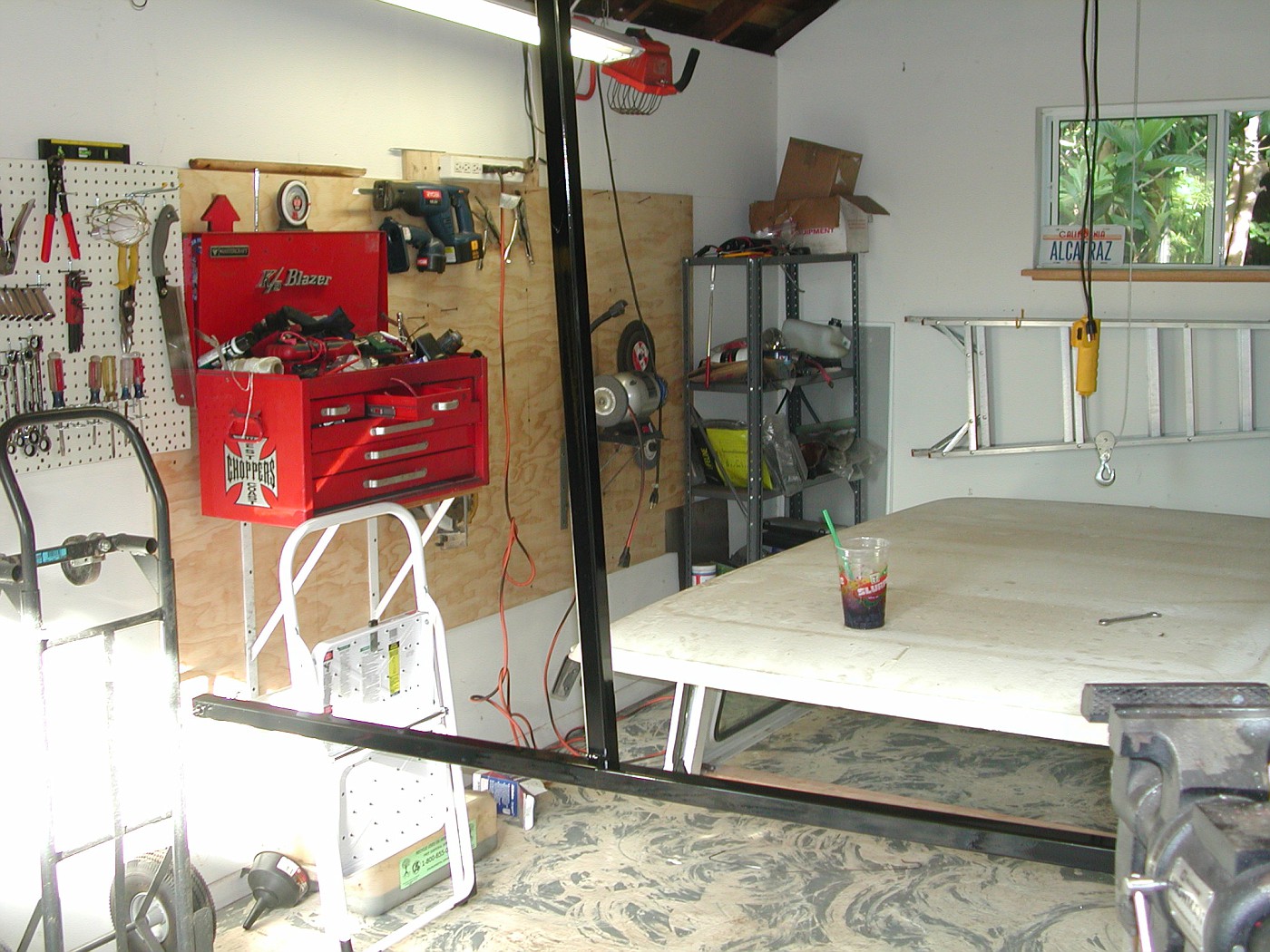

    Here I've connected the cables to the top frame.


    [​IMG]

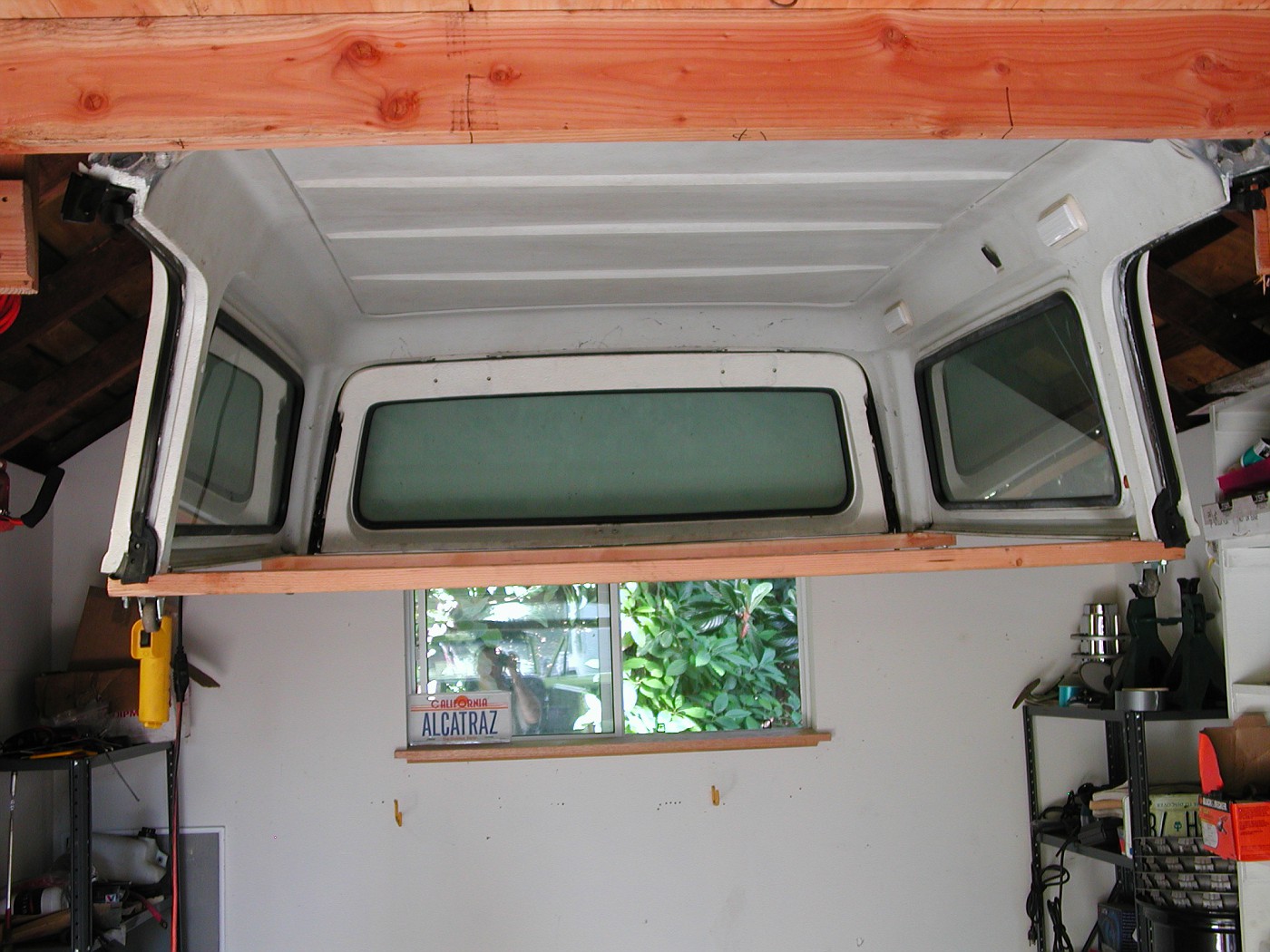

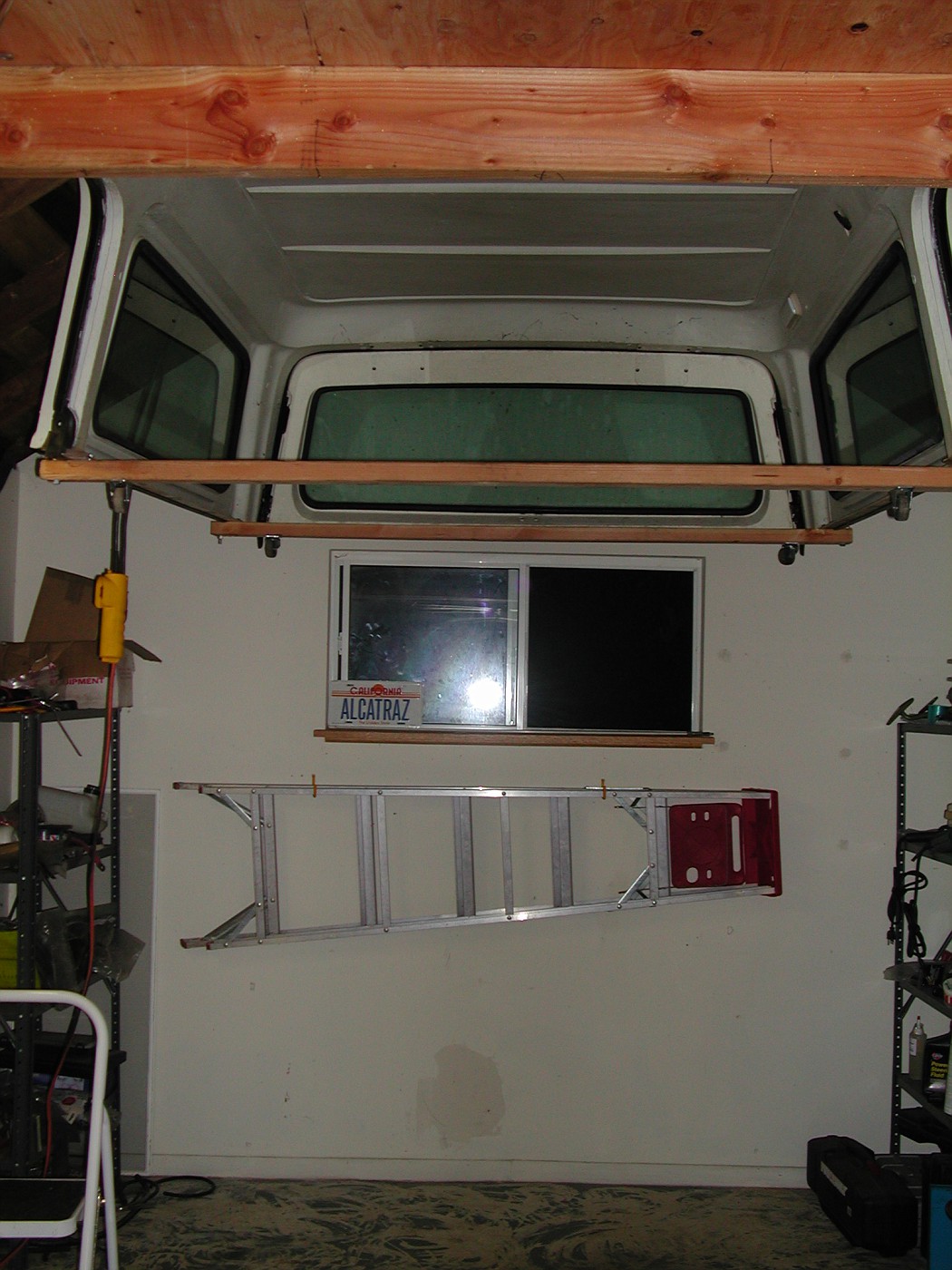

    Then up to the roof again.Except this time it's a good 12"s higher.

    [​IMG]
    [​IMG]




    I haven't done it yet,but as suggested,I will be adding a safety chain so I can take the tension off the winch.

    Thanks for the comments guys.




    .

    Last edited: May 3, 2010
  11. hi pinion

    hi pinion 3/4 ton status

    Joined:
    Sep 25, 2003
    Posts:
    5,354
    Likes Received:
    0
    Location:
    **PLUMBING THE WORLD**
    Re: How I raised my top to the roof.(PIC\'S)

    Wow man thats really cool! /forums/images/graemlins/thumb.gif

  12. Burt4x4

    Burt4x4 3/4 ton status

    Joined:
    Feb 17, 2000
    Posts:
    6,854
    Likes Received:
    0
    Location:
    California (Modesto area)
    Re: How I raised my top to the roof.(PIC\'S)

    Much better BobO /forums/images/graemlins/waytogo.gif
    I like the idea of taking the tension off the winch /forums/images/graemlins/waytogo.gif
    You can weld too /forums/images/graemlins/yikes.gifhehehe J/K
    Later

  13. Yukon Jack

    Yukon Jack 1/2 ton status

    Joined:
    Jul 25, 2002
    Posts:
    1,984
    Likes Received:
    0
    Location:
    Rose Hill, KS
    Re: How I raised my top to the roof.(PIC\'S)

    Looks like a great improvement. I noticed the cables on the top before and this is a better way for sure.

  14. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,954
    Likes Received:
    444
    Location:
    East of San Francisco
    Re: How I raised my top to the roof.(PIC\'S)

    I was lucky; I took the factory roof rack off my '74, and put eye bolts of the same diameter into the factory holes... now I have eye bolts at the top level, so no cable scratches. (Not like you could tell with my top /forums/images/graemlins/smile.gif)

    BTW, BobK, you have a *slight* tendency for overkill in your engineering /forums/images/graemlins/histerical.gif ... which I truly admire. I believe you could tow your truck, in a pinch, with those cables...

    -- A

  15. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: How I raised my top to the roof.(PIC\'S)

    It's actually my lack of engineering knowledge that makes me always want to go bigger. /forums/images/graemlins/grin.gif
    Sometimes I do definitley overkill /forums/images/graemlins/peace.gif

  16. Triaged

    Triaged 1/2 ton status

    Joined:
    Feb 21, 2001
    Posts:
    3,808
    Likes Received:
    0
    Location:
    CA (LA/OC area)
    Re: How I raised my top to the roof.(PIC\'S)

    Looks nice! Reminds me of Greg's "Pullies from Hell" post from many moons ago /forums/images/graemlins/dunno.gif

    I don't think Brandon has any clue about what a full top weighs...with his "having to get a budy over" coment...those half tops weigh nothing and can be moved around by one person.
