How's this for a shackle angle?

Discussion in 'The Garage' started by zcarczar, Apr 8, 2005.

  1. zcarczar

    zcarczar 1/2 ton status

    Joined:
    Feb 10, 2002
    Posts:
    2,495
    Likes Received:
    0
    Location:
    Apple Valley California

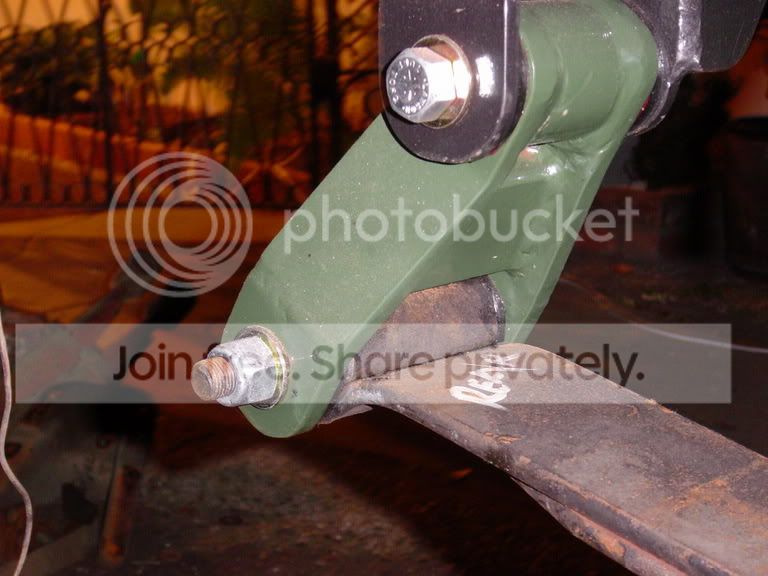

    Well?
    [​IMG]

  2. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco
    Looks like you should take the ORD flip brackets and swap sides with them, that'll open up your angle to right about where it should be, looks too closed.

  3. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Would be good for droop, but I don't know how it would be for compression. Seems a little extreme, but I'm not an expert in any way. I would like to know what the universal "best" angle one would go for would be though.

  4. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    its perfect leave it the way it is.

  5. Jonny-K5

    Jonny-K5 1/2 ton status

    Joined:
    May 27, 2003
    Posts:
    1,654
    Likes Received:
    0
    Location:
    SoCal
    i'd drive it as is. see if they make contact or handle funny. if its bad, then swap sides.

  6. mikey_d05

    mikey_d05 1 ton status GMOTM Winner

    Joined:
    Nov 23, 2004
    Posts:
    10,453
    Likes Received:
    0
    Location:
    Minnesota
    I'd leave it. It looks like your springs are almost flat the way it is (I could be wrong) so I don't think compression will be affected very much. Gonna droop like mad though.

  7. white-rhyno

    white-rhyno 1/2 ton status

    Joined:
    Jan 27, 2002
    Posts:
    942
    Likes Received:
    0
    Location:
    Ellensburg Washington
    looks perfect

  8. JohnyLowBuck

    JohnyLowBuck Newbie

    Joined:
    Dec 23, 2004
    Posts:
    1
    Likes Received:
    0
    Location:
    Bay City, MI
    Looks just like mine. I kinda wondered about this myself. I've drove it like this for the last 6 months however and it rides just fine. I've even hauled some pretty heavy loads as i was remodaling my upstairs. No problems at all.
    [​IMG]

  9. Hossbaby50

    Hossbaby50 3/4 ton status

    Joined:
    Sep 1, 2001
    Posts:
    8,972
    Likes Received:
    0
    Location:
    Peoria, AZ
    Looks just fine. It will be a nice and soft ride and flex like a mofo.

    Harley

  10. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco
    I stand corrected. I was under the impression that the optimal shackle angle was with the shackle as close to 90* to the spring end as possible. My shackle angle, which I thought was too closed is looking better now. :waytogo:
    [​IMG]

  11. sled_dog

    sled_dog 1 ton status

    Joined:
    Sep 3, 2002
    Posts:
    16,870
    Likes Received:
    0
    Location:
    Austin, TX
    Optimum anlge is closer too 45*. Its one of the things I don't like about the ORD flip, I think it could really do more for shackle angle.

    Well it depends on springs and shackle length. There used to be a calculation but I think it got lost when Echobit went under.

  12. Thuren

    Thuren Registered Member

    Joined:
    Apr 7, 2005
    Posts:
    16
    Likes Received:
    0
    Location:
    EIGHT ZERO FIVE
    It's an absolutely perfect angle for the springs you have IMO... :)


    Don

  13. captaininsano

    captaininsano 1/2 ton status

    Joined:
    May 4, 2004
    Posts:
    233
    Likes Received:
    0
    Location:
    Bay Area, CA
    Mofulgly13 where did you get those beefy shackles!?? Build or buy? Those are NICE! I want some!

    My ORD shackle flip put my angle pretty close to 90 degrees, my rig's flex in the rear is sweet, front not so good even though I have the ORD shackles up there, greasable bushings and TuffCountry ezrides.

  14. sled_dog

    sled_dog 1 ton status

    Joined:
    Sep 3, 2002
    Posts:
    16,870
    Likes Received:
    0
    Location:
    Austin, TX
    ORD shackles only hurt front shackle angle. My shackle angle on the K5 was horrible with ORDs and BDS springs.

    [​IMG]

  15. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco
    I built those shackles myself. They are 3/8 bar and have an offset built into them so I could run ford 57" long 3" wide springs. I'm still trying to get the K5 back together so I don't know how it will ride, but I am hoping for the best. It was actually pretty easy to make them after I had all the angles and measurements worked out. I used a porta-band, a 1/2" drill motor and my welder, and voila! I also used my lathe to drill the larger holes where the bushing sleeve ties the top together, but that's just 'cause I dont have a drill press. Apart for paying for material, the only cash I put out was to have them powdercoated.

  16. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,954
    Likes Received:
    445
    Location:
    East of San Francisco
    Umm, there is something weird looking about that flip. At least, it looks much shorter, vertically, than my 4".

    Is that the 2.5" flip, or is yours modified from original ORD somehow?

    -- A

  17. zcarczar

    zcarczar 1/2 ton status

    Joined:
    Feb 10, 2002
    Posts:
    2,495
    Likes Received:
    0
    Location:
    Apple Valley California
    I was just showing off my bitchin shackle angle, I had no plans of changing it. I set it up when I did the suspension to be just like that.

    yeah thats a 2.5 flip, I still to beef these shackles up a big though before I run them.

  18. 84K5BD

    84K5BD 1/2 ton status

    Joined:
    May 19, 2001
    Posts:
    302
    Likes Received:
    0
    Location:
    arlington, mass
    my shackle angle is pretty close to yours, wait till to you see how much droop you'll have. :D you are gonna need a limiting strap. i need to send my rear c.v shaft back to tom woods to get some more flex. i am running shackles like yours, been running them for a couple of years with no problems.

  19. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,169
    Likes Received:
    1,369
    Location:
    E-town baby!
    I think my shackle angle is even steeper than that with the 57's. It rides great and flex's awesome. Last I checked I could get 45" under the rear tire...and that was with brutally stiff Rancho fronts.


    Rene
