hydro clutch location.

Discussion in 'The Garage' started by eightyone, Jul 31, 2005.

  1. eightyone

    eightyone 1/2 ton status

    Joined:
    Apr 25, 2004
    Posts:
    292
    Likes Received:
    0
    Location:
    long island
    im puttin a hydro clutch in my 87 suburban, and it came with an automatic. i heard that the part tht goes thrue the firewall has to be in the perfect spot so the rod is traight. i remember a diagram going around a while ago that showed were to drill the holes. does anyone still have that? i want to make sure i put it in the right spot the first time. thanks.

  2. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan

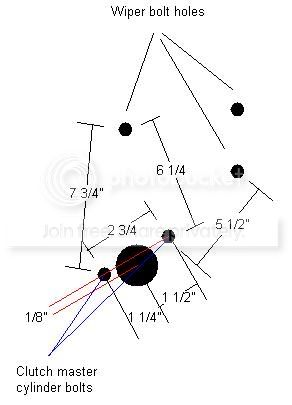

    here is the measurements that i took from a factory hydro truck and put them on my 83 (factory linkage) and has been working just fine for just over 6 months.

    [​IMG]

  3. NoSmog73

    NoSmog73 1/2 ton status

    Joined:
    Sep 28, 2001
    Posts:
    2,348
    Likes Received:
    0
    Location:
    lodi,ca
    This will help too..
    [​IMG]

  4. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,180
    Likes Received:
    1,388
    Location:
    E-town baby!
    All the 85 and up CK trucks came with the hydro clutch holes already dimpled in the floor/firewall. If you pull the carpet and stuff you should see them.

    Rene

  5. eightyone

    eightyone 1/2 ton status

    Joined:
    Apr 25, 2004
    Posts:
    292
    Likes Received:
    0
    Location:
    long island
    wow, thanks for the qick replies. so your saying, there is dimples in there, and i can just drill them out?

  6. dyeager535

    dyeager535 1 ton status Premium Member

    Joined:
    Dec 13, 2000
    Posts:
    26,982
    Likes Received:
    191
    Location:
    Roy WA
    Yes they will be there.

    I'm fairly certain you can do it from the engine side.

  7. eightyone

    eightyone 1/2 ton status

    Joined:
    Apr 25, 2004
    Posts:
    292
    Likes Received:
    0
    Location:
    long island
    i ran outside for a quick look, and did not see any dimples. does anyone have a pic of what they look like, and were they are? also, it looks like the fuse box might be in the way. not really sure tho. all help is apreciated.

  8. RootBreaker

    RootBreaker 3/4 ton status Premium Member

    Joined:
    Nov 29, 2001
    Posts:
    5,118
    Likes Received:
    173
    Location:
    Williamstown, NJ USA


    mounted mine up... but clutch bleeding is a biatch..hopefully doing that today....


    hard to see but see the plated hole with 1 wire going in front of it? this cab is a 1982 and that his the hole I drilled. My hydro clutch fit beautifully.... :bow:
    [​IMG]

    all is connected but have been bleeding the clutch and still not a full pedal. As soon as I let it out 1/4" it is engaged.... at least she aint slippin like before!!!!! :haha:

  9. dyeager535

    dyeager535 1 ton status Premium Member

    Joined:
    Dec 13, 2000
    Posts:
    26,982
    Likes Received:
    191
    Location:
    Roy WA
    Yeah if you've got that plastic shielding, (as in the above picture) you'll have to cut it out to see the sheetmetal. I'm assuming yours has the plastic?

    Even in the picture posted, you can see that potential hole locations are also "cast in", so you shouldn't have to guess where the holes need cut in the plastic either.

    There have to be pictures of the clutch master mounted up, if not, I'll take one or two tonight, if they can be taken clear enough so you can tell anything.

  10. RootBreaker

    RootBreaker 3/4 ton status Premium Member

    Joined:
    Nov 29, 2001
    Posts:
    5,118
    Likes Received:
    173
    Location:
    Williamstown, NJ USA

    ok so I bought a 1985 GMC Jimmy fullsize for $100...
    here is the hydro stuff before I removed it....
    [​IMG]

    bigger pic...
    http://www.supermotors.org/getfile/220678/original/HydroClutch.jpg


    my digi broke... so cant post pics of mine mounted up on a pickup :doah:

  11. eightyone

    eightyone 1/2 ton status

    Joined:
    Apr 25, 2004
    Posts:
    292
    Likes Received:
    0
    Location:
    long island
    thanks alot everyone, that helped a tremendous amount. im goin to get started on it today.

  12. beater_k20

    beater_k20 Banned

    Joined:
    Dec 9, 2003
    Posts:
    10,276
    Likes Received:
    0
    Location:
    Elkhart, IN
    i still cant believe you drove all the way out here to pick that stuff up. :eek1:

  13. koldsimer

    koldsimer 1/2 ton status GMOTM Winner

    Joined:
    Jan 10, 2005
    Posts:
    1,480
    Likes Received:
    0
    Location:
    texas
    When I converted my auto to 465, I put the master in what I thought was the correct position. (the two dimpled areas were there in my 77 blazer) After making a bracket that connected the clutch pedal to the pushrod, I realized that I would need to figure out the perfect mounting position to push straight into the master cylinder. This will allow you a lot of leeway as far as where you mount the master to the firewall. You can get most of the adjustment at the pedal by experimenting with different mounting positions. This was one of the big ole pain in the arse kind of things for me. It took like three different brackets before i got it right. Works perfect now.

  14. eightyone

    eightyone 1/2 ton status

    Joined:
    Apr 25, 2004
    Posts:
    292
    Likes Received:
    0
    Location:
    long island
    allright, i got it in, thanks for the help, im pretty confident i got it in the right spot. im going to buy a clutch this week, and put the tranny in, does anyone know if im going to need driveshafts? acually, i will need a rear, cuz the 205 is fixed yoke, but what about the front?

  15. eightyone

    eightyone 1/2 ton status

    Joined:
    Apr 25, 2004
    Posts:
    292
    Likes Received:
    0
    Location:
    long island
    yeah, everyone thinks its rediculous, but i acually couldnt find anyhting out here. it was a fun drive tho, suicide shifts, 15 hours at a time. i love being on the road.
