I've finally completed my pulley hoist! *New system started 8/1/09! More pics!

Discussion in 'The Garage' started by Craig Artzner, Mar 9, 2007.

  1. Craig Artzner

    Craig Artzner 3/4 ton status GMOTM Winner

    Joined:
    Dec 16, 2006
    Posts:
    6,843
    Likes Received:
    0
    Location:
    Northeast Ohio
    Here are some pictures of my pulley hoist I just finished for my garage to easily R&R my fiberglass top on my '73. Sorry I don't have any pics of the top on the hoist yet. I popped it off and raised it 5" up the other day so I know it works but battery was dead in the camera. Since then I've put the top back on (still not quite warm enough to run topless yet).

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Aug 1, 2009
  2. TexasBlazerBoy

    TexasBlazerBoy 1/2 ton status

    Joined:
    Oct 10, 2005
    Posts:
    1,674
    Likes Received:
    0
    Location:
    North Texas
    Sweet

    I like it good job.

    Where is the No Smoking sign at in your Garage.......:haha: :haha: :haha:

  3. TexasBlazerBoy

    TexasBlazerBoy 1/2 ton status

    Joined:
    Oct 10, 2005
    Posts:
    1,674
    Likes Received:
    0
    Location:
    North Texas
    Take a pic of how it sits with the top on it when you get a chance.

    Thanks

    Larry

  4. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    Wow, that looks great.

  5. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    I like this picture also -

    [​IMG]

  6. Craig Artzner

    Craig Artzner 3/4 ton status GMOTM Winner

    Joined:
    Dec 16, 2006
    Posts:
    6,843
    Likes Received:
    0
    Location:
    Northeast Ohio

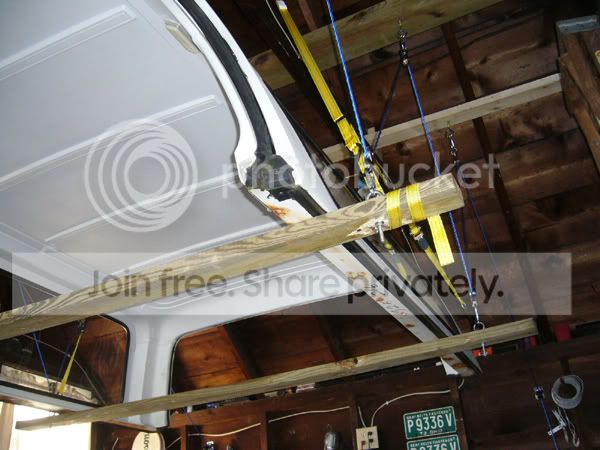

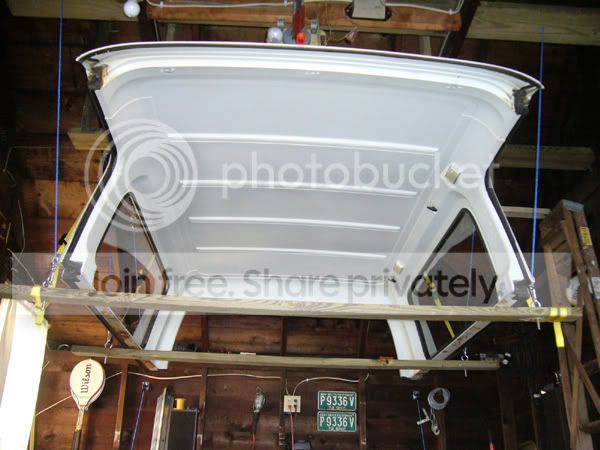

    Here are some pictures of the hoist with my top on it...:D

    [​IMG]

    [​IMG]

    [​IMG]

  7. roadnotca

    roadnotca 3/4 ton status

    Joined:
    Sep 16, 2005
    Posts:
    5,433
    Likes Received:
    1
    Location:
    Redondo Beach, CA
    C***, even the top looks beautiful:D

  8. chevyfumes

    chevyfumes Court jester

    Joined:
    Feb 24, 2000
    Posts:
    38,584
    Likes Received:
    266
    Location:
    Watch for the muzzleflash!
    Nice dood....

  9. ZooMad75

    ZooMad75 1/2 ton status Premium Member GMOTM Winner

    Joined:
    Apr 5, 2003
    Posts:
    1,007
    Likes Received:
    609
    Location:
    Pueblo, CO
    Any reason you went with two winches instead of one? Or at least putting the winches closer together on the wall so one person could crank both?

    Looks pretty slick anyway. Good job!

  10. Craig Artzner

    Craig Artzner 3/4 ton status GMOTM Winner

    Joined:
    Dec 16, 2006
    Posts:
    6,843
    Likes Received:
    0
    Location:
    Northeast Ohio
    Believe me, I would have loved to have engineered it to work with just one winch. I was hard-pressed for room to work with there at the back, or else I would have brought them together as one. The slope of the roof and the overall layout of the studs and rafters was against me. It just ended up being easier and safer this way.

    But even with the current layout, it only took me 20 minutes total to remove it. That time includes removing bolts, etc. :D

  11. BKinzey

    BKinzey 1/2 ton status

    Joined:
    Jan 13, 2006
    Posts:
    3,145
    Likes Received:
    0
    Location:
    Hollywierd, CA
    Looks Good!

    Here's that pic with an artsy fartsy trim job:D:D:rolleyes:

    Pulley Hoist System trim.jpg

  12. imiceman44

    imiceman44 1 ton status

    Joined:
    Aug 5, 2002
    Posts:
    15,160
    Likes Received:
    1
    Location:
    Sacramento, CA
    Well I did a design on the hoist I wanted to make but left the blazer and came here since so didn't need it yet but I used to put it on and off in less than 15 min including the bolts, and only by myself.
    With my brother we'd do it in 5 min flat.
    :D
    That top came off and on dozens of times in the summer for us it was just like opening the windows or closing them.
    We also had a bikini top that we used on chili nights if we left without the top.
    :bow:

    My comment on your design is that you have to slide your top on to it, how about incorporating something in the top to hook and lift, I would use a tab bolted to the bottom of the top between the top and the foam or rubber insulation, it can be as small as 1" sticking out with a hole 3/8" to hook to.
    That way you are not ruining your top but still making it easy.

  13. Craig Artzner

    Craig Artzner 3/4 ton status GMOTM Winner

    Joined:
    Dec 16, 2006
    Posts:
    6,843
    Likes Received:
    0
    Location:
    Northeast Ohio
    Actually I don't do any sliding on the top and my method does not damage the top. What I do is back the Blazer in under the hoist, loosen the bolts, then I get in the truck and push up with my back on each end as I put the 2x4s in between the top and the bedrail (when not in use I stack the 2x4s in the corner of the garage). Then I hook up the pulleys to the loops on the 2x4s and crank it up. Here are some pics of me removing the top (I know, I have a thread for everything): :D

    http://coloradok5.com/forums/showthread.php?t=216496

    If my truck wasn't in such nice original shape I might have installed some hooks on the top itself to make the process quicker.

  14. mr.smartass

    mr.smartass 1 ton status Premium Member

    Joined:
    Aug 10, 2004
    Posts:
    10,860
    Likes Received:
    4
    Location:
    Hattiesburg, MS
    So where do you store the Chinese Sex Basket when your top is on the ropes?:confused:

  15. Metrodps

    Metrodps Strange but nice guy Premium Member GMOTM Winner Author

    Joined:
    Jan 4, 2006
    Posts:
    9,726
    Likes Received:
    108
    Location:
    earth
    :haha::haha::haha:

  16. Blue85

    Blue85 Troll Premium Member

    Joined:
    Jul 26, 2000
    Posts:
    9,084
    Likes Received:
    486
    Location:
    Grand Rapids area
    So you have to climb up and attach ratchet straps once the top is up in the air? Why not cut the rope into mutiple pieces that tie to the winch rope? Then the top couldn't tip when it is on the pulley system. It also seems like you could bring all four individual ropes to a single winch, just be running some additional pulleys to route the rope around the rafters. Maybe I just can't see it right. Then you wouldn't have to run back and forth cranking each pulley a little bit at a time.

    I would love to have mounts for a roof rack or something to attach directly to the top to avoid lifting it and placing boards underneath.

    *Edit* Has anybody ever tried mounting something like this in the top? If you used a low profile one, nobody would even know it's there (unless their truck is bigger)
    [​IMG][​IMG]

    Plus, you could use them to secure cargo on the roof.

    Last edited: Oct 29, 2007
  17. Craig Artzner

    Craig Artzner 3/4 ton status GMOTM Winner

    Joined:
    Dec 16, 2006
    Posts:
    6,843
    Likes Received:
    0
    Location:
    Northeast Ohio
    I don't have to. I only install the ratchet straps as an extra safety feature since the top hangs in the garage for weeks at a time. They have nothing to do with actually lifting the top.
    See post #10. :)

  18. Randy92782

    Randy92782 1 ton status

    Joined:
    Mar 25, 2007
    Posts:
    16,287
    Likes Received:
    1
    Location:
    Arcadia, MO
    wow nice setup Craig. beats the hell outta mine :D

    [​IMG]

    [​IMG]

    i suggest noone do this cause when i went to put it back on it had warped a little bit. never even thought about it really DOH!!

  19. Craig Artzner

    Craig Artzner 3/4 ton status GMOTM Winner

    Joined:
    Dec 16, 2006
    Posts:
    6,843
    Likes Received:
    0
    Location:
    Northeast Ohio
    That's not a bad idea.

  20. Blue85

    Blue85 Troll Premium Member

    Joined:
    Jul 26, 2000
    Posts:
    9,084
    Likes Received:
    486
    Location:
    Grand Rapids area
    Yeah, I'm actually thinking about cutting my top to mount some of those eyes on now. I think I could get the top off in 5 minutes. I feel confident in sealing them and I think I could keep them from rattling, I'm just worried about the strength of the bolts in the fiberglass. Putting a plate on the underside and running the bolts all the way through might be the only safe way.

    I read your post that 1 winch was difficult, I just didn't believe that it was impossible:D

    Really though, if you just doubled a few of the pulleys, you could run 2 ropes from each winch and not risk the top tipping from front to back. The advantage to using 2 long 2x4s like you did is that you don't have to line the truck up perfectly under the top to get it back on. The drawback is that the top isn't really secured to anything. You could put some bolts through the topper holes and the 2x4's to hold it on. Maybe you already did. Anyway, no ratchet straps required then.
