I've Officially lost it....Inverter install.....

Discussion in 'The Garage' started by 73k5blazer, Apr 14, 2006.

  1. 73k5blazer

    73k5blazer Unplug the matrix cable from the back of your head Premium Member

    Joined:
    Dec 28, 2001
    Posts:
    4,987
    Likes Received:
    38
    Location:
    The Rustbelt
    Instead of doing things like...oh....mabey getting and engine and putting it in...I'm stuck on the wiring, during which I put this 500winverter/10amp charger in. Works very nice.

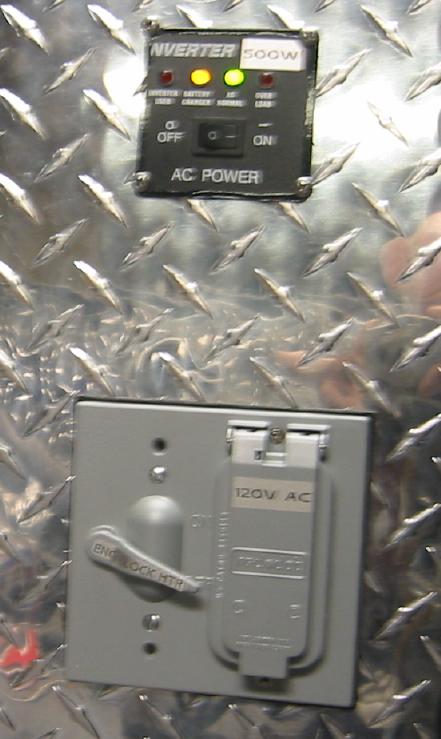

    Buried behind my side panels, along with the stereo amplipiers, has a 15amp 120v inlet I mounted above the rear taillight. This model didn't have a remote panel, so I removed the panel from the inverter, made a block off plate, hardwired a plug, and used a cat5 network cable to extend the LED display and 2 18ga wires for the switch.
    I also put an AC switch and ran the wire it switches to the engine compartment for an engine block heater. That way I can have just 1 15amp inlet the charge the battery and run the engine block heater.

    [​IMG]
    [​IMG]

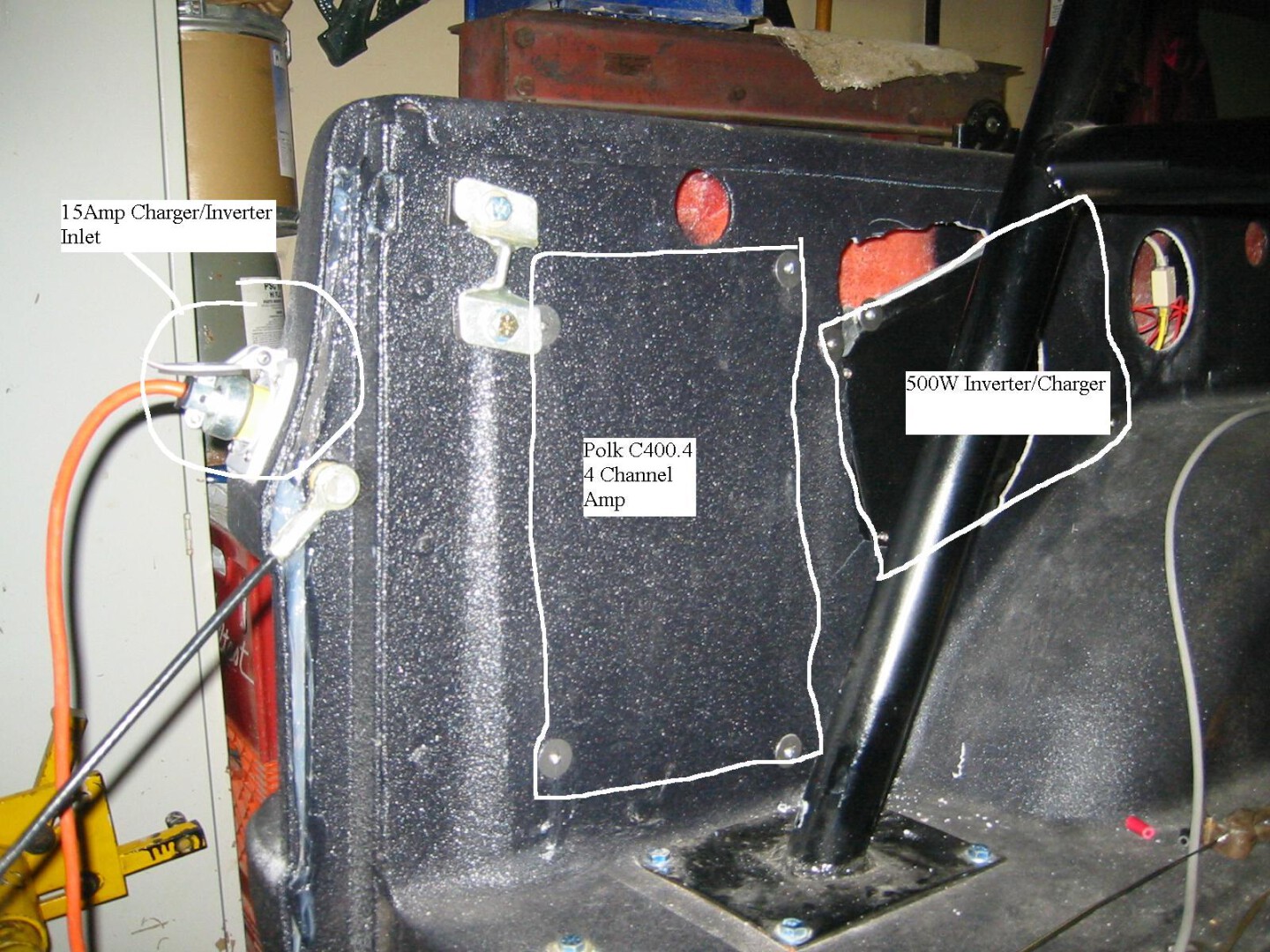

    ANd the placement of the components (on this side), before diamond plate installation.
    Not shown in this picture is the 12vDC acc. outlet I installed just above the inverter there, so I can put a 12vdc fridge back there. I never expected I'd turn my K5 into an RV.

    [​IMG]

    Last edited: Nov 28, 2006
  2. 1985_K5_Silverado

    1985_K5_Silverado 1/2 ton status

    Joined:
    Dec 21, 2005
    Posts:
    984
    Likes Received:
    0
    Location:
    Corn Country
    Inverters can be pretty handy! I don't think it's odd at all. Not having an engine might be :eek1: but the inverter makes sense.

    I know a guy that uses one on his diesel Suburban - just to run an electric grill for lakeside cookouts. First, he got tires of using the park grills (building the fire, etc). Then he got tired of buying propane and waiting for the rocks to heat up on his portable gas grill. So, he did away with all that and hard-wired a big inverter so he could set up his electric grill on a folding table. While everyone else is letting the coals form or letting the propane heat up the lava rock, he's already grilling.

  3. 73k5blazer

    73k5blazer Unplug the matrix cable from the back of your head Premium Member

    Joined:
    Dec 28, 2001
    Posts:
    4,987
    Likes Received:
    38
    Location:
    The Rustbelt
    Yeah, I wanted a bigger one, but once you get above 500 they get very square and then it wouldn't fit behind the side panel. This one is long and flat and it has a fan and says it's designed to be mounted in tight places. Plus any bigger and I don't think I'd have been able to mount it so far from the battery, all the 1000/1500 watt ones want you to mount the thing on the battery to minimze voltage drop in the cable.

  4. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    That looks great. I have a couple of inverters (1500 and 2000) that I run directly from the battery. They are very helpful on cross country and while camping. I never really thought about it, but I suppose that I am turning my Suburban into an RV also.

  5. diesel4me

    diesel4me 1 ton status Premium Member

    Joined:
    Jul 24, 2003
    Posts:
    17,568
    Likes Received:
    943
    Location:
    Massachussetts
    old school...

    I remember meeting an old hippie that had an old school bus that looked just like the Partridge Family's bus..he had an electric motor mounted on the bus engine..he explained it was now a generator!..all you have to do is wire in a few "motor run" capacitors in the 110v line cord,and once it spins at bit faster than it did as a motor (say,1725 rpm motor would need to spin 1800 or a bit more),it starts generating current,and turns it into a generator!..:D

    (there is info on this in detail online..google "Induction Motor Generator" and you'll see several pages of info!..)

    He said it would put out about 1100 watts,it was a 1hp motor from an old table saw..said it runs everything but motors,or anything that was a direct short,like a heater or stove..(it would run a drill,but a circular saw wouldn't work)..it worked great for lights and TV's,stereo,and other appliances!...neat thing about it was if you overloaded it,it would simply stop generating!--kind of "fail safe"!..

    I'm tempted to use a 5hp motor and an old washing machine motor to make a emergency generator,or an old alternator and one of those inverters!--then I could charge dead batteries too..be handy for jump starting my lawn tractor,which always seems to have a dead battery,since its parked 300 feet from my shop..:mad:

    Neat setup you have there!...I didn't think inverters could be mounted in an enclosed space so small,nor did I know they can run a grill!--that means you could use a ceramic heater too most likely,if you had enough wattage!.. :crazy:

  6. reptilianman

    reptilianman Registered Member

    Joined:
    Apr 9, 2006
    Posts:
    12
    Likes Received:
    0
    Location:
    clarkston , michigan
    3 on tree parts

    Ive got all the 3on tree parts you need from a 86 c10 and then some and i live in clarkston

  7. Big Blzn

    Big Blzn 1/2 ton status GMOTM Winner

    Joined:
    Jan 30, 2006
    Posts:
    3,587
    Likes Received:
    0
    Location:
    Orange County, CA.
    Dammit 73k5, that is such a great setup that you are going to make me spend more money to do something like yours. Very nice.:bow:

  8. chalet2506

    chalet2506 1/2 ton status Premium Member

    Joined:
    May 9, 2006
    Posts:
    4,931
    Likes Received:
    0
    Location:
    Skeddadlin
    I've been kicking around getting an invertor. The lights and fan in my camper run off 12 volt, so I currently have a convertor to run my camper's system off a/c current when I have shore power. I also have 2 a/c outlets for running my air conditioner and other things when I'm plugged in. I basically have the setup in place, it would just be a matter of spending the money and wiring it in.

    So there ya go, I don't think you've lost it. I think its a great idea.:bow:

  9. 87K506

    87K506 1/2 ton status

    Joined:
    Sep 18, 2005
    Posts:
    536
    Likes Received:
    0
    Location:
    Pitkin, Colorado
    I kind of understand what you are doing, but the whole inverter inlet has me confused. I thought you ran a cable from the battery to the inverter, and that converted from DC to AC. What is the inverter inlet for? This sounds like a great idea, and I plan on doing my side panels out of diamond plate too, and would love to do this with the inverter, as it would be a really handy thing to have.

  10. AFUFO

    AFUFO 1/2 ton status

    Joined:
    Apr 26, 2006
    Posts:
    329
    Likes Received:
    0
    Location:
    Chesapeake,Virginia
    Any chance of more pics of the interior of your truck? I like what i see so far..Giving me ideas!!

  11. 87K506

    87K506 1/2 ton status

    Joined:
    Sep 18, 2005
    Posts:
    536
    Likes Received:
    0
    Location:
    Pitkin, Colorado
    http://www.snyderworld.org/photos/main.php/v/K5Blazer/

    He had posted that in another thread and i was just lookin at his gallery when you asked about other pictures. I like what he's done with the interior so far, the diamond plate, location of the amp, the inverter, everything. Seems very thought out
