just another homemade shackle flip bracket

Discussion in 'The Garage' started by bboy, Aug 2, 2004.

  1. bboy

    bboy Registered Member

    Joined:
    Apr 21, 2004
    Posts:
    37
    Likes Received:
    0

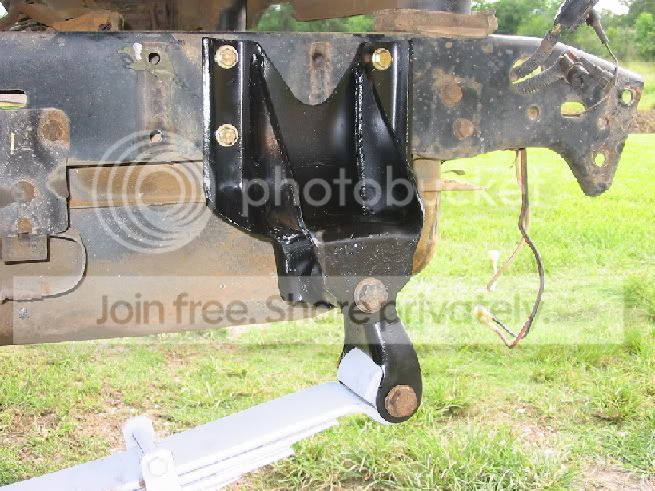

    I used part of a front spring hanger and part of a rear shackle hanger to create this shackle flip bracket. i've installed 56" springs on the rear with the pin to the back moving the rearend back 4". i will be relocating the fenderwells this week. i will try to take pics. bboy [​IMG]

  2. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    NICE!!! /forums/images/graemlins/thumb.gif /forums/images/graemlins/thumb.gif

  3. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    so you used both the stock front and rear hanger on a k5??

  4. bboy

    bboy Registered Member

    Joined:
    Apr 21, 2004
    Posts:
    37
    Likes Received:
    0
    [ QUOTE ]
    so you used both the stock front and rear hanger on a k5??

    [/ QUOTE ]

    that is correct. the outer tab and support gussets are a portion of a front spring hanger. the inner tab and backing plate are a portion of a rear shackle hanger. the original strengthening bracket that was riveted to the bottom of the frame still fits in the new location. bboy

  5. 84gmcjimmy

    84gmcjimmy 1 ton status

    Joined:
    Dec 3, 2003
    Posts:
    12,838
    Likes Received:
    0
    Location:
    B.C. CANADA
    How much lift did you get out of it? switching 56's only makes 3" more wheelbase /forums/images/graemlins/waytogo.gif

  6. bboy

    bboy Registered Member

    Joined:
    Apr 21, 2004
    Posts:
    37
    Likes Received:
    0
    [ QUOTE ]
    How much lift did you get out of it? switching 56's only makes 3" more wheelbase /forums/images/graemlins/waytogo.gif

    [/ QUOTE ]

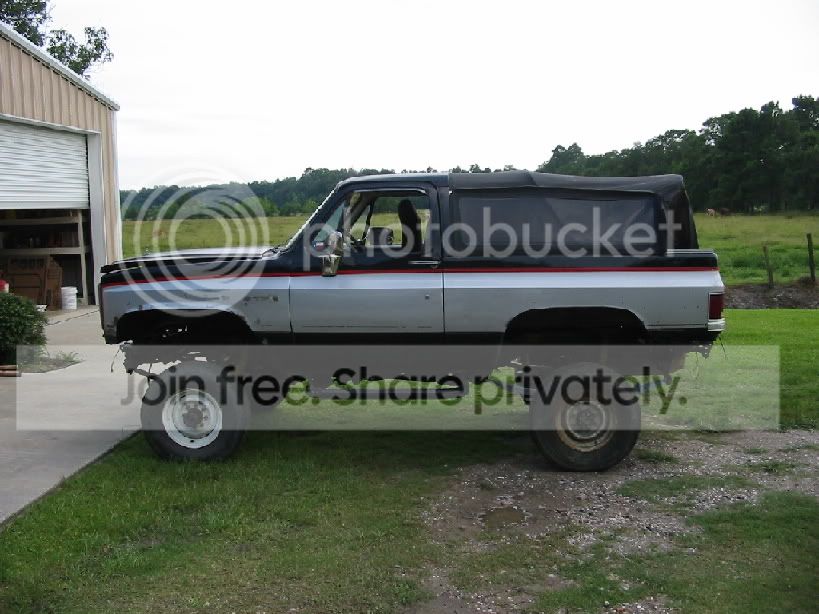

    [image][​IMG][/image] [image][​IMG][/image] actually the wheelbase thing can vary. it depends on how much forward movement you get by going from a tension shackle to a compression shackle. the pin on the springs going from a 52" to a 56" is different by 4". vehicles using a 52" or 56" rear springs have a common front spring hanger location.
    the lift gained i did not measure exactly. it sits about the same height as it did with the 4" lift springs.
    it sits almost perfectly level with the 52" springs in the front and the 56" springs in the back. it has zero rates in the front and overloads in the back for now.

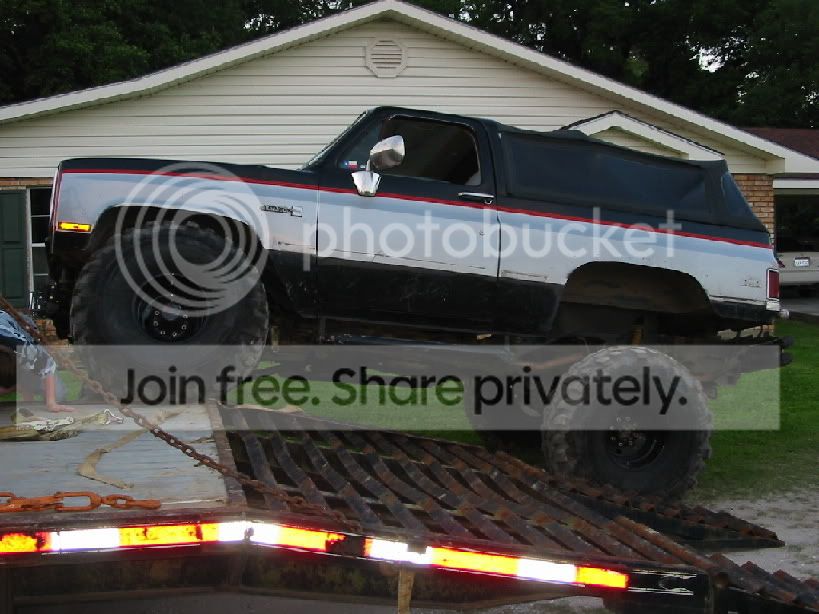

    some of you may recognize this jimmy it belonged to a guy named brian glass that used to frequent this board. bboy

  7. BOWTIE

    BOWTIE 1/2 ton status

    Joined:
    Dec 28, 2000
    Posts:
    2,018
    Likes Received:
    0
    Location:
    Outside with the sawzall.
    [ QUOTE ]
    some of you may recognize this jimmy it belonged to a guy named brian glass that used to frequent this board.

    [/ QUOTE ]

    yeah, tx85gmcguy was his username..

    looking good. /forums/images/graemlins/thumb.gif

  8. K5MONSTERCHEV

    K5MONSTERCHEV 1/2 ton status

    Joined:
    Jan 27, 2003
    Posts:
    3,254
    Likes Received:
    0
    Location:
    Castro Valley, CA
    WOW, thats a nice bracket! /forums/images/graemlins/waytogo.gif

  9. 84gmcjimmy

    84gmcjimmy 1 ton status

    Joined:
    Dec 3, 2003
    Posts:
    12,838
    Likes Received:
    0
    Location:
    B.C. CANADA
    [ QUOTE ]
    [ QUOTE ]
    How much lift did you get out of it? switching 56's only makes 3" more wheelbase /forums/images/graemlins/waytogo.gif

    [/ QUOTE ]

    [image][​IMG][/image] [image][​IMG][/image] actually the wheelbase thing can vary. it depends on how much forward movement you get by going from a tension shackle to a compression shackle. the pin on the springs going from a 52" to a 56" is different by 4". vehicles using a 52" or 56" rear springs have a common front spring hanger location.
    the lift gained i did not measure exactly. it sits about the same height as it did with the 4" lift springs.
    it sits almost perfectly level with the 52" springs in the front and the 56" springs in the back. it has zero rates in the front and overloads in the back for now.
    some of you may recognize this jimmy it belonged to a guy named brian glass that used to frequent this board. bboy

    [/ QUOTE ]

    Oh okay. Thanks for correction me /forums/images/graemlins/waytogo.gif Looks real good /forums/images/graemlins/peace.gif

  10. BadDog

    BadDog SOL Staff Member Super Moderator Author

    Joined:
    Feb 24, 2001
    Posts:
    7,777
    Likes Received:
    11
    Location:
    Phoenix, AZ
    Have you considered the pinion issues caused by running asymmetrical springs backwards? In the normal orientation, the axle is on the front of the arch and will point upward a bit as the spring droops (increasing the arch). With it reversed, the pinion will rotate downward when drooped and may result in the joint breakage due to binding.

  11. bboy

    bboy Registered Member

    Joined:
    Apr 21, 2004
    Posts:
    37
    Likes Received:
    0
    [ QUOTE ]
    Have you considered the pinion issues caused by running asymmetrical springs backwards? In the normal orientation, the axle is on the front of the arch and will point upward a bit as the spring droops (increasing the arch). With it reversed, the pinion will rotate downward when drooped and may result in the joint breakage due to binding.

    [/ QUOTE ]

    that's an excellent point, it never really crossed my mind. i hope it doesn't turn the pinion down too much for it is too late to turn back now i removed the inner fenderwells last night. if i leave the rearend where it is now the fenderwells will have to be move back 3.937" to be centered over the axle at ride height. do you guys think i should cheat them back a little more for the rear axle movement during compression. i think the rearend will still clear the gas tank.
    if anyone else has ever run 56" springs backwards i would like to hear how yours reacts in droop.
    thanks, bboy

  12. thor

    thor 1/2 ton status

    Joined:
    Aug 20, 2003
    Posts:
    512
    Likes Received:
    0
    Location:
    Wa
    bboy,
    I run my 56's backwards and I love them, no probs what so ever. good drop and ride. Haven't had any issues with hop off road, but I'm carefull with the clutch on road. I'm on 42s too.

  13. 84_Chevy_K10

    84_Chevy_K10 Banned

    Joined:
    May 30, 2001
    Posts:
    17,669
    Likes Received:
    0
    Location:
    IL, USA
    [ QUOTE ]
    some of you may recognize this jimmy it belonged to a guy named brian glass that used to frequent this board. bboy

    [/ QUOTE ]

    Yep, I remember him. I remember when that rig was stock, had 32s on it, and it was his daily driver. /forums/images/graemlins/histerical.gif

  14. bboy

    bboy Registered Member

    Joined:
    Apr 21, 2004
    Posts:
    37
    Likes Received:
    0
    [ QUOTE ]
    bboy,
    I run my 56's backwards and I love them, no probs what so ever. good drop and ride. Haven't had any issues with hop off road, but I'm carefull with the clutch on road. I'm on 42s too.

    [/ QUOTE ]

    thanks for the info. bboy
