Let me see your "Y" pipes

Discussion in 'The Garage' started by hidesertwheelin, Mar 17, 2007.

  1. hidesertwheelin

    hidesertwheelin 1/2 ton status Premium Member

    Joined:
    Nov 13, 2004
    Posts:
    782
    Likes Received:
    4
    Location:
    Hesperia, CA
    I need to have a new "y" pipe built and am looking for some ideas. My stock one is now in the way after the lift and clocking of the t-case. Let me see what you guys have done.

  2. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco
    [​IMG]

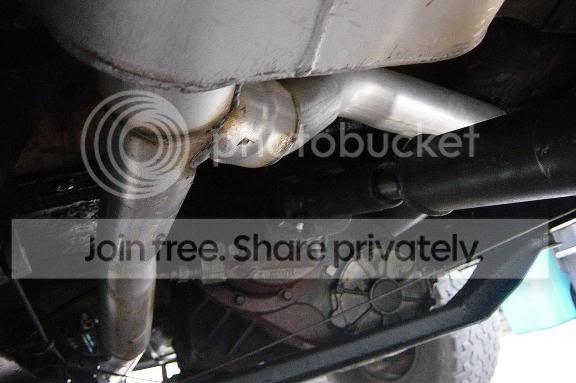

    Here's mine, goes up over the rear t=case output/driveshaft. From the photo, it looks too clost to the D/S, but it's actually high enough that it'll never hit. I like this setup as I could drop the tranny/xfer without dicking around with the exhaust.

  3. cwn anwyn

    cwn anwyn 1/2 ton status Premium Member

    Joined:
    Oct 30, 2002
    Posts:
    1,268
    Likes Received:
    6
    Location:
    Falcon CO
    Here is mine after clocking the t-case. Its not really a 'Y' but more of a 'T'.:D I am going to change it though when I loose the stock crossmember.:D

    [​IMG]

    [​IMG]

    Z

  4. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    29,624
    Likes Received:
    1,380
    Location:
    Jersey Shore
    Hey Matt..

    By any chance do you have a side shot that shows how much room from that Y to the dif?

    I'd love to run mine that way, but I need to cram a hiflow cat in and maybe a 40, 50 series behind it..

  5. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    Go to autozone. Buy an elbow. Cut out the y-pipe where it hits. Cut out less than the length of the elbow. Make sure that the cut out section is shorter than the new elbow. Spread the pipe a few inches. Weld in the elbow. Bought me an extra inch of clearance for about $5 and 10 mins.

  6. mofugly13

    mofugly13 1 ton bucket of rust Premium Member

    Joined:
    Oct 6, 2002
    Posts:
    2,813
    Likes Received:
    2
    Location:
    San Francisco
    Does this, along with the other pic help? I run a 50 series and the tailpipe dumps right behind the rear axle, There might be room for a cat.

    [​IMG]

  7. hidesertwheelin

    hidesertwheelin 1/2 ton status Premium Member

    Joined:
    Nov 13, 2004
    Posts:
    782
    Likes Received:
    4
    Location:
    Hesperia, CA
    Got any pictures? I think I understand what you are saying, but want to make sure. I might go this way since I don't want to spend the money on a Y pipe.

  8. dleroy43

    dleroy43 1/2 ton status GMOTM Winner

    Joined:
    Jul 22, 2002
    Posts:
    1,517
    Likes Received:
    0
    Location:
    Martinsburg WV
    Mine was built out here on 10th st W for under a $100 installed. Its clean and out of the way like I wanted it :D
