lets play the name game.

Discussion in 'The Garage' started by makovai, Apr 16, 2007.

  1. makovai

    makovai 1/2 ton status

    Joined:
    Jun 6, 2006
    Posts:
    854
    Likes Received:
    0
    Location:
    oregon city
    Yesturday i was driving the pos when i heard a loud boom from the rear end. I stopped immediately and oil was pouring out of the huge hole in my diffy cover. No choice so i drove over to my bro-in-laws house about 2 block away, where i tore into it. these are the piece i dug out of the pumpkin.
    also one of the bolt from the main cap was completely out and the other was half out.

    so what are these pieces?

    [​IMG]


    BTW, i dont see any damage to the ring or pinion at all. it still drives. I did trailer it home but i drove it on and off the trailer just fine.

  2. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,126
    Likes Received:
    53
    Location:
    Powell, Wy
    the wires are the stoppers that hold the collars on the carrier backlash adjustments on the carrier. The little sq shapped wire deals are junks of bearing cage.

  3. 87BrnRsd

    87BrnRsd 1/2 ton status

    Joined:
    Apr 21, 2003
    Posts:
    2,457
    Likes Received:
    0
    Location:
    Boone, North Carolina
    I had the same thing happen to me. As stated earlier, the round bent wire looking things are just stays to hold the carrier adjustment nuts in place (since 14ff's dont use shims). The two ends of those go into the adjustment "shims" and that little bolt goes through the rounded end of those wires to lock it in place. The round thing is the magnet from the bottom of the diff. When the boom took place, the bolt came out causing the wire looking holders to come out....sending them through the ring and pinion....hitting the magnet on the way around...then the ring gear lodged them against the diff cover causing a hole. The wire looking holder pieces look like they are still good....buy 2 new bolts....use loctite on them...and jb weld the magnet back down.:wink1: Mine did the same thing and it was due to the violent nature of the detroit when it bangs sometime.



    Look somewhat familiar???

    -Harrison



  4. 87BrnRsd

    87BrnRsd 1/2 ton status

    Joined:
    Apr 21, 2003
    Posts:
    2,457
    Likes Received:
    0
    Location:
    Boone, North Carolina
    That first pic is of the same pieces you showed. The second one is of the outside of my diff cover....i was lucky enough that the pieces didnt go all the way through like yours...i had no leak.
    -Harrison

  5. makovai

    makovai 1/2 ton status

    Joined:
    Jun 6, 2006
    Posts:
    854
    Likes Received:
    0
    Location:
    oregon city
    anybody got a pic showing where the "wire looking thingys" (as 87BrnRsd put it) go?

    Here is my diffy cover:

    [​IMG]

    here is the way my cap was when i opened it:

    [​IMG]

  6. 87BrnRsd

    87BrnRsd 1/2 ton status

    Joined:
    Apr 21, 2003
    Posts:
    2,457
    Likes Received:
    0
    Location:
    Boone, North Carolina
    Alright, im sorry about my crappy paint skills but i tried to illustrate it for you here:


  7. 87BrnRsd

    87BrnRsd 1/2 ton status

    Joined:
    Apr 21, 2003
    Posts:
    2,457
    Likes Received:
    0
    Location:
    Boone, North Carolina
    If you cant read the middle text, it reads: "The wire thingys go here; The head of the bolt goes over the closed end of the wire thingy, and the other end goes into two of the adjustment nut's holes as crappily drawn here"

    Your missing both sides of the adjustment nut clips (what we have been calling the wire thingy's) and both of the bolts that hold them in, and also that 1 bearing cap bolt. There should have been 3 bolts floating around in there somewhere. Did you find them? What scares me is the fact that the bearing cap bolt is out as well. I think that could be bad.
    -Harrison

  8. makovai

    makovai 1/2 ton status

    Joined:
    Jun 6, 2006
    Posts:
    854
    Likes Received:
    0
    Location:
    oregon city
    Thank you....that definately helps.
    Actually the upper bolt was there it was just dangling in the hole. geuss i removed it b4 i shot the pic. I must be only missing 1 bolt then.
    Do you have a illustration (or know where 1 is) that shows how it goes back together?

    I can fix the diffy cover with chrome duct tape, and bubbleyum :haha:

  9. 87BrnRsd

    87BrnRsd 1/2 ton status

    Joined:
    Apr 21, 2003
    Posts:
    2,457
    Likes Received:
    0
    Location:
    Boone, North Carolina
    Its kind of hard to really explain...but if you look at the pieces its kind of self explanitory. I tried my best to explain it in the text in the picture. First put the top bearing cap bolt in. I think it torques at like 35 ft/lbs or something....but dont take me on that. Refer to a haynes or chiltons. Then step two: the adjustment nut clips kind of bend in a 90* angle around the middle of the bearing cap....the open end of the adjustment nut clip (the part that will be pointing towards the front of the truck when you put it over the bearing cap) goes into the two corresponding holes in the actual adjustment nut (the round thing you see on both sides of the carrier with all of the holes in it)...then you take the smaller bolt (the one you have pictured) and put it in the hole in the middle of the bearing cap, therefore holding the adjustment nut clip in place. After you read this...refer back to the picture and text i drew and see if you can picture it.
    -Harrison

  10. IGOR

    IGOR 1/2 ton status Premium Member

    Joined:
    May 16, 2000
    Posts:
    2,303
    Likes Received:
    19
    Location:
    Damascus, OR

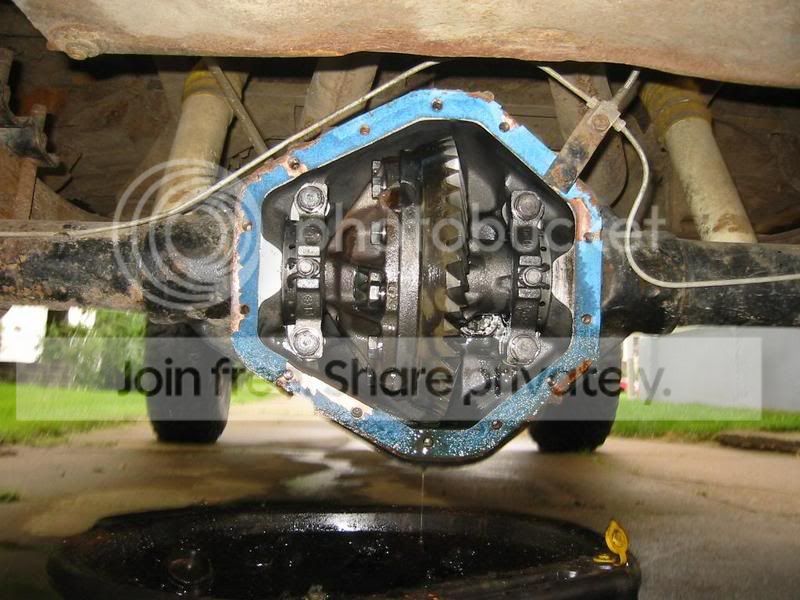

    Here ya go Jim:

    [​IMG]

  11. IGOR

    IGOR 1/2 ton status Premium Member

    Joined:
    May 16, 2000
    Posts:
    2,303
    Likes Received:
    19
    Location:
    Damascus, OR
    Hey, just realized that picture is missing a bolt too! LOL

  12. 87BrnRsd

    87BrnRsd 1/2 ton status

    Joined:
    Apr 21, 2003
    Posts:
    2,457
    Likes Received:
    0
    Location:
    Boone, North Carolina
    Thanks IGOR. I was looking for a picture but couldnt find it so I had to describe it as best as I could. Your pic is missing a bearing cap bolt, but it shows how it all goes together still.
    -Harrison

  13. 4X4HIGH

    4X4HIGH 1 ton status Premium Member GMOTM Winner

    Joined:
    Dec 14, 2001
    Posts:
    22,063
    Likes Received:
    70
    Location:
    Pleasanton, CA.
    You have some bigger problems in there. There are 2 pieces of bearing retainer material in that pic. This means you have a bearing in there somewhere that exploded.

  14. IGOR

    IGOR 1/2 ton status Premium Member

    Joined:
    May 16, 2000
    Posts:
    2,303
    Likes Received:
    19
    Location:
    Damascus, OR
    Good call 4x4high - didn't see that

    So either pinion bearing at the very front (or back) of the pumpkin - or more likely the main bearings on either side

  15. IGOR

    IGOR 1/2 ton status Premium Member

    Joined:
    May 16, 2000
    Posts:
    2,303
    Likes Received:
    19
    Location:
    Damascus, OR
  16. IGOR

    IGOR 1/2 ton status Premium Member

    Joined:
    May 16, 2000
    Posts:
    2,303
    Likes Received:
    19
    Location:
    Damascus, OR
    Notice bearings on either side

    [​IMG]

  17. IGOR

    IGOR 1/2 ton status Premium Member

    Joined:
    May 16, 2000
    Posts:
    2,303
    Likes Received:
    19
    Location:
    Damascus, OR
  18. makovai

    makovai 1/2 ton status

    Joined:
    Jun 6, 2006
    Posts:
    854
    Likes Received:
    0
    Location:
    oregon city
    thanks guys.... My next question was gonna be what are the pieces of metal that look like a bearing retainer. Guess maybe she needs to come apart.

  19. Beast388

    Beast388 1/2 ton status

    Joined:
    Nov 6, 2001
    Posts:
    3,039
    Likes Received:
    0
    Location:
    Clinton, IA USA
    [​IMG]

    I would definitely take it all apart have a look. I bet there is quite a bit that is damaged in there.:doah:

  20. makovai

    makovai 1/2 ton status

    Joined:
    Jun 6, 2006
    Posts:
    854
    Likes Received:
    0
    Location:
    oregon city
