lookin for pics of juanblzer's suspension

Discussion in 'The Garage' started by gm500hprat, Jul 28, 2006.

  1. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    Debating spending the money and getting leaves from deaver r going with a coil spring setup(not coilover) John Currie is a friend of mine and he usually gives me one hell of a discount if he doesnt just give it too me. I can get the parts of for a link setup in the front cheaper than buying leafs for full price, but the leafs are just so much dang easier to mount. And I havent seen much done on linking the front end in either 3 or 4 with or without panhards. I read up on Juanblzer's rig and that is the first time I have seen a parallel 4 link with a panhard bar, Id like to see more pics if any one knows if he has a buildup thread somewhere, I already searched until my eyes were burning.

    Anyways my application is a buggy based off a k15 chassis with a BBC. Pulling the entire body off.Bobbing the rearend buggy will have between 112-115 wheelbase and 145-149 over all length. 4 linking the rear its about 40% done. Looking for the most travel and stability over sand dunes and dezert. Dont rockcrawl. Anybody know what kind of travel their getting out of tuff countrys.

    Im not set on leafs or coils Im looking for opinions on the different setups.

    1. tuff countrys-how much travel.
    2. deaver- worth spending the $600
    3. tj type coil spring setup-
    A.3 link panhard-
    B.4link paralel with panhard-and does it work

  2. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    1
    Location:
    Ct
    go with alcan springs...there cheaper and imo just as good as deavers;)

  3. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    any idea how much they run for a set of 5" long travels?

  4. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    1
    Location:
    Ct
    they qouted me 250 a pop for rear springs...not sure on fronts. the custom make them to your vechicle...i have a set for the front but bought them from another member so i have no dea on price

  5. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    250 for a pair? the rears or 250 each spring.

  6. Citizen Rider

    Citizen Rider 1/2 ton status

    Joined:
    May 5, 2005
    Posts:
    1,415
    Likes Received:
    0
    Location:
    Plano, Texas
    Alcans all the way for custom springs. They make to your specifications, vehicle weight, use, needs, spring rates, length, lift, offset, everything.

  7. NoReGrEtS

    NoReGrEtS 1/2 ton status

    Joined:
    Nov 7, 2005
    Posts:
    848
    Likes Received:
    0
    Location:
    Moreno Valley,SO CAL
    I was quoted 175 for each front set and 250 each rear (alcons)

  8. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    any idea what kind of travel they are getting out of those things. looking for 5 in lift max. trying to keep a low cog while in the sand dunes. Deaver advertises like 12-14 front and 16-17 rear.

  9. marv_springer

    marv_springer 1/2 ton status

    Joined:
    Aug 3, 2001
    Posts:
    2,781
    Likes Received:
    0
    Location:
    Mesa, Arizona
    I vote that you link it....

    The tuff countrys will not travel that much.

    Deavers are the shiznit, but you could link it for that much $$.

    I've wheeled w/ Juan, and built several link systems myself. And although I'm very much a fan of leaf springs, for your application I'd think a linked/coil or linked/coilover system would be the ticket.

    Your optoin 3A and 3B will both work well if set up properly. Either will handle the same, I think it is just more of a question of packaging. There is no way a 3 link can bind. A 4 link if not triangulated must be parallel not to bind. Sounds like you want a track bar, so you have your choice.

    Hope I've helped.....

    Marv

  10. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    MaRV
    Any opinions on the Alcan springs. I have heard they work well and are far cheaper. On the trackbar I've just seen that everyone runs them that are doing a 3 link or 4 link parallel in the front. What is the other option to a trackbar.

  11. marv_springer

    marv_springer 1/2 ton status

    Joined:
    Aug 3, 2001
    Posts:
    2,781
    Likes Received:
    0
    Location:
    Mesa, Arizona
    I have no direct experience w/ Alcans, but I have seen them on other trucks in action. Like Deaver, I think they build "top of the line" leafs....

    Question is.... do you want leafs or links. Alcans may be cheaper than Deavers, but I'm assuming they still approach the cost of a linked system. Leafs are always easier. Is easy one of your considerations? I've made leafs work myself for alot of applications!

    If you're pushing a lot of power (you said BB), leafs will never locate the axle like links. Not to say you can't have fun in a rig w/ leafs and a BB - just saying that linking locates the axle better.

    What about total weight...? How much? what axles? Gonna be just for dunes?

    Marv

  12. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    Thanks Marv

    I will be doing mainly sand dunes (80%) with some dezert. I just got my quote from alcan spring and although they are cheaper than deaver they still approach my cost of building a 4link up front.

    My truck is as follows. BBC 468.th400.np205.rear corp 14bolt.Front 8 lug 44.

    I dont know about weight. But what ever it is right now its going to be a lot less soon.I will be cutting off a large section of the rear part of the frame as well.

    I just ordered a tube chassis from Hendrix motorsport to weld to my truck frame. i will not be running body skins.

    It will look something like this

    [​IMG]

    So I guess my question would be now. any ideas what type of a link would be better up front for sand duning and some high speed dezert?

    Also on my rear I was going to run a 4link thats like stephens where the lower arms are triangulated and the uppers are parallel. But some people have told me that setup is more for rock crawling and that i should either run the double triangulation or just triangulate the uppers and run the lowers parallel like a baja truck.

  13. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    so you are turning your truck into the buggy? i thought myabe you were doin another project.

  14. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    Yeah I turning my truck into a 5 seater buggy.

  15. skidpan

    skidpan 1/2 ton status

    Joined:
    Sep 21, 2005
    Posts:
    226
    Likes Received:
    0
    Location:
    SOCAL
    what is this hendrix motorsports you speak of??? do they gave a web site?

  16. 85HeartBurb

    85HeartBurb 1/2 ton status

    Joined:
    Jan 10, 2002
    Posts:
    735
    Likes Received:
    0
    Location:
    Temecula, south
    chvyhs on scbd just got one of those frames awsome!!!!!!:bow:

  17. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    www.hendrixmotorsports.com . His chassis are awsome and low cost. He does great work. His chassis are based of toyota's, but they will fit pretty much any truck. Mine is a little custom. I actually purchased an x-chassis with no internal tubing. So its going to have the dovetailed buggy look in the rear.

    Like this. But the front will look like the picture above


    [​IMG]

  18. marv_springer

    marv_springer 1/2 ton status

    Joined:
    Aug 3, 2001
    Posts:
    2,781
    Likes Received:
    0
    Location:
    Mesa, Arizona
    Art,

    I don't want to pollute your thread w/ too much off topic stuff, but you and I should probably exchange build ideas....

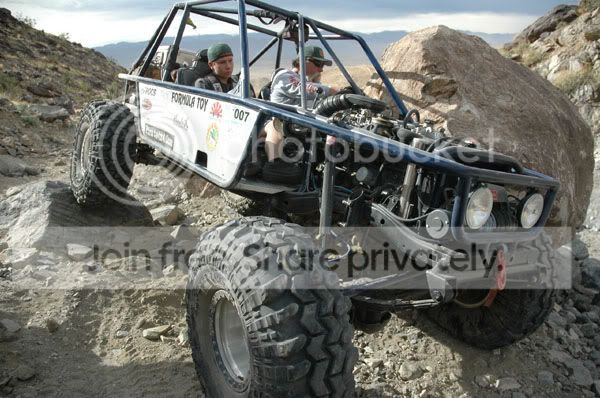

    Soon, I'll be starting "build 2" of my FunBuggy - w/ added emphasis on sand/high speed desert running. Here's an old photo of what it used to look like...
    [​IMG]
    [​IMG]

    I have some crazy plans for the next build.....


    I don't doubt this.... Top end leafs can be expensive! Another approach is to build around a stock application leaf spring - and replace them every couple of years cuz they're cheap!

    Again... the world of wheelin' beats a path to your door! Going full hydro steer? or cross over drag link? I think a 3 link w/ track bar is probably going to be easiest to package around a front engine layout.

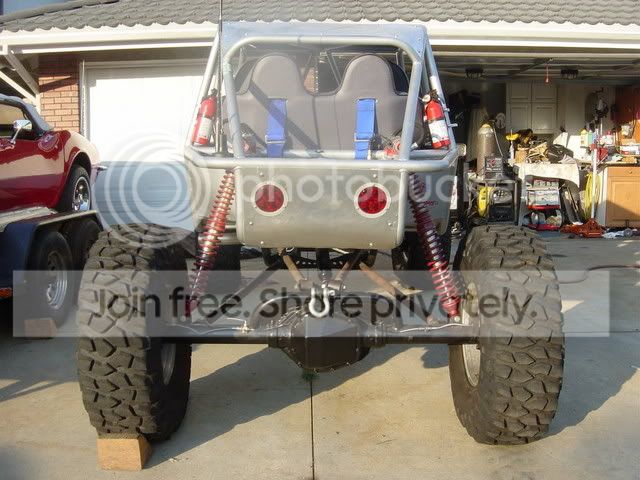

    I disagree.... Lowers triangulated can work well. I plan on using a variation of this setup for my next build in the rear. I'll probably use 1/4 el. leafs for upper locators though. Although this is scoffed at by many, I've found it to work.... Sort of like this rear setup, but w/ the lowers going like this /\ ...
    [​IMG]

    Marv

  19. gm500hprat

    gm500hprat 1/2 ton status

    Joined:
    Feb 28, 2005
    Posts:
    196
    Likes Received:
    0
    Location:
    anaheim, ca
    Thanks Marv. Great ideas. I plan on doing the standard crossoversteering setup. The DIY type setup that ORD sales since I have not seen to many other options. I want to keep everything basic and simple. All my links are going to have left hand thread on one side and right hand on the other so they are fully adjustable. I get my parts from Currie cheap if not givin to me. I guess you can say they are my one and only sponsor. The reason I mention leaves is because I see rigs like the ones Campbell builds and they have leaves setup in the front, and from what John Currie tells me they do well in the sand and as an allround vehicle.Im going to use 2" .25 wall DOM for the link arms and I already have 2.5 1 1/4 thread johnny joints for link ends.BTF Bung inserts and trackbar and lower link arms tabs for axle end. Currie Jeep TJ coils front and rear if I link the front.I will be custom making the crossmember for the rear links to connect to out of 3x3 .25 square stock and have already plated my frame where its going to connect. I dont have a tubing bender so I will be making some very creative cutting with square tubing for my floor and firewall.

  20. ntsqd

    ntsqd 1/2 ton status

    Joined:
    Nov 28, 2002
    Posts:
    3,381
    Likes Received:
    0
    Location:
    So. CA
    Kinda got lost a little, but thot I'd point out that if you go with links in the front that you really want to locate with a panhard bar rather than with triangulation.
    Reason:
    With triangulation the axle will go more or less straight up and down. Which sounds good until you consider that the draglink has some side to side change with suspension up & down movement. Enter Bumpsteer. :eek1:

    FWIW it is rare that a desert race truck has truly parallel lower links. Usually they are slightly pointed towards the center at the frame end. The point of convergence is likely well fwd for the front bumper, but they do converge.
