Made some shackle flip brackets today...pics *updated with more pics*

Discussion in 'The Garage' started by tRustyK5, Sep 9, 2006.

  1. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,164
    Likes Received:
    1,361
    Location:
    E-town baby!

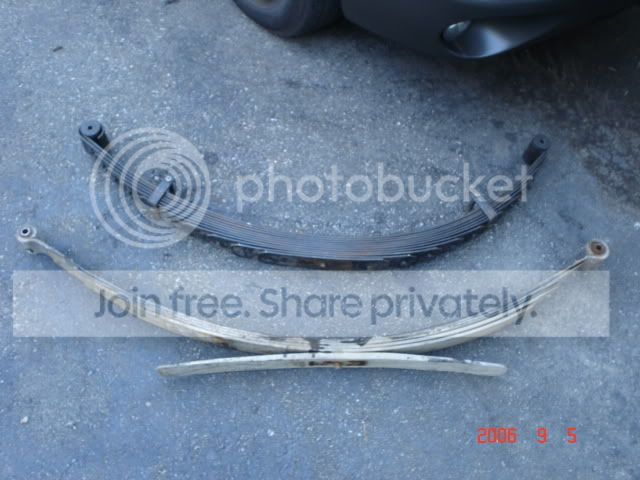

    I'm making some slow progress on my truck...last weekend I got one 2.5" alcan spring under the rear of my truck. It looks a bit goofy now, but that's temporary. What I found was that my old homebrew shackle flip just wasn't going to cut it with the new springs. Check out the free arch in comparison to a 57" ford spring (which also has a ton of free arch)

    [​IMG]

    After moving the modified stock spring hanger back to it's stock location i was able to get the spring bolted up, but my shackle angle sucked. Also, with the bottom of a stock hanger cut out it doesn't provide for enough shackle swing.

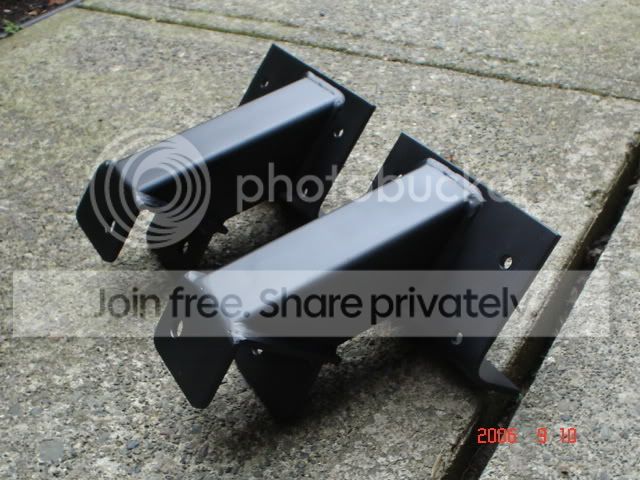

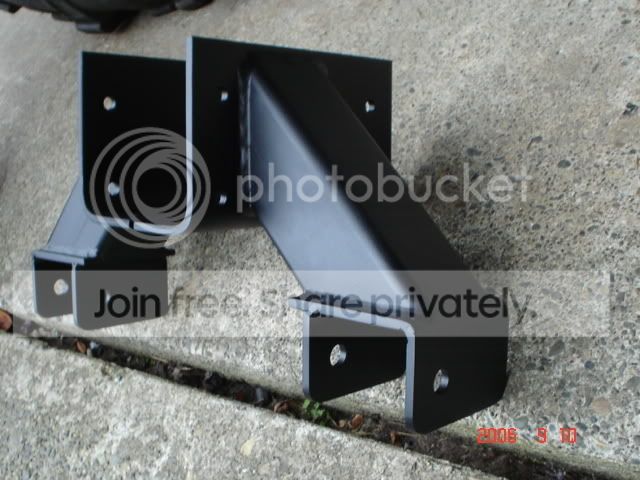

    So, I built myself a couple of shackle flip brackets today after work.

    [​IMG]

    [​IMG]

    [​IMG]

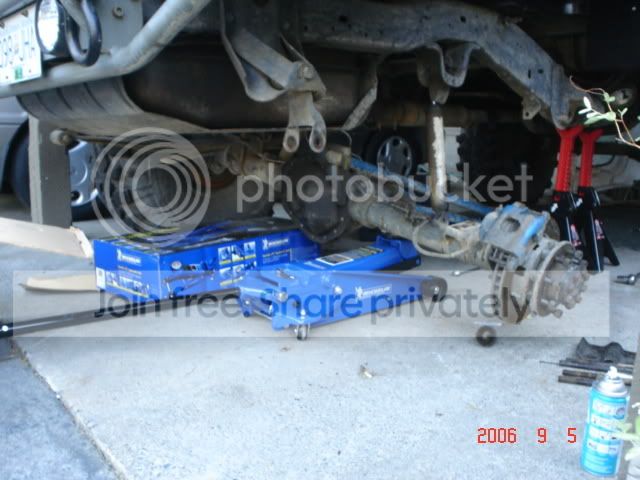

    I also sprung for a decent floorjack and some 6 ton jack stands...The floorjack is rated for 7000 lbs and lifts 22.5" high. You can also see the old homebrew shackle flip in this pic.

    [​IMG]

    Tomorrow I hope to get both these brackets and the second rear spring under the truck...should look like a stinkbug until I can find time to swap in the fronts. :doah:

    rene

    Last edited: Sep 10, 2006
  2. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    29,621
    Likes Received:
    1,366
    Location:
    Jersey Shore
    That's some purdy welding there.... :bow: :D

  3. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,164
    Likes Received:
    1,361
    Location:
    E-town baby!
    Thank you, it helps to have a good machine...and the machines at work are very good. :waytogo:

    Rene

  4. Avery4jc

    Avery4jc 1 ton status Premium Member GMOTM Winner

    Joined:
    Oct 24, 2005
    Posts:
    10,760
    Likes Received:
    75
    Location:
    Fresno, Ca.
    Those are beautiful...where do you work?

    -Avery

  5. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,164
    Likes Received:
    1,361
    Location:
    E-town baby!
    A fab/machine shop that builds aircraft tooling etc etc. I'm shop foreman, which means I don't actually get to fabricate or weld very often lately...this was a treat. Took me 2 1/2 hours to build those.

    Rene

  6. Avery4jc

    Avery4jc 1 ton status Premium Member GMOTM Winner

    Joined:
    Oct 24, 2005
    Posts:
    10,760
    Likes Received:
    75
    Location:
    Fresno, Ca.
    cool, so those shackles were probably a walk in the park for you.

    -Avery

  7. k30bb468

    k30bb468 1/2 ton status Premium Member

    Joined:
    Oct 2, 2004
    Posts:
    955
    Likes Received:
    0
    Location:
    NW Pennsylvania

    Pretty cool

  8. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,952
    Likes Received:
    443
    Location:
    East of San Francisco
    :eek:

    :bow: That's *welding*!

    -- A

  9. fireplug

    fireplug 1/2 ton status

    Joined:
    May 3, 2005
    Posts:
    1,692
    Likes Received:
    0
    Location:
    Toronto, Canada
    Jealousy reigns supreme! Nice work. :bow:

  10. shane74

    shane74 1/2 ton status

    Joined:
    Feb 12, 2002
    Posts:
    4,100
    Likes Received:
    0
    Location:
    Vancouver, WA
    Very nice, very clean! Looks great Rene!

  11. Cricket

    Cricket 3/4 ton status

    Joined:
    Nov 29, 2004
    Posts:
    8,224
    Likes Received:
    0
    Location:
    Colorado
    It would be nice to steal your brain and accompanying welding skills. Very clean.

    Feel free to send me a pair for testing at Moab. :whistle:

  12. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    Those look great.

  13. Can Can

    Can Can Pusher Man Staff Member Super Moderator

    Joined:
    Feb 17, 2000
    Posts:
    15,552
    Likes Received:
    136
    Location:
    Cochrane, Alberta, Canada
    Looking good, Rene!!!:bow:

    Do you have any pics of the truck from when you installed the Alcan on the one corner?

  14. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,164
    Likes Received:
    1,361
    Location:
    E-town baby!
    No pic's of it sitting one corner high. I'll snap a bunch more tomorrow as I work on it. Mostly a comparison of the homebrew versus purpose built shackle flip, shackle angles etc etc.

    Rene

  15. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,164
    Likes Received:
    1,361
    Location:
    E-town baby!
    Update. Got both rear springs in with the new shackle flip brackets...so I got some more pic's.

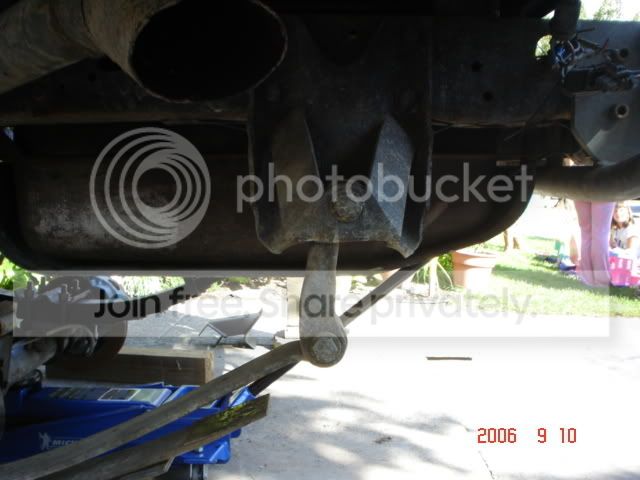

    First pic shows the horrid shackle angle at full droop. The angle was so bad the shackle would invert when you started jacking the diff up again. :doah: This was the push I needed to build my own shackle flip brackets...

    [​IMG]

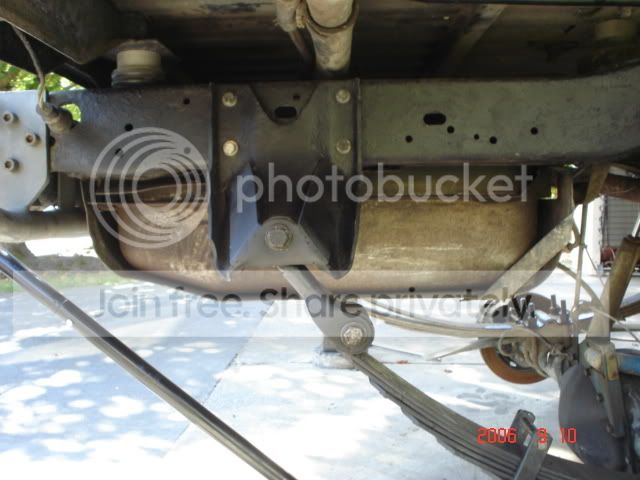

    This is how the shackle angle was with the 57's...

    [​IMG]

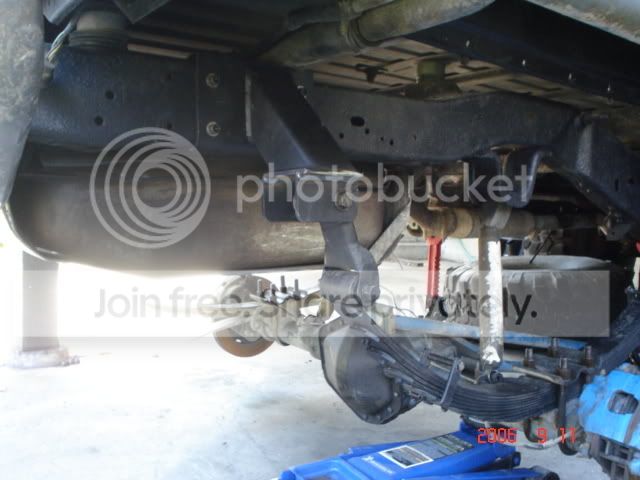

    This is the full droop angle with the new shackle flip bracket, nowhere near to inverting although i will be adding a small stop plate as some added insurance.

    [​IMG]

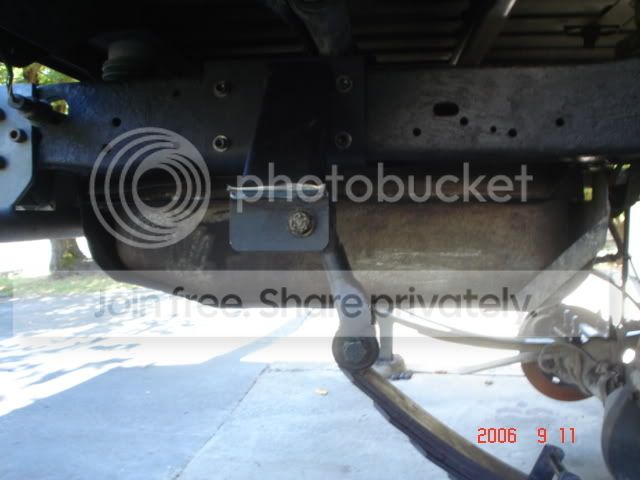

    This is the shackle angle with the weight of the truck on the springs. Not quite as angled back as I wanted, but the truck doesn't have the hardtop, rear seat or any tools in it so it will compress and angle back more.

    [​IMG]

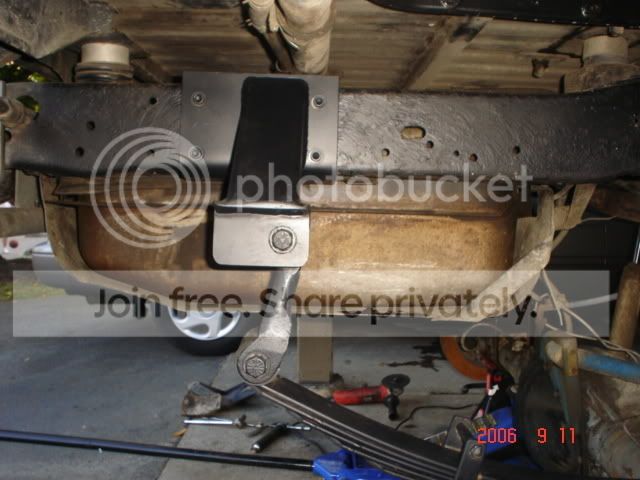

    A shot of the shackle flip bracket installed. I managed to install them without dropping the tank...what a PITA!!!

    [​IMG]

    And finally, a 'stinkbug' shot. 6.5" lift in the rear...sagged 4" up front :doah:

    [​IMG]

    Gonna have to run 42's now...:D

    Rene

  16. Can Can

    Can Can Pusher Man Staff Member Super Moderator

    Joined:
    Feb 17, 2000
    Posts:
    15,552
    Likes Received:
    136
    Location:
    Cochrane, Alberta, Canada
    It's finally starting to come together, Rene. Your install looks really tidy. Good job, brother!!! :thumb:

  17. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    very nice!
