Manual to hyrdro clutch pedal ??

Discussion in 'The Garage' started by 82dieselburb, Mar 23, 2005.

  1. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    I have manual clutch pedal in my jimmy that I am converting to hydro.I have all the hydro stuff installled except hooking up the slave to the pedal.
    Does anyone have a picture how the hydro pedal connects to the slave?
    I think I have to make a bracket and weld it to the pedal and wanted to see what the factory set up looks like.

  2. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan
  3. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    Thanks for the measurements,I'll check to see if my slave is in the right spot.I guess my question should be is there any differance between the manual on hydro pedals?

    It doesn't seem that the slave will conect where the manual linkage connected.
    Also where the manual connects to the pedal it pushes more towards the floor than the fire wall.I would think that the hydro pedal had a different configuration that pushed more towards the fire wall for the slave.
    It doesn't seem to hard to make a bracket on the pedal.I just would like to see a pic of a hydro pedal set up for ideas on how to fab a bracket.

  4. BIG*RED

    BIG*RED 1/2 ton status

    Joined:
    Mar 14, 2003
    Posts:
    1,094
    Likes Received:
    0
    i have been wanting to convert my manual to hydro for some time, don't suspose you have pics and a write up of how you did yours?

  5. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    I just checked my slave with your measurements.I think maybe my slave is to high.I dont have flat area on the fire wall to move it too much.Any pics of a slave mounted on the fire wall?
    Here is a pic

    [​IMG]

  6. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan

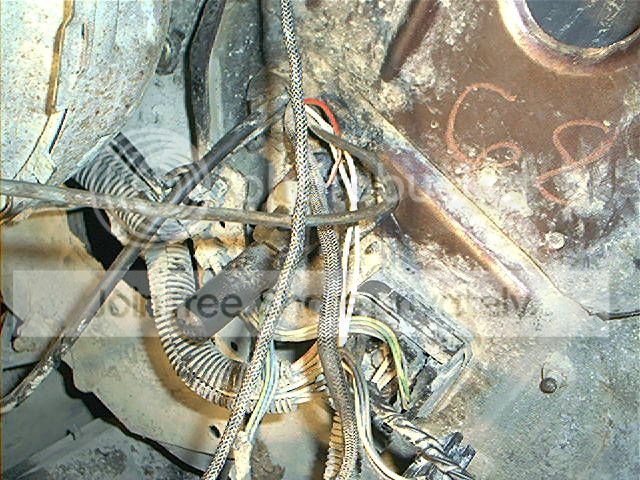

    yours looks way too high. it should sit on that raised section near the fuse panel
    [​IMG]
    [​IMG]
    those measurements were taken off a factory hydro clutch truck. so i know its right.

  7. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan
    i just looked through all my pics and i can't find one where it shows how the mastercylinder is connected to the pedals.

  8. 82dieselburb

    82dieselburb 1/2 ton status

    Joined:
    Jan 6, 2004
    Posts:
    105
    Likes Received:
    0
    Location:
    central Florida
    Thanks for the pics ,that probably whats wrong.

    I'm going to lower it tommorrow:) Maybe with the different slave angle it will line up with the pedal better.
    Hopefully that one more thing I can check off my list to get my truck ready for ECCB.

  9. big pappa b

    big pappa b 3/4 ton status

    Joined:
    Jan 3, 2003
    Posts:
    6,328
    Likes Received:
    0
    Location:
    Falcon, Colorado
  10. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan
    thats how mine in attached, but the rod is longer.
