My doubler crossmember

Discussion in 'The Garage' started by MNorby, Nov 4, 2006.

  1. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,127
    Likes Received:
    57
    Location:
    Powell, Wy

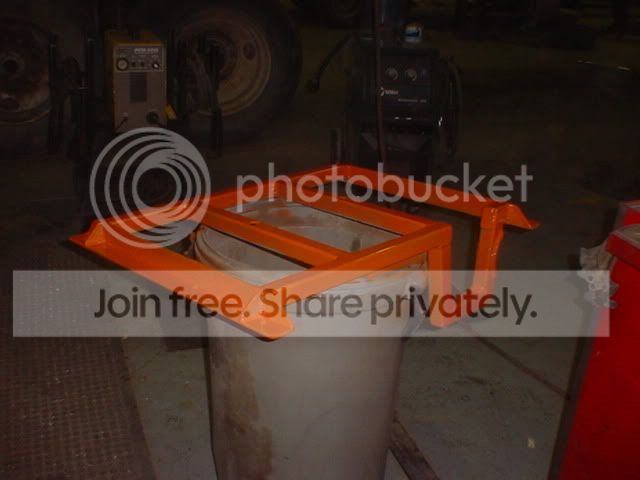

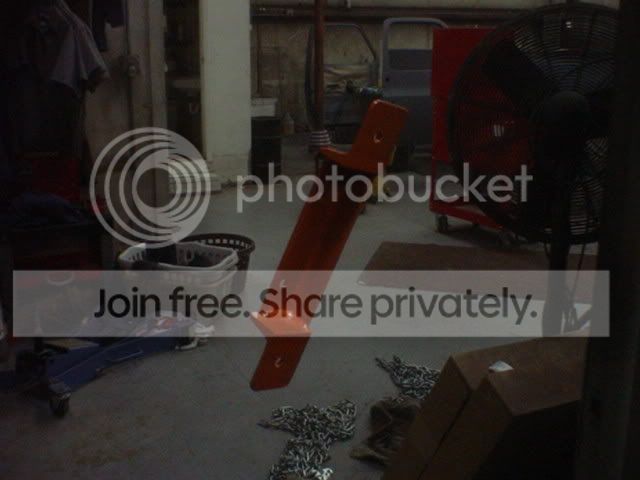

    Built my crossmember yesterday and today. Made out of 1.5" .25 sq tube and 2"x2"x.25 angle on the sides. Stock tranny mount between tranny and 203. Some 2.5"x1" rubber mounts from carquest for $3 each at the 203/205. This is a WMS doubler adapter. only hangs 2" below the frame and currently 25.5" from the floor to the lowest part. Its attached by 12 grade 8 1/2 inch bolts (6 on each side). Skidplate will come here later.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Apr 19, 2007
  2. 454k30

    454k30 1/2 ton status GMOTM Winner

    Joined:
    Sep 13, 2004
    Posts:
    1,613
    Likes Received:
    0
    Location:
    California, MD
    thats pretty cool! Whats your opinion on the WMS doubler?

  3. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,127
    Likes Received:
    57
    Location:
    Powell, Wy
    alot cheaper than most. Got mine on the $500 shipped deal. You can still get them for $550 though frmo the originator of them, sumner machine. http://sumnermachine.com/
    Its hella uber strong only thing is the location for the mount is lower than the ORD style by prob an inch, that why I did the mounts like I did to keep the crossmember up higher.

  4. mostwanted

    mostwanted 1/2 ton status

    Joined:
    Feb 5, 2006
    Posts:
    765
    Likes Received:
    0
    Location:
    Kansas City, MO
    that's freak'n sweat!

  5. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,968
    Likes Received:
    461
    Location:
    East of San Francisco
    That is stout :eek:

    Hey, got any pix of these rubber gizmos you got at the Carquest?

    -- A

  6. basing110

    basing110 1/2 ton status

    Joined:
    Aug 4, 2005
    Posts:
    298
    Likes Received:
    0
    Location:
    san diego
    how complete is the kit? and its clockale im assuming?

  7. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,127
    Likes Received:
    57
    Location:
    Powell, Wy
    dremu, I don't have any pics now but the other 2 are on order for that will go on top of the mounts to sandwich them in rubber will be here tomarrow, I'll take some pics and post the part numbers.

    basing110, its everything you need really; the doubler plate, intermediate shaft between the cases, PTO cover and all the bolts. You specify when you order what clocking you want. You can have them stock setup, or even put your 203 upside down and the 205 flat to have the most clearance ever possible with that setup

  8. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    looks killer. what made you choose blue?

  9. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,127
    Likes Received:
    57
    Location:
    Powell, Wy
    it was for my truggy originally which is blue. I may hit it with some orange or black

  10. blazin_blazer

    blazin_blazer 1/2 ton status

    Joined:
    Aug 2, 2005
    Posts:
    4,043
    Likes Received:
    0
    Location:
    central arkansas
    that looks killer! i'm planning on factory mt for the 203, haven't decided about the 205 yet?

  11. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,127
    Likes Received:
    57
    Location:
    Powell, Wy
    I am using my th400 to 241 adapter and redrilled my 203 to fit it and the stock rubber mount under it

  12. MNorby

    MNorby 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Dec 10, 2001
    Posts:
    6,127
    Likes Received:
    57
    Location:
    Powell, Wy
    sorry for the delay
