New guy - In Cab Winch Control

Discussion in 'The Garage' started by 1984Stepside, Apr 24, 2007.

  1. 1984Stepside

    1984Stepside Registered Member

    Joined:
    Apr 19, 2007
    Posts:
    17
    Likes Received:
    0
    Location:
    San Marcos, TX
    Hey guys, I'm new to ck5. I just got my truck back here at school, and hunterguy86 told me about ck5. We have only had it back a few days, but we have done some minor mods to it so far.

    A pic of the truck, before the 4 1/2 hour drive from East Texas, back to San Marcos.
    (1984 K10 SWB Stepside, 350/sm465/np208 10bolts, 3.73 gears, Gov-Loc, WARN 8274, 3in Body Lift, 33x12.50x15's)

    [​IMG]

    Here is a few pics of the install of a In-Cab Winch control for my 8274 Warn.

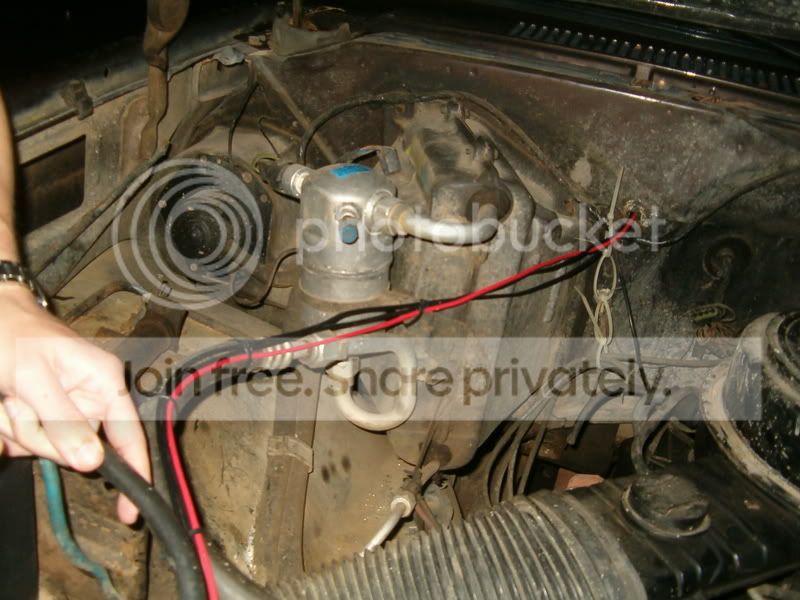

    This is where we ran the wires to the cab. The camera died, so no pics of the actual winch right now.

    [​IMG]

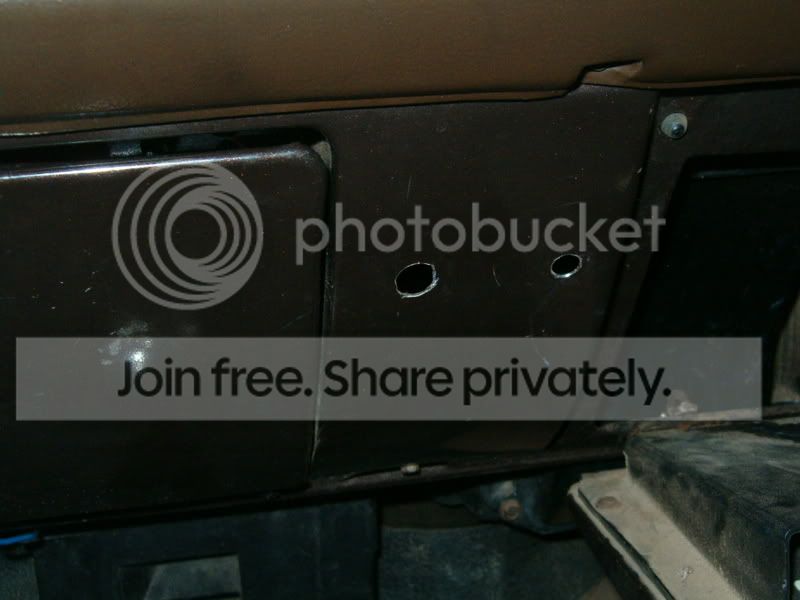

    These are the two holes that we drilled to mount the switches to. One switch is the override, which has a guard over it. The other is a three position mometary, for in and out.

    [​IMG]

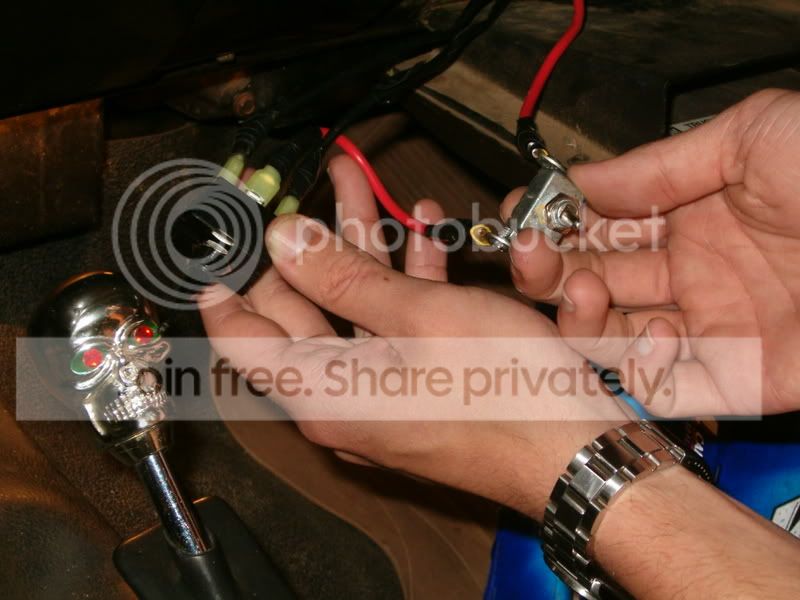

    The wiring before I put the switches in.

    [​IMG]
    [​IMG]

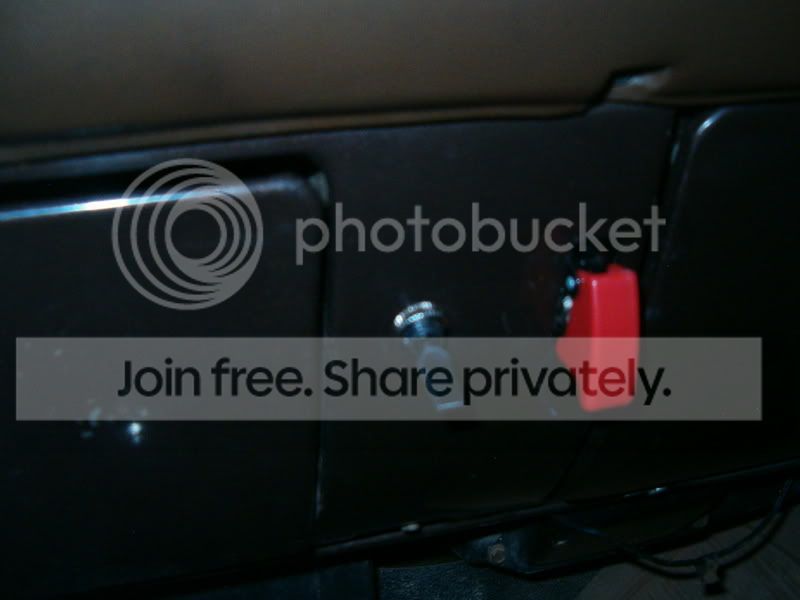

    Control switches installed, before the paint.

    [​IMG]

    I decided to put "Plan B" on the override guard, since, if I get stuck, "Plan B" will be pulling winch cable.

    [​IMG]

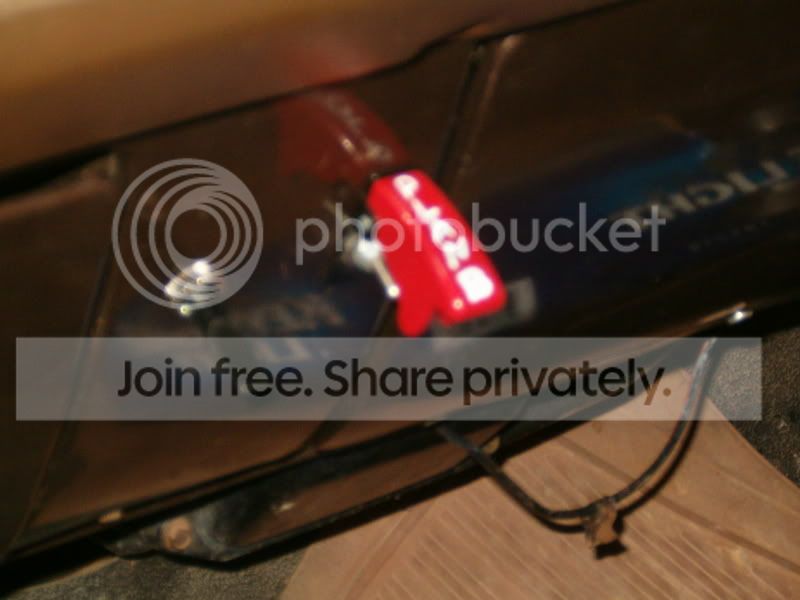

    Couple shots of the switches, with the guard painted, installed. Also, the case of Keystone Light is painted onto the dash, it's not just a reflection. ;)

    [​IMG]
    [​IMG]

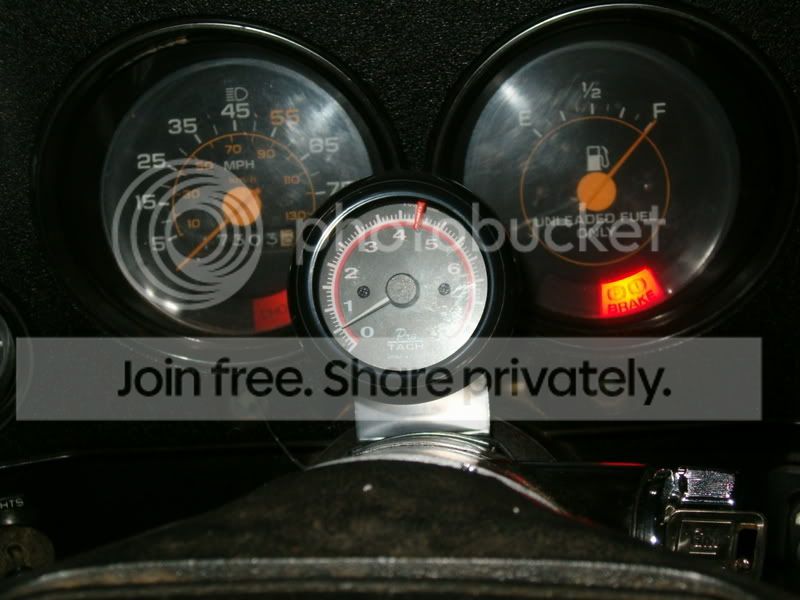

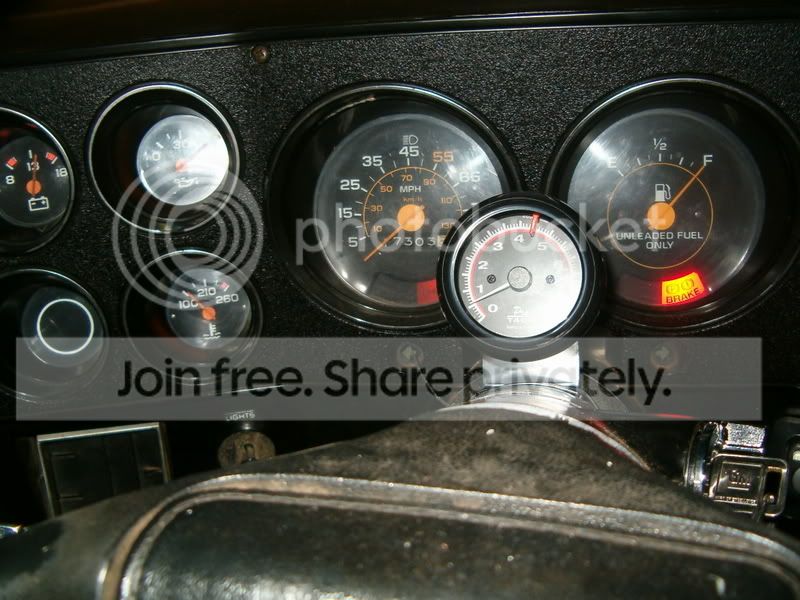

    Also, we installed a tach on that bad boy. Here's a couple of pics.

    [​IMG]
    [​IMG]

    Great site guys, and I'll be looking forward to installing the lift and posting pics.

    Last edited: Apr 25, 2007
  2. hunterguy86

    hunterguy86 1/2 ton status

    Joined:
    Jan 10, 2005
    Posts:
    2,477
    Likes Received:
    0
    Location:
    San Marcos, Texas
    4 1/2 hour drive and the truck rides like a dream. Muds good too. This truck is in excellent shape and will only be getting better!

  3. TexasBlazerBoy

    TexasBlazerBoy 1/2 ton status

    Joined:
    Oct 10, 2005
    Posts:
    1,674
    Likes Received:
    0
    Location:
    North Texas
    Looks great, welcome to CK5:D

  4. mr.smartass

    mr.smartass 1 ton status Premium Member

    Joined:
    Aug 10, 2004
    Posts:
    10,860
    Likes Received:
    4
    Location:
    Hattiesburg, MS
    I some how lost my winch controller and figured it would be a good time to wire up an in-cab controller. I know there's a good write up somewhere where they do it in an XJ I do believe. What do you think about drawing up a wiring diagram of how you did yours? I also have an 8274.

  5. obijuan

    obijuan 1/2 ton status GMOTM Winner

    Joined:
    May 18, 2006
    Posts:
    4,009
    Likes Received:
    0
    Location:
    San Antonio TX
    aww man! we got to get together and fling some mud!

  6. smalltowncowboy

    smalltowncowboy 1/2 ton status

    Joined:
    Jan 16, 2006
    Posts:
    503
    Likes Received:
    0
    Location:
    hermiston oregon
    nice truck, i always liked the stepsides. liked them so much i have 2 of um.

    theres a company here in oregon im going to order my in cab wiring from for my winch. http://www.offroadcontrols.com/

    [​IMG]

    heres mine.

    [​IMG]

  7. Elevator Man

    Elevator Man 1/2 ton status

    Joined:
    Dec 23, 2005
    Posts:
    240
    Likes Received:
    0
    Location:
    Bigelow, Arkansas
    I thought I was the only CK5er that drinks tha Stones and works on my rig!:D :D :D

  8. W7NB

    W7NB 1/2 ton status

    Joined:
    Nov 9, 2006
    Posts:
    716
    Likes Received:
    0
    Location:
    Springtucky, OR
    Great Setup! You might want to put a bushing around the wire where you ran it through the firewall - it looks like it will rub through and short out eventually.

  9. 1984Stepside

    1984Stepside Registered Member

    Joined:
    Apr 19, 2007
    Posts:
    17
    Likes Received:
    0
    Location:
    San Marcos, TX
    Here is the basic breakdown of how my wiring works:

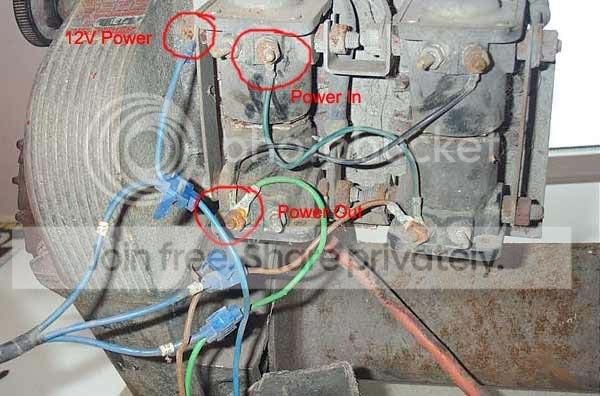

    Not my winch in the pic, but it gets the point across.

    Not sure what changed through the years on the 8274, but mine is a 1980 model, if yours is newer it may be a little diffrent. (Control plug on the side of the solenoid pack, rather than the front)

    [​IMG]

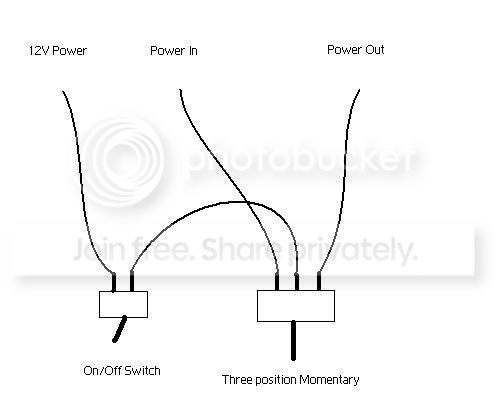

    Once you know which point on the solenoid does what, the wiring part is easy. However, this is what my switch setup looks like.

    [​IMG]

    Basically, I put an On/Off switch on the 12v line, and that is the one that got the guard. Then the 12v hooks to the three position momentary, along with the power in and power out.

    Also, you may want to put some type of in-line fuse on the 12v line, since that side bar of your solenoid pack is directly connected to your battery.

    Here are a couple more detailed rebulids/diagrams of the 8274:
    http://www.jedi.com/obiwan/jeep/winch.html
    http://www.pirate4x4.com/tech/billavista/8274/

    Enjoy!

  10. B_to_C

    B_to_C 1/2 ton status Author

    Joined:
    Jan 15, 2003
    Posts:
    1,861
    Likes Received:
    1
    Location:
    In Government Housing
    In cab winch controls certainly come in handy, I love mine, even though i've only used it once :doah:

    [​IMG]

    I bought mine (custom made with OBA switch) from http://www.12voltguy.com

  11. JEBSR

    JEBSR 1/2 ton status

    Joined:
    Dec 23, 2004
    Posts:
    1,541
    Likes Received:
    0
    Location:
    Clarksville, TN
    Something is apparently wrong with my truck! What is the gauge on the right? Mine is always between the E and the 1/2 mark. How do you get it that to stay that high:D :wink1:
    [​IMG]
