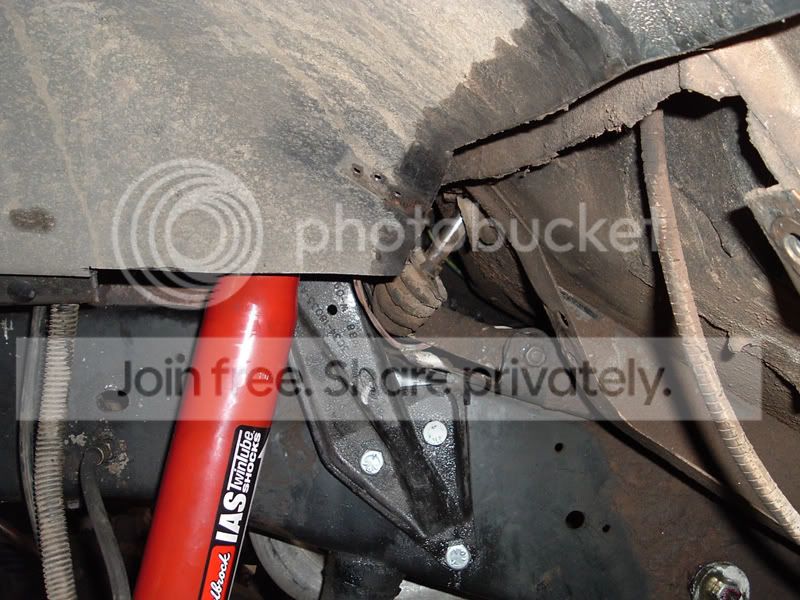

    We just installed the new style F♀rd shock towers on B_to_C's '79 with manual clutch linkage. In researching the mod, I came across some questions about clearance for the clutch linkage, so I wanted to post some pictures in case it will help others in the future.

    [​IMG]



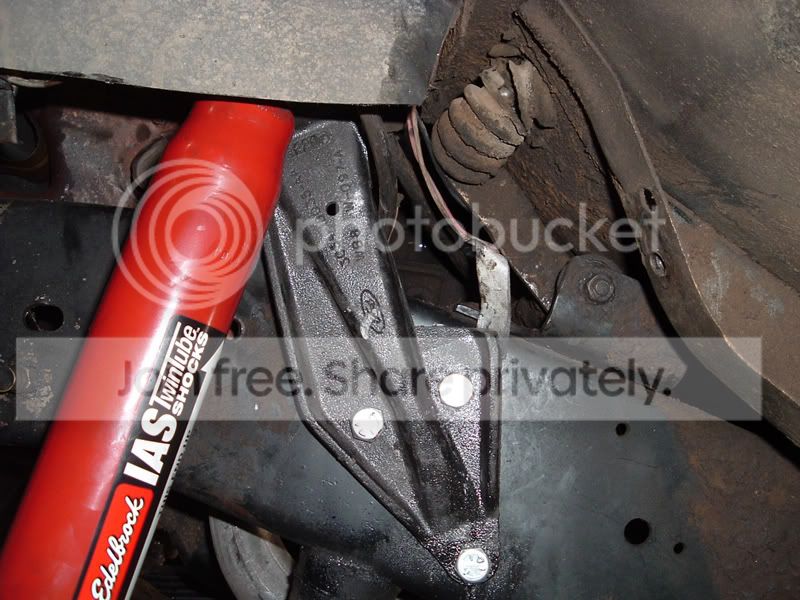

    Clutch pedal depressed:

    [​IMG]


    The tower is cut up to the center embossed area. When the pedal is fully depressed, it just barely taps the bracket but doesn't stop movement.

    IIRC, as you are looking at the bracket the far left bolt was the hole for the bottom rivet on the old shock bracket. The other 2 were done by positioning the shock so that with the weight of the truck on the suspension there was 6" of shock exposed on a 12.5" travel shock.

    They were purchased from fordparts.com, part number: F81Z-18183-AA

  2. OrangeCrushK10

    OrangeCrushK10 1/2 ton status

    Joined:
    Jan 25, 2003
    Posts:
    1,425
    Likes Received:
    0
    Location:
    Square State + Suspension Item
    Now we'll just have to see if it can stand up to Nick's abuse! :D

  3. noahrob

    noahrob 1/2 ton status Author

    Joined:
    Nov 26, 2005
    Posts:
    1,878
    Likes Received:
    1
    Location:
    Santa Barbara
    Hmmm...that looks familiar! I posted in another thread too just to help out the guy who hasn't read this one...How are you diggin on those edelbrock shocks? I am very happy with mine, especially coming from the crap I had before.



  4. mrk5

    mrk5 The Sticker Guy Moderator Vendor GMOTM Winner Author

    Joined:
    Apr 20, 2004
    Posts:
    12,349
    Likes Received:
    1,050
    Location:
    Northern Colorado
    I don't know if he'll know the difference feel any difference because we changed so much at one time. Namely new springs up front and shackle flip in the rear.
