NV4500/203/205 install *updated 10/06* Done!!

Discussion in 'The Garage' started by tRustyK5, Oct 2, 2006.

  1. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    I'm tackling this by myself, with not crushing my head under this stuff being my number one goal. :D I'm trying to plan every lift, move etc and then work the plan.

    This is my vacation, so I don't plan on working at any sort of insane pace...for once I want to enjoy the wrenching. Anyways, I thought I'd do something different. I'm going to post pic's of my progress in realtime. Basically I'll work an hour or so while snapping pics...then upload as I take a break and repeat until I quit for the day.

    I figure this might be fun...:waytogo:

    On to the current pics. They're no more than about 10 minutes old so enjoy.

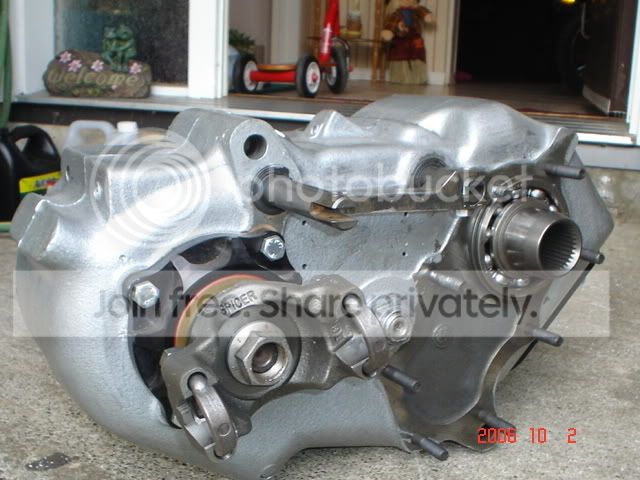

    You might recall I had the whole thing mocked up in my computer room. first step was to break it all down so I could move this stuff to underneath my truck. First up was the 205.

    [​IMG]

    [​IMG]

    Purdy huh? :D Got my bling "deblinged" by having the billet bearing retainers black anodized...:p:

    Next up was the 203, this one isn't too heavy.

    [​IMG]

    [​IMG]

    You can see part of the triple stick bracketry in that one ^^

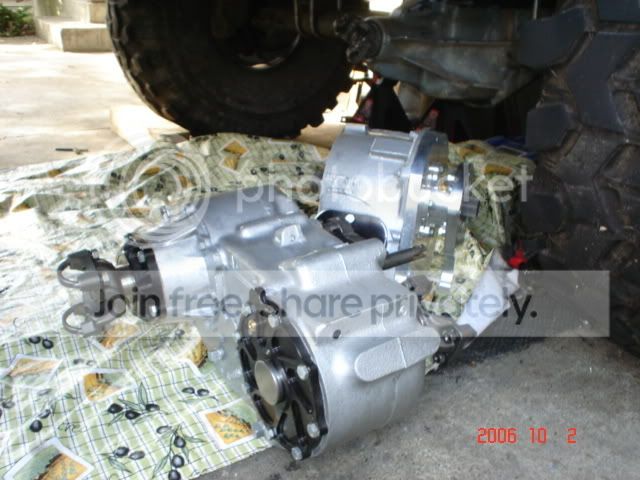

    205 and 203 under the truck...at this point I'm putting off the inevitable.

    [​IMG]

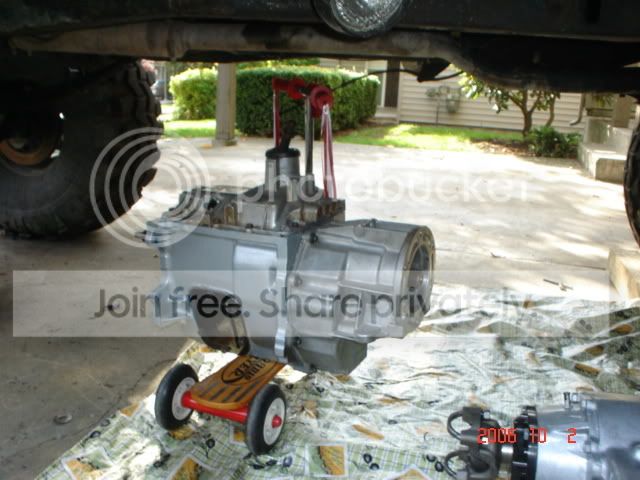

    This would be the 'inevitable'...200 lbs of tranny and not a nieghbor in sight. :doah: I had to resort to using my daughters little Radio Flyer as a dolly.

    [​IMG]

    And finally the NV4500 under the truck...fortunately the Radio Flyer fits under the truck too. :haha:

    [​IMG]

    I'll keep posting as i make progress today and prolly into tonight.

    Rene

    Last edited: Oct 6, 2006
  2. neverendingproject

    neverendingproject 1/2 ton status

    Joined:
    Jul 24, 2005
    Posts:
    1,637
    Likes Received:
    0
    Location:
    Tulsa, OK
  3. blazd88

    blazd88 1/2 ton status

    Joined:
    Mar 16, 2004
    Posts:
    1,055
    Likes Received:
    0
    Location:
    Lubbock, Tx
    Ive done a nv4500 alone but not a 205. Good luck:eek1:

  4. Chevy305

    Chevy305 6 Lug 14bsf Status Premium Member GMOTM Winner

    Joined:
    Jan 23, 2006
    Posts:
    11,228
    Likes Received:
    485
    Location:
    New Hampshire
    I hope you have been eating your Wheaties lately... :D

    Good luck with it looks like it will be an awsome drivetrain when your are done.

  5. mikey_d05

    mikey_d05 1 ton status GMOTM Winner

    Joined:
    Nov 23, 2004
    Posts:
    10,453
    Likes Received:
    0
    Location:
    Minnesota
    It's been 40 minutes, think that NV4500 has crushed his skull yet? :D

  6. rcamacho

    rcamacho 1/2 ton status

    Joined:
    Jul 1, 2004
    Posts:
    1,324
    Likes Received:
    0
    Location:
    WA
    What style NV4500 are you using? Pre 96 or post 96?

  7. cegusman

    cegusman 3/4 ton status

    Joined:
    Apr 25, 2001
    Posts:
    6,793
    Likes Received:
    0
    Location:
    Houston/Katy, Tx
    Its been over an hour and 45 mins now. He's stuck under the truck with the tranny laying on him.:haha:

  8. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    Not yet Mike...but at least now it has the potential.:D

    On to the new pic's.

    NV4500 off the Radio flyer, gasket on and ready for the 203 range box.

    [​IMG]

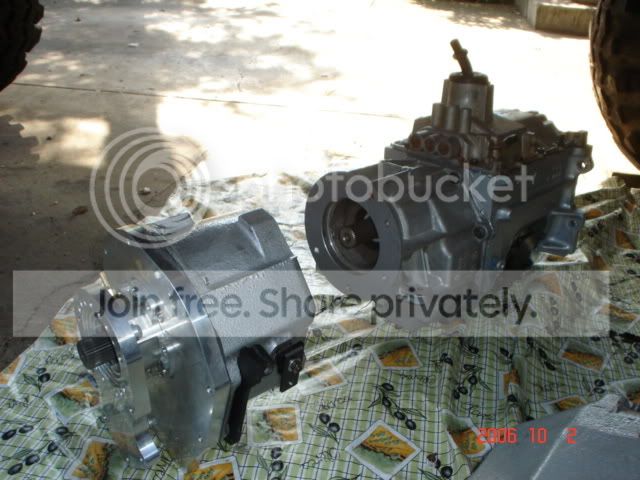

    NV4500...meet 203

    [​IMG]

    Bolted up, top two bolts are just snug as they'll have to come out again later for the trip-stick bracket.

    [​IMG]

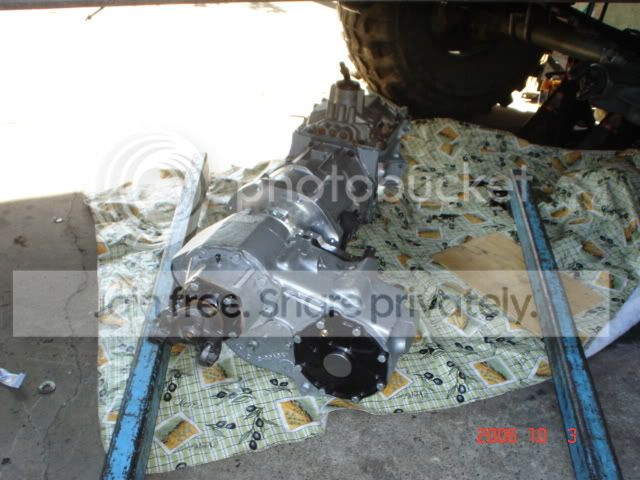

    drivetrain all together again, and a sneak peak at the engineering marvel I rented. :rolleyes:

    [​IMG]

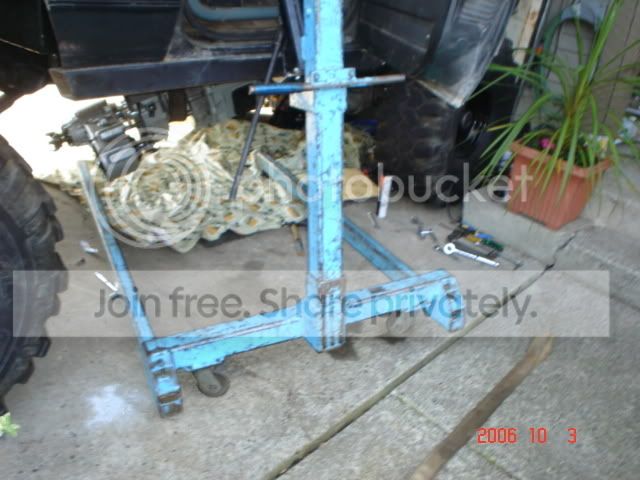

    Nothing but the best here... :rolleyes: :doah:

    [​IMG]

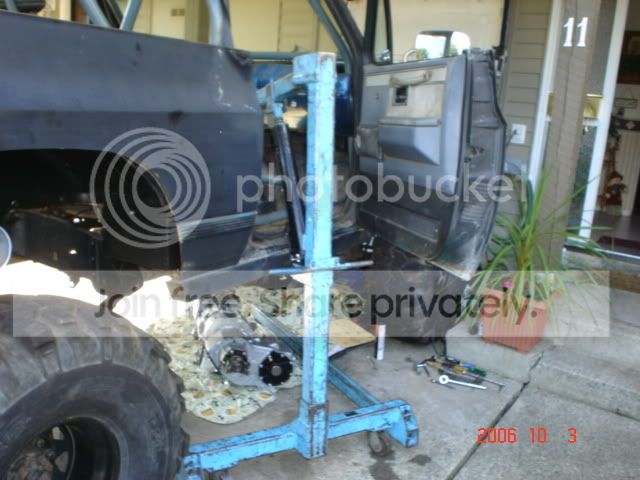

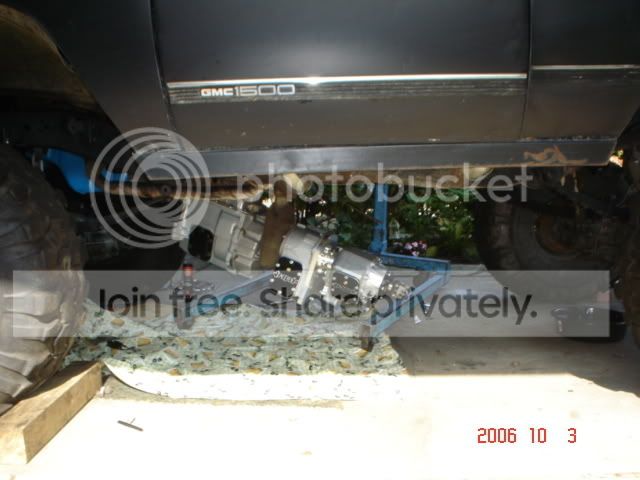

    The plan in action...lol

    [​IMG]

    I think someone before me had a Cummins 6BT on this thing. As soon as it started to take up the weight it became a 3 legged hoist. The one wheel is almost 6" off the ground. :doah: I guess $28 a day doesn't rent much anymore.

    [​IMG]

    The whole thing hangs pretty decent...a little tail heavy but manageable I think. Here you can really see the twist in the cherry picker...

    [​IMG]

    I'm gonna have a bit of lunch, then back at it. More pic's in a little while (unless I haven't made any progress...)

    Rene

  9. JK5

    JK5 1/2 ton status GMOTM Winner

    Joined:
    Jan 31, 2002
    Posts:
    3,453
    Likes Received:
    1
    Location:
    Norton, Oh
    Looks Good!!! Be careful working by youself.:D :wink1:

  10. chevyguybc

    chevyguybc 1/2 ton status

    Joined:
    Nov 12, 2003
    Posts:
    524
    Likes Received:
    0
    Location:
    Vancouver Canada
    awsome man, its the dream combonation for me, where did you find the 5 speed, and what is its first low gear ratio? or does it have one.

    Id love to do this swap.

    also where do i found out about the triple stick, ive heard of twinsticks of course, but 3? what is the advantage

  11. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    The NV4500 was given to me by a CK5er almost 5 years ago (Sparky87K5...thanks again Bill!!!.) It was a basket case though and up until recently it just sat in storage because I couldn't afford to rebuild it.

    The reality is for what I spent rebuilding it I could have just bought one...but I gained some good knowledge, and I can say I rebuilt it. The first gear ratio is 5.61:1. I kinda wish I got one of the earlier years with the 6.34:1, however those years also used a weaker 2 piece countershaft. Final crawl ratio will be 100.78:1

    When you do a doubler you'll end up with at least two T-case shifters. The first one controls Low, N and High range for the 203 range box. The second shifter controls the 205 in the standard pattern. I chose to have the rails ground on my 205 so it now has two shifters (plus the 203 shifter) which is how you end up with three T-case shifters.

    The advantage is I can choose High or Low range for the front wheels only, or the rear wheels only. In tight quarters if I need to turn the truck very sharply I can put the rear wheels in nuetral and use the front wheels to pull the truck around. With a bit of brake the truck should pretty much pivot on the rear wheels.

    It also helps confuse the car thieves...:D

    Rene

  12. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    More pic's soon...had to break the :grind: out. Sure could use another set of hands about now. :doah:

    Rene

  13. cbbr

    cbbr 1 ton status GMOTM Winner

    Joined:
    Jul 17, 2004
    Posts:
    14,681
    Likes Received:
    0
    Location:
    High velocity, Low altitude
    This is my kind of reality show.

  14. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    did you have ur cases built by NWF or did you just paint them up real nice? looks killer. im thinkin about buyin their doubler kit and i love the way evetything looks

  15. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    1
    Location:
    Ct
    from what i remember Rene had his cases built by nwf

  16. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    Yeah, I had Kyle and Jordan at Northwest Fab build the cases for me. It was one of those time/money things where I had the money but not the time. They did a great job, really nice to deal with too.

    OK, things are slowing down a bit as far as progress goes. i had to remove part of my floor...:doah:

    [​IMG]

    The strap and Chain were catching really bad on the front edge of the tunnel. Moving the lifting point further ahead was not an option as it's already tail heavy. I'm pretty sure I needed to do this anyways to clear the triple stick shifters. If not it won't be much work to weld that back in.

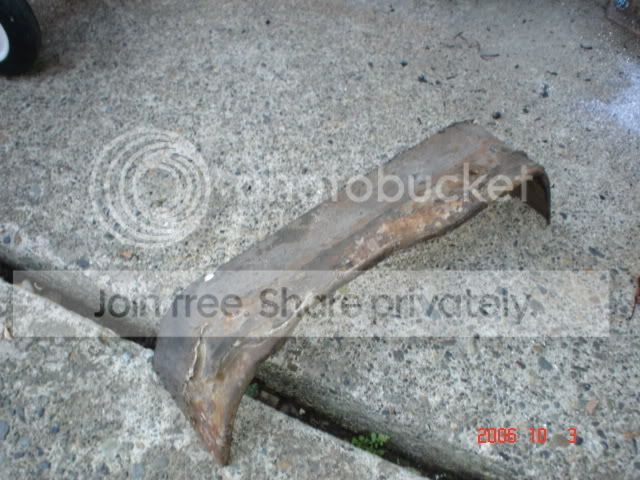

    Next up was an old heat sheild, so as usual I took the elegant approach. :grind: :hack:

    [​IMG]

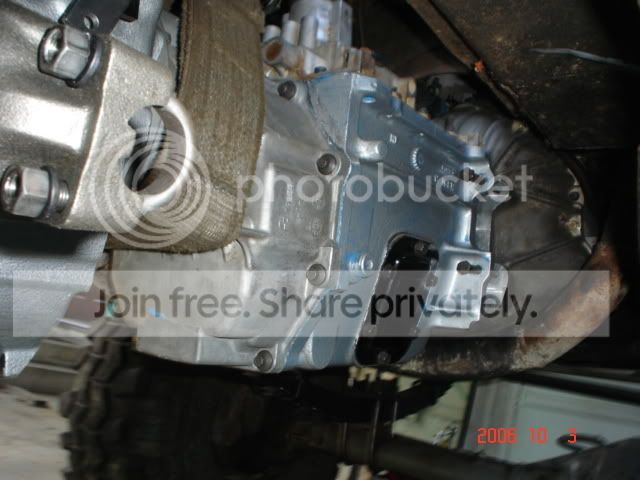

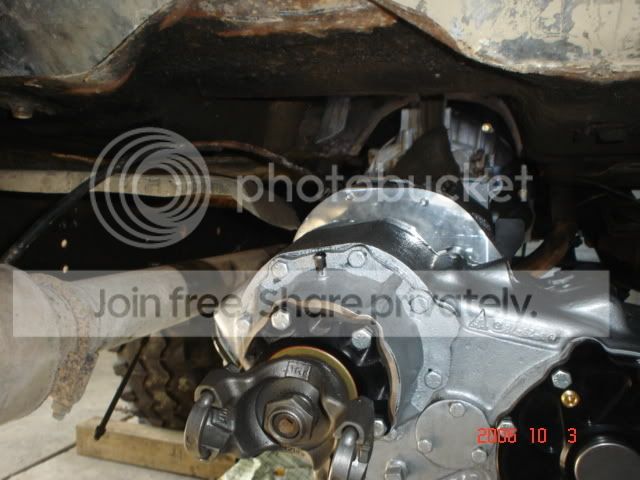

    Input is into the bell at this point...

    [​IMG]

    Ran out to grab some long 7/16" bolts for line-up purposes and this is where I'm at now.

    [​IMG]

    Anyone that has ever done a clutch or swapped in a manual tranny knows that I'm now at what is considered to be the asshole part of the job. Trying to get the 10 spline input through the clutch disc and into the pilot. I am updating right now because I was getting frustrated. I may have to put a jack under the tail end to help line it up better.

    As soon as this slides in the worst is pretty much done, the rest is just 'labor' and not really difficult IMO.

    Rene

  17. Jishory

    Jishory 1/2 ton status

    Joined:
    Jan 8, 2002
    Posts:
    1,367
    Likes Received:
    0
    Location:
    Palmdale, CA
    i use a rubber mallot gettin my 465 input through the clutch, hasnt hurt anything

  18. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    looking good. how much would you say youve got tied up into the doubler having NWF build the cases? you dont have to say if it hurts too much to do so. cant wait to see the final product completely installed.

  19. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    I'd have to go back and check all my invoices and stuff. NWF has prices up on their site though....

    Rene

  20. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,168
    Likes Received:
    1,366
    Location:
    E-town baby!
    Yeah, I've used a bit of brute force in the past...I'm just fighting the whole 10 spline thing. I need to get some forward pressure on the whole thing while I rotate the rear yoke a little.

    Rene
