Discussion in 'The Garage' started by tRustyK5, Apr 5, 2006.

  1. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,170
    Likes Received:
    1,379
    Location:
    E-town baby!

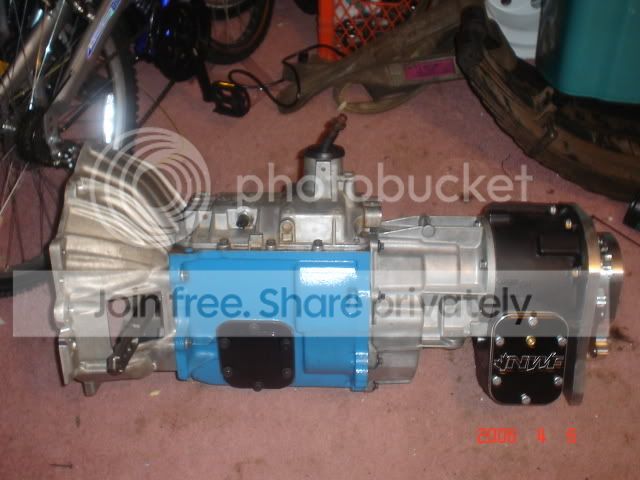

    Got some of the goodies I've been slowly aquiring. Got my Advance adaptors bellhousing today, new 203 range box and dual T-case kit from NWF. Decided to mock it all up (so I'm a little excited...:crazy: )

    Still saving for the 205, and waiting for one single synchro so the NV4500 can go back together and be buttoned up.

    [​IMG]

    Overall length so far is 35.81" from the front of the bell to the rearmost face of the dual T-case adaptor. I'll have to crawl under the truck and see what my 465/205 combo is measured the same way. Should give me a very good idea on driveline length anyways.

    *edit* SM465/205 is 25.38" from the front of the bell to the machined face of the 205. Looks like this combo will be 10 1/2" longer. That should get my driveshafts pretty much equal length if my math is worth a crap. :)

    Rene
