pitman arm boot EDIT: Sector Shaft Seal? SEE page 2

Discussion in 'The Garage' started by 78Suburban, Apr 26, 2006.

  1. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    I was pressure washing my burb today, and the little boot that protects the grease fitting inbetween the pitman arm and draglink decided to rip in half. I'm going to go by autozone tomorrow and rent a pickle fork. I'll also get a cotter pin to put back on the nut. Does anyone have a part number for this little rubber boot I ripped in half? An autozone part number? What would they list it as under their site? How any ftlbs of torque should I put this nut back on at? Is this gonna be an easy job, or difficult?
    thanks,
    James

    Last edited: Apr 28, 2006
  2. yellowK20

    yellowK20 Well Lubricated Premium Member GMOTM Winner

    Joined:
    Dec 26, 2002
    Posts:
    7,603
    Likes Received:
    556
    Location:
    Wasilla AK,
    usually you have to buy the hole rod end as far as I know you can't buy just the boot

  3. rick88blaze

    rick88blaze 1/2 ton status

    Joined:
    Jan 24, 2003
    Posts:
    2,342
    Likes Received:
    1
    Location:
    Knob Noster, Mo.
    Check the HELP section there. There are usually some universal fit boots. Here's a linke to Advance Auto Parts Boots :D

    Rick

  4. WhiteBurb

    WhiteBurb 1/2 ton status

    Joined:
    Mar 10, 2005
    Posts:
    307
    Likes Received:
    0
    Location:
    Louisiana
    You can buy a pickle fork for under $20. I got one at the zone, and I've used it quite a few times. A lot easier IMO than having to rent one every time.

  5. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    I guess I'm gonna get Engergy Suspension part number 913119G
    its 21/32" at the top and 1 5/8" at the bottom, will that fit the end of my drag link correctly?
    thanks,
    James

  6. divorced

    divorced 3/4 ton status

    Joined:
    Jul 20, 2004
    Posts:
    5,115
    Likes Received:
    0
    Location:
    .
    I'm not sure what size you need, but you could have them pull a new one off the shelf and match them up that way. The pickle fork is about $10 to buy one, then you'll always have it.

  7. mouse

    mouse 1/2 ton status

    Joined:
    Nov 10, 2003
    Posts:
    1,448
    Likes Received:
    0
    Location:
    Great Falls Mt
    Befbuy a pickle fork, try to remove it by smacking the sides (not top or bottom) with a hammer. It may take a few whacks, but they usually come out if they are not rusted. Very rarely do I need to use my pickle fork. If you do buy a pickle fork, buy one that can be used with a regular hammer or an air hammer. That way you can have power assist when needed.

  8. R77K10

    R77K10 Banned

    Joined:
    Mar 15, 2006
    Posts:
    564
    Likes Received:
    0
    Location:
    Lincoln IL
    pickle forks of a couple different widths are a real good thing ot have around, no matter how often you think you may need to use it, when you do need one then its great to be able to just grab it and use it without any extra thought or trouble- just like with anything else

    for the boot- if it were mine and i couldnt find a new boot alone, i would probably hunt down a good used one and go for it and if i didnt feel liek separating the joint in order to replace just the boot i would probably slit it after washing it real good and then adhesive seam it back together

    but it depends, may not be able to do something like that if the boot compresses alot in the joint with the stud all the way tightened/seated in said joint






    good luck

  9. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia

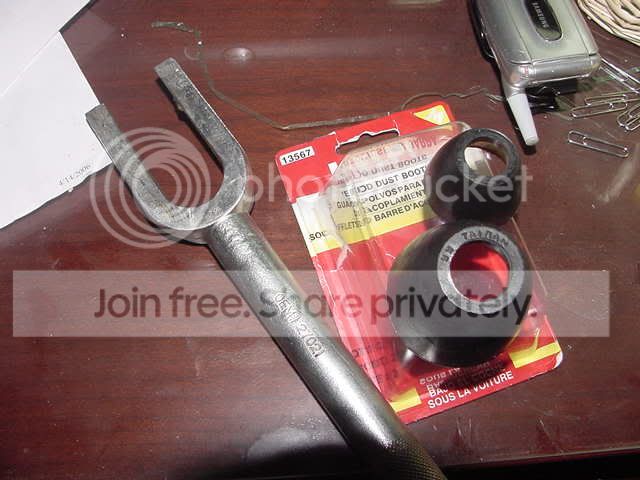

    Got some goodies at Autozone

    [​IMG]

    [​IMG]

    [​IMG]

    Well, I went by autozone and rented the pitman arm pickle fork. I got them to dig out a drag link and we compared its boot to a boot at the help section. Neither one looked like my stock boot, which has a metal ring at the bottom. I ended up getting a pack with 2 HELP! brand "tie rod boots". The diameter seems to be about right, but I may end up having to cut down the bottom half of the boot. I will be able to tell more when I get the drag link and pitman arm seperated. I've got my fingers crossed that it will be close enough in size to make a half decent seal. So is 60 ftlbs a good torque to try?

    Also, while I'm at it, I noticed a good bit of PS fluid all over the top of my pitman arm, it looks like its leaking from the sector shaft area. Is there a seal there? How hard would it be to replace? What all would I have to remove, and how? Does anybody have a part number for that seal? I figure while I've got the pickle fork rented, I might as well address that, because I've been loosing PS fluid like the titanic. (I've still got the stock 4x4 steering box and sector shaft, and still have stock push pull steering).

    Thanks,
    James

  10. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Don't worry about the metal ring that your old boot had. I wouldn't worry about a perfect fit either, cause they're supposed to be squished a little bit. You probably can't even tell what shape the old one used to be anyway, so you don't have much to go by.

    Yes there's a seal at the sector shaft, I'd try replacing it. Just remove the pitman arm (you may need to rent the puller), remove the top cap of the box, and pull out the shaft. You shoud be able to get to the seal from there.

  11. divorced

    divorced 3/4 ton status

    Joined:
    Jul 20, 2004
    Posts:
    5,115
    Likes Received:
    0
    Location:
    .
    I've got the same kind of phone that you have. That's all I have to contribute right now.

  12. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    That sounds like lounge talk. :ignore: :doah:

  13. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    [​IMG]

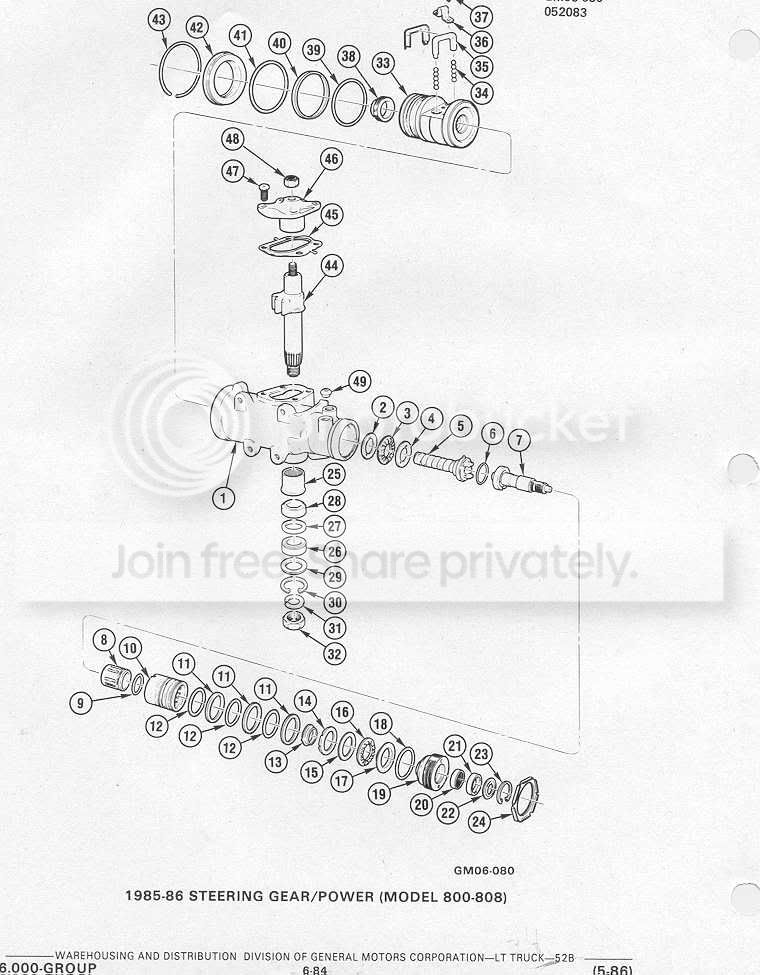

    replacing the sector shaft seal looks like it will be quite a chore. Any body got part numbers for the seal on a '78 4x4 steering box?
    thanks,
    James

  14. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    http://www.autozone.com/servlet/UiBroker?UseCase=C001&UserAction=performMoreDetail&Parameters=TRUE%7C%7EKIT+-+POWER+STEERING+GEAR%7C%7ENONE%7C%7EPOWERCRAFT%7C%7ENONE%7C%7EFALSE%7C%7EFALSE%7C%7E198879%7C%7E141%7C%7E7856%7C%7ELOWER+PITMAN+SHAFT+SEAL+KIT%7C%7E%249.99%7C%7ECHEVROLET+TRUCK%7C%7EK20+3%2F4+TON+SUB+4WD%7C%7E1978%7C%7ENONE%7C%7E0.25%7C%7ENONE%7C%7EB

    Would this have all the seals and gaskets I would need to get to my sector shaft seal, and replace it? Anybody got any details on the meathod you use to blow the seal out with the pressure from your power steering system? I read it searching, but was a little sketchy on the step by step process.
    thanks,
    James

  15. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    TTT, is that part number ok? The Autozone has 1, and I'm about to drive 40 miles into town to get it. Is this the correct kit to replace my sector shaft seal? :bow:

  16. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    if anybody cares.....

    Are these the right seals? I got the $10 kit. Any tips on using all this good stuff before I dive in tomorrow?

    [​IMG]

    [​IMG]

  17. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    ttt, anybody got some tips on replacing this seal before I finish my coffee and go outside to start tear things up :laugh:

  18. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    Yes, quit drinking coffee. It'll make you old like everyone else.:D

  19. 78Suburban

    78Suburban 1/2 ton status

    Joined:
    Jul 4, 2005
    Posts:
    2,609
    Likes Received:
    0
    Location:
    Georgia
    I've got a junky set of snap ring pliars, and they don't wanna hold the snap ring closed good enough to reinstall it. I've got it all put back together, even drove it a little, but the snap ring keeps falling out. Also, not that the steering box doesn't leak, I think it kinda blew some more seals in my ps pump... the ps pump has a whine to it, that it never had now. Man I need a good set of snap ring pliars, that thing is a PITA. But the swap went exceptionally smootly untill now.

  20. pvfjr

    pvfjr 1/2 ton status

    Joined:
    Feb 10, 2004
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Oakridge, OR
    I usually find that as long as I can get a snap ring into the hole, that I can get into position the rest of the way with a punch. It is a snap ring, so it should snap into place once you get it in there far enough. It could be that your seal isn't seated all the way, and preventing the snap ring from getting into it's groove. If all else fails, break out the hammer,:p: I think your problem is beginning to look like a nail...
