**Please check my gear pattern** PATTERN #2

Discussion in 'The Garage' started by sunnyc123abc, Feb 22, 2006.

  1. sunnyc123abc

    sunnyc123abc 1/2 ton status

    Joined:
    Mar 12, 2005
    Posts:
    636
    Likes Received:
    0
    Location:
    SoCal

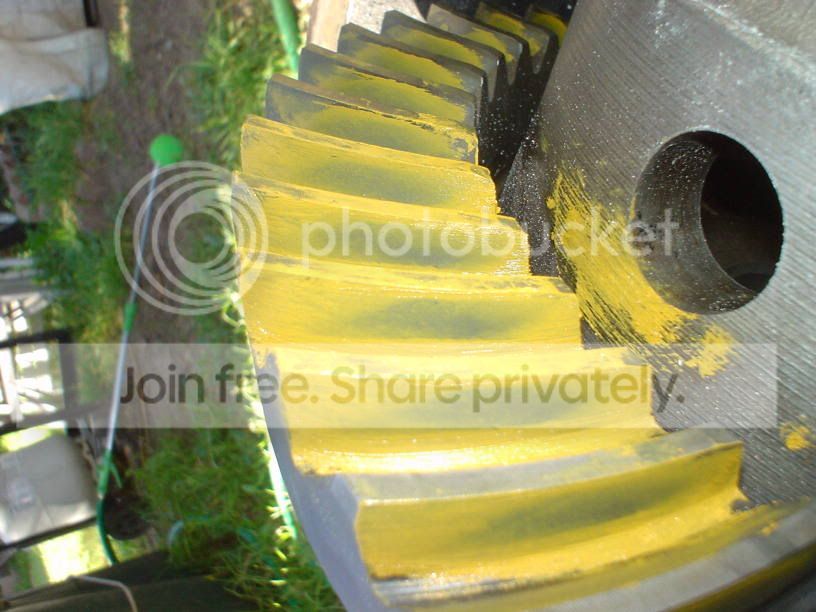

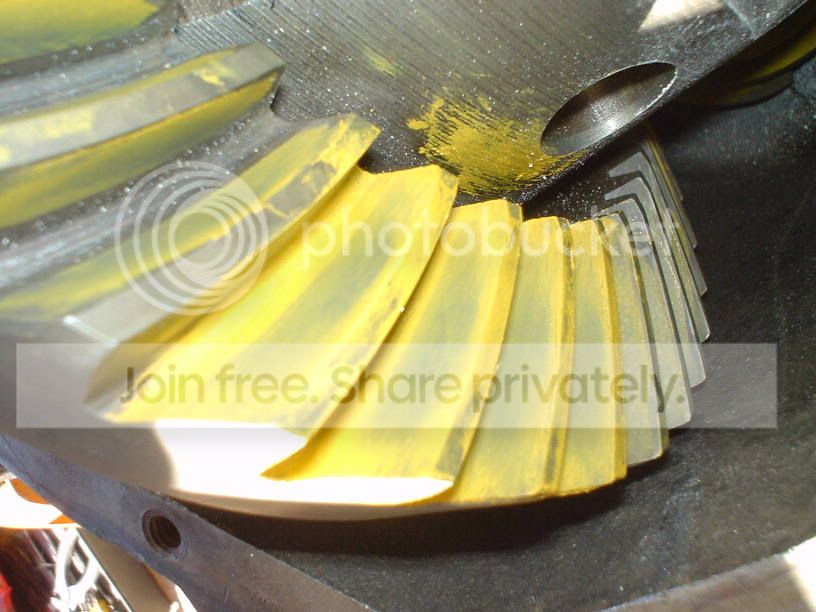

    Can somebody please check my gear pattern. What should i adjust. thanks

    Pattern #2

    [​IMG]

    [​IMG]

    Last edited: Feb 23, 2006
  2. sandawgk5

    sandawgk5 3/4 ton status

    Joined:
    Oct 28, 2003
    Posts:
    6,881
    Likes Received:
    1
    Location:
    Kitsap County PACNORWEST
    I dont think you should have red Xs in your pattern:D . Oh wait it is my work computer:doah: .

    Damn NMCI not letting us have any fun.:o

    Ira

  3. sunnyc123abc

    sunnyc123abc 1/2 ton status

    Joined:
    Mar 12, 2005
    Posts:
    636
    Likes Received:
    0
    Location:
    SoCal
    are there still red x's?

  4. 84CUCV

    84CUCV 3/4 ton status Premium Member

    Joined:
    Jul 1, 2002
    Posts:
    7,115
    Likes Received:
    2
    Location:
    NJ for now
    I see them...sorry cant help you tho

  5. RustBuket

    RustBuket 1/2 ton status

    Joined:
    Feb 21, 2003
    Posts:
    1,618
    Likes Received:
    0
    Location:
    Saskatchewan, Canada
    In the first pic the patter looks close to the inside and in the second one its close to the outside.

  6. sweetk30

    sweetk30 professional hooker Premium Member

    Joined:
    Nov 1, 2004
    Posts:
    25,554
    Likes Received:
    547
    Location:
    horseheads , ny 14845
    looks like the pattern needs to be moved a bit to the middle. dont forget baby steps. few thow is a lot. :wink1:

  7. jekquistk5

    jekquistk5 Weld nekid Premium Member GMOTM Winner

    Joined:
    Jan 18, 2004
    Posts:
    11,030
    Likes Received:
    858
    Location:
    Pinckney, MI
    Pm readymix he can help.. but like everyone said I think you need to move more towards the center 1st one is two shallow, 2nd one is too deep. Did you reuse your bearings and crush sleeve, or did you get a new one?

  8. Mr.Chevy4x4

    Mr.Chevy4x4 1/2 ton status

    Joined:
    Jun 16, 2000
    Posts:
    1,932
    Likes Received:
    0
    Location:
    Sims, NC
    It looks to me like your pinion depth is too shallow and your backlash is too large. How much backlash do you have at this setting? Did you set your pinion depth when you installed it?

    Mike

  9. readymix

    readymix 3/4 ton status

    Joined:
    May 30, 2004
    Posts:
    6,706
    Likes Received:
    26
    Location:
    Murrieta, California
    You probably need about .010 less shim on the pinion and more backlash. Start by removing a shim from the pinion...then reset the BL to .006 -> .010

    Feel free to PM if you need anything and I don't reply to your thread. I might forget to check it again

  10. sunnyc123abc

    sunnyc123abc 1/2 ton status

    Joined:
    Mar 12, 2005
    Posts:
    636
    Likes Received:
    0
    Location:
    SoCal
  11. sweetk30

    sweetk30 professional hooker Premium Member

    Joined:
    Nov 1, 2004
    Posts:
    25,554
    Likes Received:
    547
    Location:
    horseheads , ny 14845
    that looks better to me but i am not a expert yet at installs. but yes better than before.

  12. Zeus33rd

    Zeus33rd Smarter than you GMOTM Winner

    Joined:
    Mar 14, 2002
    Posts:
    7,324
    Likes Received:
    9
    Location:
    Grass Valley, CA
    Run it. Gears aren't rocket science. :crazy:

  13. sandawgk5

    sandawgk5 3/4 ton status

    Joined:
    Oct 28, 2003
    Posts:
    6,881
    Likes Received:
    1
    Location:
    Kitsap County PACNORWEST
    I could not see the other pics as I was at work. I get home and was wondering what was wrong with the pattern:doah: . I did not know he changed the pics out for the adjusted set. The ones up there look about where mine were on my 14FF when I put it together I say run it:D .

    Ira

  14. MTChevy

    MTChevy 3/4 ton status Premium Member

    Joined:
    May 6, 2005
    Posts:
    7,141
    Likes Received:
    78
    Location:
    Great Falls, MT
    I'd hit it... I mean run it

  15. readymix

    readymix 3/4 ton status

    Joined:
    May 30, 2004
    Posts:
    6,706
    Likes Received:
    26
    Location:
    Murrieta, California
    Looks like you got it. What is the BL at?

  16. sunnyc123abc

    sunnyc123abc 1/2 ton status

    Joined:
    Mar 12, 2005
    Posts:
    636
    Likes Received:
    0
    Location:
    SoCal
    Backlash is at about 8 thousandths

  17. readymix

    readymix 3/4 ton status

    Joined:
    May 30, 2004
    Posts:
    6,706
    Likes Received:
    26
    Location:
    Murrieta, California
    Looks good. I would run it

  18. RootBreaker

    RootBreaker 3/4 ton status Premium Member

    Joined:
    Nov 29, 2001
    Posts:
    5,118
    Likes Received:
    173
    Location:
    Williamstown, NJ USA

    you too huh :haha:

    dayum websense!!!!!
