replumbed my Trans cooler(PIC'S)

Discussion in 'The Garage' started by BobK, Sep 17, 2004.

  1. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    replumbed my Trans cooler(PIC\'S)

    I replumbed my trans cooler this week and decided to change things a bit.

    1st,the way it WAS plumbed not only looked bad but it leaked.

    I have a 11"X11", 28,000 GVW,stacked plate trans cooler that I run in conjunction with the trans oil cooler in the radiator.I'm cooling a TCI 700R4 transmission.

    Here's the flow path of the oil.
    lower port is the output.It goes to the stacked plate cooler 1st.
    From the stacked plate cooler it flows into the cooler in the rad.
    From the radiator cooler it flows back to the trans and enters via the top port of the 700R4.

    In addition to bending up the lines to make them look nice I rerouted them to the outside frame rail and isolated the hard lines with rubber lines.
    I used the rubber lines when I was going from one body part to another.An example is from the frame rail to the rad. core support or from the trans to the frame mounted hard lines.
    Doing it this way will accomodate for any shifting or movement between the said body components in flexy situations.

    Anyhow,enough talk...let's get to the pic's /forums/images/graemlins/grin.gif

    I bent up the 5/16th hard lines with your run-of-the-mill tubing bender.
    I double flared the connections with a 45deg. double flaring tool.
    I did get a new toy and utilized it on this project.

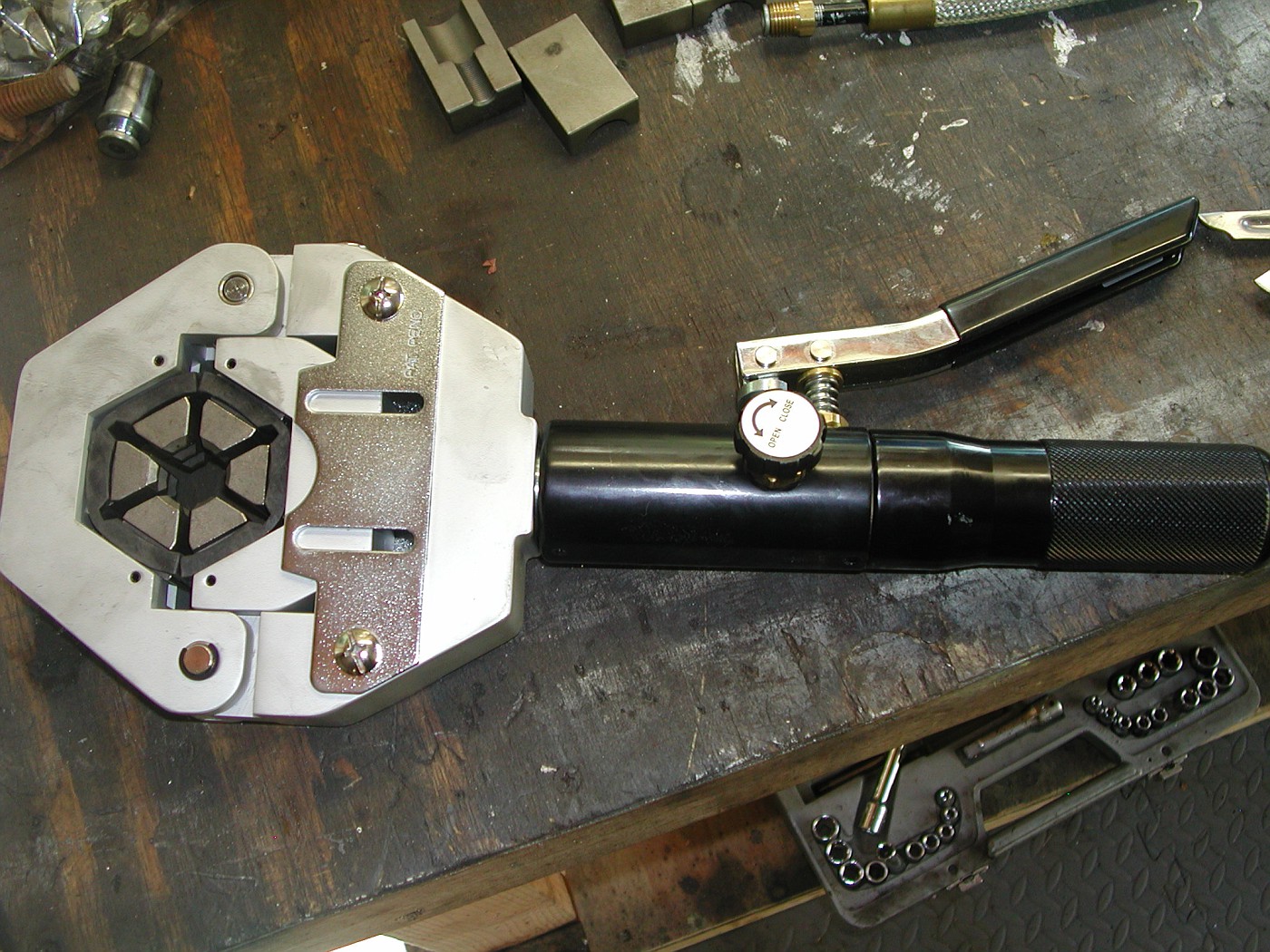

    It's a pneumatic hose crimper.It can be used to make hydrolic and A/C lines.I've now done both with it /forums/images/graemlins/thumb.gif

    It a Mastercool hydrolic crimper.
    [​IMG]

    Here's the beginning of one of the hoses I made.Two tube ends(double flared),Transmission oil rubber tubing,crimp sleeves(furrels), and to make it look cool some stainless braided sleeving.
    [​IMG]

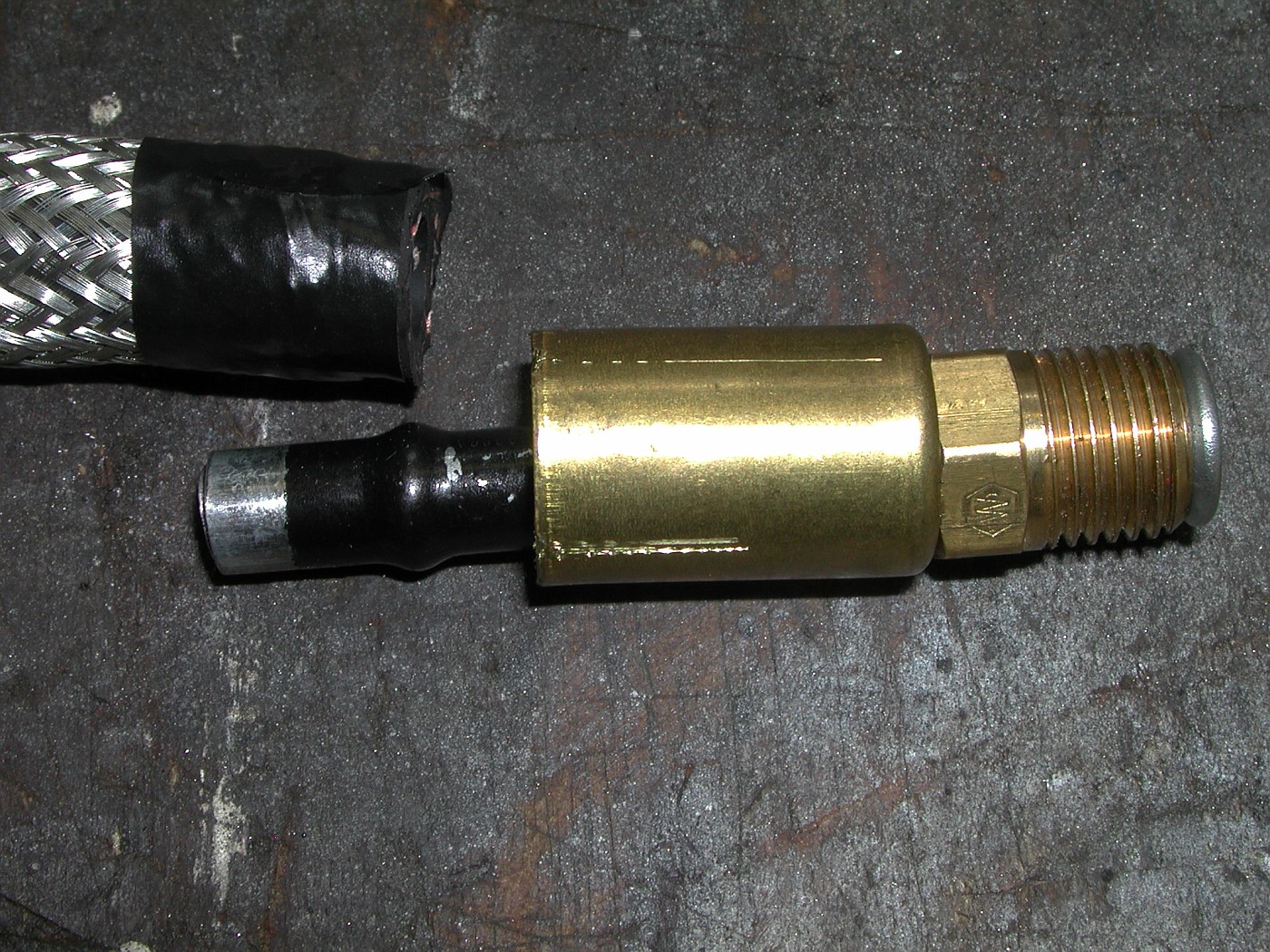

    After messuring things and cutting to the right length I slide the braiding over the hose and tapped the end off with electrical tape.I then slide the crimp sleeve over the hard line ends.
    [​IMG]

    With a little trans oil smeared onto the hard line I slid the rubber line onto the hard line.

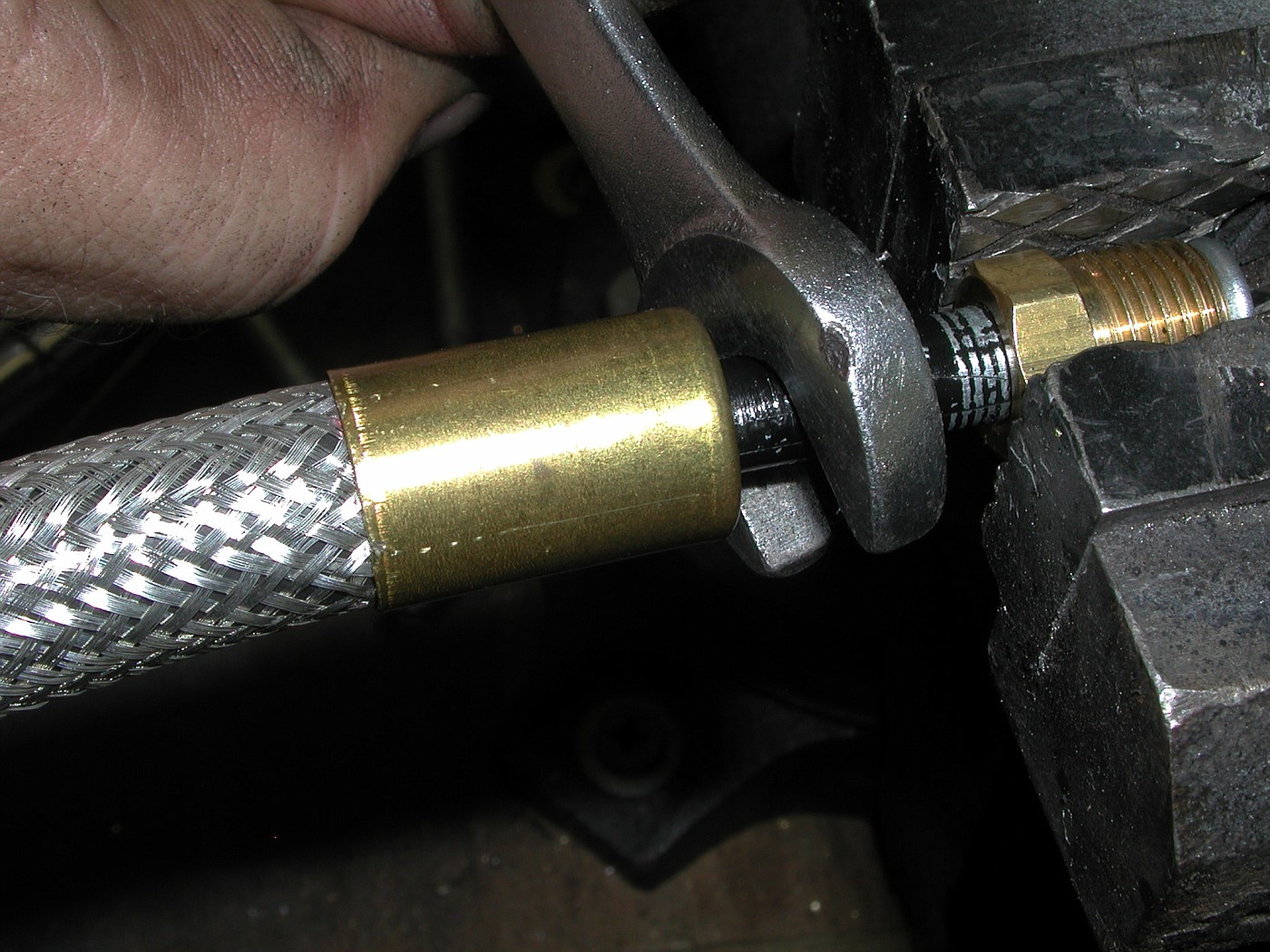

    Then with a 1/2" wrench I coaxed the furrel over the hose and braiding.This was a little tough as the braiding increases the O.D. and the furrel is sized to fit JUST over the rubber tubing.
    [​IMG]

    Next was the fun part.I got to use my new hydrolic crimper and crimp on the furrels over the tubing.
    You 1st insert the right sized teeth into the crimper and then lock it closed with a saftey pin.

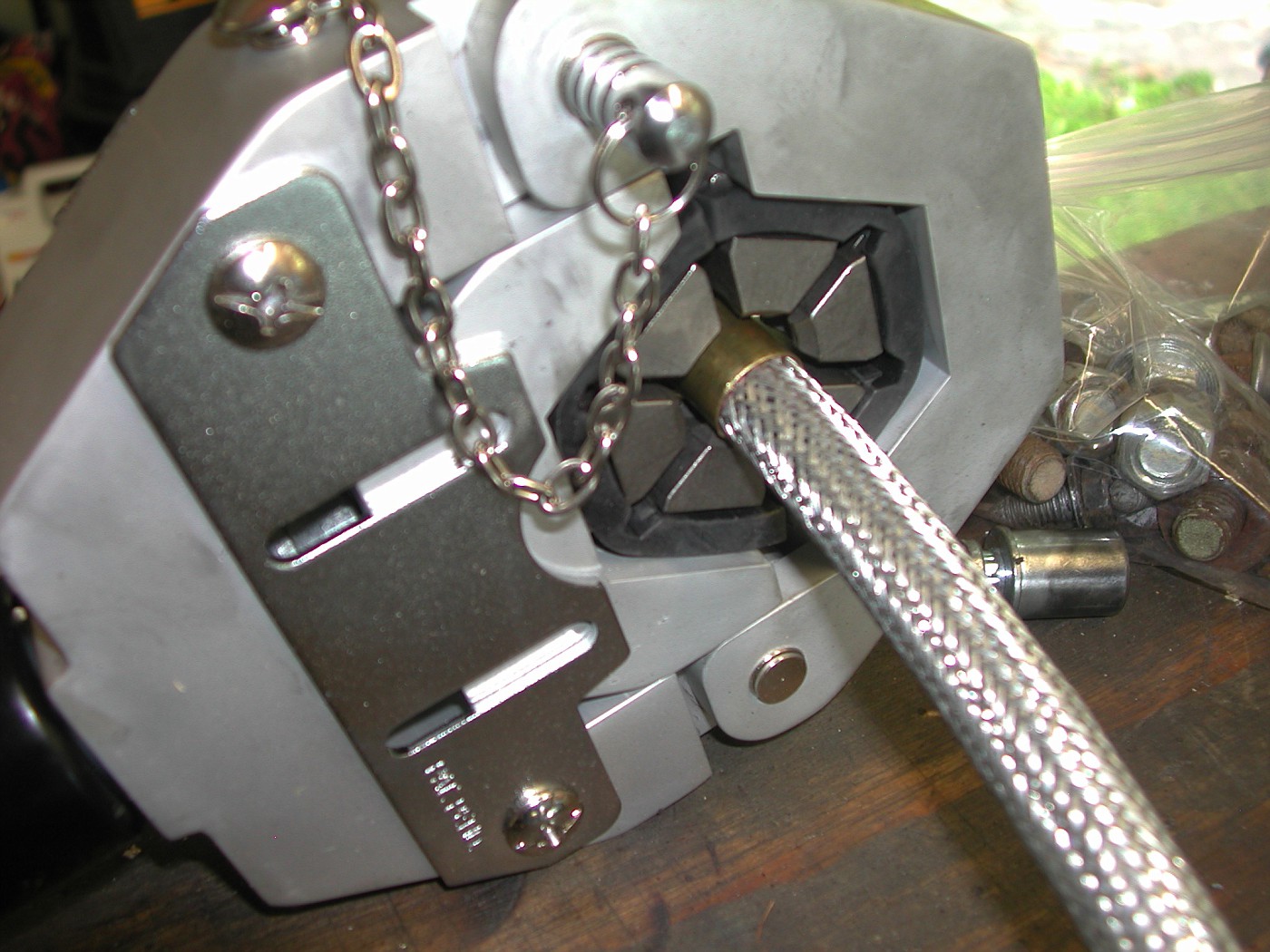

    Then insert the tubing into the jaws and center the furrel in the teeth.
    [​IMG]

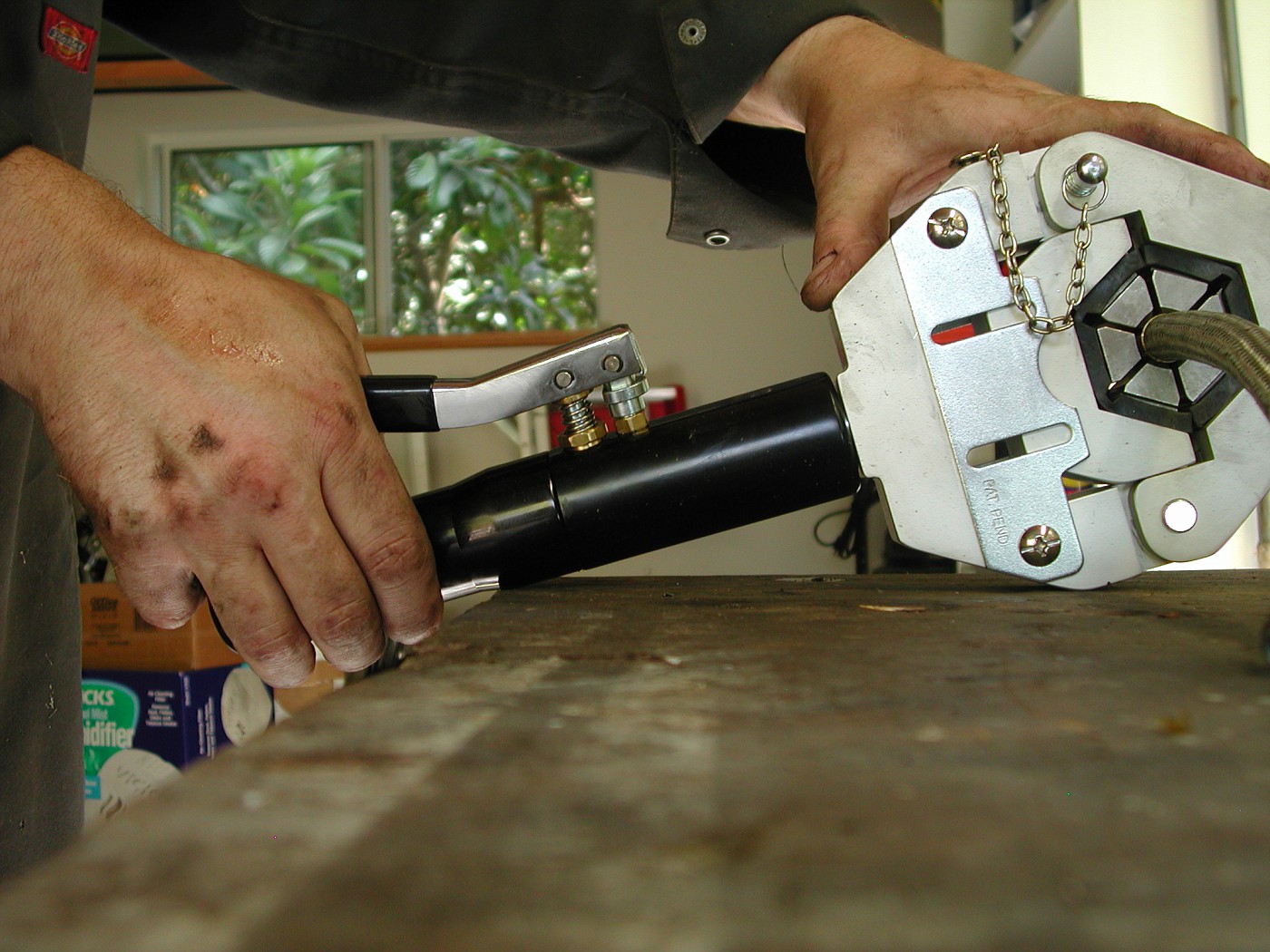

    Then close the valve on the crimper and pump the handle.It slowly closes the jaws and crimps the ferrel onto the hose.
    [​IMG]

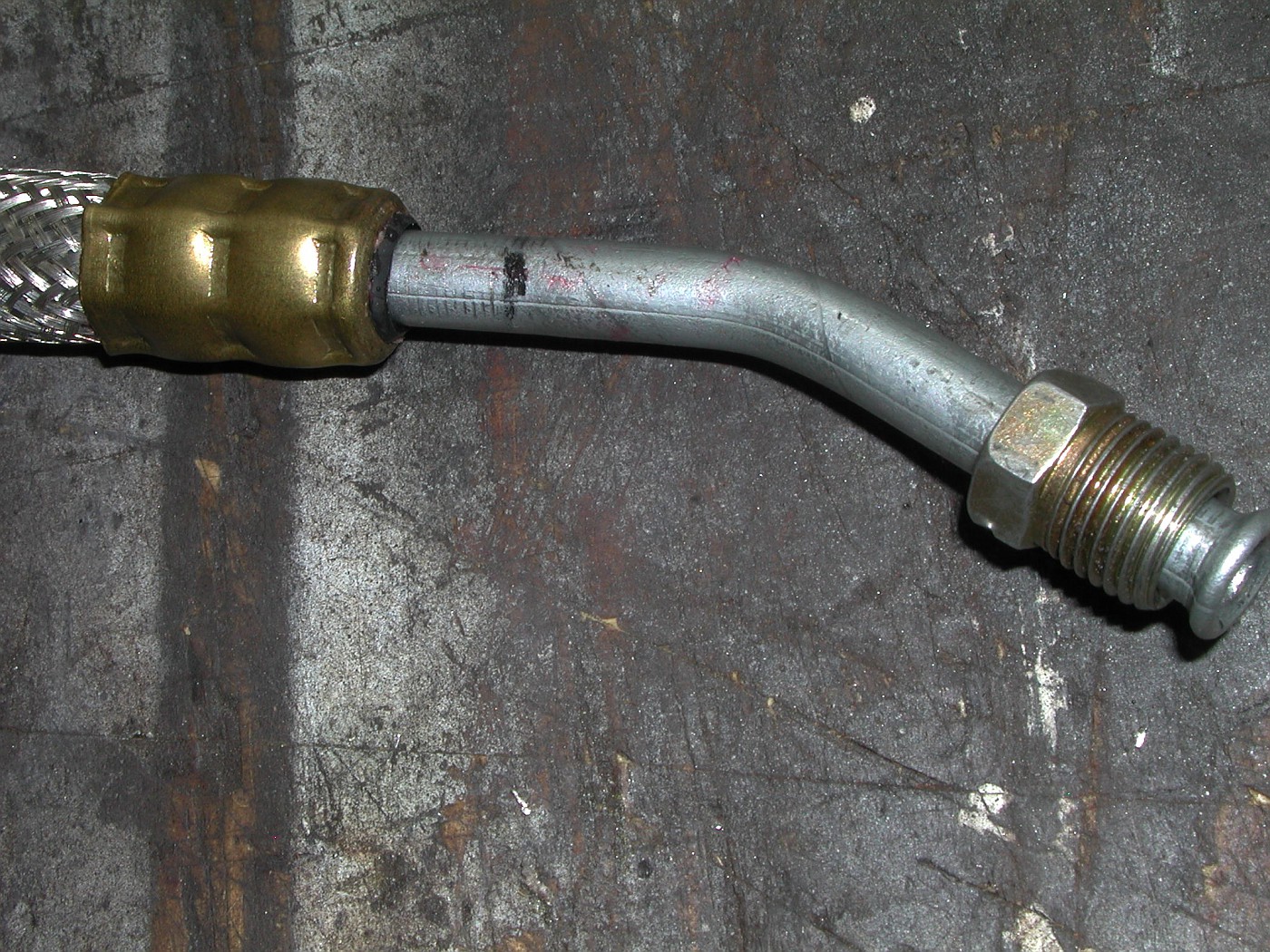

    Open the valve to release the jaws and take out your newly crimped hose.Looks GOOD /forums/images/graemlins/thumb.gif
    [​IMG]

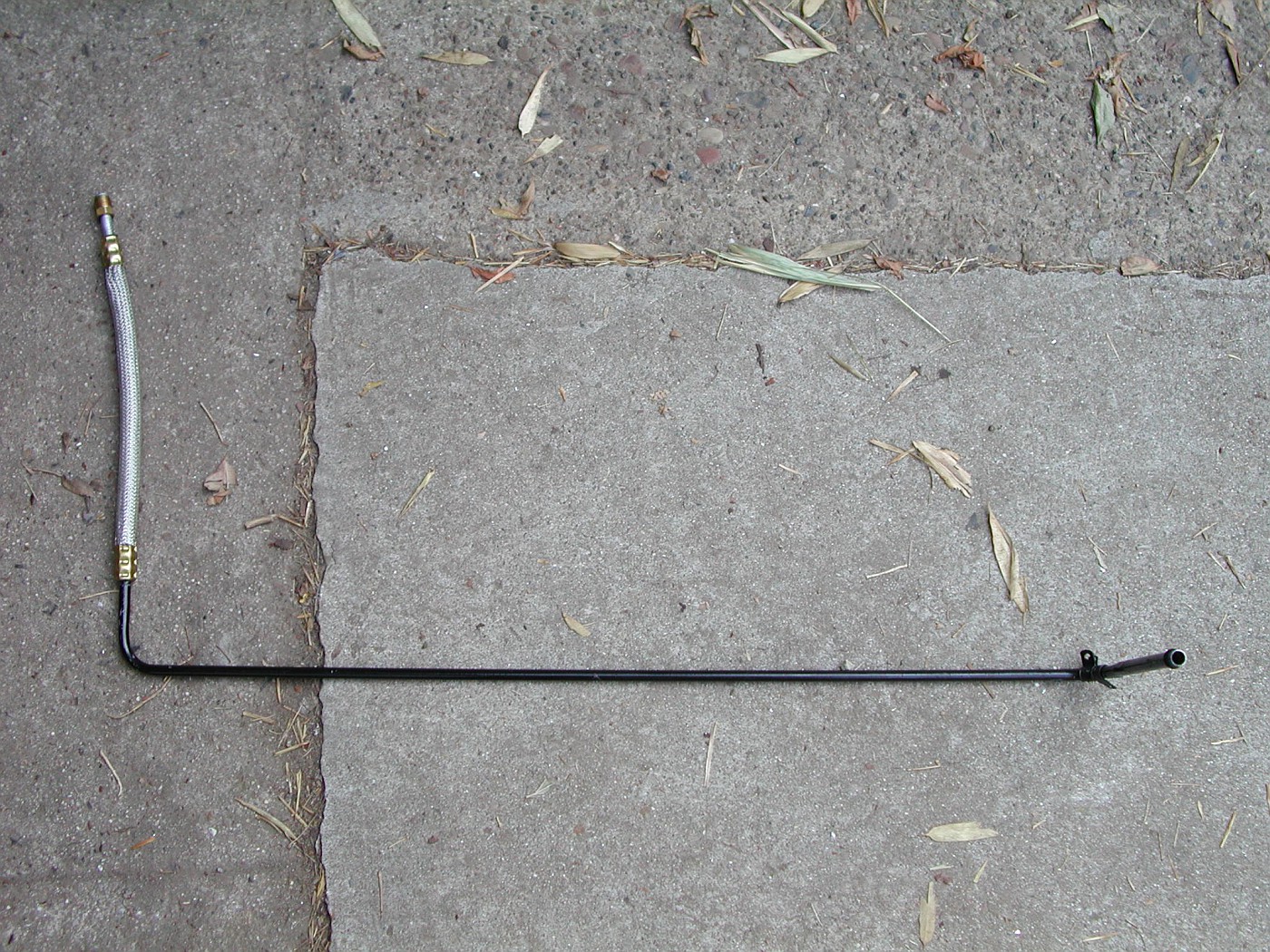

    This particular line goes from the trans output to the hard lines on the frame rail.
    [​IMG]

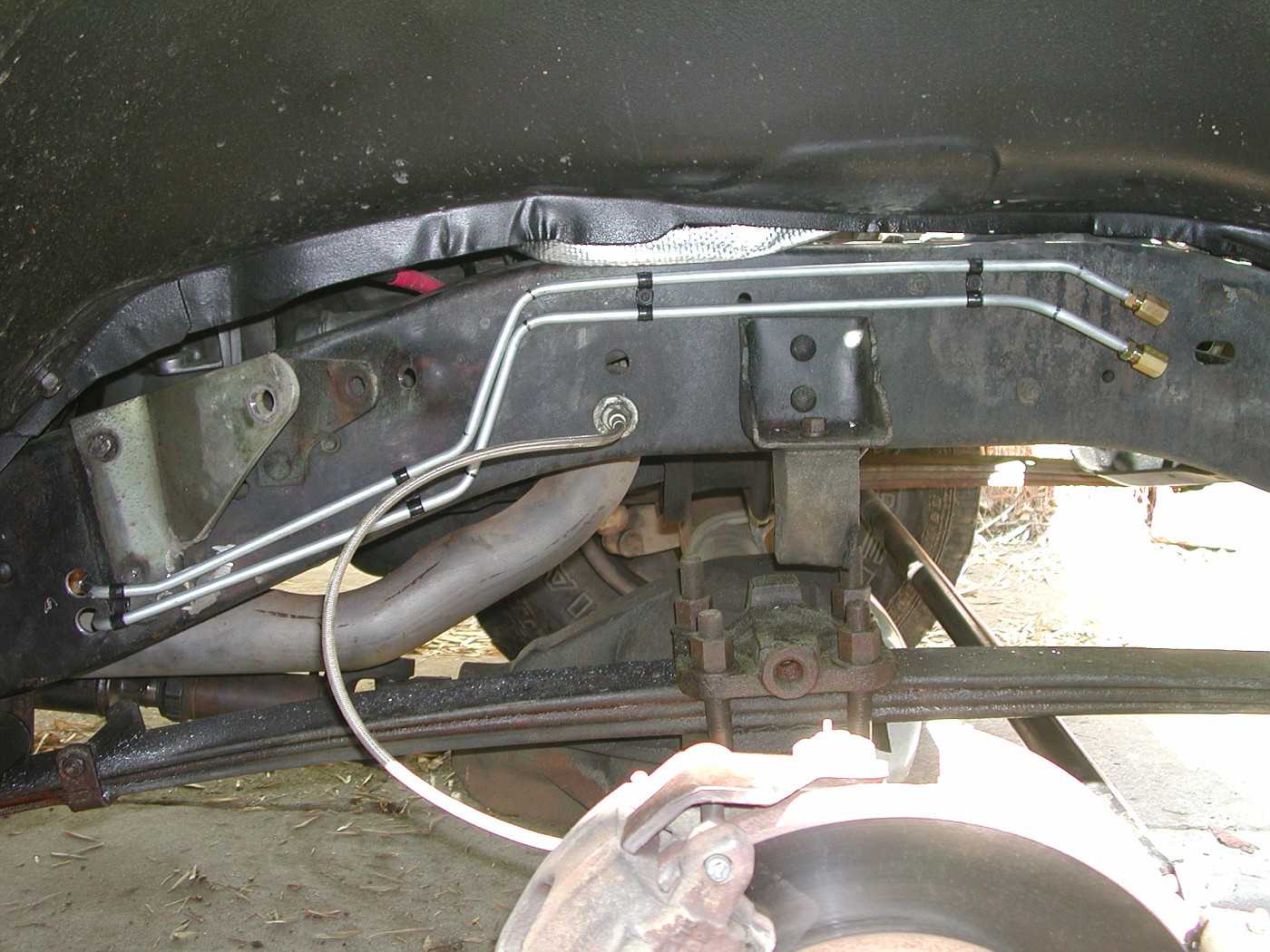

    Making sure I didn't drill into the fuel and brake lines on the inside of the frame rail I drilled two 3/4" holes for the new hard lines to pass through.
    I used a wire coat hanger to get the shape and mark the bends I needed to make to the hard lines.

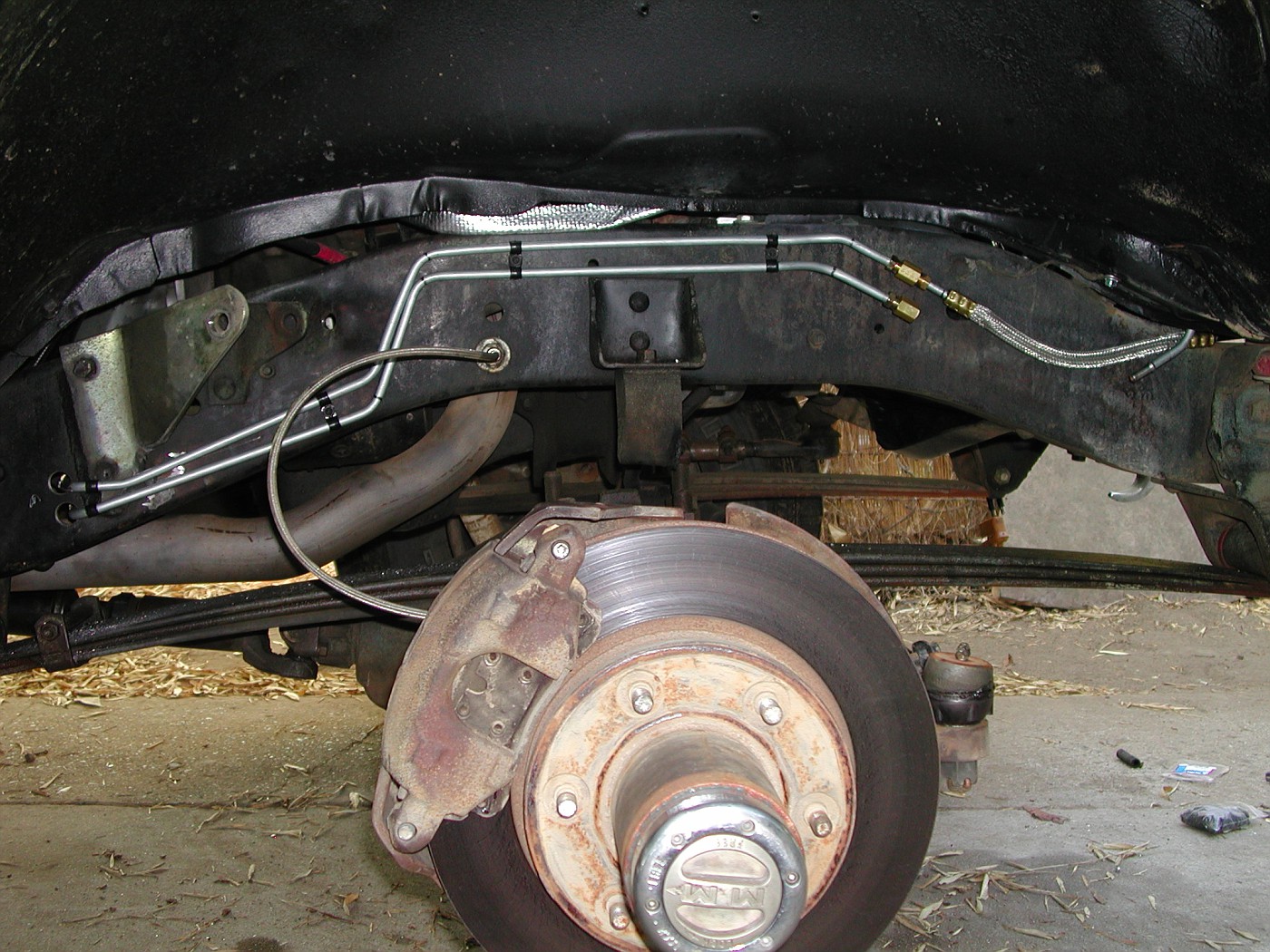

    I then mounted the hard lines to the outside of the frame rail with some 5/16th tiedowns.
    [​IMG]

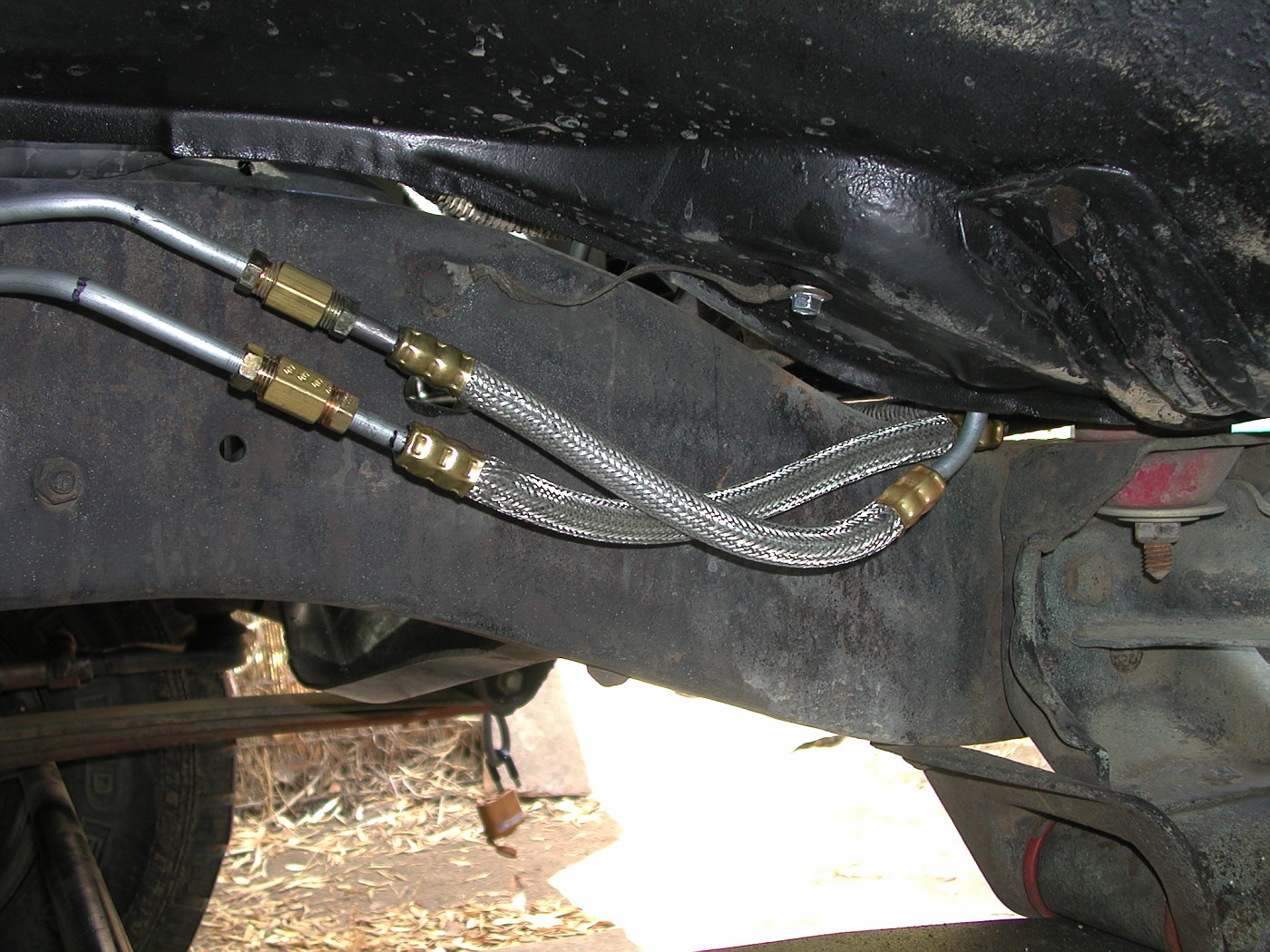

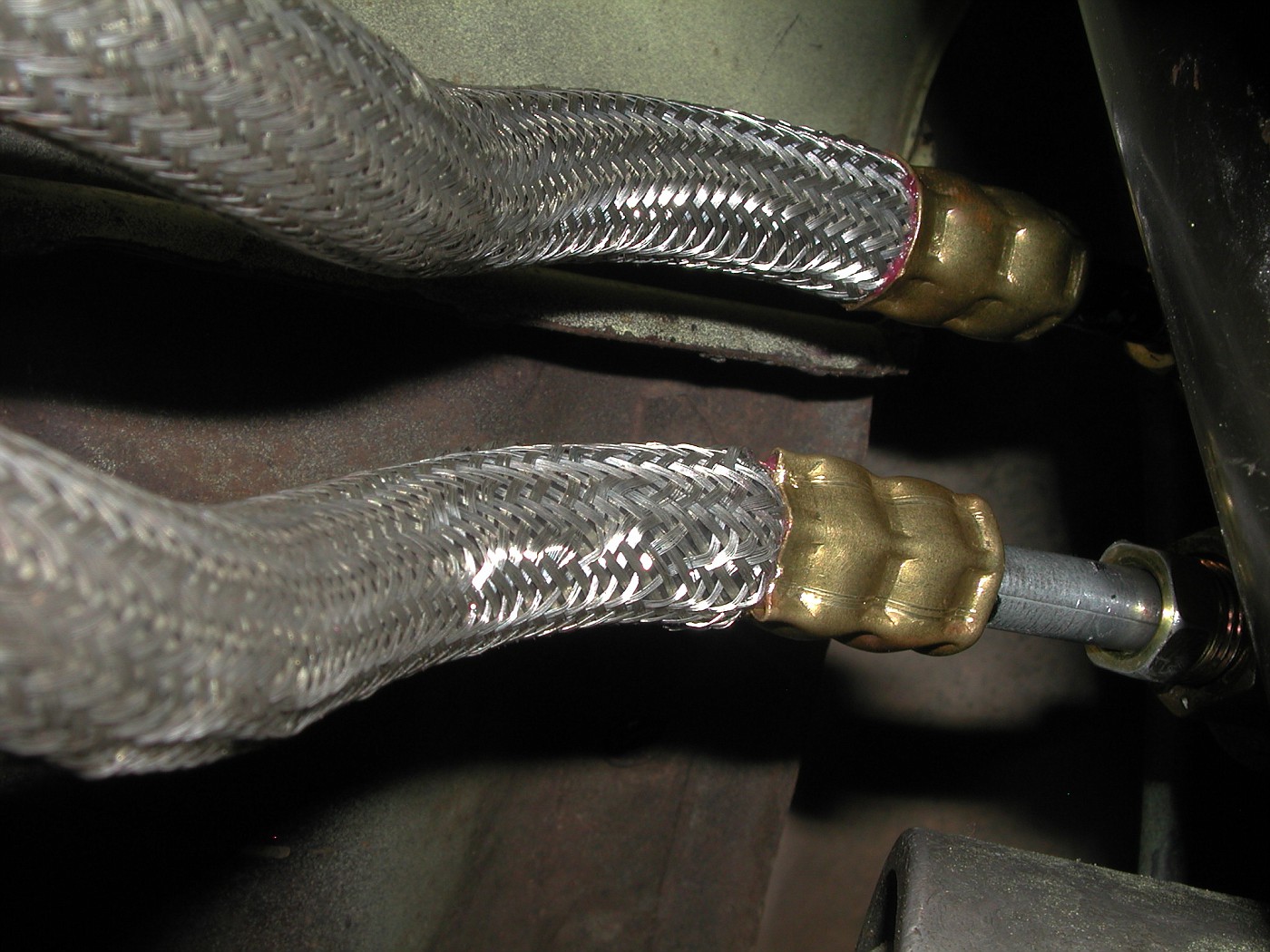

    These two lines go into the trans and connect to the two hard lines I passed through the frame rail.
    [​IMG]

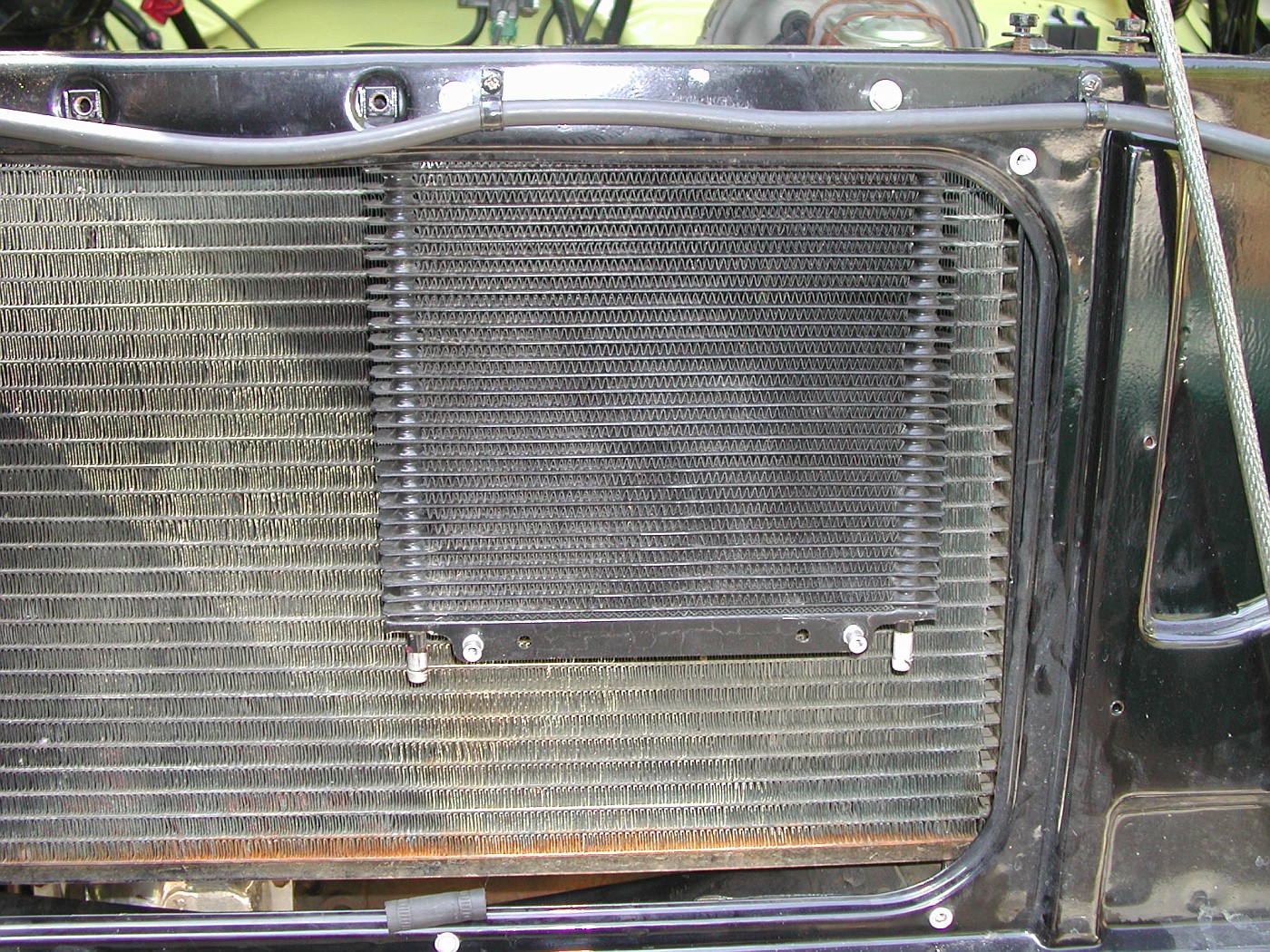

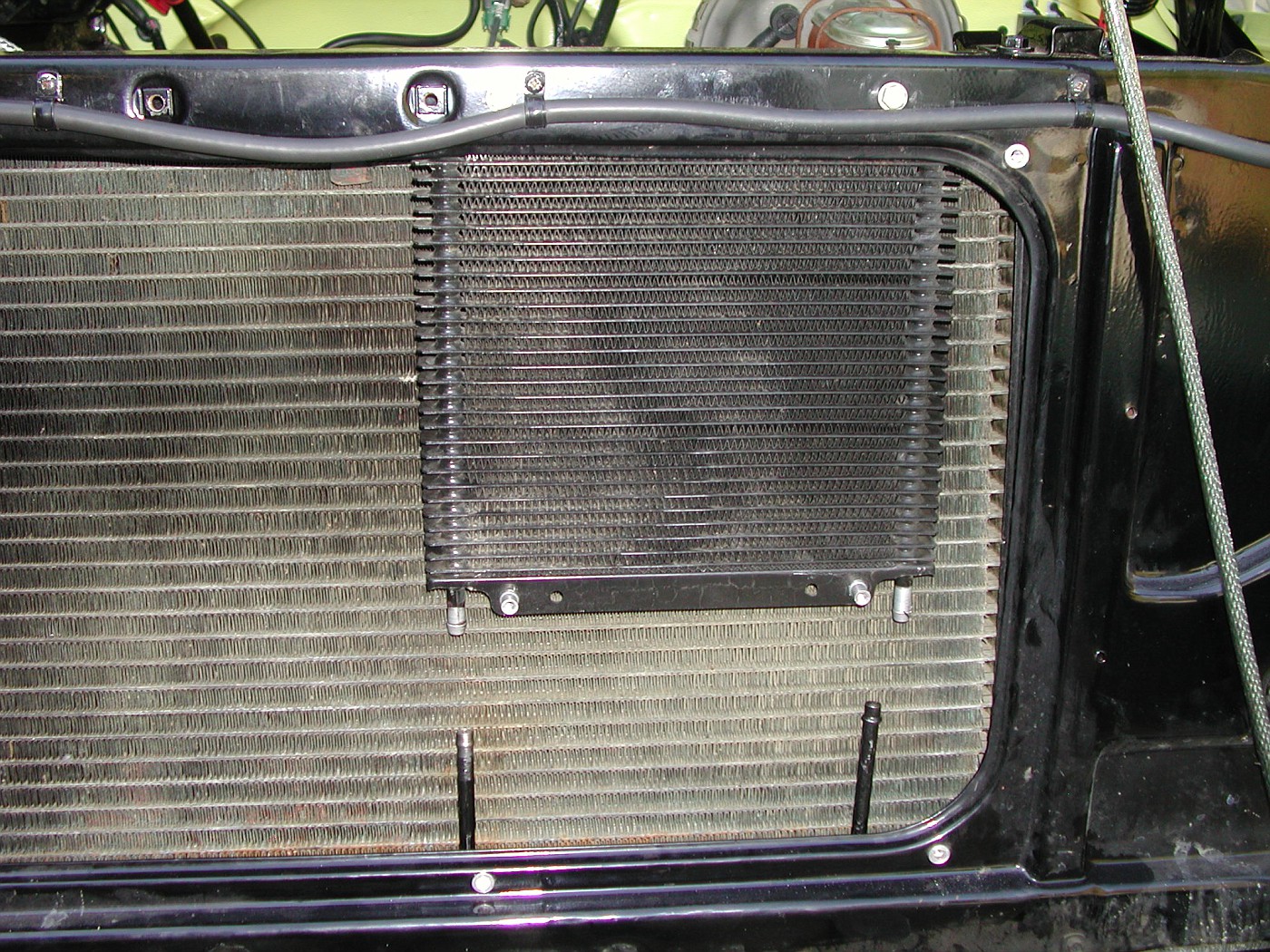

    I mounted the cooler and proceeded to bend up the hard lines that will feed it.
    [​IMG]

    Here I've bent up one of hard lines feeding the cooler and connected a rubber line to one end.
    [​IMG]

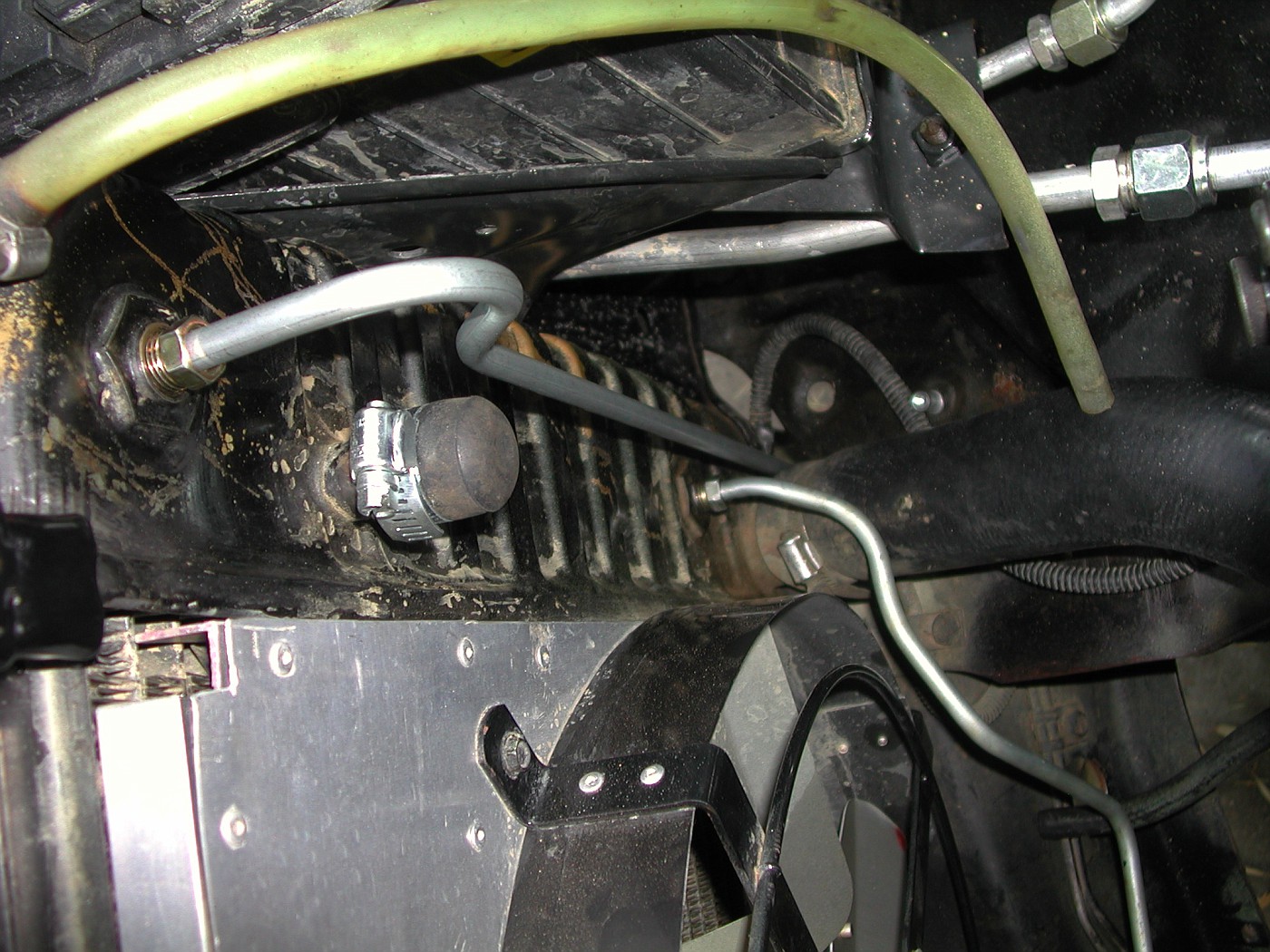

    I also made new lines going to and from the rad. trans oil cooler.
    The top line connects to a hard line on the frame rail and sends the trans oil back to the transmission.
    The bottom line is coming from the stacked plate cooler and feeds trans oil to the rad cooler.
    [​IMG]

    I fed the feed and away lines for the stacked plate cooler through the rad core support.All the lines were secured to the frame rail or rad core with the appropriate fasteners.
    [​IMG]

    I attched the rubber lines to the stacked plate cooler and clamped them down with some hose clamps.I added the two bottom brackets to help support of the stacked plate cooler.
    [​IMG]

    Here are the connections at the frame rail.
    [​IMG]

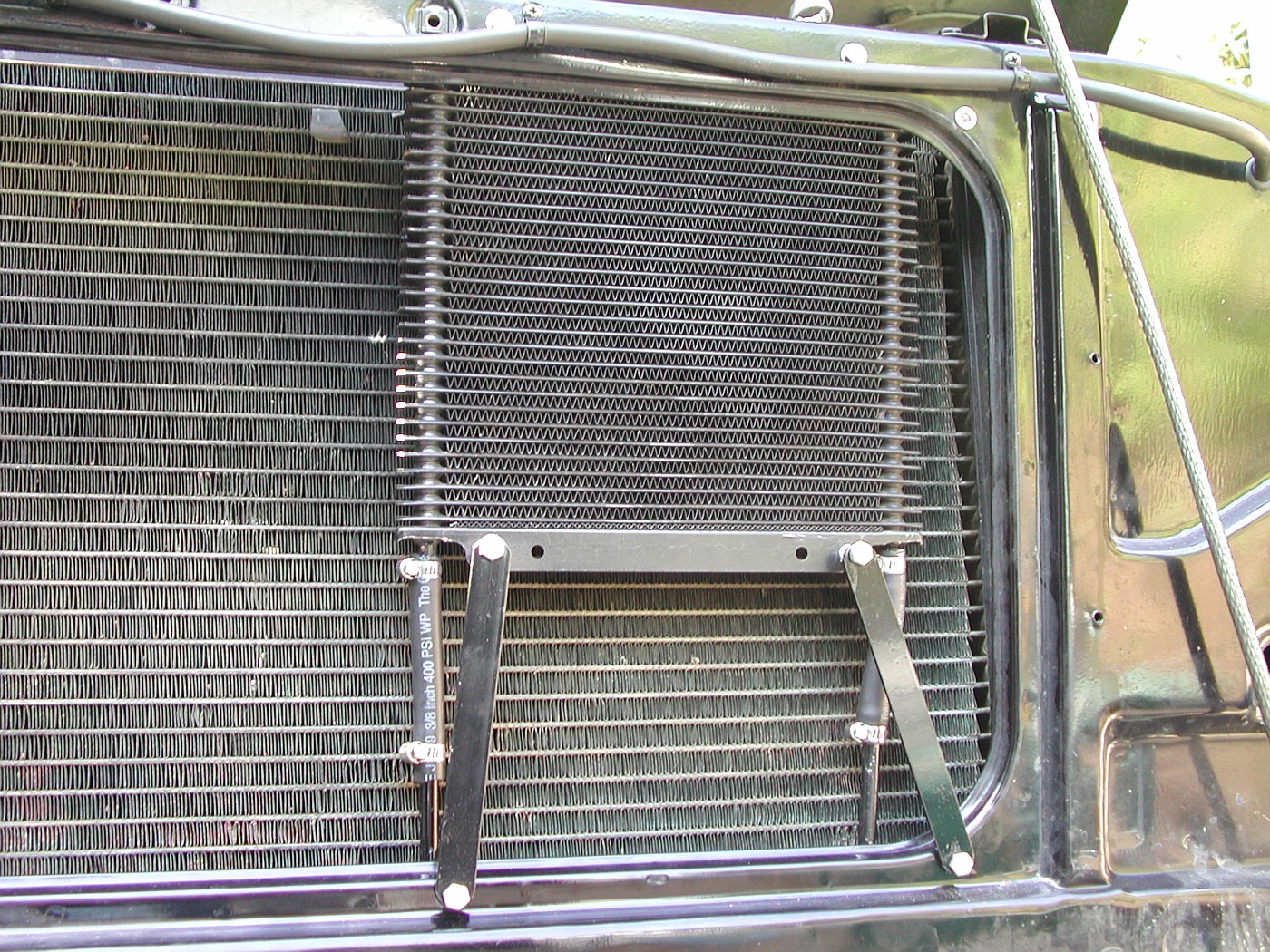

    Here it is all done,well...minus one of the rubber hoses.I hadn't connected it yet when I took the pic.
    [​IMG]

    And that's that!
    It looks good now,is solidly mounted and DOES NOT leak.
    /forums/images/graemlins/peace.gif

    Hope this can help someone in the future.

  2. big83chevy4x4

    big83chevy4x4 3/4 ton status

    Joined:
    Mar 22, 2002
    Posts:
    6,587
    Likes Received:
    0
    Location:
    Sheridan, Michigan
    Re: replumbed my Trans cooler(PIC\'S)

    looks DAM good,

    i might have to have you maye me some lines like that, at least the braided from the tranny, looks way too nice. /forums/images/graemlins/bow.gif /forums/images/graemlins/bow.gif

  3. or2play

    or2play 1/2 ton status

    Joined:
    Feb 22, 2002
    Posts:
    657
    Likes Received:
    0
    Location:
    Yuma, Arizona
    Re: replumbed my Trans cooler(PIC\'S)

    Nicely done. I've been thinking about something like that for a while. Seeing yours I think its something I need to do as well. /forums/images/graemlins/thumb.gif

  4. mudjunkie 82

    mudjunkie 82 1 ton status GMOTM Winner

    Joined:
    Dec 27, 2002
    Posts:
    11,449
    Likes Received:
    0
    Location:
    Cleveland Ohio
    Re: replumbed my Trans cooler(PIC\'S)

    Nice work!!! /forums/images/graemlins/thumb.gif

  5. BadDog

    BadDog SOL Staff Member Super Moderator Author

    Joined:
    Feb 24, 2001
    Posts:
    7,777
    Likes Received:
    11
    Location:
    Phoenix, AZ
    Re: replumbed my Trans cooler(PIC\'S)

    Nicely done! /forums/images/graemlins/waytogo.gif

    I also rerouted mine up on top of the frame rail, but didn't have the nice crimper like you. Hmmm, maybe time to save for a new tool...

  6. 83ZZ502_Jimmy

    83ZZ502_Jimmy 1/2 ton status

    Joined:
    Feb 7, 2001
    Posts:
    3,103
    Likes Received:
    0
    Location:
    Richmond, VA
    Re: replumbed my Trans cooler(PIC\'S)

    Very, very nice, clean install. /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif

    Also, where can I get one of those crimpers you used? That is a great tool.

    John

  7. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
  8. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    Re: replumbed my Trans cooler(PIC\'S)

    $400 bucks /forums/images/graemlins/shocked.gif /forums/images/graemlins/ignore.gif

  9. backyardbuilt

    backyardbuilt 1/2 ton status

    Joined:
    May 28, 2002
    Posts:
    1,301
    Likes Received:
    0
    Location:
    Olathe, Kansas
    Re: replumbed my Trans cooler(PIC\'S)

    Dam that is sweet at the cost of custom hoses that thing would pay for it self quickly.

  10. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    Re: replumbed my Trans cooler(PIC\'S)

    really I didnt know hoses were so expensive.

  11. xflatrater

    xflatrater Registered Member

    Joined:
    Nov 28, 2003
    Posts:
    65
    Likes Received:
    0
    Location:
    Shamong NJ
    Re: replumbed my Trans cooler(PIC\'S)

    Nice work, it really looks great!

  12. cybrfire

    cybrfire 1 ton status Vendor GMOTM Winner

    Joined:
    Dec 15, 2002
    Posts:
    15,142
    Likes Received:
    568
    Location:
    Iowa
    Re: replumbed my Trans cooler(PIC\'S)

    Very clean install. Nice work indeed. /forums/images/graemlins/waytogo.gif

  13. jekbrown

    jekbrown I am CK5 Premium Member GMOTM Winner Author

    Joined:
    May 19, 2001
    Posts:
    45,031
    Likes Received:
    366
    Location:
    Vancouver, WA, USA
    Re: replumbed my Trans cooler(PIC\'S)

    gawd damn, thats fawkin beautiful!! rock on! /forums/images/graemlins/peace.gif

    j

  14. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: replumbed my Trans cooler(PIC\'S)

    Thanks guys,ya,that crimper tool is awesome /forums/images/graemlins/peace.gif

  15. rjfguitar

    rjfguitar 3/4 ton status GMOTM Winner

    Joined:
    Aug 28, 2002
    Posts:
    9,097
    Likes Received:
    144
    Location:
    california
    Re: replumbed my Trans cooler(PIC\'S)

    [ QUOTE ]



    Here's the flow path of the oil.
    lower port is the output.It goes to the stacked plate cooler 1st.
    From the stacked plate cooler it flows into the cooler in the rad.
    From the radiator cooler it flows back to the trans and enters via the top port of the 700R4.



    [/ QUOTE ]I am curious to as why you plumbed the air to oil cooler first. My factory system goes through the radiator first then to the air to oil cooler. I always thought that was the way it was supposed to be done. /forums/images/graemlins/ears.gif

  16. mrk5

    mrk5 The Sticker Guy Moderator Vendor GMOTM Winner Author

    Joined:
    Apr 20, 2004
    Posts:
    12,343
    Likes Received:
    1,049
    Location:
    Northern Colorado
    Re: replumbed my Trans cooler(PIC\'S)

    Very nice job!

  17. garlicbreath

    garlicbreath 1/2 ton status

    Joined:
    May 17, 2003
    Posts:
    1,136
    Likes Received:
    0
    Location:
    Denver
    Re: replumbed my Trans cooler(PIC\'S)

    [ QUOTE ]
    [ QUOTE ]



    Here's the flow path of the oil.
    lower port is the output.It goes to the stacked plate cooler 1st.
    From the stacked plate cooler it flows into the cooler in the rad.
    From the radiator cooler it flows back to the trans and enters via the top port of the 700R4.



    [/ QUOTE ]I am curious to as why you plumbed the air to oil cooler first. My factory system goes through the radiator first then to the air to oil cooler. I always thought that was the way it was supposed to be done. /forums/images/graemlins/ears.gif

    [/ QUOTE ]

    Yep, I too was wondering why you would cool the tranny fluid only to heat it back up with the coolant in the radiator? Everything I have ever read, and every roundy round guy I talked to said radiator first, then tranny cooler. And that was only if you had a small cooler and needed the radiator to drop temps a bit more. Looks like a very nice job, nice attention to detail. That crimper, it crimps a sleeve onto the hose, but what keeps the thin metal tubing you put in the hose (with the fitting) from collapsing?

  18. jwduke

    jwduke 1/2 ton status

    Joined:
    Aug 25, 2001
    Posts:
    721
    Likes Received:
    0
    Location:
    Ice Cream Capital of the World, IA.
    Re: replumbed my Trans cooler(PIC\'S)

    [ QUOTE ]
    [ QUOTE ]



    Here's the flow path of the oil.
    lower port is the output.It goes to the stacked plate cooler 1st.
    From the stacked plate cooler it flows into the cooler in the rad.
    From the radiator cooler it flows back to the trans and enters via the top port of the 700R4.



    [/ QUOTE ]I am curious to as why you plumbed the air to oil cooler first. My factory system goes through the radiator first then to the air to oil cooler. I always thought that was the way it was supposed to be done. /forums/images/graemlins/ears.gif

    [/ QUOTE ]

    I plumbed mine thru the cooler then the radiator, as here in Iowa in the winter time, the oil would never warm up the other way. I think that the way he did it, would work if you lived in Southern Cali.

  19. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: replumbed my Trans cooler(PIC\'S)

    My plumbing route is a mind set I guess.That's just the way I've always done it.

    Living in Canada in the winter you'd never get the trans up to temp if the oil went through the stacked plate cooler last.

    While I'm here is So. Cal I guess I should reverse that though huh.

    Easily done though.I just have to switch the two flexable lines that are connected at the frame rail.Then the oil path would go through the large stacked plate cooler last.

  20. Pookster

    Pookster 1/2 ton status

    Joined:
    Nov 21, 2000
    Posts:
    3,195
    Likes Received:
    0
    Location:
    NYC, NY, USA
    Re: replumbed my Trans cooler(PIC\'S)

    /forums/images/graemlins/bow.gif That !@#! rocks.
