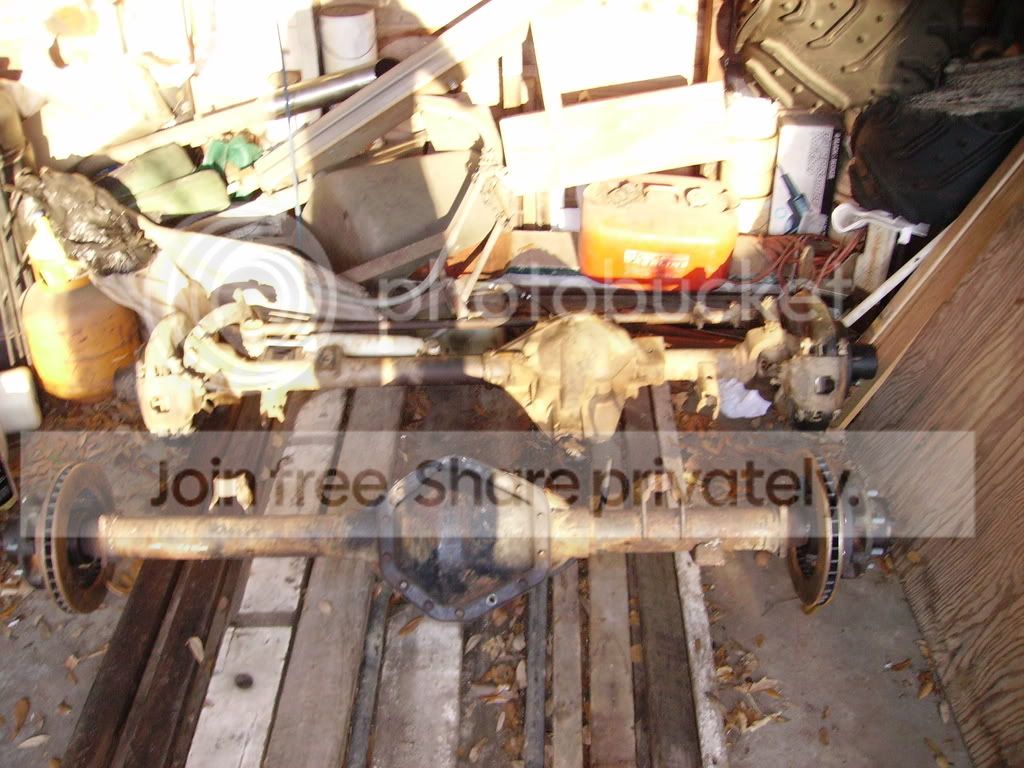

    well finally starting my build thread... ive been collecting for some time now and im closing in on actualy getting underway.

    specs of the build are as such:

    -fresh 3/4 ton 10 bolt front, open with 5.13s
    -rebuilt and mildly shaved 14ff with 5.13s, disk brakes and a detriot
    -used ORU SAS brackets with 7" shackles
    -Crossover steering
    -OOBS dodge 52s
    -clocked, pass. drop np241
    -7" shackles in the rear and the moving of my shackle flip again
    -ford shock towers
    -14" travel 5100s (inboarded in the rear)
    -K30 master cylinder

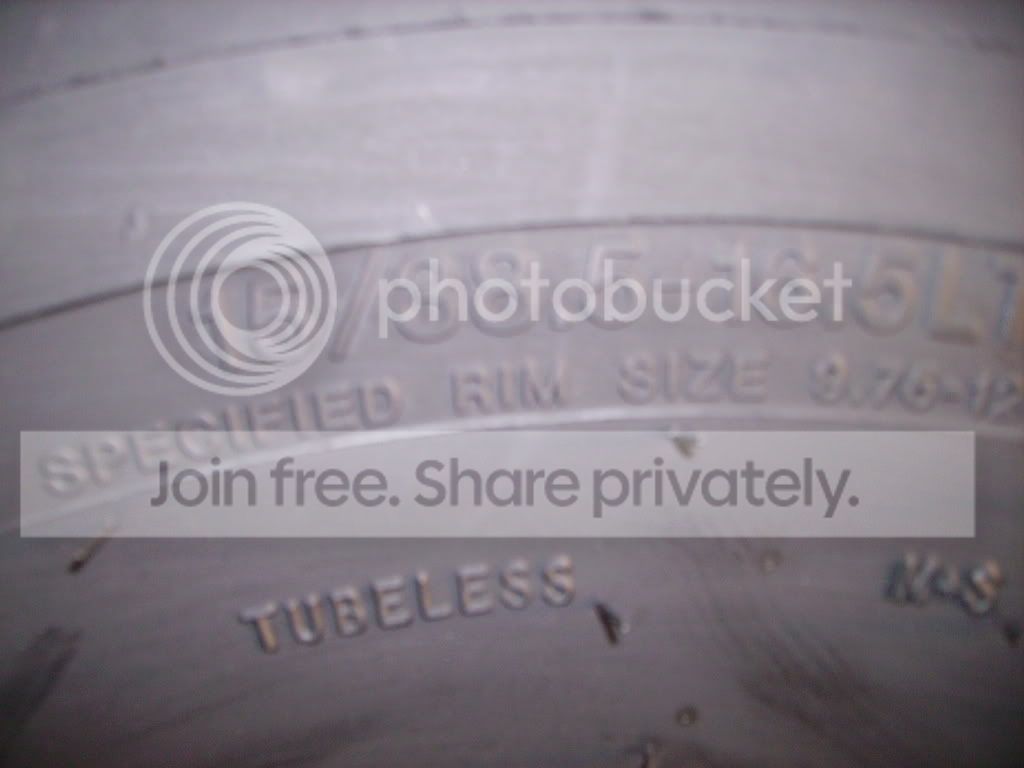

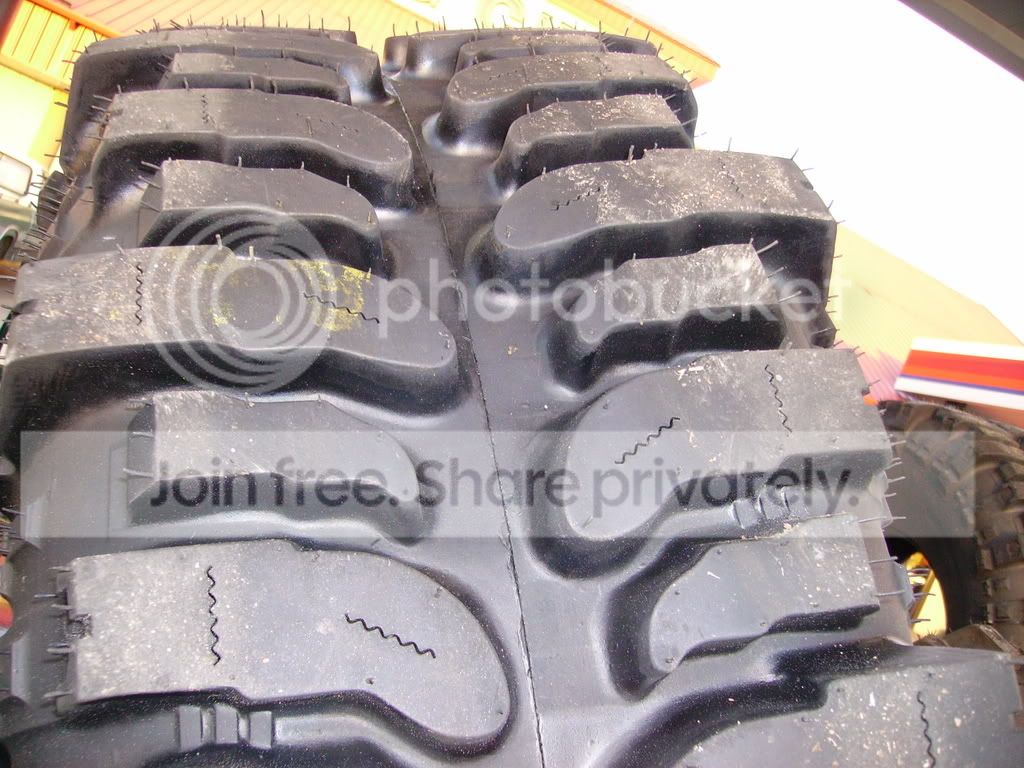

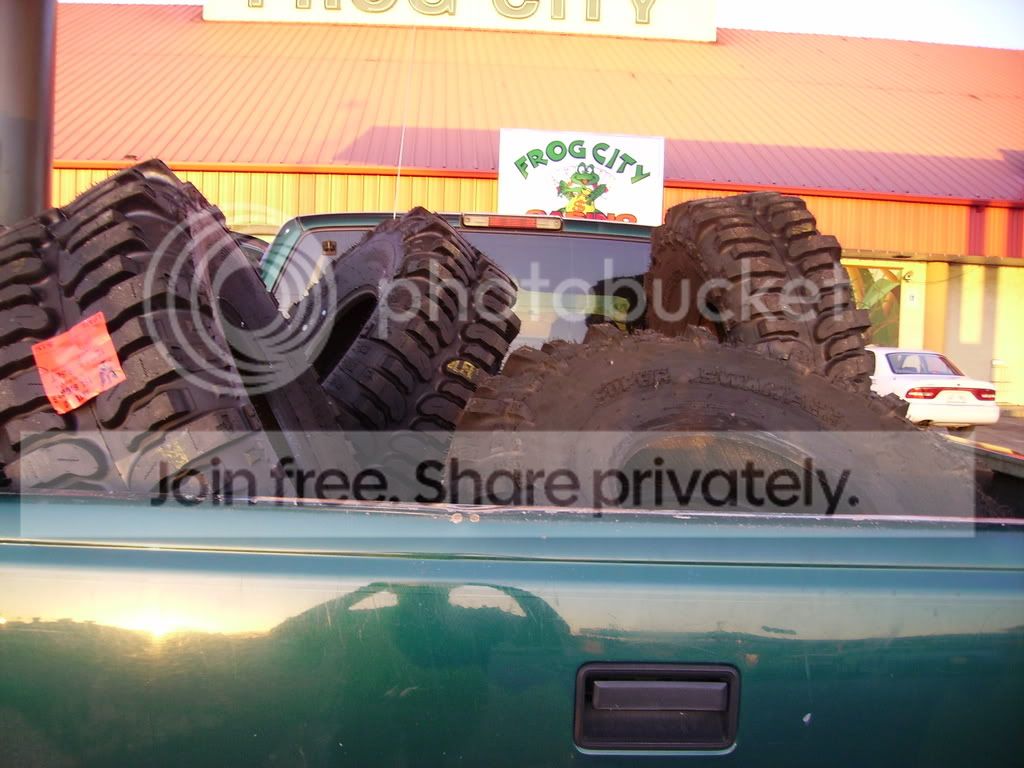

    -38.5x15/16.5 Boggers
    -recentered H1 double beadlocks
    -square front shaft with a 1350 Tom Woods superflex joint up top

    all of this will not go on at one time, rather in stages as funds allow

    and on to the pics...

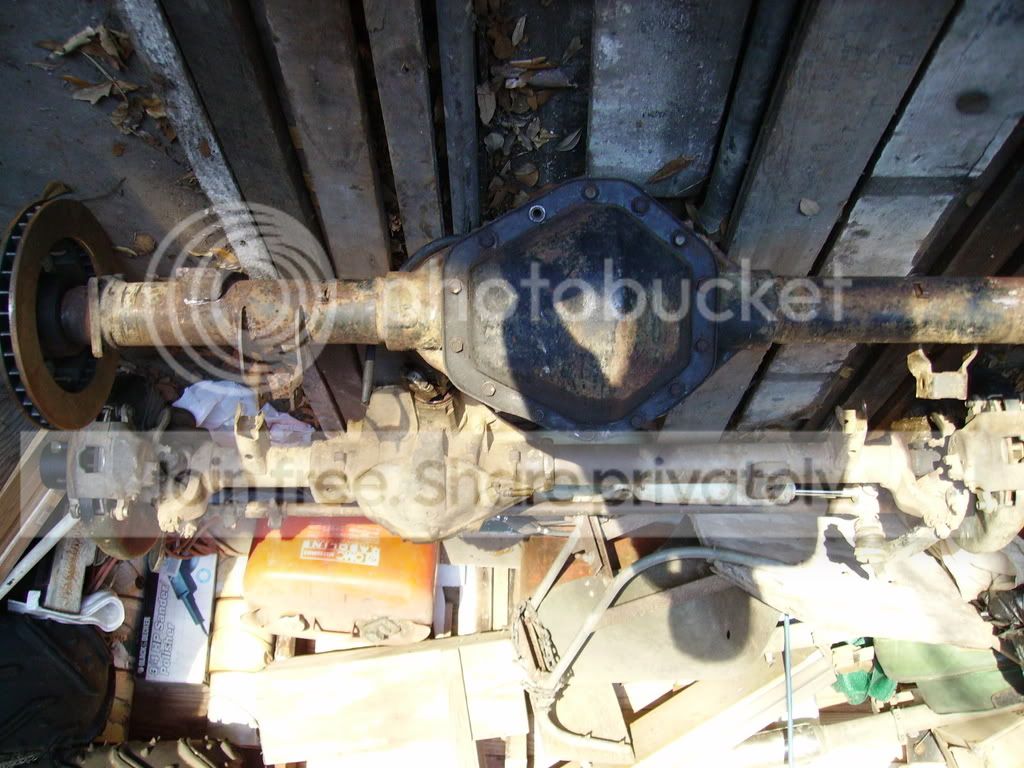

    [​IMG]
    [​IMG]

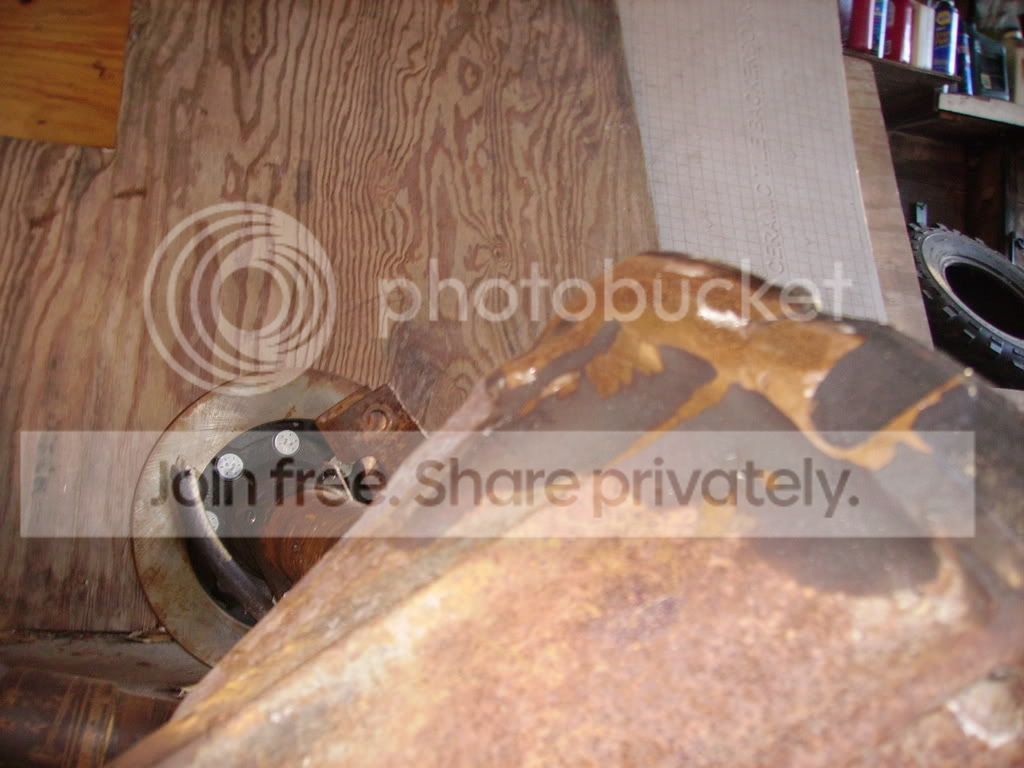

    shaving on the 14 (sorry for the upsidedown pic)
    [​IMG]
    [​IMG]

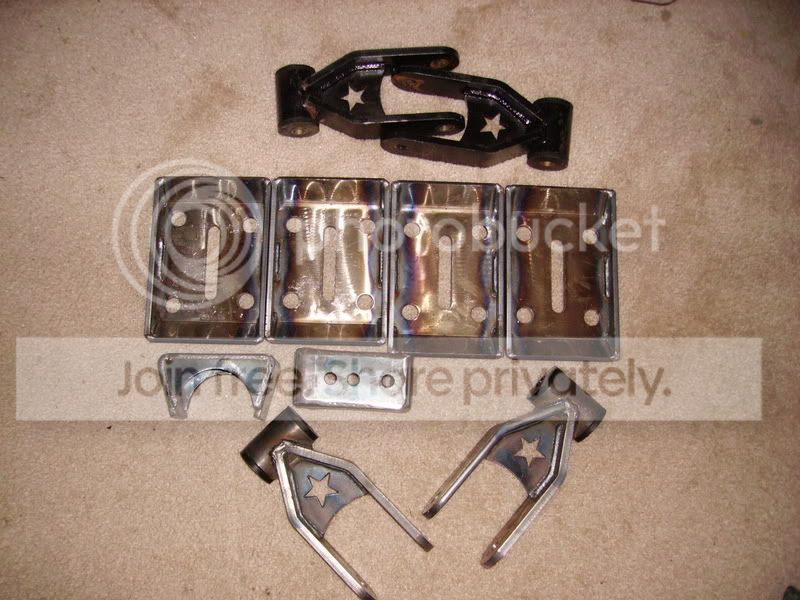

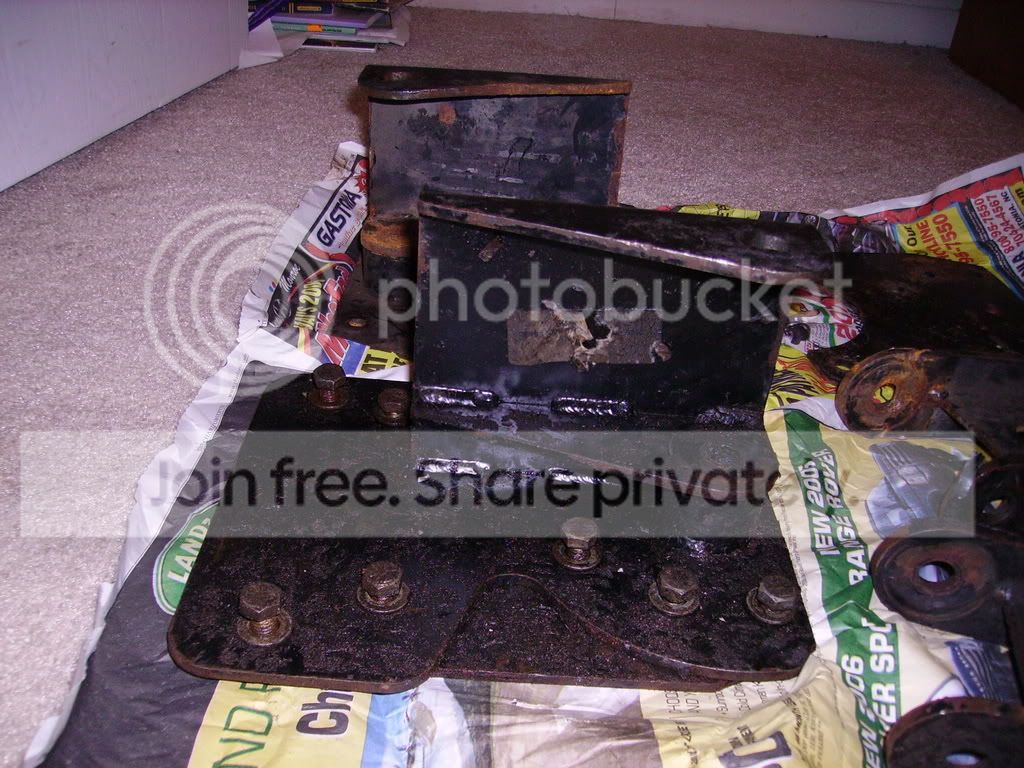

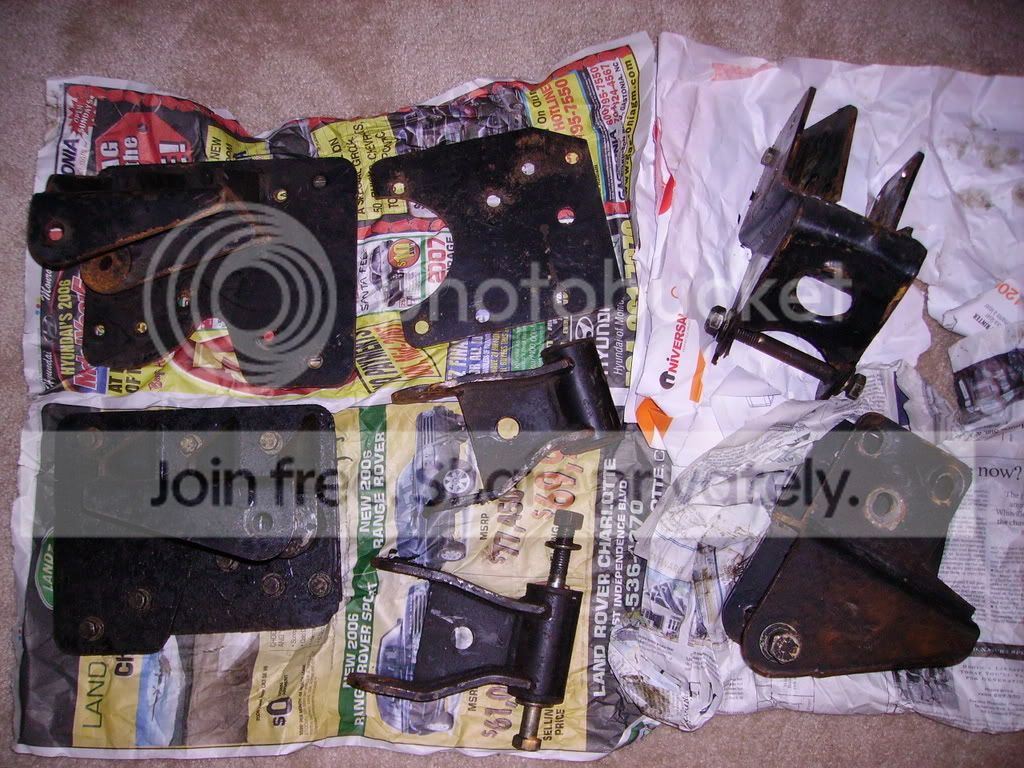

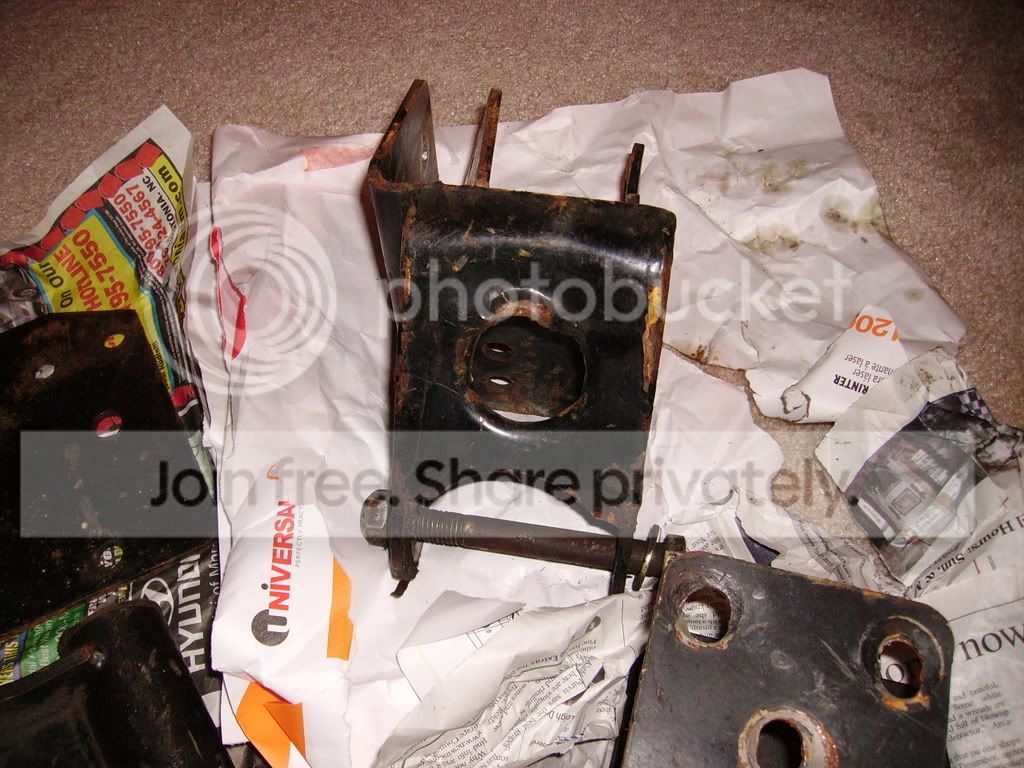

    ORU brackets (yes, one of the front hangers has an irrelivant dent, and all the backing plates are there)
    [​IMG]
    [​IMG]
    [​IMG]

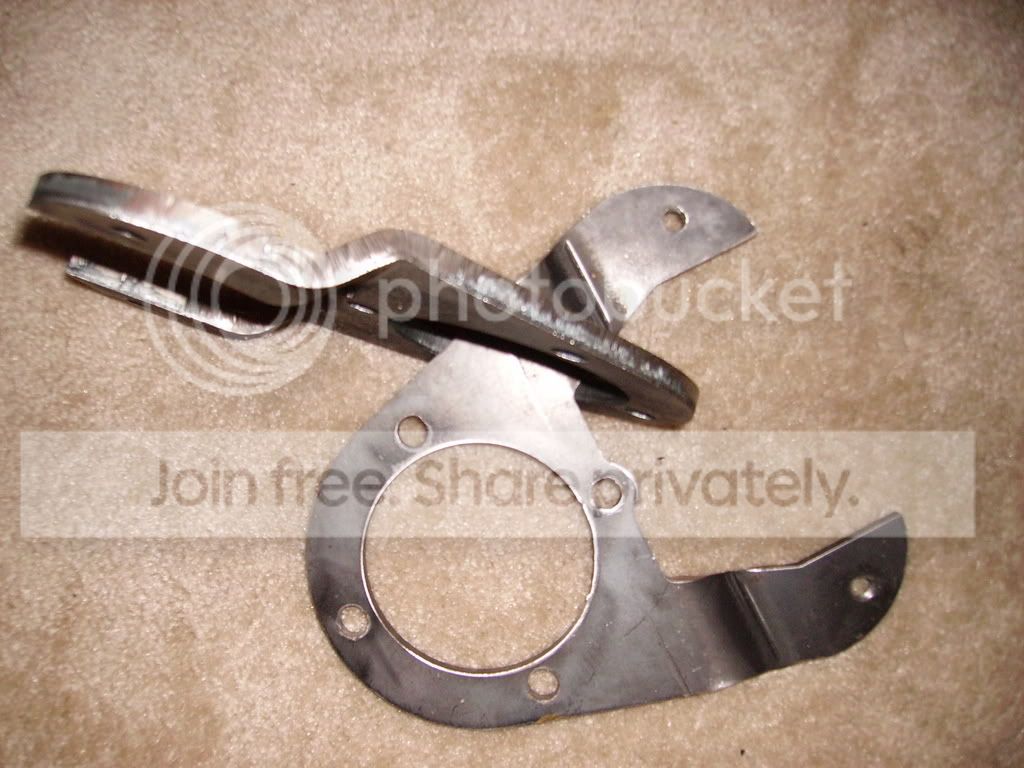

    ruffstuff disck brake brackets
    [​IMG]

    gearing of the 14
    [​IMG]
    [​IMG]
    [​IMG]

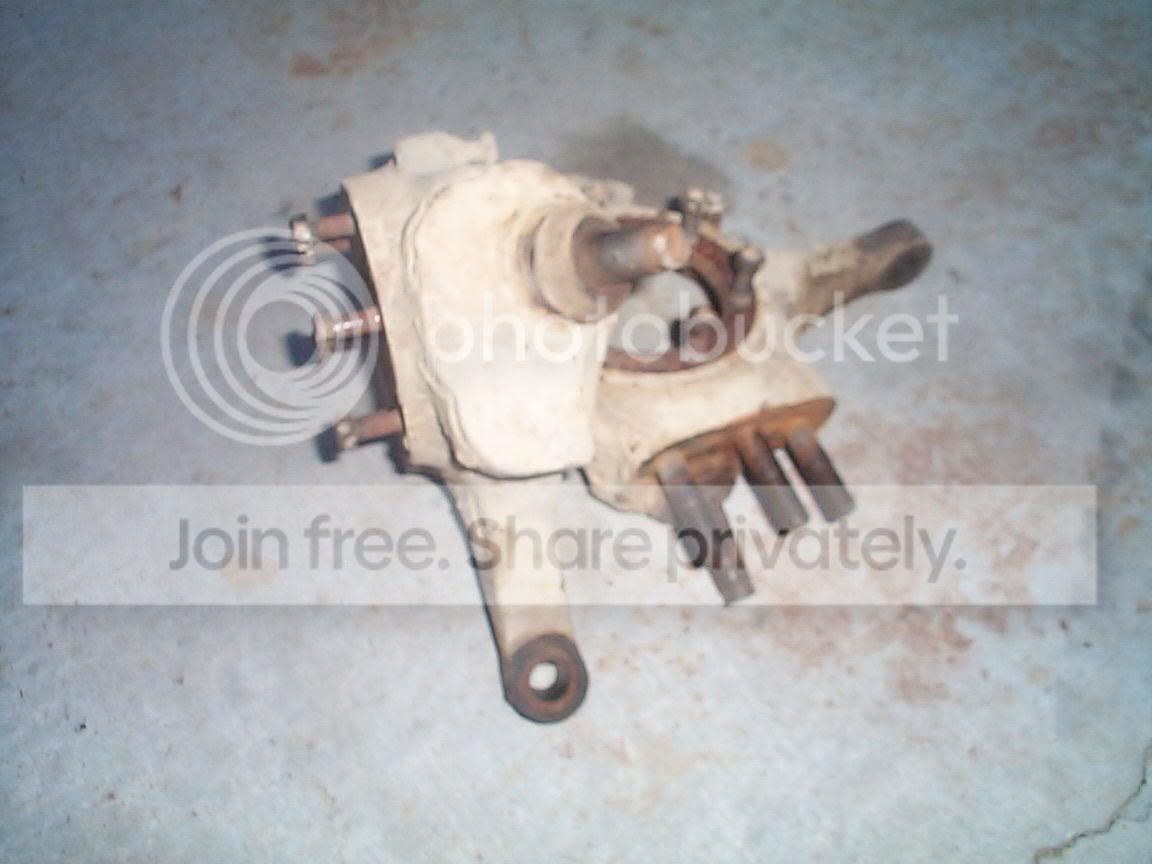

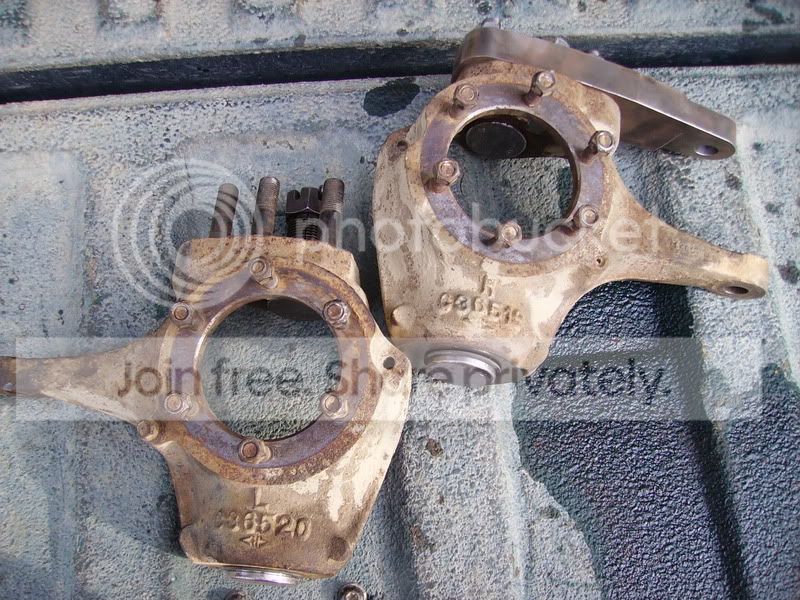

    flattops
    [​IMG]

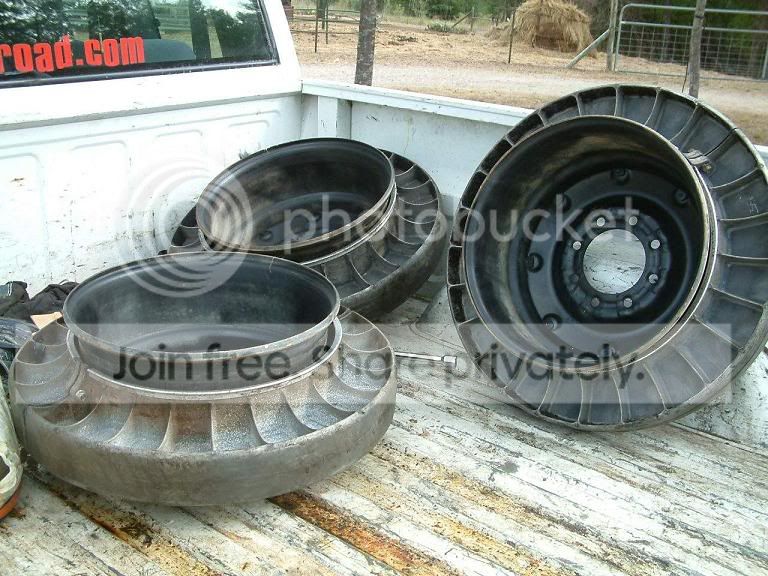

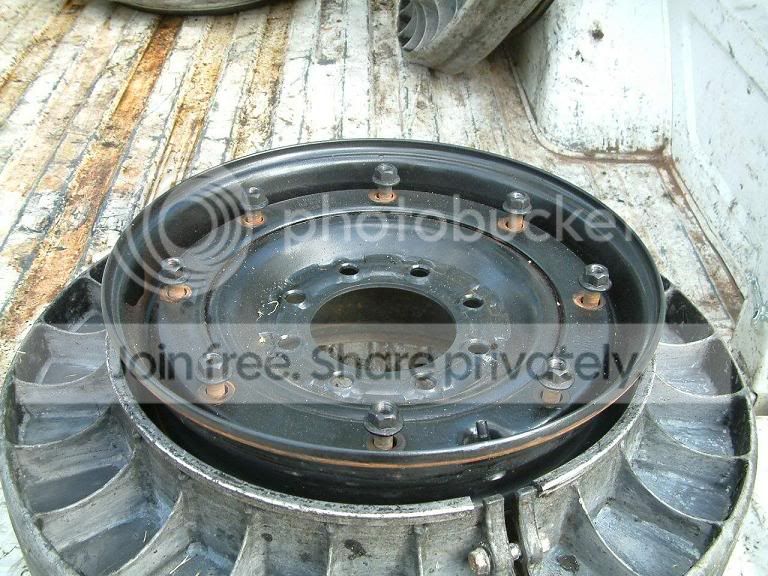

    to be recentered H1s
    [​IMG]
    [​IMG]



    ill update as i buy things/progress is made

    Last edited: Jun 7, 2009
  2. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA
    [​IMG]
    [​IMG]
    [​IMG]

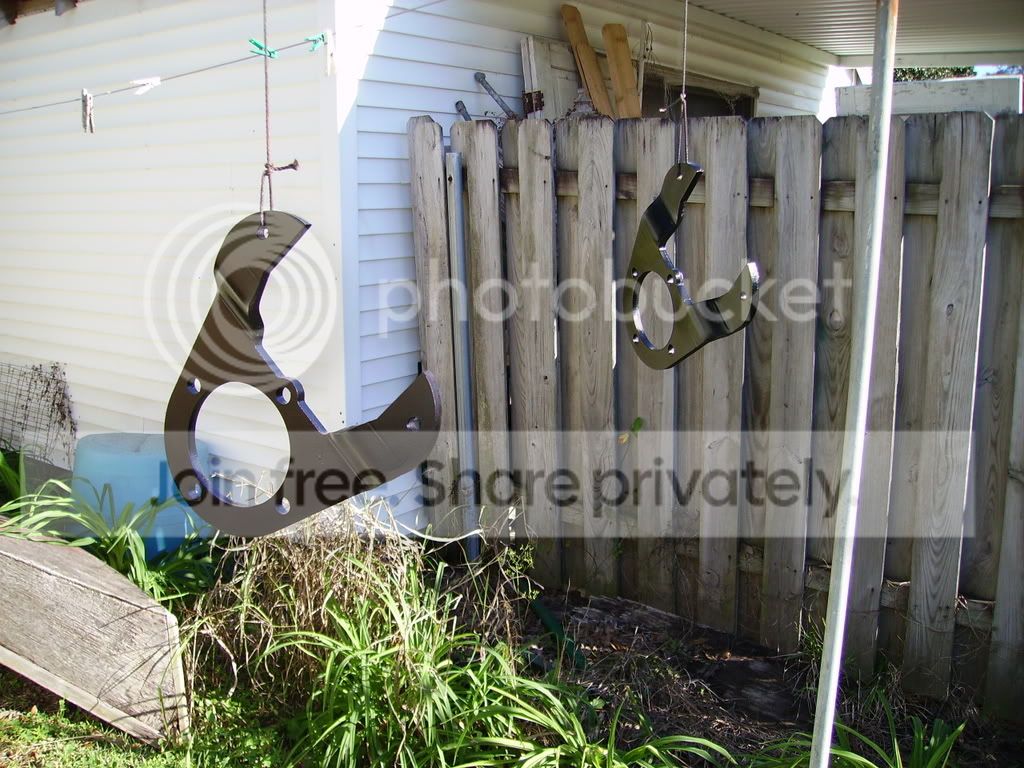

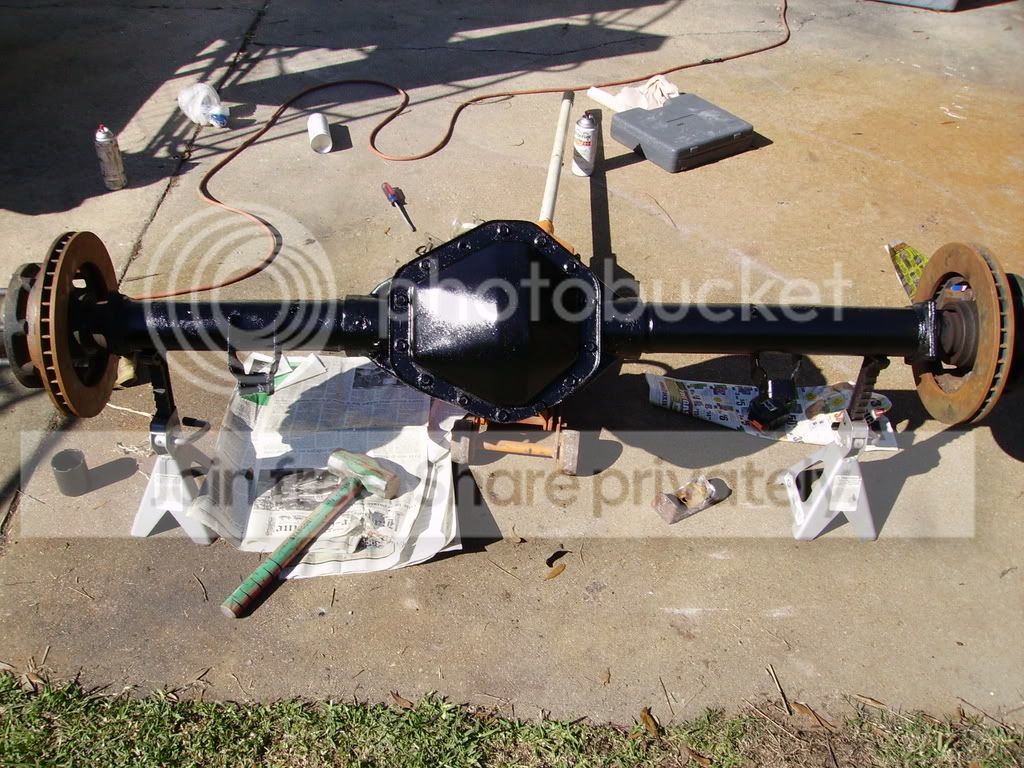

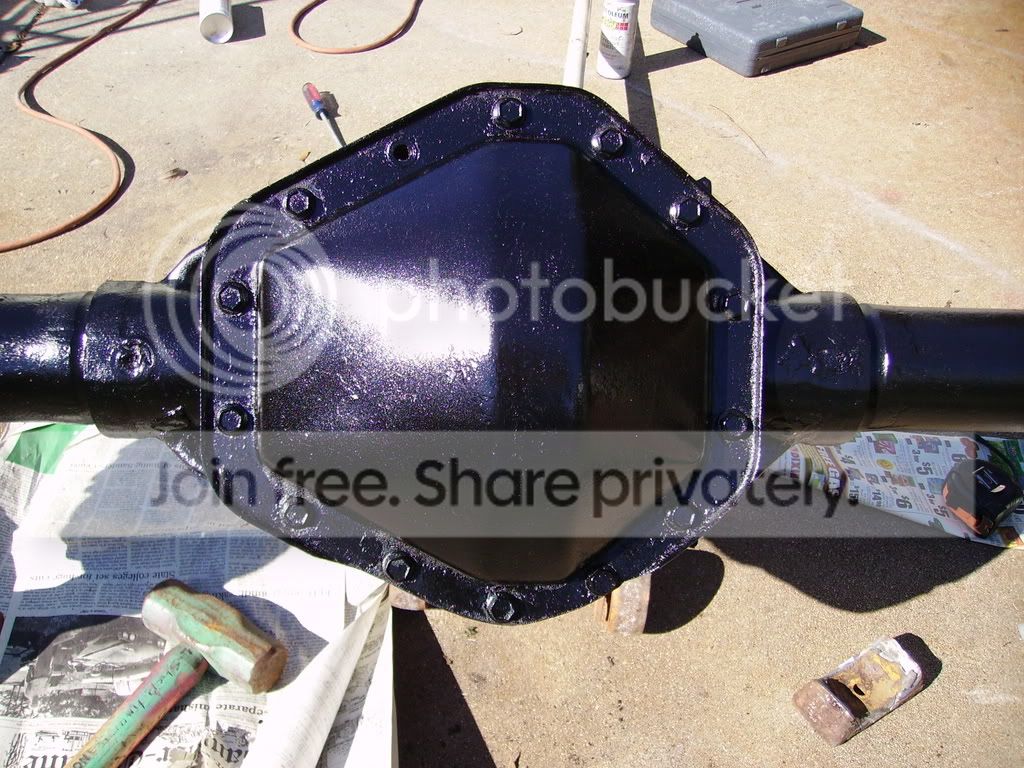

    lopped off the remaining perch on my 14 today and painted it and my disc brackets... then after that i ****ed up hinges on teh door of my truck, hooray

    [​IMG]
    [​IMG]
    [​IMG]

  3. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA

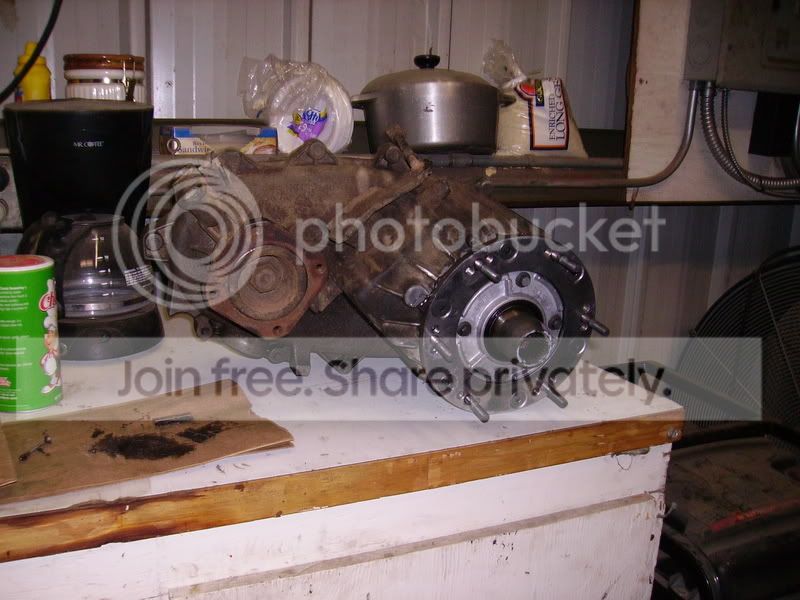

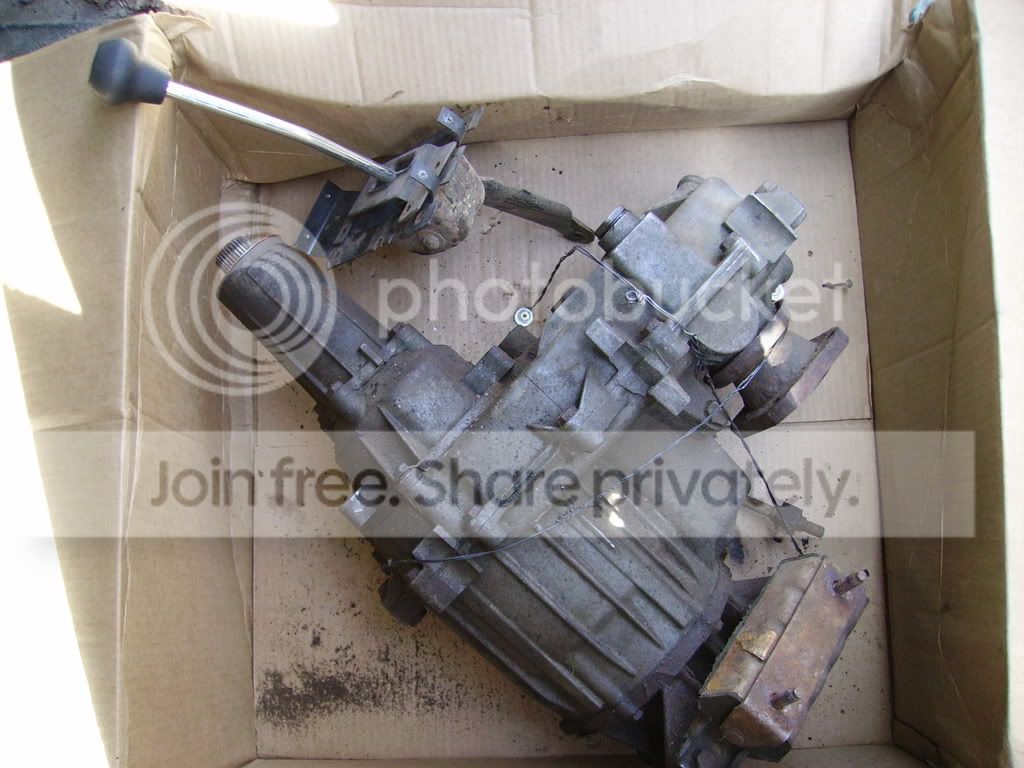

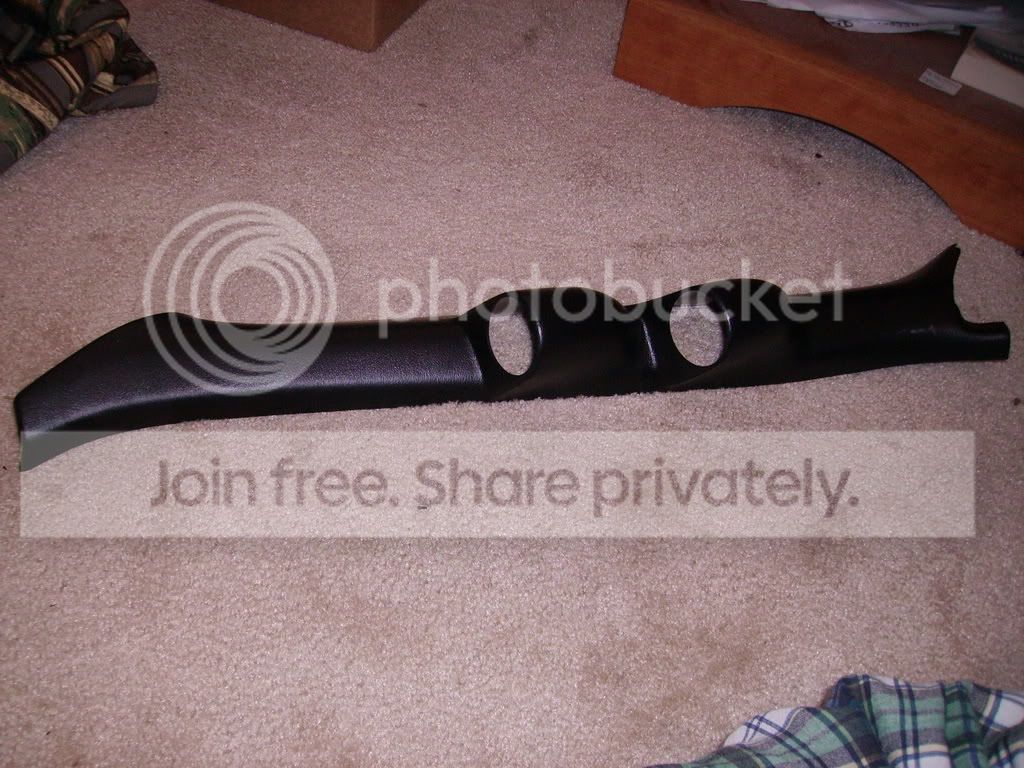

    well picked up my 90' 241(thanks B_to_C)... also my guage pod came in
    [​IMG]
    [​IMG]

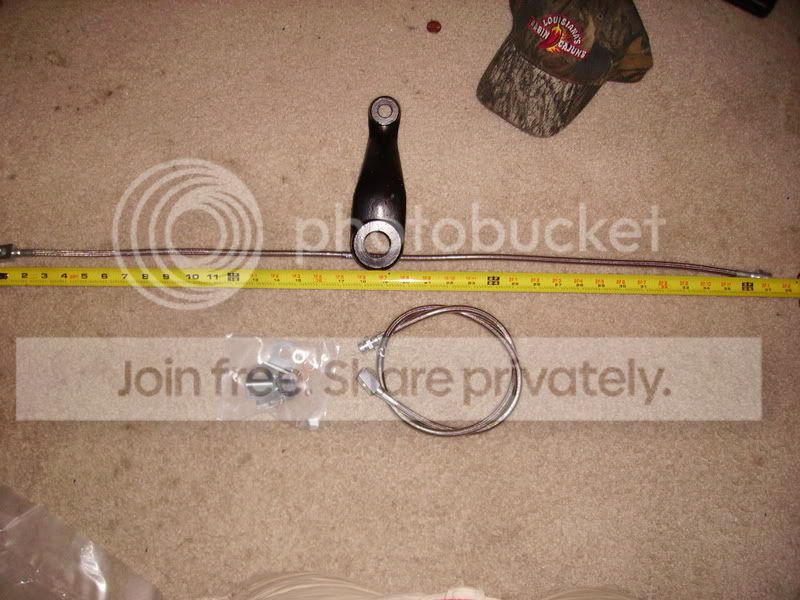

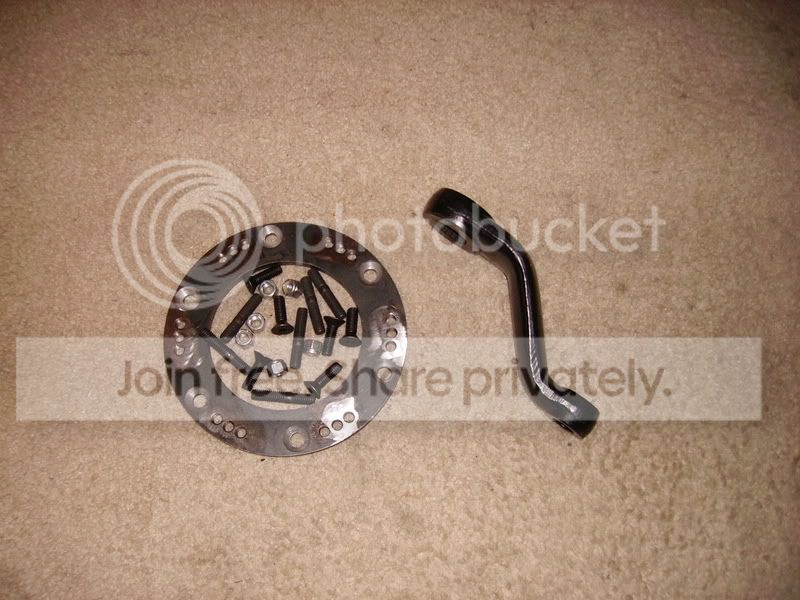

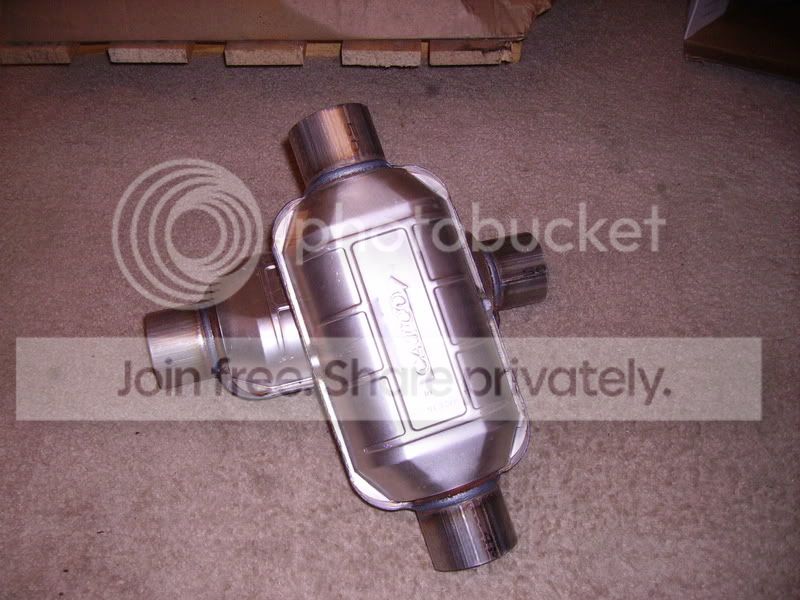

    also the clocking ring from GLO, the pitman arm i bought from Bryan, and the 2.5" catco highflow cats that came in a week or so ago

    [​IMG]
    [​IMG]


    14ff housing = $100
    flattop knuckles = $83 (shipped)
    5.13 14ff gears = $193.5
    14ff install kit = $111
    (shipping, gears etc = $20)
    4- H1 rims with runflats = $75
    8lugged 10bolt = $250
    gas to go to GA = $215
    ball joints = $101
    s44/1350 conversion u joint = $22.88
    14ff wheel studs = $44.68
    calipers = $23.1 + $30 for cores
    rotors = $39.90
    banjo bolts = $6.85
    brake pads = $16.78
    85 K30 master cylinder = $21.57
    hard brake line = $5.70
    10blt bearings/seals/grease= $55
    disc brackets=$55
    ORU brackets = $425
    4 - 38.5x15/16.5 boggers= $650
    1990 np241= $150, shipping= $100
    Greatlakeoffroad 241 clocking ring= $67 shipped
    2- catco highflow cats= $118 shipped
    drop pitman arm reemed for GM TRE= $56 shipped

    .......$2996.05 so far

  4. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA

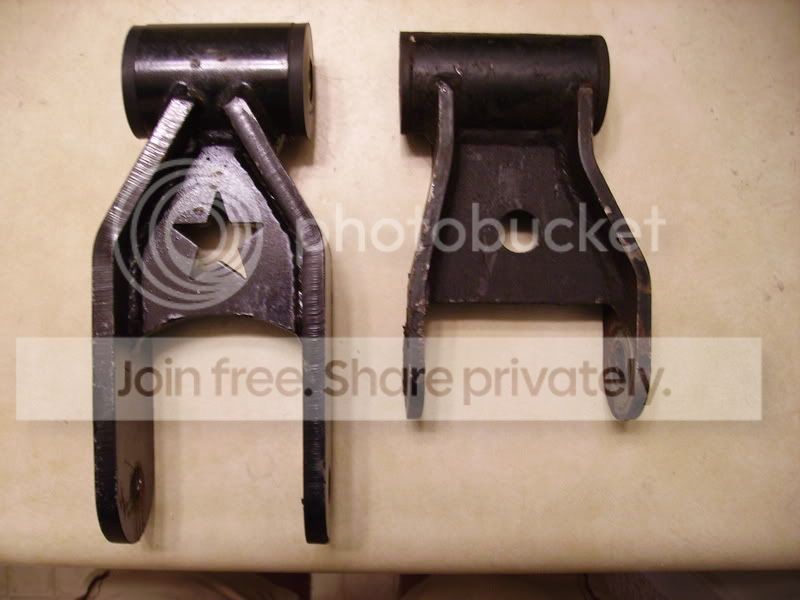

    my 7" rear diy4x shackles came in, pictured next to an ORU shackle

    [​IMG]


    also ordered, 14ff perches, d44 and 14ff spring plates, 7" UDSR shackles offset 1/4" and a few heavy washers from diy4x and crown performance braided stainless lines, 36" long with the correct fitting for my ifs lines up top and a 10mm banjo block down at the bottom from shane74

    my usa6x6 ([​IMG]) pressed centers got shipped to my Apt instead of citizenrider's house in Tx... they have since been picked up and on their way to his place... i guess i can count my blessing that i even got them at all, took 13 days lol, better than the 10 weeks or years it has taken some ppl to get their crap

  5. chevysmithz71

    chevysmithz71 1/2 ton status Premium Member

    Joined:
    May 26, 2005
    Posts:
    1,464
    Likes Received:
    1
    Location:
    Kingsburg, Ca
    Looks good. Should have put out the cash for the Dana 60. I know you have heard it though.I wish I would have on my SAS. May think about cutting the shock brackets off the 14b, look like they could hold you up on something.

    Heres mine;
    [​IMG]

  6. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA
    yea i know i should have gotten a 60 etc, but i couldnt pass up this 10blt that was rebuilt like 5k ago, brand new locking hubs that have never been installed and 5.13s... after teh initial swap ill start saving for a 60 etc. i agree with you on the shock tabs, but they are gonna stay so i can temporarily mount my rear shocks until i get an inboarding kit from kert... i remember you truck from gmfs, it looks good. you been doin any wheelin?

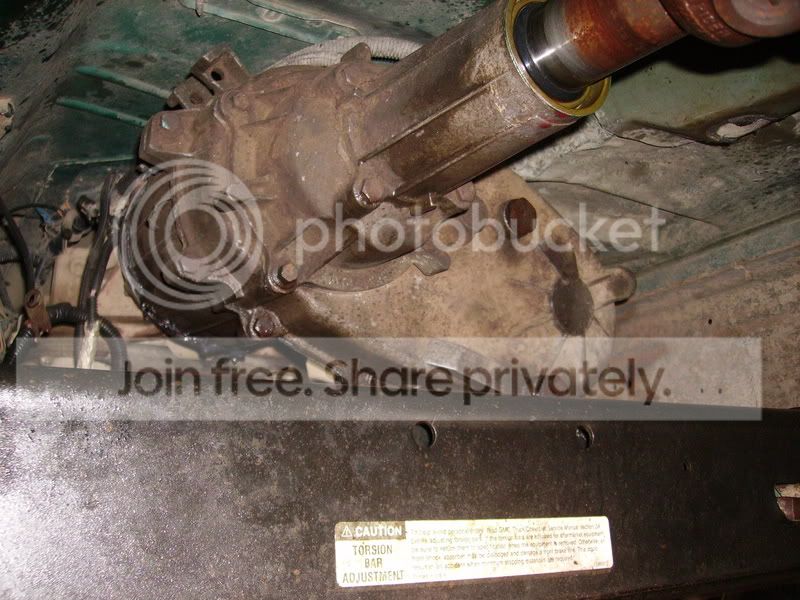

    I put the 241 in yesterday and everything works fine, but... its leaking so i get to pull it back off today and fix that (yay), pics will come later as i dont have any means of uploading them on shelby's computer.

    ughh not lookin forward to the hour long drive home with straight exhaust manifolds

  7. chevysmithz71

    chevysmithz71 1/2 ton status Premium Member

    Joined:
    May 26, 2005
    Posts:
    1,464
    Likes Received:
    1
    Location:
    Kingsburg, Ca
    Just went up to the hills yesterday for some paintball and wheeling, bent my tierod but that was about it. I understand the deal with the 10bolt. As I only have a D44 myself.
    I did the same thing with my 205 in the Blazer. Put it in, looked good, then the next day leaks.
    Atleast you will get a lot of looks, might find someone worthy to look back at. I got yelled at a few times from old ladies yelling "Thats to tall" as they went by. I just laughed. I'll keep looking on the fullsize site for progress.

  8. 79k20350

    79k20350 3/4 ton status

    Joined:
    Nov 22, 2004
    Posts:
    7,757
    Likes Received:
    0
    Location:
    Ct
    Wait, arent the oru shackles offset? It doesn't look liek the diy4x ones are...

  9. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA
    yes the oru ones are off set but those arent the DIY ones im using up front those are the ones im gonna be using in the back...

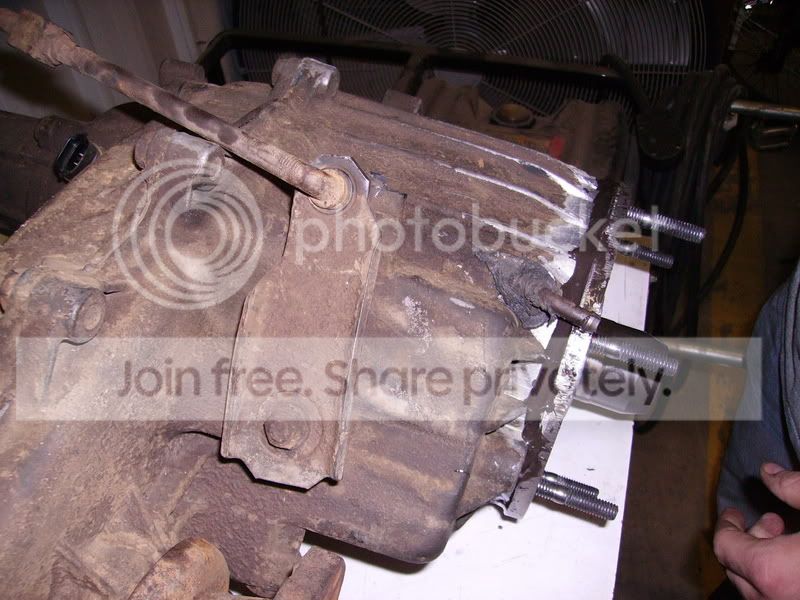

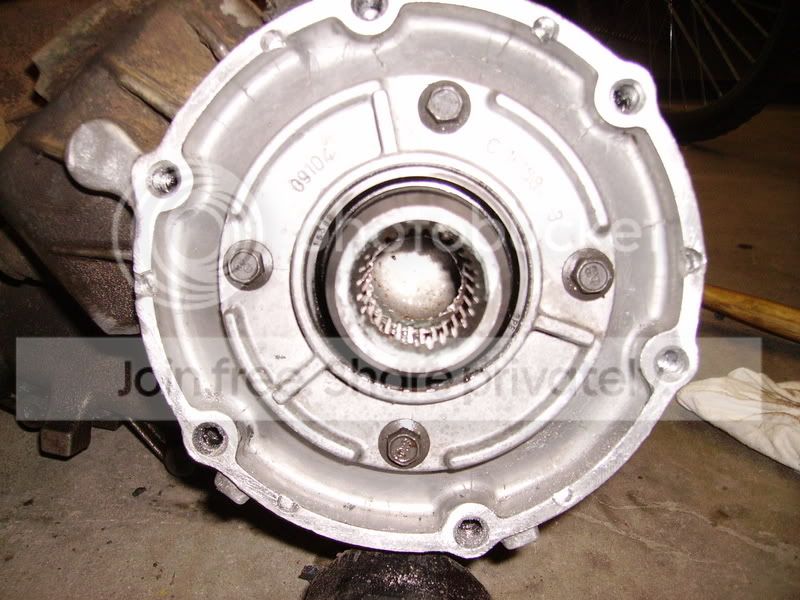

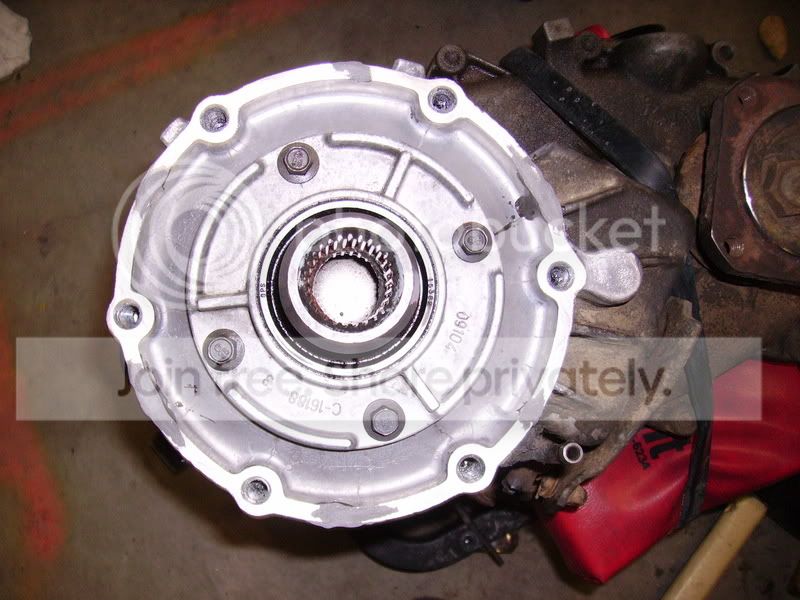

    well driving back from lake charles with no exhaust fvcking sucked, but what sucks about 10000 times more is that i fvcked up the mating surface of my 241... apparently your not supposed to tighten studs into an aluminum tcase as hard as we did yesterday:doah:. the threads on the short side of the stud wher about 1/4" longer than the thickness of the ring so we figured tighten them real good so they dont come out, yea not such a good idea. after we pulled it out and saw what we did, the only thing we had available to try and fix it was jb weld:crazy: , so we filled in the spots with that and filed it down, added a liberal layer of RTV and commenced to reinstalling... all seemed to be going smoothly untill after i filled the case again and backed it up 20 feet so i could clean the shop, well it leaks again, so im gonna try a few things to help my cause here in the next few days, but if i cant get it right, i guess ill have to bring it to a machine shope and get the spots filled in with weld and milled down flush. oh what a joyous day, and now the pics

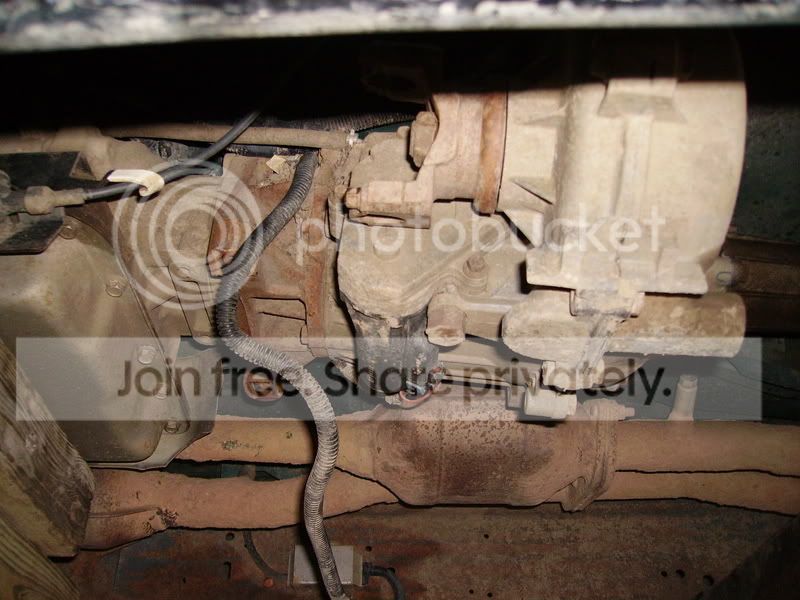

    [​IMG]
    [​IMG]
    [​IMG]

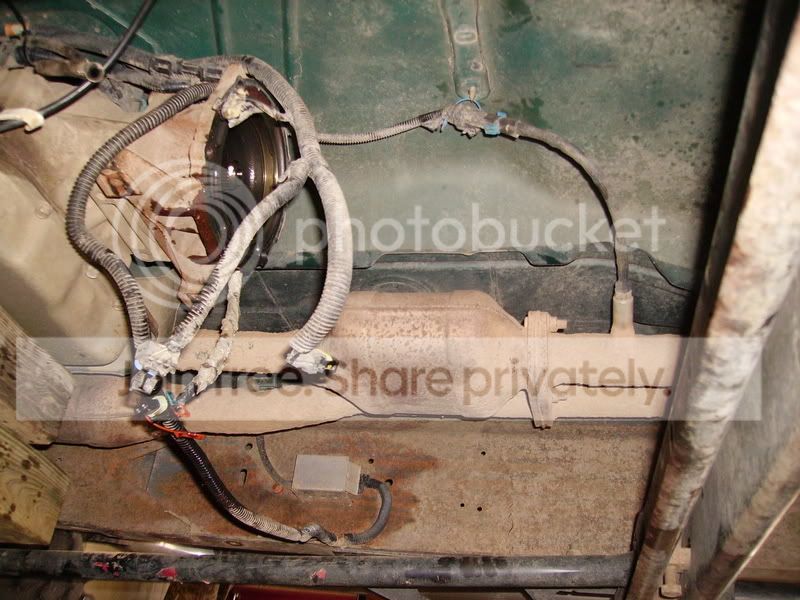

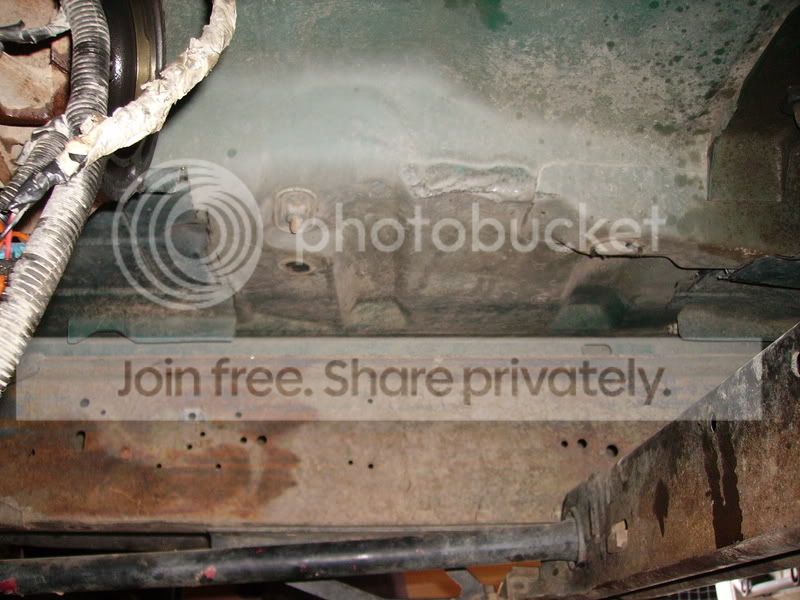

    massaged floorboards

    [​IMG]
    [​IMG][​IMG]
    [​IMG]
    [​IMG]

    Last edited: Mar 25, 2007
  10. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA
    what realy burns my ass is that GLO did not include one peice of paper with the ring, just the hardware in a box... a simple sentence or possibly two could have averted this crap from happening

  11. Chevy305

    Chevy305 6 Lug 14bsf Status Premium Member GMOTM Winner

    Joined:
    Jan 23, 2006
    Posts:
    10,924
    Likes Received:
    157
    Location:
    New Hampshire
    I wanna subscribe to this one...

  12. divorced

    divorced 3/4 ton status

    Joined:
    Jul 20, 2004
    Posts:
    5,115
    Likes Received:
    0
    Location:
    .



    [​IMG]

  13. Chevy305

    Chevy305 6 Lug 14bsf Status Premium Member GMOTM Winner

    Joined:
    Jan 23, 2006
    Posts:
    10,924
    Likes Received:
    157
    Location:
    New Hampshire
    ya thanks... :rolleyes:

    I know how to subscribe to a thread...

  14. divorced

    divorced 3/4 ton status

    Joined:
    Jul 20, 2004
    Posts:
    5,115
    Likes Received:
    0
    Location:
    .
    Ok, cool. I was also helping the other 1,200 people who will reply with a useless line like yours. It makes it difficult to follow a build thread that has a dozen or so posts with information disrupted with 1,200 subscribers. ;)

  15. muddybuddy

    muddybuddy 3/4 ton status Premium Member

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    hopefully it works out. get that thing all taken care of and hopefully we'll meet up at tellico this summer

  16. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA

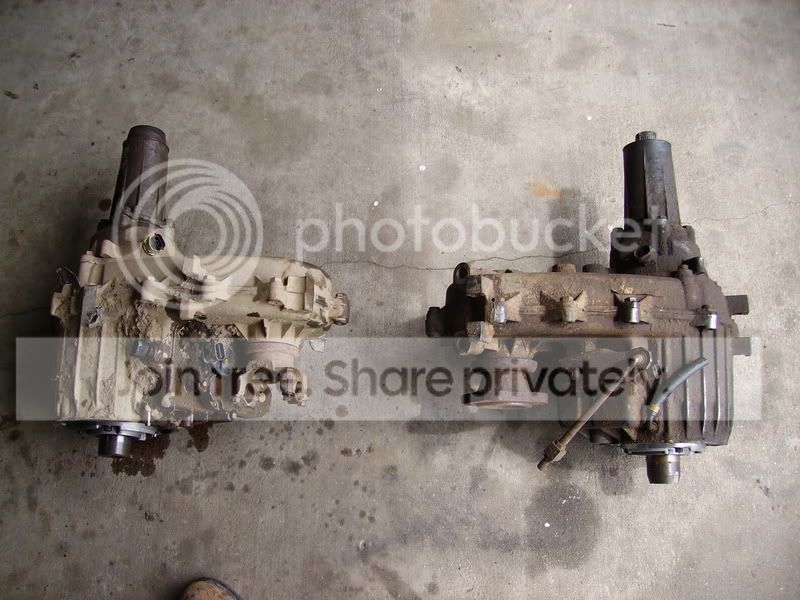

    some pics from last night...

    carnage

    [​IMG]

    patched up
    [​IMG]
    [​IMG]
    [​IMG]

  17. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA
    more goodies

    [​IMG]

    i had ordered some offset UDSR shackles and upon their arrival it was clearly visible they where identical to my off the shelf UDSRs... one call to the good ppl at DIY4X and the correct shackles are on their way

    [​IMG]

  18. muddermilitia

    muddermilitia ThatTrazerGuy Premium Member GMOTM Winner

    Joined:
    Nov 10, 2005
    Posts:
    5,730
    Likes Received:
    62
    Location:
    NE Illinois
    maybe I missed it somewhere but why offset shackles? anyway keep up the good work that things gonna be sweet when its done!

  19. twoslo4five0

    twoslo4five0 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Oct 5, 2006
    Posts:
    6,532
    Likes Received:
    37
    Location:
    Living in a dump, VA
    thoose shackles look mighty fimilar!!!

  20. Cajun4x4

    Cajun4x4 1/2 ton status

    Joined:
    Oct 17, 2005
    Posts:
    889
    Likes Received:
    0
    Location:
    Lafayette, LA
    i need them to be offset for my sas hangers, its just the way they are built to get the springs in the right place
