Shackle/clevis hunt........

Discussion in 'The Garage' started by dontoe, Aug 17, 2006.

  1. dontoe

    dontoe 3/4 ton status GMOTM Winner

    Joined:
    May 7, 2004
    Posts:
    9,070
    Likes Received:
    0
    Location:
    Hickory, N.C.
    I saw these shackles/clevis' on one of the 4X4 TV shows. Finally found a photo of them. I've searched for this style for over an hour............anyone have a link I can purchase them from?
    There are smaller ones used where I work for lifting machinery!

    [​IMG]

  2. dontoe

    dontoe 3/4 ton status GMOTM Winner

    Joined:
    May 7, 2004
    Posts:
    9,070
    Likes Received:
    0
    Location:
    Hickory, N.C.
    Thanks...found 'em

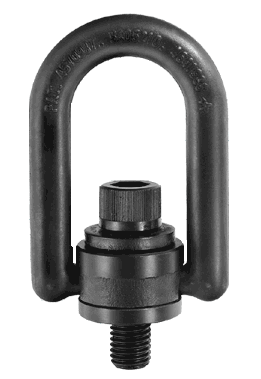

    Hoist Rings
    Safe Lifting at any Angle
    Forget about Eyebolts, Hoist Rings are Superior
    Will Not Yield to Heavy Side Loads
    Safety Hoist Rings provide the maximum for lifting heavy loads and are designed to replace conventional lifting hardware and devices that have been outdated by new safety regulations. High safety standards are especially important where every load lifted is a heavy load. Our Safety Hoist Rings provide the kind of safety that protects against accidents before they occur...accidents caused when eyebolts break or lifting hooks disengage. Safety Hoist Rings will not yield to heavy side loads within their capacity. Unlike eyebolts, the hoist ring pivots 180° and swivels 360° to compensate for pitch, roll, and sway when lifting heavy unbalanced loads. Purchase the best Hoist Rings.​
    • Available in metric or U.S. sizes. ​
    • Range of movement: pivot 180°, swivel 360°. ​
    • Minimum safety factor: 5:1. ​
    • Meets Military Specification No. MIL-STD 1365(11) or MIL-STD 209C. ​
    • American-made heavy duty hoist rings are specified and used in nuclear energy equipment. ​
    • 100% magnetic particle inspected. ​
    • Meets OSHA standards. ​
    • Destructive testing by outside independent laboratories. ​
    Packaging: Sold individually.​
    [​IMG]

    [​IMG]

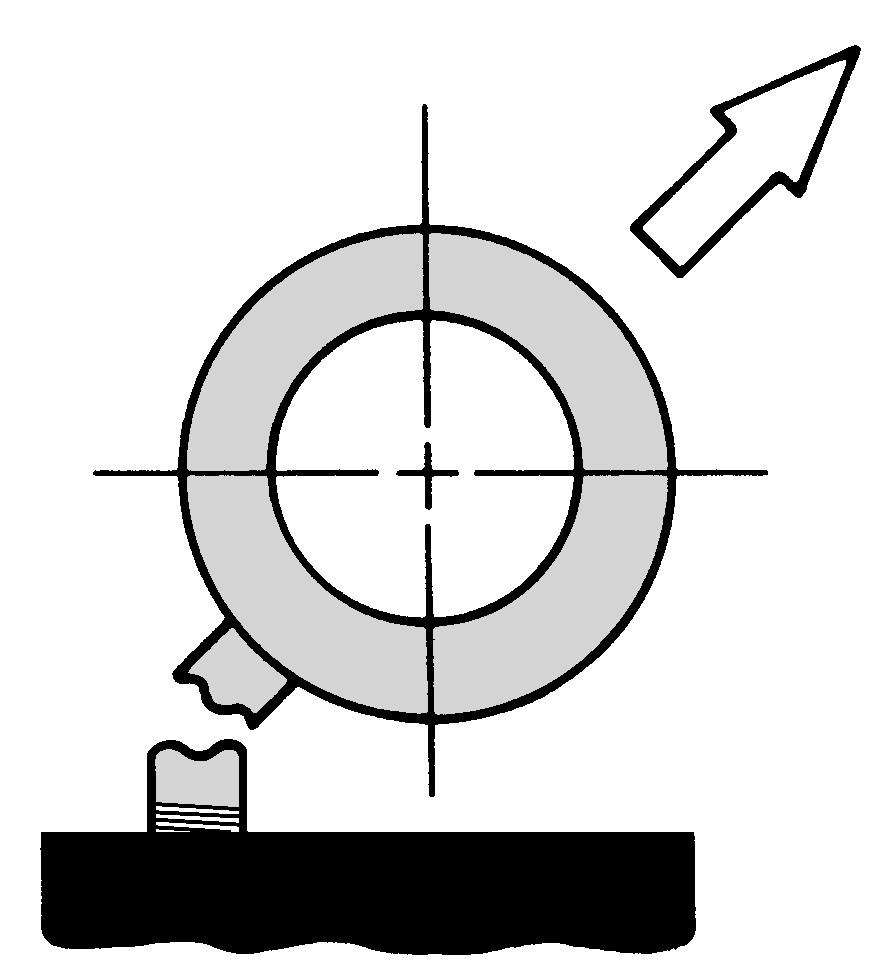

    Dangerous
    Conventional eyebolts can fail
    when excessive side loads
    are applied.

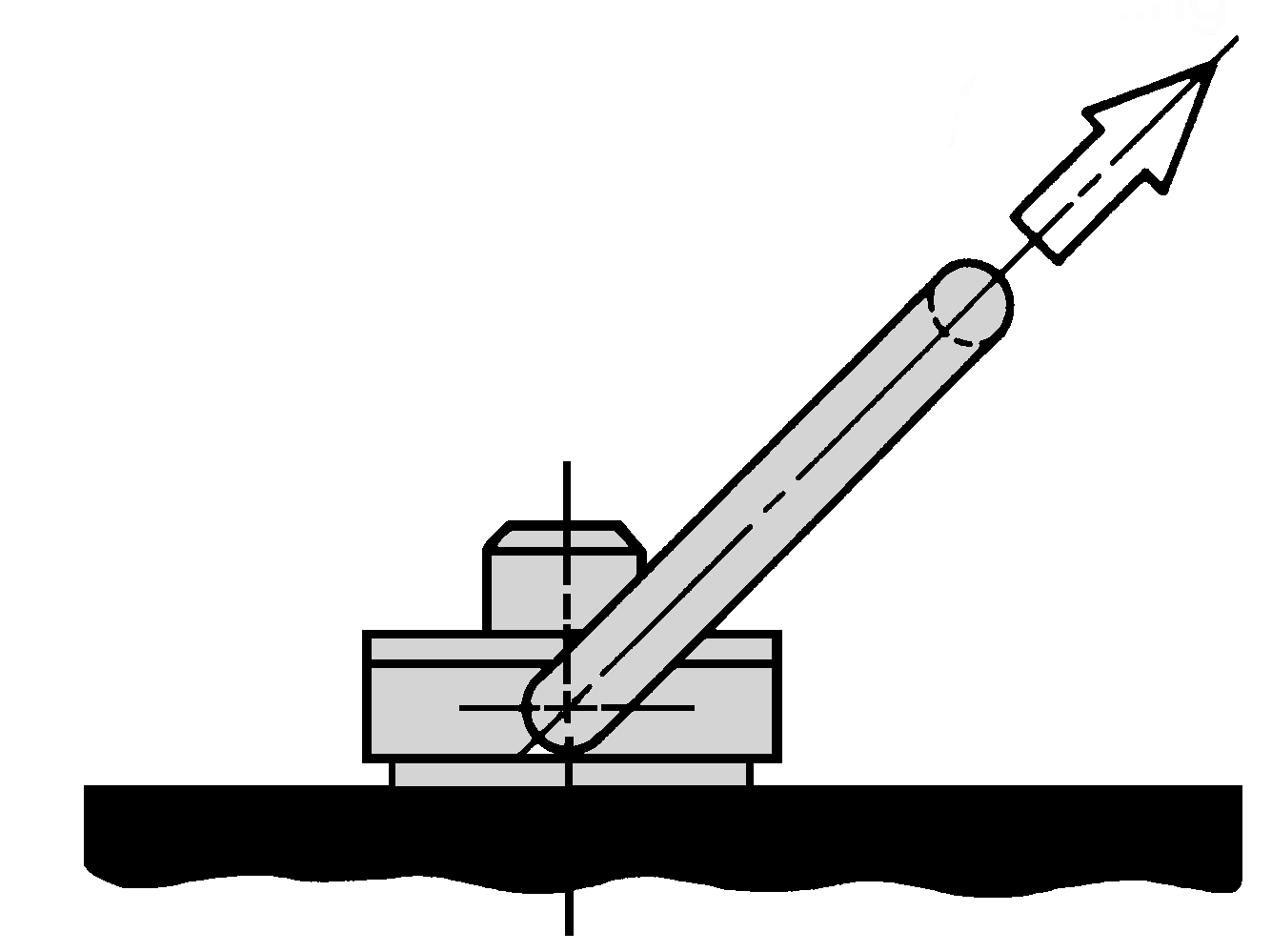

    Safe
    High tension loads are well
    within the designated safety limits
    of the Hoist Ring.
    [​IMG]



    [​IMG]





    [​IMG]

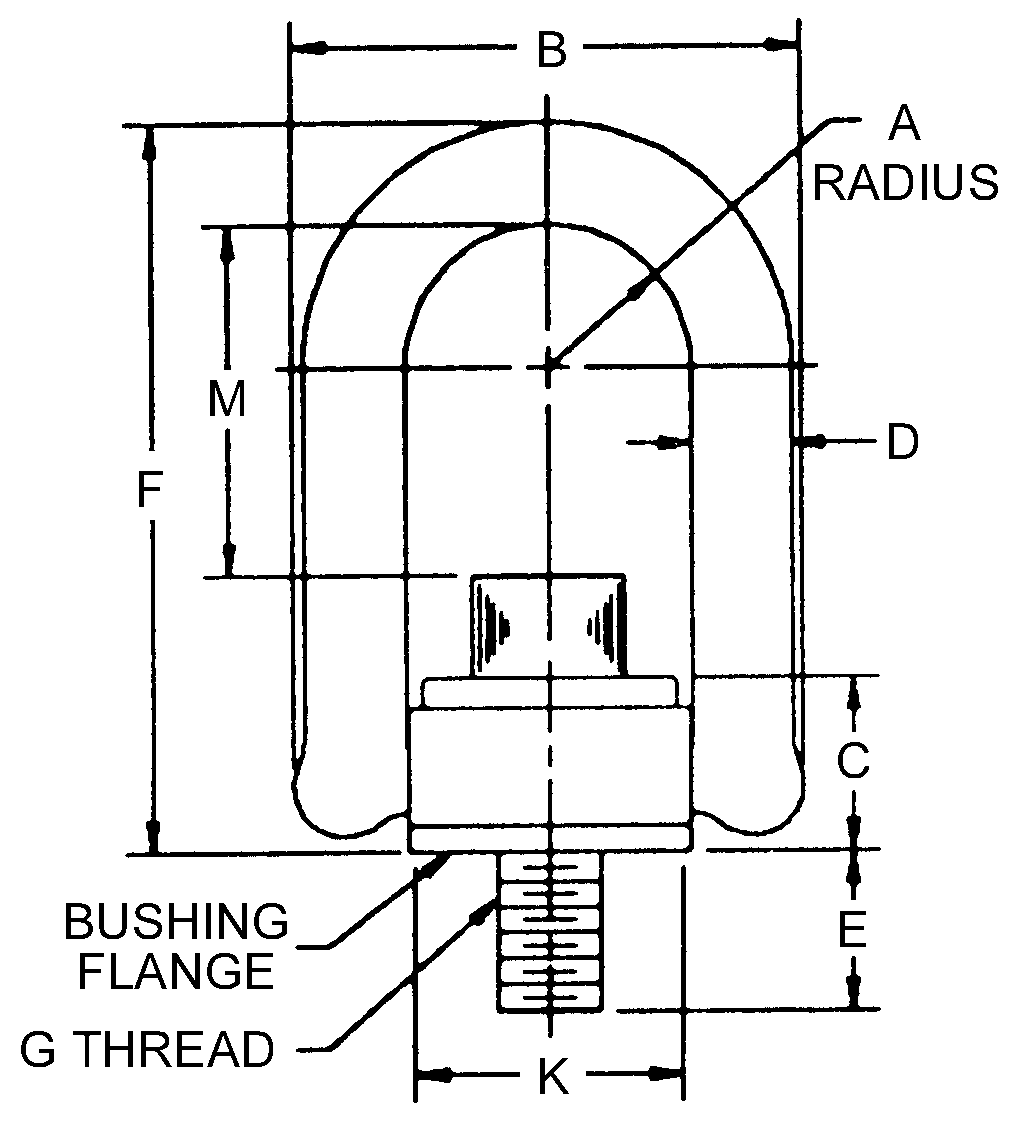

    STANDARD SIZES (Inches)
    PART
    NO.
    RATED
    LOAD
    ABCDEFGKTL
    ft./lb.*
    MWT
    lbs.
    HR33112​
    550 lbs.​
    0.652.290.960.440.563.231/4-201.2551.570.50HR33212800 lbs.
    0.65​
    2.290.960.440.563.235/16-181.2571.510.52HR33214800 lbs.0.652.290.960.441.063.235/16-181.2571.510.54
    HR33312​
    1000 lbs.0.652.290.960.440.563.233/8-161.25121.450.56
    HR33314​
    1000 lbs.0.652.290.960.441.063.233/8-161.25121.450.58HR335122500 lbs.1.003.501.500.750.755.311/2-131.89282.561.71
    HR33515​
    2500 lbs1.003.501.500.751.005.311/2-131.89282.561.72
    HR33316​
    2500 lbs.1.003.501.500.751.255.311/2-131.89282.561.82
    HR33612​
    4000 lbs.1.003.501.500.750.755.315/8-111.89602.441.76
    HR33614​
    4000 lbs.1.003.501.500.751.005.315/8-111.89602.441.78
    HR33615​
    4000 lbs.1.003.501.500.751.255.315/8-111.89602.441.88
    HR33714​
    5000 lbs.1.003.501.500.751.005.313/4-101.891002.311.89
    HR33716​
    5000 lbs.1.003.501.500.751.505.313/4-101.891002.312.02
    HR33108​
    7000 lbs.1.405.102.051.000.957.003/4-102.811003.207.20HR331027000 lbs.1.405.102.051.001.207.003/4-102.811003.207.23HR331037000 lbs.1.405.102.051.001.457.003/4-102.811003.207.25HR331018000 lbs.1.405.102.051.001.207.007/8-92.811603.077.33HR3310510000 lbs.1.405.102.051.001.457.001-82.812302.957.57HR3310610000 lbs.1.405.102.051.001.207.001-82.812302.957.63HR3310710000 lbs.1.405.102.051.002.207.001-82.812302.957.81HR3340215000 lbs.2.006.752.871.251.889.921-1/4-73.884703.7415.74HR3340120000 lbs.2.006.752.871.252.639.221-1/4-73.884703.7416.00HR3342020000 lbs.2.006.752.871.252.639.221-3/8-63.886703.6217.20HR3342424000 lbs.2.006.752.871.252.639.221-1/2-63.888003.4918.10​

    *Recommended Torque Load

  3. the beast

    the beast 1/2 ton status

    Joined:
    Oct 15, 2003
    Posts:
    535
    Likes Received:
    0
    Location:
    Providence, RI
    Blah, blah, blah, blah, blah man.....what's the price!

  4. dontoe

    dontoe 3/4 ton status GMOTM Winner

    Joined:
    May 7, 2004
    Posts:
    9,070
    Likes Received:
    0
    Location:
    Hickory, N.C.
    10,000 lb rated........ CL-33105-SHR HEAVY-DUTY SWIVEL HOIST RING[​IMG] 137.02
    5000 lb rated is only $60.00 each

  5. ntsqd

    ntsqd 1/2 ton status

    Joined:
    Nov 28, 2002
    Posts:
    3,381
    Likes Received:
    0
    Location:
    So. CA
    At McMaster p/n 3145T31 w/ a 3/4" thru bolt (5k rated, 5:1 FS) goes for ~$113 each and p/n 3145T34 w/ a 1" thru bolt (10k rated, 5:1 FS) goes for ~$217 each.
    Note that I picked the Nickel plated versions for corrosion resistance.

    Last edited: Aug 18, 2006
  6. dontoe

    dontoe 3/4 ton status GMOTM Winner

    Joined:
    May 7, 2004
    Posts:
    9,070
    Likes Received:
    0
    Location:
    Hickory, N.C.
    Oooooooo............more bling for my thing............:D
    The Carr place has SS ones, but it says they're rated half the strength for the same size!!!

  7. RGV72BLAZER

    RGV72BLAZER 1/2 ton status

    Joined:
    Jan 23, 2006
    Posts:
    2,425
    Likes Received:
    0
    Location:
    Edinburg*San Bene*Online-The Real South Texas
    those are pretty tricked out...may consider some of those for my bumpers
