Soliciting doubler crossmember pics - Resurrected

Discussion in 'The Garage' started by Desert Rat, May 25, 2005.

  1. Desert Rat

    Desert Rat Fetch the comfy chair

    Joined:
    Oct 19, 2002
    Posts:
    16,250
    Likes Received:
    3
    Location:
    Tri-Valley, NorCal
    Ok, looks like the doubler project is a go. Now I need to figure out if I want to modify the two stock crossmembers I have, or get custom ones done. Anybody have some pics of what they are running on their doubler setup? I'd probably just've gone with a 4x4iron product (I have their bumpers) except they went out of business. To be honest, I'd rather just order them up from somebody if anybody has any recommendations? But I'll also take all the pics I can get.

    UPDATE: Ok, resurrected this old post because I've installed the doubler with the stock crossmembers and I really don't like it. I've scrounged up every custom crossmember setup I can find for doublers here but I still need some more pics. Especially if anybody has good pics of the 4x4 Iron one. Yunit is sending me some pics but anybody else have pics of a custom doubler crossmember setup?

    Last edited: Aug 19, 2005
  2. 85m1009

    85m1009 1/2 ton status

    Joined:
    Jul 11, 2000
    Posts:
    718
    Likes Received:
    0
    Location:
    Missouri
    There is a picture of the one we made for the Sub in the July 05 issue of Four Wheeler.

  3. Desert Rat

    Desert Rat Fetch the comfy chair

    Joined:
    Oct 19, 2002
    Posts:
    16,250
    Likes Received:
    3
    Location:
    Tri-Valley, NorCal
    Well Steve, I have a bunch of your other products already on the rig so it wouldn't be lonely. I didn't even know you made them....... I'll be calling....

  4. boz42

    boz42 1/2 ton status GMOTM Winner

    Joined:
    Jun 3, 2003
    Posts:
    3,181
    Likes Received:
    0
    Location:
    Hopewell, Tn 38058
    ord doubler w/ 205 rotated up 2". 2 stock crossmembers. rear is unmolested front is notched & then boxed. i had to make some 1" spacers out of 1 1/8" dom to get the 203 adapter to reach. i am only running 4" front springs & my d-shaft wouldn't get close at full droop. i am going to swap to 56" frts & that may cause some interferance, dunno we'll see. here are some pics.

    [​IMG]

    [​IMG]

    [​IMG]

  5. Zeus33rd

    Zeus33rd Smarter than you GMOTM Winner

    Joined:
    Mar 14, 2002
    Posts:
    7,324
    Likes Received:
    9
    Location:
    Grass Valley, CA
    Here's my Gen1 doubler crossmember setup-
    [​IMG]

    All OEM parts. :D

  6. Desert Rat

    Desert Rat Fetch the comfy chair

    Joined:
    Oct 19, 2002
    Posts:
    16,250
    Likes Received:
    3
    Location:
    Tri-Valley, NorCal
    Red X on that one. Anybody else? 4x4 Iron doubler crossmember pics would be great.

  7. kgblazerfive

    kgblazerfive keymaster Premium Member GMOTM Winner

    Joined:
    Dec 2, 2004
    Posts:
    10,608
    Likes Received:
    602
    Location:
    Hooper, Utah 84315
    I don't have a pick but what I thought about doing was to connect both of them together with a skid plate then cut off the the end that goes under the driveshaft and box it then triangle brace it to the other then to the frame. Kind of like a H missing a leg.

  8. Desert Rat

    Desert Rat Fetch the comfy chair

    Joined:
    Oct 19, 2002
    Posts:
    16,250
    Likes Received:
    3
    Location:
    Tri-Valley, NorCal
    I was thinking of something similar. 4x4 Iron did something like that and I have a pic of it here:

    [​IMG]

    But, I'm leaning towards doing something like ORD did here:

    [​IMG]

    Which is more like the tubular 4x4 Iron one but with square tubing.

  9. Zeus33rd

    Zeus33rd Smarter than you GMOTM Winner

    Joined:
    Mar 14, 2002
    Posts:
    7,324
    Likes Received:
    9
    Location:
    Grass Valley, CA

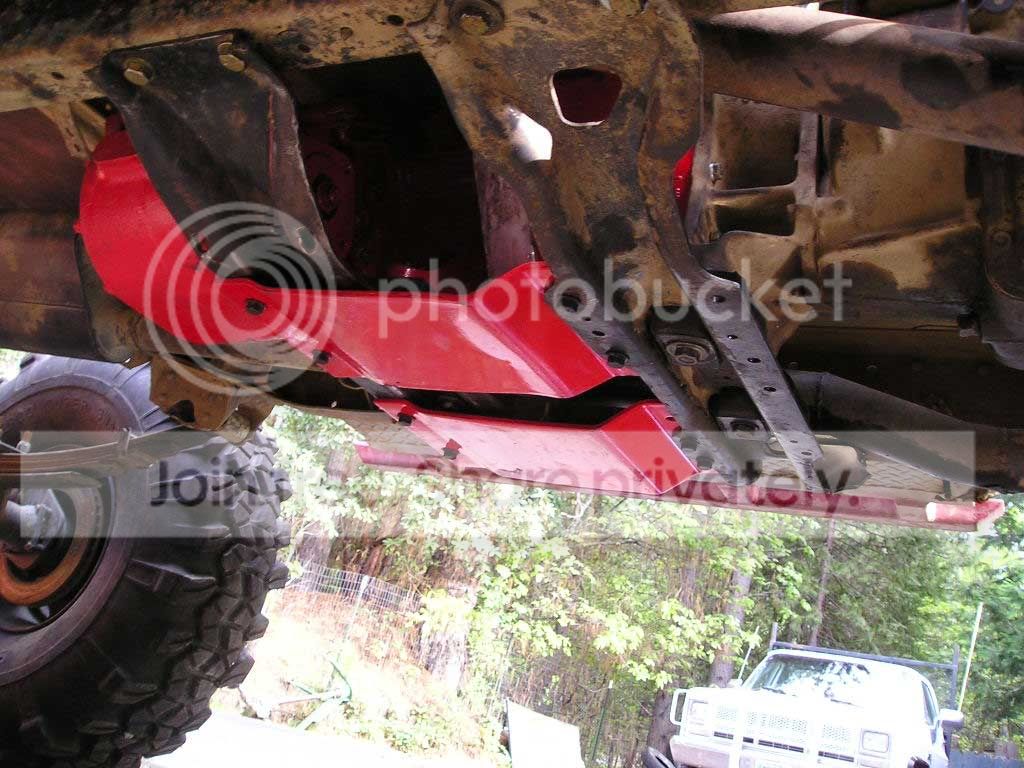

    Heres some working pics of mine...
    [​IMG]

    Just two stock crossmembers and a couple skid plates. Well the front one isn't stock anymore, I had to modify the hell out of it to work with the looooong front shaft.
    [​IMG]

  10. short sub

    short sub Registered Member

    Joined:
    Jan 17, 2005
    Posts:
    98
    Likes Received:
    0
    Location:
    Sealy Texas
    i used two stock x memebers on mine too- it looks kinda like Kid Jethros' except i made my clearance for the driveshaft go down instead of up using a 6" diameter pipe cut in half and angled to match the contour of the front drive shaft. I did that to help protect the shaft and it has actually helped save it once already. Later Ryan

  11. Desert Rat

    Desert Rat Fetch the comfy chair

    Joined:
    Oct 19, 2002
    Posts:
    16,250
    Likes Received:
    3
    Location:
    Tri-Valley, NorCal
    I noticed that you bolted both crossmembers flat on the botton of the frame. What did you do about the angle of the two cases? I found that the rear doubler adapter hangs about an inch or more lower than the front stock adapter. Right now I have both stock crossmembers on but I spaced down the rear one with washers temporarily. Also, what is the purpose of the hole in the front one there?

  12. Zeus33rd

    Zeus33rd Smarter than you GMOTM Winner

    Joined:
    Mar 14, 2002
    Posts:
    7,324
    Likes Received:
    9
    Location:
    Grass Valley, CA
    I added a 3/8" thick spacer under the tranny/203 adapter. Bolt the rear x-member to the frame and rear adapter thingy. The bolt your front x-member to the frame, but don't bolt it to the tranny. Make sure your rubber mounts are sitting on the x-member, then measure the gap between the adapter and the top of the rubber mount. Thats how thick the spacer should be.

    If your asking about the hole in the front crossmember in my pictures, then I have no idea...lol. I just grabbed a couple crossmembers out of my pile and used'em.

    My shafts are .375 wall High Angle Driveline shafts...I've bashed/smashed them everytime I go out. Not worried about them. :)

  13. Desert Rat

    Desert Rat Fetch the comfy chair

    Joined:
    Oct 19, 2002
    Posts:
    16,250
    Likes Received:
    3
    Location:
    Tri-Valley, NorCal
    Mine drops a lot more than 3/8. The washers that I used temporarily to space down the crossmember are at least an inch or slightly more. I toyed with the idea of cutting down the rubber mount by an inch instead on the rear adapter. Wouldn't putting a spacer on the front crossmember rotate your whole engine/tranny/TC setup up a bit? Got your PM.

  14. Zeus33rd

    Zeus33rd Smarter than you GMOTM Winner

    Joined:
    Mar 14, 2002
    Posts:
    7,324
    Likes Received:
    9
    Location:
    Grass Valley, CA
    Didn't rotate it up at all. With the rear x-member bolted in, I was just filling in the gap under the adapter on the front x-member with the spacer. My x-members could be different than yours too. Some have higher or lower mounting points than others. If you can find the right combination, that would help alot.
