Square Driveshaft Tech Needed

Discussion in 'The Garage' started by nvrenuf, Jun 19, 2006.

  1. nvrenuf

    nvrenuf NONE shall pass! Premium Member

    Joined:
    Jan 7, 2002
    Posts:
    13,073
    Likes Received:
    245
    Location:
    Mobile, Al.
    I know the basic principle but I still have questions...


    Typically, what size tubing is used?

    Are there preferred yoke part numbers?

    You do install a grease fitting and keep it lubed, right?

    Are they noisy?

    When assembling, you heat the square tubing and beat down around the yoke for a good "fit", right?

    Pics??

    Thanks :thumb:

  2. sled_dog

    sled_dog 1 ton status

    Joined:
    Sep 3, 2002
    Posts:
    16,870
    Likes Received:
    0
    Location:
    Austin, TX
    Don't have one but I can answer some of these. Most guys either do or recommend installing a grease fitting.

    You cut the yoke to a square shape then weld it on. Beating it around the yoke would be very imprecise(not that cutting a square from a round piece couldn't be a problem).

  3. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    You use 2 1/2" 1/4" wall and then 2" in 1/4" wall. Grind a notch in it for the weld in the female tube.

    Installing a grease fitting is a waste, they will jsut get broken off.

    As for yokes, you can either buy some that fit over the tube or grind the corners of the tube so that a smaller yoke can be used. Or you can just butt weld them.

  4. CrewCab59

    CrewCab59 1/2 ton status

    Joined:
    Aug 13, 2005
    Posts:
    483
    Likes Received:
    0
    Location:
    Knoxville ,TN
    There are using trailer hitch reciever tube,Jesse on spike Tv used that on the "Cheep Jeep".

  5. Citizen Rider

    Citizen Rider 1/2 ton status

    Joined:
    May 5, 2005
    Posts:
    1,415
    Likes Received:
    0
    Location:
    Plano, Texas
  6. jays68yak

    jays68yak 1/2 ton status

    Joined:
    Feb 27, 2003
    Posts:
    973
    Likes Received:
    2
    Location:
    Gilroy, CA
    On the yoke that has the 2 inch, you can take some (like a few inches) of the 2.5 and put it over both the yoke and the 2 inch.

  7. dheavychevy38

    dheavychevy38 1/2 ton status Premium Member

    Joined:
    Jan 6, 2003
    Posts:
    1,003
    Likes Received:
    1
    Location:
    Algonquin,illinois
    GO to tractor supply store and get pto shaft they hold well :D

  8. afroman006

    afroman006 1/2 ton status

    Joined:
    Aug 21, 2002
    Posts:
    2,876
    Likes Received:
    0
    Location:
    College Station & Kingsville, Texas
    Mk I made a square tube shaft for my truck and helped a friend make one for his yota. I tried to find a PTO splined shaft that looked big enough to use as a driveshaft and had enough travel but I came up empty handed, and I even have a TSC print catalog. I'm sure there is a long and heavy enough piece out there somewhere but I havent found it yet.

    As far as square tubes go, as said above start with 1 stock driveshaft, a couple feet of 2 1/2" 3/16 wall square tube, and a couple feet of 2" 1/4 wall square tube. Cut the CV end of the stock shaft about 3-4" away from the CV part, so you leave a litte nub of the stock tube. This is critical strength wise so you can drill some holes in the sides of the square shaft and plug weld it to the stub of factory tube, and it also helps align the CV and square tube. Weld around the base where the square tube meets the CV and then fill in the plug welds. Make sure you get good penetration on the CV part.

    Now down to the pinion end. This part f'ing sucks lol. You slide the yoke off the shaft and start grinding it into a square. I hope you have some time, some patience and a non-harbor freight grinder. You will need time because the yoke measures a little over 2" round in stock form, and you need to grind it down into a slightly sub-1 1/2" square to fit inside the 2" square tube. I think the metal the yoke is made out of is hardened or something because it took me about 2 hours to grind it down enough, then I hammered it in for a "pressed" fit. I again plug welded it on each side of the tube and then burned it together around the base.

    It clanks at certain speeds but doesnt seem to vibrate any more than anything else on the truck. I smeared grease on it when I installed it but havent bothered to put any zirks in it yet. I probably wont cause I think they'll get broken off and its easy enough to grease by taking it apart, plus grease guns are my sworn enemy in life.

  9. joez

    joez 1/2 ton status

    Joined:
    Oct 21, 2003
    Posts:
    2,512
    Likes Received:
    0
    Location:
    New Lenox, Illinois

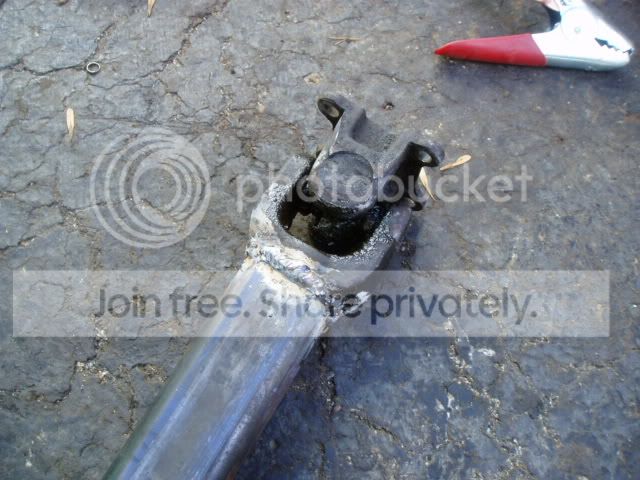

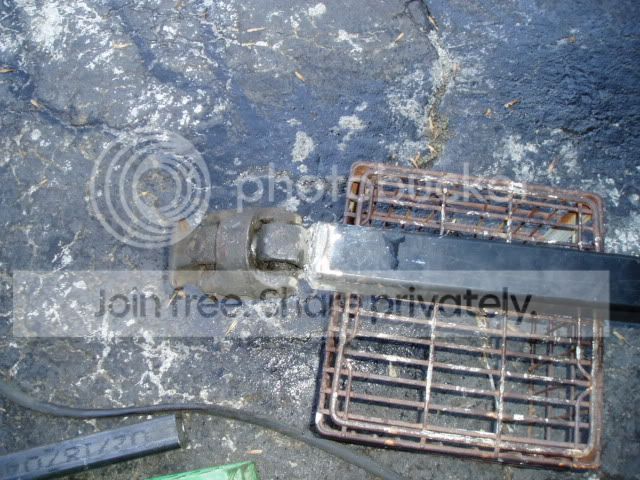

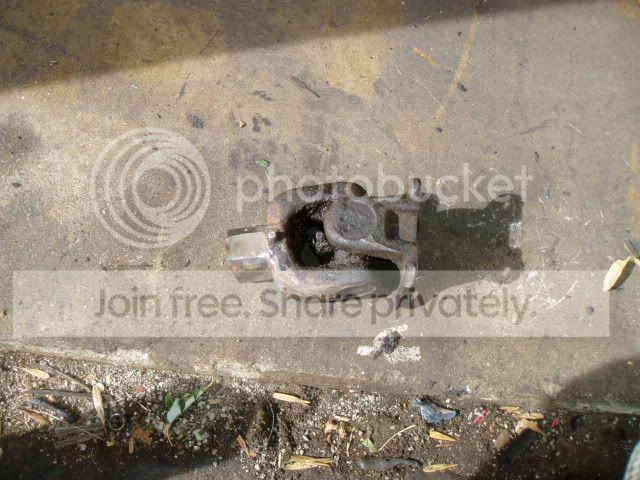

    I run one in the front of my toy, and like it so much that im going to build one for the rear soon. They can be noisy at times, but as long as their is tension in the drivetrain they will stay quiet. When running in 2wd with the hubs locked or drive flanges they can get noisy, but nothing to bad. Don't pound it on, you want to grind the yokes to fit, that way you have a better chance of getting it square. Heres a few shots of mine.

    [​IMG]

    [​IMG]

    [​IMG]

  10. opfor2

    opfor2 1/2 ton status

    Joined:
    Oct 28, 2002
    Posts:
    375
    Likes Received:
    0
    Location:
    Ventura County, CA
    And what are the advantages of having a square drive shaft over the normal round tube type?

  11. 85mudblazin

    85mudblazin 1/2 ton status

    Joined:
    Mar 26, 2004
    Posts:
    3,951
    Likes Received:
    0
    Location:
    Austin,TX
    There damn near unbreakable, and you can have over 12" of slip.

    Not to mention it costs about $50 to make one.

  12. LVJimmy

    LVJimmy 1/2 ton status

    Joined:
    Aug 22, 2005
    Posts:
    301
    Likes Received:
    0
    Location:
    Lost Wages, NV
    Thanks, that is the same stupid question I was afraid to ask, now I know. I would imagine they wouldn't work very well for a DD.

  13. thatK30guy

    thatK30guy 1 ton status Premium Member

    Joined:
    Jan 12, 2001
    Posts:
    32,076
    Likes Received:
    55
    Location:
    .
    If they're so damn near unbreakable, how come all the driveshaft guys don't make them to sell?

  14. MTBLAZER89

    MTBLAZER89 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    236
    Location:
    Oak Harbor, WA
    It would be hard to market something you canmake yourself for less than $50 with an angle grinder. They don't balance either so there is not a huge market for them I suppose.

  15. Citizen Rider

    Citizen Rider 1/2 ton status

    Joined:
    May 5, 2005
    Posts:
    1,415
    Likes Received:
    0
    Location:
    Plano, Texas
    For a DD or a truck that still sees street driving, i would only put a square shaft up front because of not being able to balance. But for a full trail rig, square front and rear. Driveshaft shops do them, just not your normal driveshaft. I know of atleast one shop here that builds them. But for $50 in materials, its easily done yourself and someone who can weld.

  16. walla2k5

    walla2k5 1/2 ton status

    Joined:
    Sep 5, 2004
    Posts:
    2,054
    Likes Received:
    1
    Location:
    Walla Walla, WA
    Thanks for the great info guys,been thinking of doing this for a while myself.:bow:

  17. CrewCab59

    CrewCab59 1/2 ton status

    Joined:
    Aug 13, 2005
    Posts:
    483
    Likes Received:
    0
    Location:
    Knoxville ,TN
    1) The square tube is cheep!! labor is free!!
    2) The square tube won't twist like round shafts ( When they get dented)

  18. berserker

    berserker 1/2 ton status

    Joined:
    Nov 19, 2005
    Posts:
    127
    Likes Received:
    0
    Location:
    columbus,ohio

    how come you can't balance them?

  19. thedrip

    thedrip 1/2 ton status

    Joined:
    Dec 13, 2003
    Posts:
    1,129
    Likes Received:
    0
    Location:
    Chattanooga, TN
    just too much slop, they wobble a little bit, not to mention getting a square tube perfectly centered on the yoke is a chore and a half. My eyeball got me a shaft that doesn't vibrate until 25mph unloaded (2wd, hubs locked in or 4wd hubs out) or 35 mph loaded (4wd, hubs locked in). $38, including a s44-1310 conversion joint. I used the flange style CV for parts, hacked it up into just a flange mounted single ujoint

  20. berserker

    berserker 1/2 ton status

    Joined:
    Nov 19, 2005
    Posts:
    127
    Likes Received:
    0
    Location:
    columbus,ohio
    what do you do to keep the yoke on the tranny?
