Vehicle Illustrations

Discussion in 'The Garage' started by bigbluesuburban, Oct 16, 2006.

  1. bigbluesuburban

    bigbluesuburban 1/2 ton status

    Joined:
    Feb 8, 2006
    Posts:
    1,362
    Likes Received:
    0
    Location:
    Constant State of Perpetual Anger
    I am wondering if anyone has front, side, top and back views of a suburban. I am not looking for photographs, but more like line drawings from a coloring book. My buddy wants to do some illustrations of possible exterior roll cage designs and so I thought someone of this list might have run across this type of illustrations.

    When I was in the Marines they had books full of painting illustration that would have been perfect for this.

    Let me know if anyone can help.

    Thanks

  2. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,954
    Likes Received:
    445
    Location:
    East of San Francisco

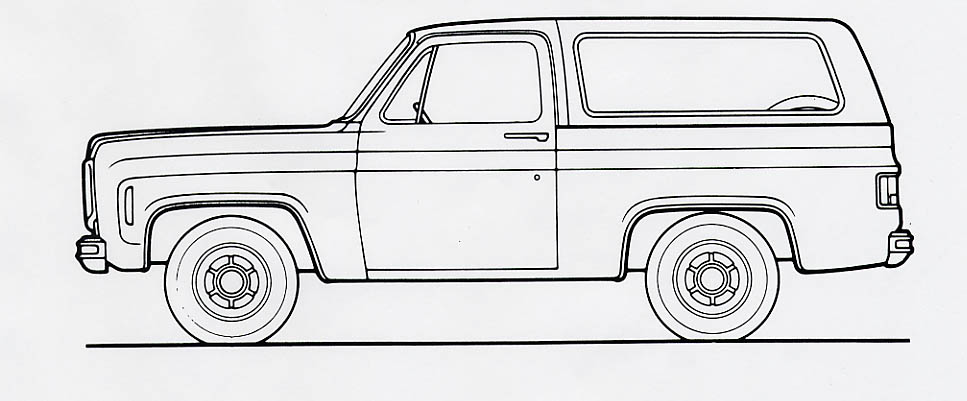

    This is a side view, I think from the GM parts book or something...

    -- A


  3. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,954
    Likes Received:
    445
    Location:
    East of San Francisco
    And here's front and rear views of a Blazer, which are remarkably the same as the Burb =)) And are what you were thinking of from the service.

    -- A


  4. bigbluesuburban

    bigbluesuburban 1/2 ton status

    Joined:
    Feb 8, 2006
    Posts:
    1,362
    Likes Received:
    0
    Location:
    Constant State of Perpetual Anger
    dremu... THANX!

    I edited out all the camo from the F & R views and scaled everything to ONE 8.5x11 sheet and it looks great.

    I can now work on my paint job too.

    THANKS AGAIN

  5. Metrodps

    Metrodps Strange but nice guy Premium Member GMOTM Winner Author

    Joined:
    Jan 4, 2006
    Posts:
    9,726
    Likes Received:
    108
    Location:
    earth
  6. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    hmm maybe ill print some out and come up with a paint scheme

  7. bigbluesuburban

    bigbluesuburban 1/2 ton status

    Joined:
    Feb 8, 2006
    Posts:
    1,362
    Likes Received:
    0
    Location:
    Constant State of Perpetual Anger

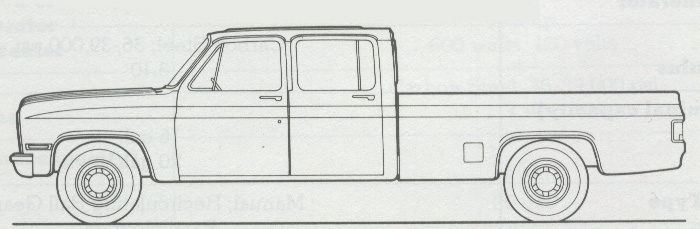

    Crewcaburblazer

    [​IMG]

    And now... Introducing...

    THE CREWCABURBLAZER

  8. BurbLover

    BurbLover 1/2 ton status

    Joined:
    Jul 31, 2001
    Posts:
    3,060
    Likes Received:
    0
    Location:
    SW Missouri
    Sweet!! How about the removable top version? I'd love one of those as a tow rig. Drop in on a 5500 chassis and it'd be bad a$$.

  9. bigbluesuburban

    bigbluesuburban 1/2 ton status

    Joined:
    Feb 8, 2006
    Posts:
    1,362
    Likes Received:
    0
    Location:
    Constant State of Perpetual Anger
    That's what I did... :wink1:

    [​IMG]

  10. bigbluesuburban

    bigbluesuburban 1/2 ton status

    Joined:
    Feb 8, 2006
    Posts:
    1,362
    Likes Received:
    0
    Location:
    Constant State of Perpetual Anger
    Or we can go topless if you like...

    [​IMG]

  11. BurbLover

    BurbLover 1/2 ton status

    Joined:
    Jul 31, 2001
    Posts:
    3,060
    Likes Received:
    0
    Location:
    SW Missouri
    Me likes, me likes!!

  12. bigbluesuburban

    bigbluesuburban 1/2 ton status

    Joined:
    Feb 8, 2006
    Posts:
    1,362
    Likes Received:
    0
    Location:
    Constant State of Perpetual Anger
    DREMU...

    Do you have more of the paint pattern sketches?

    I had some USMC TM Manuals that had all kinds of equipment in them. I don't know what happened to them. I have tried to find them on the internet but have had no luck.

  13. dremu

    dremu Officious Thread Derailer Premium Member

    Joined:
    Feb 27, 2000
    Posts:
    15,954
    Likes Received:
    445
    Location:
    East of San Francisco
    Yep. Should all be in my gallery, and the whole TM is on my

    http://brochures.slosh.com

    site -- go to CUCV, then "Paint/Camo", and is TB43-0209, IIRC.

    -- A
