Whats up with my 14b ff? ...PICS

Discussion in 'The Garage' started by midnitewarya, Oct 26, 2005.

  1. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    Just pulled a 14b ff out of a '98 2500. Had a great time doing it because the rental guys where all out of pickups and I had to haul it in a minivan, much less a Ford minivan...

    Now, hear is what I think I know:

    I have a Series 2 14b that has a ribbed case and a different hub design. The new design is supposed to make it so you don't have to press out the wheel studs to get the drum by itself. This design is supposed to have a hub that isn't machined flat on the back, therefore I can't put on disk brakes.

    Also, the bearings in the hub need to be pressed out and in to change them.

    OK, here is what I discovered starting my rebuild...

    The hub bearings are rattling all over the place, they were loose as soon as I started unscrewing the 6-point star bolt that gos around the yoke (it wasn't very tight at all either)

    As soon I got the drums off, I noticed the drums were full of fluid, it looks like gear oil leaked around the seals and got into the drums.

    Now this is what is confusing me the most, my drums were attached to the hubs by pressed on studs! I though it wan't supposed to be that way on a Series 2 14b ff! And the hubs are flat on the back, it looks like it would be no problem putting disks on it!

    So here are my questions,

    Am I right about the style of hubs/drums?

    If I have earlier hubs/drums on a later axle, will that screw up some sort of alignment and cause the gear oil to leak into the drums?

    This is kind of a dumb question at this point.... What is the difference of putting a series 2 14b on a '91 K5 from a series 1?

    I have looked all over for some sort of answer, but I couldn't find anything on it. Looks like I'm another dread 14b ff poster....

    Al


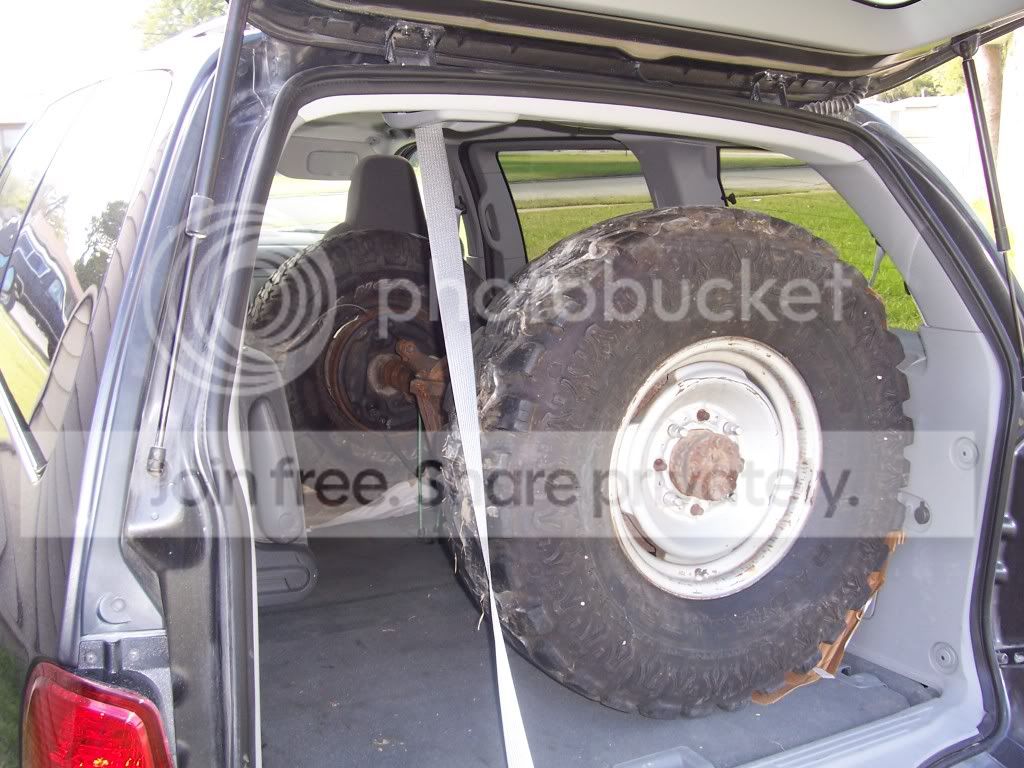

    The Minivan...

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0707.jpg" border="0" alt=" ">

    Another shot...

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0705.jpg" border="0" alt=" ">

    The Axle...

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0730.jpg" border="0" alt=" ">

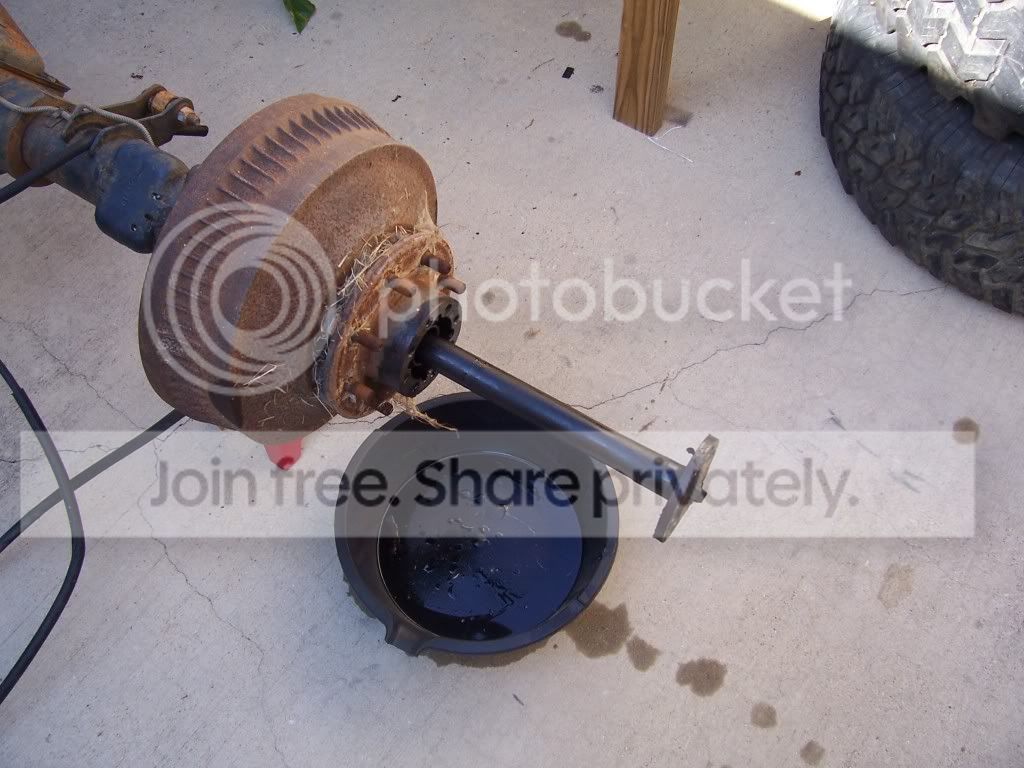

    The drum, hub with axle out...

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0733.jpg" border="0" alt=" ">

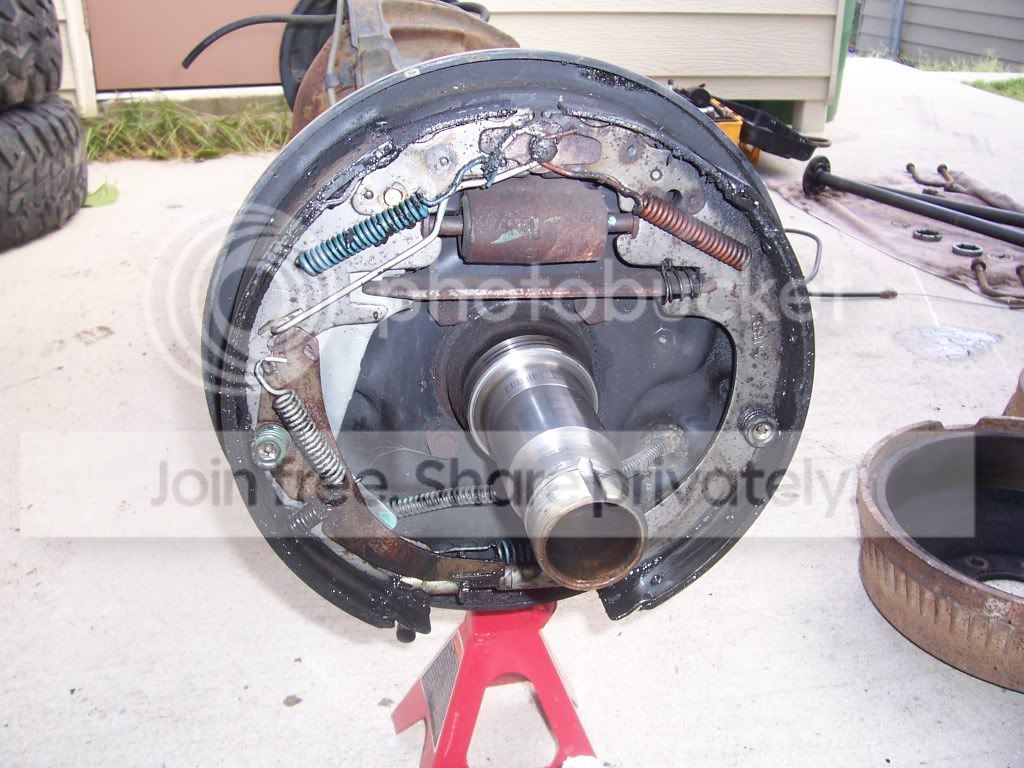

    The bare yoke...

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0738.jpg" border="0" alt=" ">

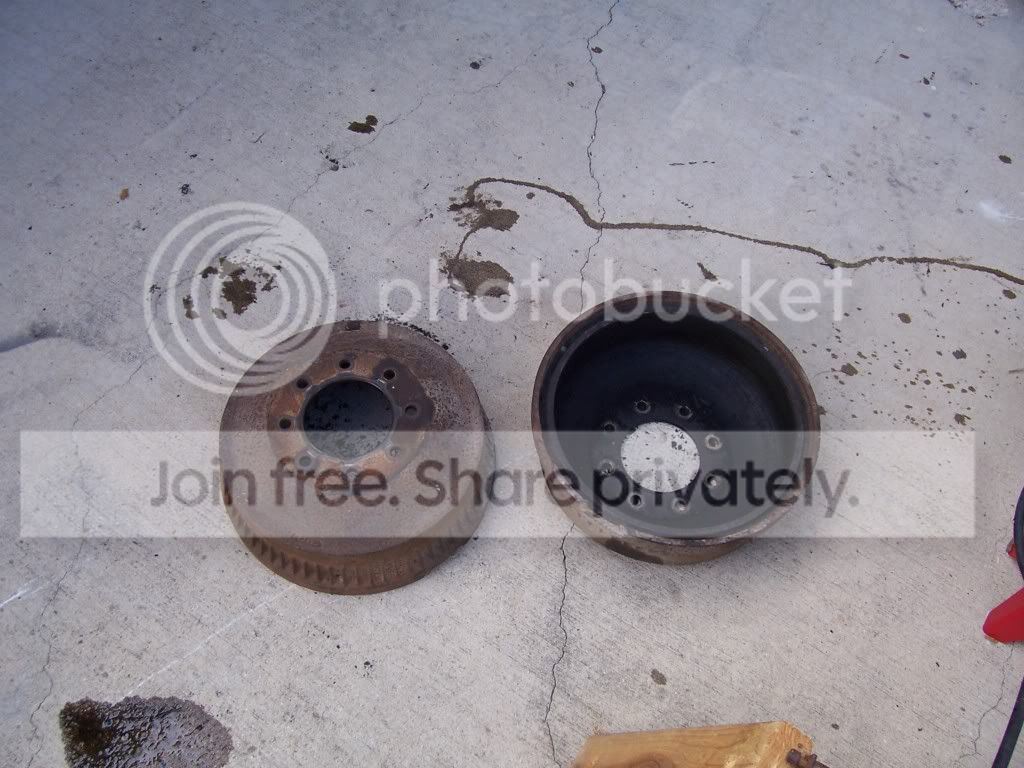

    The drums...

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0742.jpg" border="0" alt=" ">

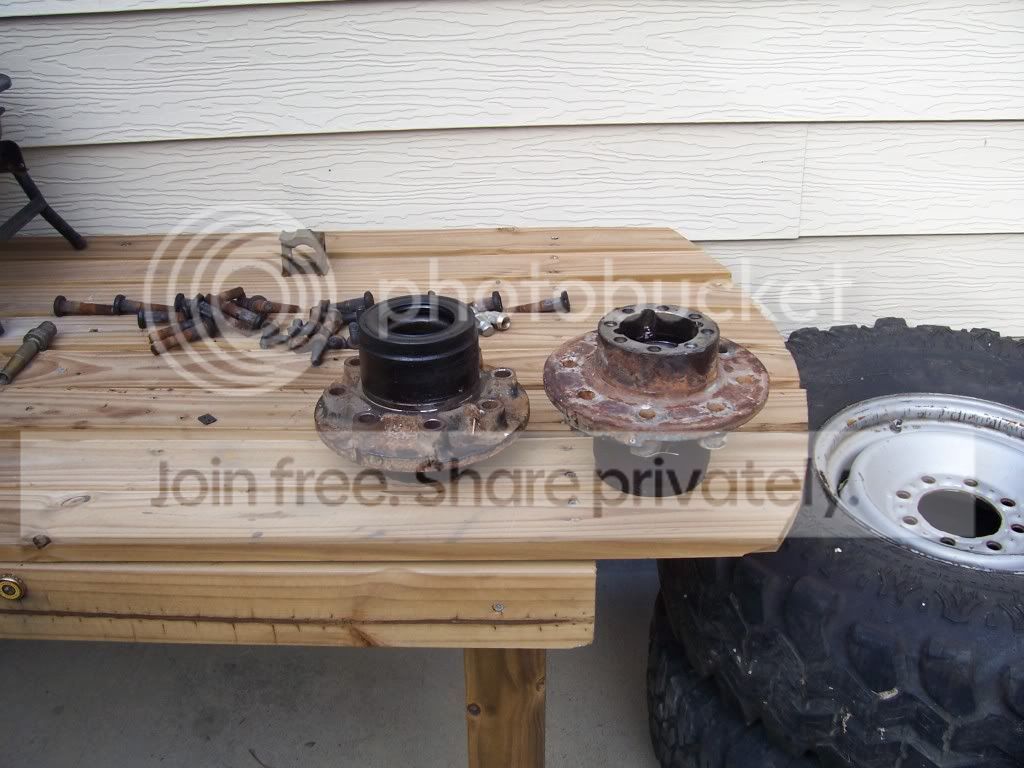

    And the hubs.

    <img src="http://i28.photobucket.com/albums/c211/midnitewarya/104_0740.jpg" border="0" alt=" ">

    Any ideas?

    Last edited: Oct 26, 2005
  2. mrk5

    mrk5 The Sticker Guy Moderator Vendor GMOTM Winner Author

    Joined:
    Apr 20, 2004
    Posts:
    12,332
    Likes Received:
    1,040
    Location:
    Northern Colorado
    Fixed it

  3. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    Thanks

    Thanks for the fix, it was drvin me nuts...

    Arrr

  4. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,170
    Likes Received:
    1,379
    Location:
    E-town baby!
    Aws far as I can tell you have the earlier style brakes. IIRC the newer style brakes the drum slips off like a SF diff.

    It probably just needs new seals and some disk brakes. It looks just like my 14 bolt did when apart.

    Rene

  5. u2slow

    u2slow 1/2 ton status

    Joined:
    May 9, 2001
    Posts:
    2,217
    Likes Received:
    0
    Location:
    BC Canada
    The 13x2.5" drums never came in a slide-off configuration on the 14ff... even right through to 98/99 or so.

    If that axle was from a K2500 Burb, or 1-ton SRW, it would have the 13x3.5" slide off drums.... and then you'd be screwed for the cheap/easy disc brake conversion. ;)

  6. Zeus33rd

    Zeus33rd Smarter than you GMOTM Winner

    Joined:
    Mar 14, 2002
    Posts:
    7,324
    Likes Received:
    9
    Location:
    Grass Valley, CA
    God damn...

    How the hell did you get that heavy pig into that little ass car? :eek1: :eek1:

  7. muddybuddy

    muddybuddy 3/4 ton status

    Joined:
    Jan 29, 2004
    Posts:
    8,933
    Likes Received:
    1
    Location:
    Fairfax Station VA
    looks like the spring plates are 1ton width. how much did u pick it up for?

  8. HarryH3

    HarryH3 1 ton status Author

    Joined:
    May 31, 2000
    Posts:
    10,384
    Likes Received:
    2
    Location:
    Georgetown, TX
    Hmm, so the 14-bolt by itself wasn't heavy enough? I've always moved them without the tires and wheels attached. :eek1: :wink1: :wink1: :wink1:

  9. originalspanksta

    originalspanksta 1/2 ton status

    Joined:
    Jan 31, 2005
    Posts:
    147
    Likes Received:
    0
    Location:
    Philadelphia
    The spring plates are late model (ifs truck) width, about 3-4 " wider than k5 width. 73-87 width perches wouold go right about in the middle of the bump pads you see right to the inside of the spring perches.

  10. trollporter

    trollporter 1/2 ton status

    Joined:
    Feb 29, 2004
    Posts:
    518
    Likes Received:
    0
    Location:
    Lady's Island, SC
    I've been thinking of going to disc also. Why would he be screwed for the conversion. Mine looks just like that and it came out of a '96 SRW 3500.

    troy


  11. badfish4tail

    badfish4tail 1/2 ton status

    Joined:
    Mar 1, 2005
    Posts:
    1,684
    Likes Received:
    1
    Location:
    Long Beach
    I was thinking that also :haha: :haha: :haha:

  12. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    Suprisingly getting it in wanst so hard, the yard had an engine hoist. All I had to do was roll it over to the hoist, jack it up, and back it in. Getting it out sucked. I ended up using a come-a-long to pull it out.

    In all, it cost me $250. Susposedly it only had 27,000 miles on it, but after finding gear oil in the drums, I have my dounts.

    Al

  13. u2slow

    u2slow 1/2 ton status

    Joined:
    May 9, 2001
    Posts:
    2,217
    Likes Received:
    0
    Location:
    BC Canada
    The hubs used for the slde-off drum arent machined flat on the backside.

    I don't recall what forum it was on, but somebody tried to swap hubs on a slide-off drum housing, and found the housing end (spindle) has a different bearing spacing.

  14. Brocky

    Brocky 1/2 ton status

    Joined:
    May 22, 2005
    Posts:
    1,170
    Likes Received:
    1
    Location:
    St.John's Newfoundland, Canada
    Man you are a trooper. Bringing that home in a mini van. But you got it is all that matters. And I was complaining about putting them in the back of the K5.

  15. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    Rephrase of question...

    Ok, from what I am hearing, it sounds like my hubs are from another, earlier, axle. Is this true? If they are from an earlier axle, will they fit properly on this second gen axle?

    Yeah, loading and unloading the pig mostly sucked, but I least I have it now, and that broke old 10 bolt day's are numbered!

    Al

  16. txfiremank5

    txfiremank5 1/2 ton status

    Joined:
    Jul 6, 2004
    Posts:
    3,105
    Likes Received:
    0
    Location:
    San Antonio, TX.
    You should be able to run disc's if you want. I have a 14 that has the rib's and it too has the "older" style of hubs.

  17. u2slow

    u2slow 1/2 ton status

    Joined:
    May 9, 2001
    Posts:
    2,217
    Likes Received:
    0
    Location:
    BC Canada
    You said the axle is a '98 K2500 right? Nothing about the pic suggests otherwise. The only difference between your hubs and a 73-87ish ones are the metric wheel studs.

    The ribbed center section only means it was built after what?... 89? (I forget the exact cutoff). That feature alone does not identify the body style, application, SRW/ DRW, or width.

    If there's anything odd, its the slide-off-drum variant of the SRW 14FF... which has unique hubs, and (from 2nd hand info) shorter spindles. These came in 92+ K2500 Burbs (w/454 or 6.5TD) and 1-ton SRWs.

  18. midnitewarya

    midnitewarya Sounds like a problem for future me. Premium Member

    Joined:
    Dec 1, 2002
    Posts:
    1,726
    Likes Received:
    20
    Location:
    SoCal
    Hey everyone,

    I think I got it all worked out. I couldn't have done it without ck5.com. I now know that the only axles that had the slide off drums were the 3500s and 3/4 burbans and that I am okay. I was worried about the hubs because, like I said, the drums were full of gear oil and the bearings were loose when I took the hubs off. Probably just a crappy rebuild.

    I'll keep this post updated as the rebuild goes, so that if anyone else gets confused like I did, we all won't have to go through this again. Up next I have to finish cutting and moving the spring/shock mounts. Which reminds me... anyone happen to know off hand the correct angle to weld the spring mounts on with a 6" lift on a '91 K5? And does anyone knwo how to weld? :D

    Anyway, I'll keep this updated with new pics and stuff.

    Al
