Winch mount started UPDATE NEW PICS

Discussion in 'The Garage' started by MTBLAZER89, May 26, 2004.

  1. MTBLAZER89

    MTBLAZER89 3/4 ton status GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    237
    Location:
    Oak Harbor, WA
    Ok started my winch mount today. Whatcha think? I am planning on boxing the sides and front up and bolting the sides to the frame too. Tips ideas opinions welcome /forums/images/graemlins/waytogo.gif
    [​IMG]

    [​IMG]

    I want it to sit more level, but that is the angle of the frame rails. Any ideas.....?? /forums/images/graemlins/dunno.gif Not really a big deal, but if it sat level I could move it back a couple more inches. Any help would be great. Thanks /forums/images/graemlins/waytogo.gif /forums/images/graemlins/peace.gif

  2. 84gmcjimmy

    84gmcjimmy 1 ton status

    Joined:
    Dec 3, 2003
    Posts:
    12,838
    Likes Received:
    0
    Location:
    B.C. CANADA
    Re: Winch mount started (PICS) and question

    Loooks good, do you want it to just sit level or sit level and move it back? If you just want it to sit level, heat it up and bend it, then re-inforce around the bend /forums/images/graemlins/thumb.gif /forums/images/graemlins/dunno.gif

  3. Poohbair

    Poohbair 1/2 ton status

    Joined:
    Jan 30, 2003
    Posts:
    2,139
    Likes Received:
    0
    Location:
    Ellensburg, WA
    Re: Winch mount started (PICS) and question

    How thick is that plate?

    You can move it back as far as the radiator if you don't mind cutting your grill out... /forums/images/graemlins/grin.gif

  4. MTBLAZER89

    MTBLAZER89 3/4 ton status GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    237
    Location:
    Oak Harbor, WA
    Re: Winch mount started (PICS) and question

    It's 1/4" and I really don't want to cut up my nice grille yet. /forums/images/graemlins/rotfl.gif /forums/images/graemlins/waytogo.gif

  5. Poohbair

    Poohbair 1/2 ton status

    Joined:
    Jan 30, 2003
    Posts:
    2,139
    Likes Received:
    0
    Location:
    Ellensburg, WA
    Re: Winch mount started (PICS) and question

    should be OK once you brace the sides / front. I built mine out of 3/8's, but not sure if I needed to go quite that stout... especially w/ the price of steel now a days!

  6. MTBLAZER89

    MTBLAZER89 3/4 ton status GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    237
    Location:
    Oak Harbor, WA
    Re: Winch mount started (PICS) and question

    Warn said 1/4" is what they reccomend. So I bought 1/4". I am gonna brace it up as good as possible.


    As far as making it level any more ideas? I thought maybe some spring shims?? Would that be safe? If I welded a shim to the plate on each side and drilled the holes through it then bolted it all up it would probably sit flat. /forums/images/graemlins/dunno.gif

    Come on I know somebody has a simple idea out there that will work. /forums/images/graemlins/waytogo.gif

  7. TrcksR4ME

    TrcksR4ME 1/2 ton status

    Joined:
    Feb 11, 2002
    Posts:
    2,482
    Likes Received:
    0
    Location:
    Seattle, WA 98103
    Re: Winch mount started (PICS) and question

    Well you WILL want it moved closer to the radiator eventually. Maybe move the plate so it bolts to the bottom of the frame and some supports that bolt to the side of the frame as well. That would bring it down lower and allow you to move it back without cutting the grill as much. /forums/images/graemlins/dunno.gif

    I have some various pics of mine: http://community.webshots.com/album/78617546cuJLnH

    Its not the prettiest or the the best, obut so far it works pretty good and hasn't failed. I don't have an upright winch like yours, so I didn't hve to cut out the grill to fit mine between the frame rails. It is also very theft resistant, I say that cause it was a mother to get in /forums/images/graemlins/histerical.gif

  8. MTBLAZER89

    MTBLAZER89 3/4 ton status GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    237
    Location:
    Oak Harbor, WA
    Re: Winch mount started (PICS) and question

    That was my first plan, but the bottom frame rails just aren't as flat as the top. Also there are all the rivits for the spring hangers and body mounts in the way. And the winch is pretty tall /forums/images/graemlins/peace.gif

  9. clarkjw24

    clarkjw24 1/2 ton status GMOTM Winner

    Joined:
    Dec 4, 2003
    Posts:
    3,531
    Likes Received:
    2
    Location:
    McBee, SC 29101
    Re: Winch mount started (PICS) and question

    If you're not gonna run a stock bumper you could drop it to the bottom of the rails. Make like a box that bolts to the outside of the frame rails where the bumper caps were. I really don't know since I don't have a winch. I would think that I want it pulling from the center of the frame to help distribute the stress and pull on the frame. I know thats alot of money but I like'em somewhat concelled/ hidden torque. /forums/images/graemlins/thinking.gif

  10. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: Winch mount started (PICS) and question

    Mount it between the framerails and feed the cable through the bumper.
    Like this.

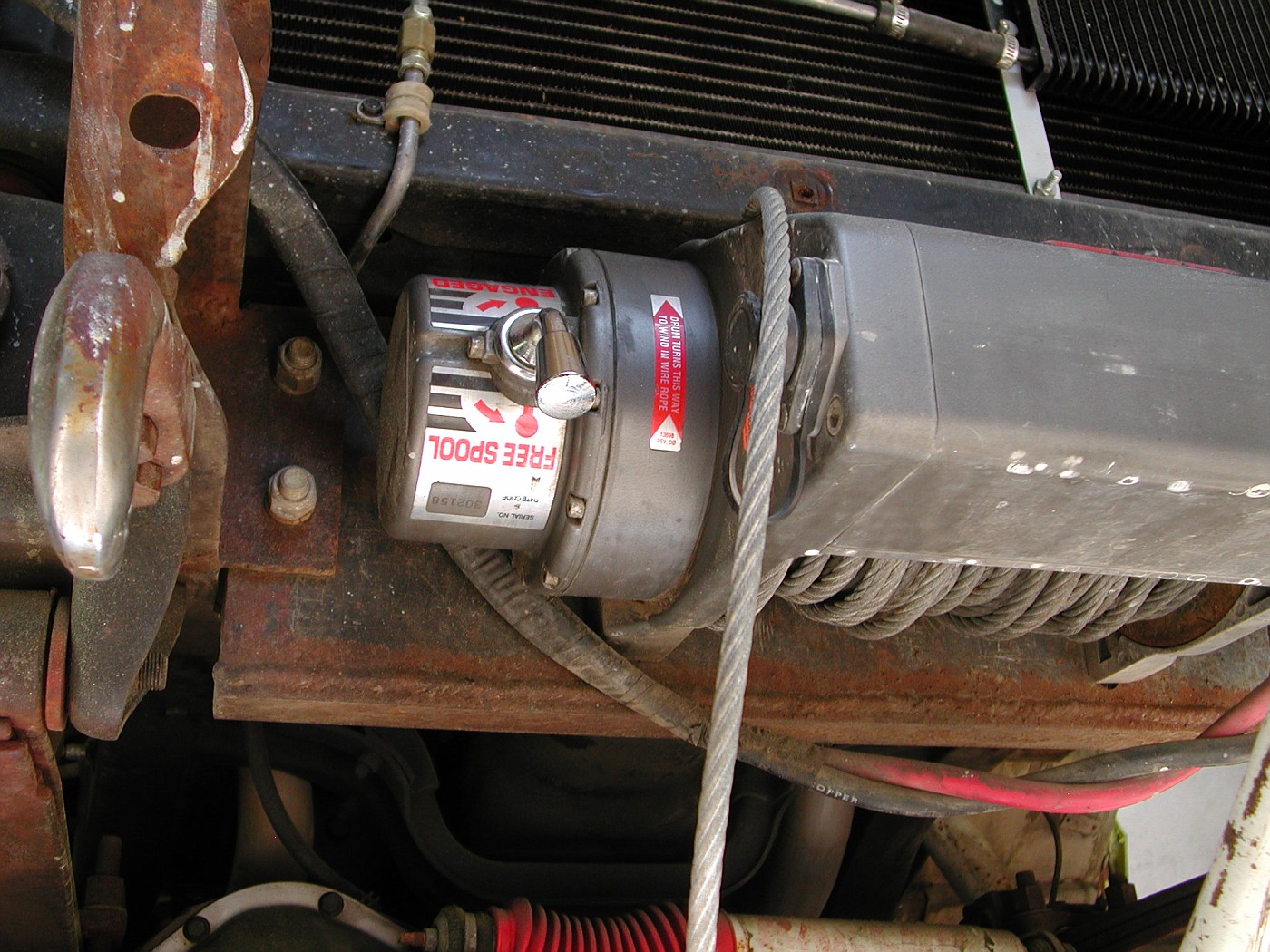

    [​IMG]

    Mines mounted to a large "C" channel via 4 bolts.

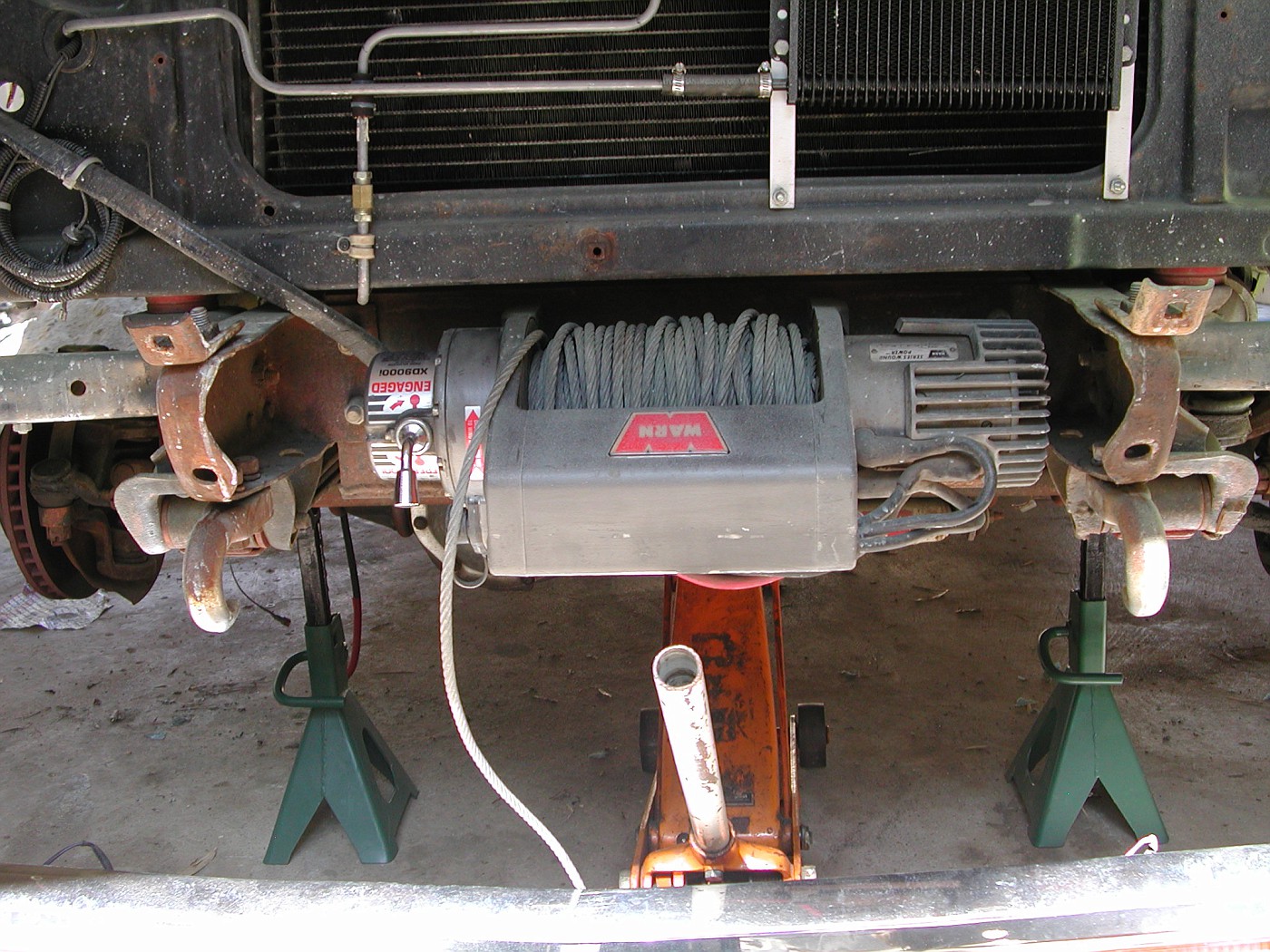

    [​IMG]

    The back of the mounting plate here.

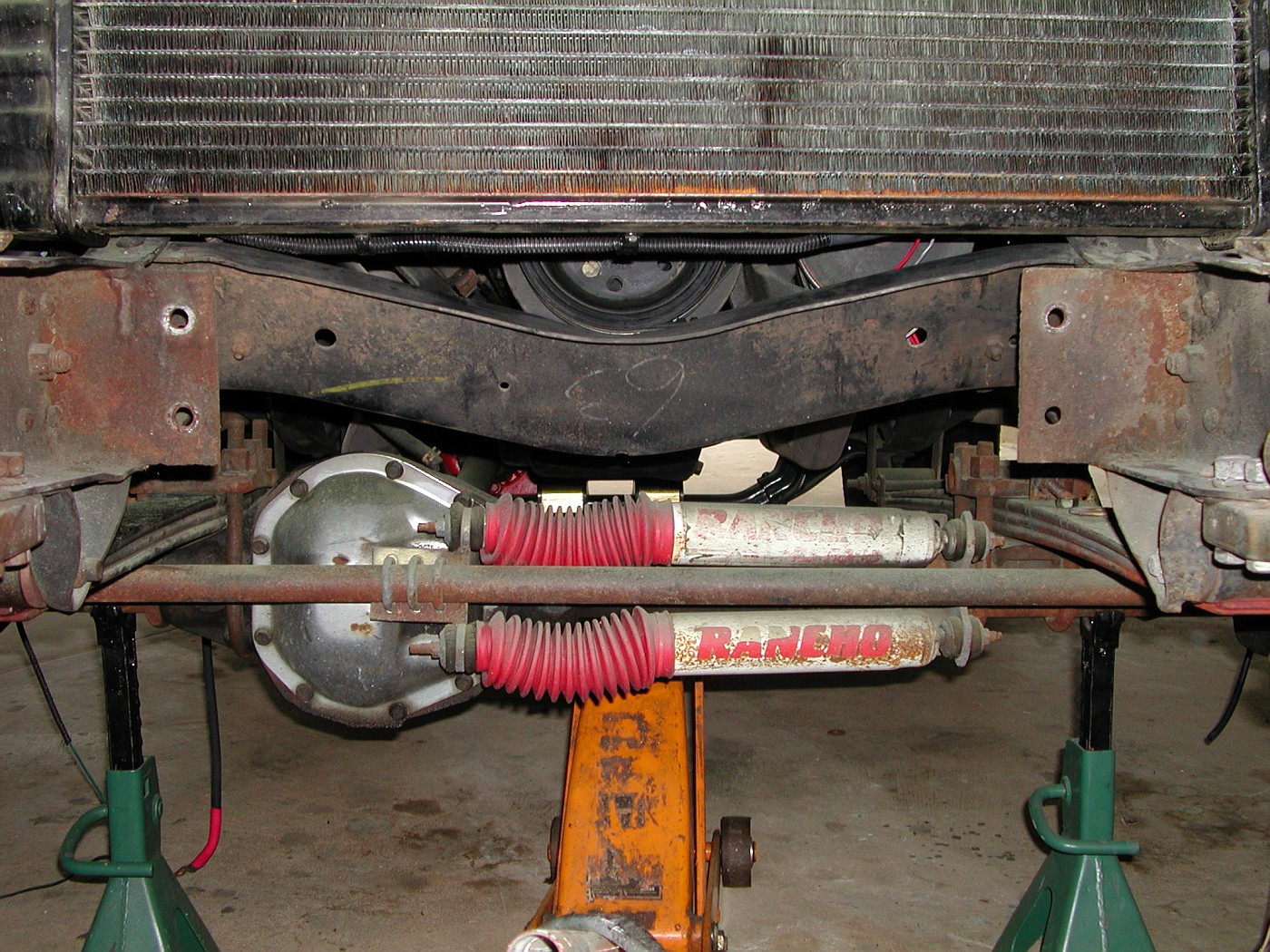

    [​IMG]

    It's mounted to the frame via thes two mounting tabs that are bolted to the frame.

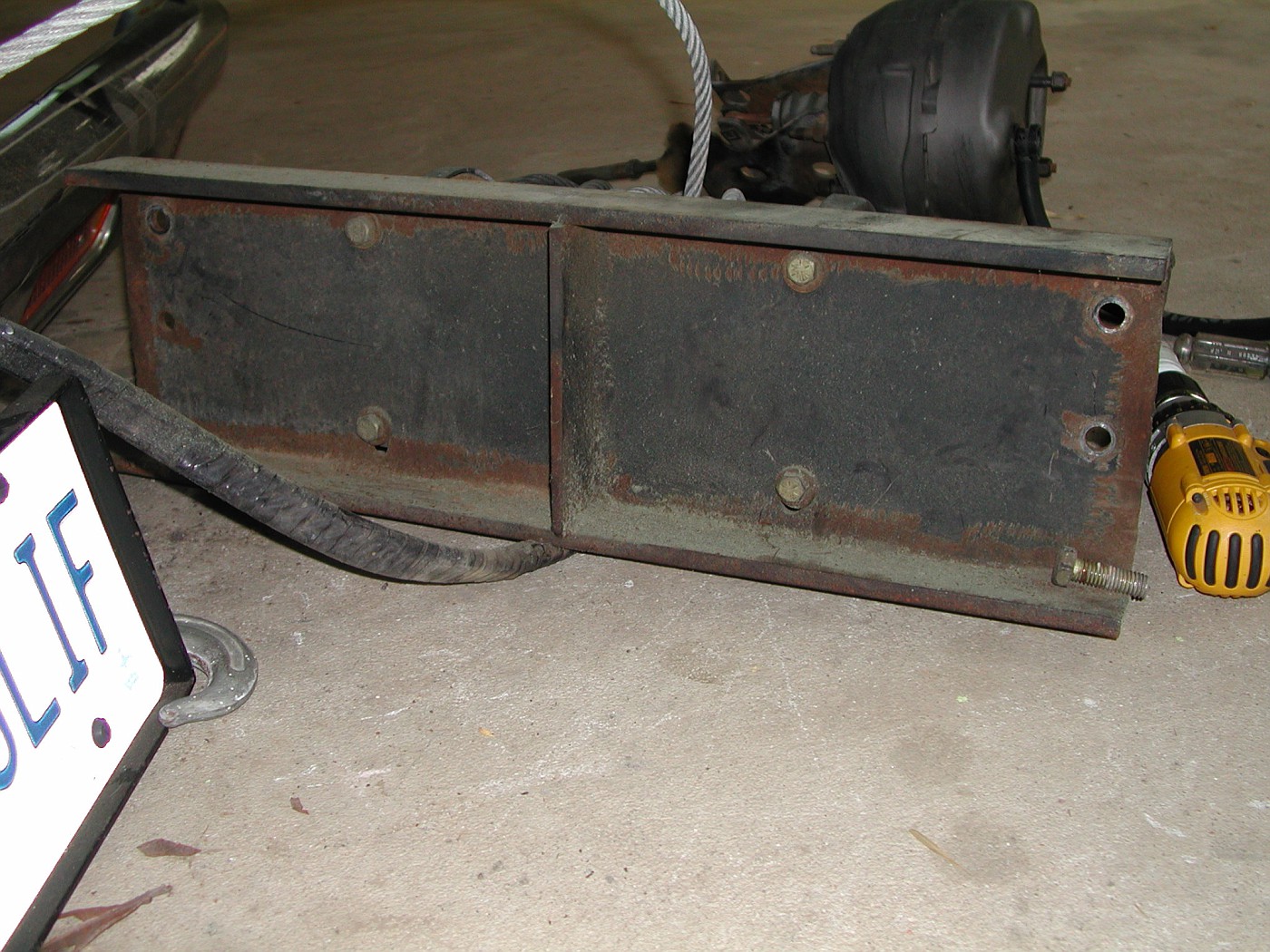

    [​IMG]

    Then the winch get's mounted to those tabs.

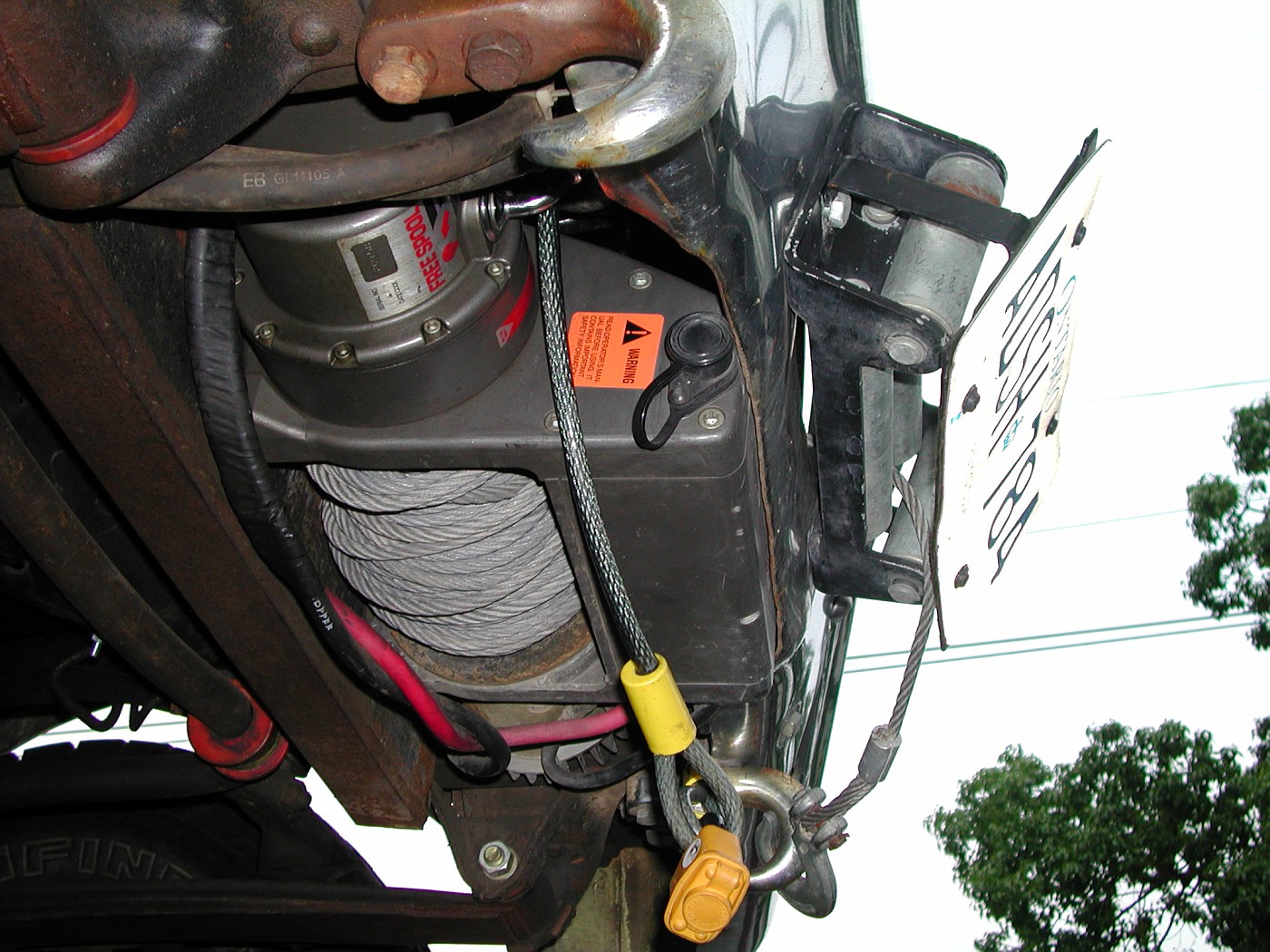

    [​IMG]

    [​IMG]

  11. CyberSniper

    CyberSniper 1/2 ton status Premium Member

    Joined:
    Apr 21, 2003
    Posts:
    2,257
    Likes Received:
    5
    Location:
    Chelsea, MI
    Re: Winch mount started (PICS) and question

    Can you mount some angle iron on the inside of the frame and then set the plate on top of the other leg of the angle iron? I forget what my frame looks like in there.

    I stacked washers when I mounted my front receiver but it's connected to both the top and bottom of the C-channel of the frame. I don't think I'd stack washers with quarter inch plate since quarter inch by itself is pretty wimpy.

  12. 84_Chevy_K10

    84_Chevy_K10 Banned

    Joined:
    May 30, 2001
    Posts:
    17,669
    Likes Received:
    0
    Location:
    IL, USA
    Re: Winch mount started (PICS) and question

    That between the frame rail mount would be ingenious if it was turned around the other way.

  13. BOWTIE

    BOWTIE 1/2 ton status

    Joined:
    Dec 28, 2000
    Posts:
    2,018
    Likes Received:
    0
    Location:
    Outside with the sawzall.
    Re: Winch mount started (PICS) and question

    i see that you cut the plate already, but what i did is mounted the sides plates level first then the top plate on top of that, something like this..

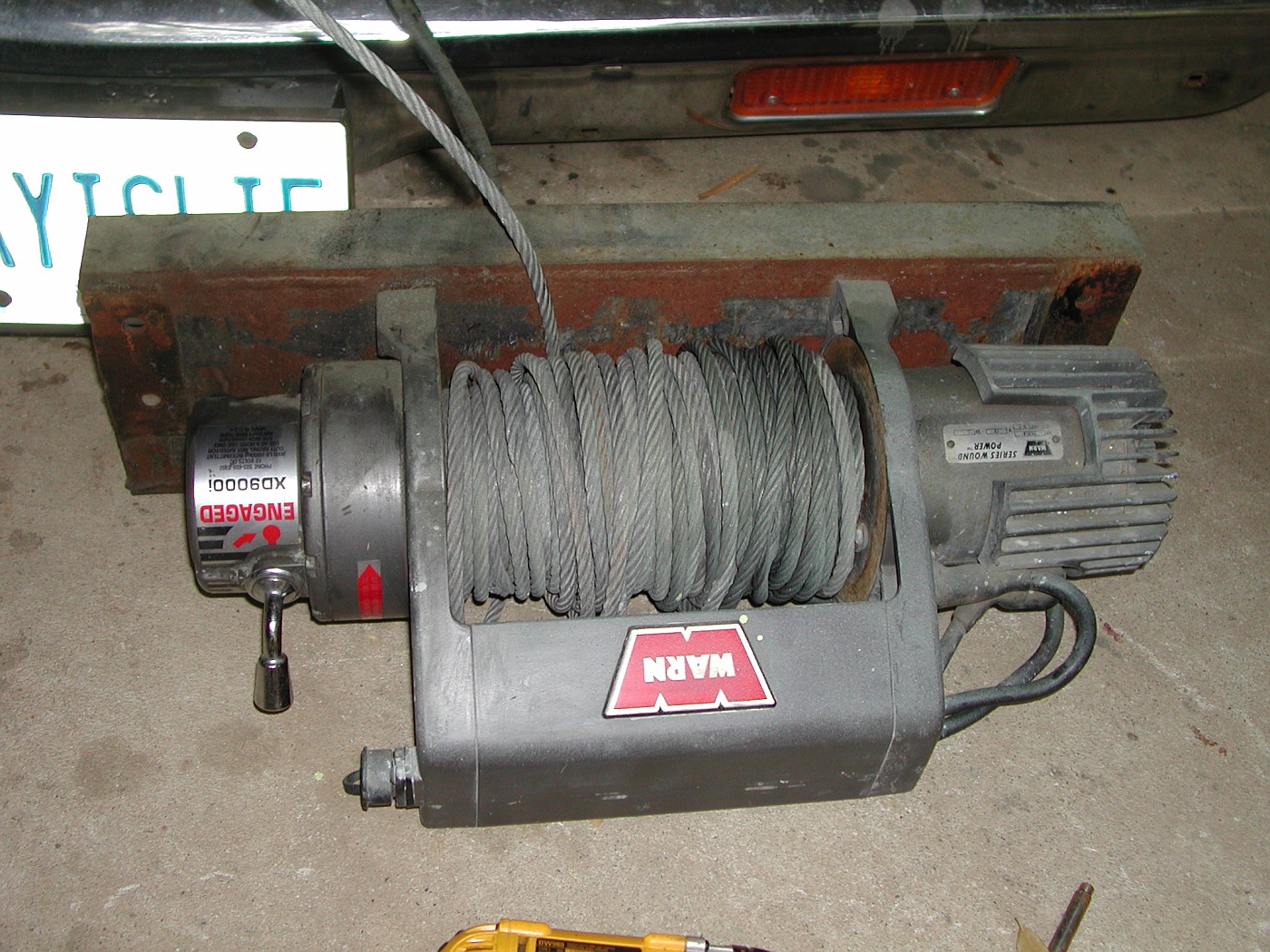

    [​IMG]

  14. darkshadow

    darkshadow 1 ton status

    Joined:
    Dec 6, 2003
    Posts:
    12,250
    Likes Received:
    0
    Location:
    C-eh-N-eh-D-eh
    Re: Winch mount started (PICS) and question

    if you want it where it is for now: take the plate to a welding/fab shop and ask them to put it in a bender, bring your truck and give it a quick look and your set, give them a ten spot and they'll be happy so will you



    AND what winch is that? looks fancy /forums/images/graemlins/shocked.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif /forums/images/graemlins/waytogo.gif

  15. MTBLAZER89

    MTBLAZER89 3/4 ton status GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    7,272
    Likes Received:
    237
    Location:
    Oak Harbor, WA
    Re: Winch mount started (PICS) and question

    [ QUOTE ]
    i see that you cut the plate already, but what i did is mounted the sides plates level first then the top plate on top of that, something like this..

    [​IMG]

    [/ QUOTE ]

    I may still be able to do it like that. Does it just not bolt to the top rail that way? I left some overhang on the sides because I am planning on welding the side tabs to the winch plate anyway.

    I don't want to do it between the frame rails I like how it looks and I don't really want it sideways down there and it won't fit upright. I have a tube bumper that is gonna go on around this mount.

    It's a Warn 9500Ti

  16. m j

    m j 1/2 ton status

    Joined:
    Dec 28, 2001
    Posts:
    4,606
    Likes Received:
    0
    Re: Winch mount started (PICS) and question

    [ QUOTE ]
    Mount it between the framerails and feed the cable through the bumper.
    Like this.
    [​IMG]

    Mines mounted to a large "C" channel via 4 bolts.
    [​IMG]

    The back of the mounting plate here.
    [​IMG]

    It's mounted to the frame via thes two mounting tabs that are bolted to the frame.
    [​IMG]

    Then the winch get's mounted to those tabs.
    [​IMG]

    [​IMG]

    [/ QUOTE ]

    this is so close to being right but not quite there.
    the feet should face the load rather then away from it.

  17. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: Winch mount started (PICS) and question

    What do you mean...mount the mounting bracket on the other side of the tabs?

  18. 84_Chevy_K10

    84_Chevy_K10 Banned

    Joined:
    May 30, 2001
    Posts:
    17,669
    Likes Received:
    0
    Location:
    IL, USA
    Re: Winch mount started (PICS) and question

    Yep. Then it would use all that heavy steel to support the load instead of just the bolts.

  19. dhdescender

    dhdescender 1/2 ton status

    Joined:
    Aug 10, 2002
    Posts:
    628
    Likes Received:
    0
    Location:
    Qualicum Beach, British Columbia, Canada - Eh.
    Re: Winch mount started (PICS) and question

    I managed to easily fit my M12000 between the rails, the nice thing about is it foot mounted so it just bolts right to the bumper, and viola....DONE! /forums/images/graemlins/waytogo.gif

  20. BobK

    BobK 1/2 ton status

    Joined:
    Oct 5, 2000
    Posts:
    1,604
    Likes Received:
    0
    Location:
    Petrolia,Ontario,Canada but working in Port Huron,
    Re: Winch mount started (PICS) and question

    Forget it...I know what you mean.
    If it was flipped the other way."C" channel in front with winch behind.
