Wrenchin vacation not off to a good start...

Discussion in 'The Garage' started by tRustyK5, Sep 29, 2006.

  1. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,173
    Likes Received:
    1,385
    Location:
    E-town baby!
    The first vacation I've taken in three years started this afternoon. I took two weeks off to get my truck put back together. I've been making a little progress on weekends and right now am about to hoist the NV4500/203/205 into the truck.

    So, my rear main seal and oil pan disaster is taken care of, flywheel resurfaced and installed, Hays clutch installed. This afternoon I got the bell housing into position and for some weird reason I could not get it to slide over the dowels or push up flat to the motor (6.2 diesel)

    I grabbed my mag lite and started checking clearances inside the bell to the pressure plate. The Hays clutch is a little larger than stock, so I thought maybe there were some clearance issues. That was not the case...

    The gear drive starter for the 6.2 seems to have a larger 'nose' than a sbc or bbc starter. I dropped the starter out and the bell fit properly.

    So, I have three options. Clearance grind the bell, clearance grind the starter nose, or hope AA makes a diesel specific bell and can get it to me double quick. :doah: :doah: :doah:

    This is a long shot, but if anyone else has bolted up an NV4500 behind a 6.2 using an AA bellhousing what did you do?


    Rene

  2. MTMike

    MTMike 1/2 ton status

    Joined:
    Feb 10, 2005
    Posts:
    2,992
    Likes Received:
    0
    Location:
    Billings, Montana
    My vote goes for :grind:

  3. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,173
    Likes Received:
    1,385
    Location:
    E-town baby!
    I'm leaning towards doing the bell. Went and looked at it again and the thickness of the casting in that area is pretty substantial. I have to take some better measurements and see exactly how much has to come out.

    Rene

  4. MTMike

    MTMike 1/2 ton status

    Joined:
    Feb 10, 2005
    Posts:
    2,992
    Likes Received:
    0
    Location:
    Billings, Montana
    wouldn't the starter be easier?

  5. dyeager535

    dyeager535 1 ton status Premium Member

    Joined:
    Dec 13, 2000
    Posts:
    26,979
    Likes Received:
    189
    Location:
    Roy WA
    Are those the iron-nosed starters?

    I know those diesel starters have to take a mighty heavy load compared to a gas one, I'd be more worried about that load than what the bell may see, even though you see the bells crack as well...and with a 203/205 combo adding weight, even more concerned. :(

    Sounds like a tough decision to me. If adding another crossmember (is that required in the 203/205 setup?) and/or running poly mounts everywhere, I wouldn't be quite so worried about grinding the bell, but if the t-cases are hanging off one pivot point, (and rubber mounts) I would be.

    Last edited: Sep 29, 2006
  6. sweetk30

    sweetk30 professional hooker Premium Member

    Joined:
    Nov 1, 2004
    Posts:
    25,544
    Likes Received:
    539
    Location:
    horseheads , ny 14845
    call them up at aa and tell them there crap dont fit and its no good. :haha:

    i would grind a bit on both my self or if just a little needed the bell.

  7. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,173
    Likes Received:
    1,385
    Location:
    E-town baby!
    I think of it this way: Grind the bell and if I ever need to replace this starter everything is fine. Grind this starter and I'll have to grind every starter I ever buy to make it fit...as well as possibly having core return problems.

    Dorian, The crossmember I'm building will be supporting underneath the output housing of the NV4500, a second support location under the doubler adaptor, and a third support under the rear of the 205. Having had a look and using some digi calipers it looks like I need to remove about .125" max and the casting is at least .375" around this area with some parts almost .750" thick.

    I'm about to call NWF where I got the Bellhousing. Jordan was going to call AA before they closed...so maybe they have some input or?? We'll see.

    Rene

  8. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,173
    Likes Received:
    1,385
    Location:
    E-town baby!
    Well after 4 hours of :grind: , then trial fit, :grind:, trial fit (repeat step one and two ad nauseum) the bell and the starter are both bolted up. Man, this was worse than grinding calipers for 15" rims. The thinnest the casting ended up was about 1/8" in one or two places. Fortunately this area of the bell isn't really being relied on for strength...

    If it ever cracks or breaks I'll post that up too, and in the meantime I'll be talking to Advance Adaptors about this. It may not be the most popular combination, but an NV4500 behind a 6.2 is a good combo, and their site does advertise "will fit all GM V-8's".

    Rene

  9. tRustyK5

    tRustyK5 Big meanie Staff Member Super Moderator GMOTM Winner Author

    Joined:
    Jul 23, 2000
    Posts:
    36,173
    Likes Received:
    1,385
    Location:
    E-town baby!
    OK, a few pic's of my progress so far. Nothing too exciting...

    Did the rear main and oil pan gaskets, blasted a bit of GM corporate blue onto the pan.

    [​IMG]

    Resurfaced flywheel (difficult to get a picture of :doah: )

    [​IMG]

    New Hays clutch...

    [​IMG]

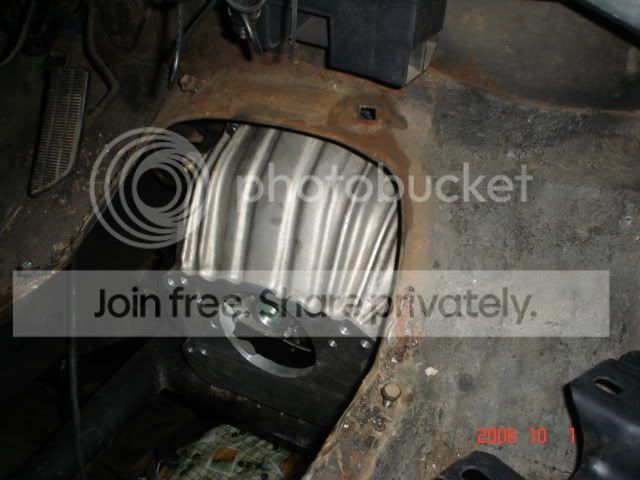

    AA bellhousing installed after much massaging with a die grinder and sanding disc. Starter is in too...finally!!

    [​IMG]

    [​IMG]
    Rene
