14bff bearing retainer nut question?

[chalet2506]

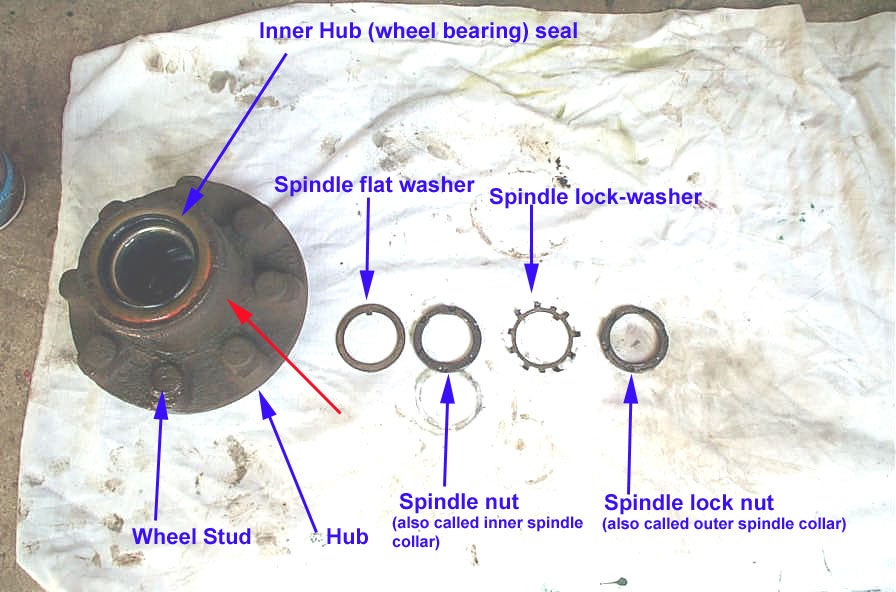

First 14 bolt work I've ever done and I didn't take this thing apart, but I'm trying to put it back together. I copied the following pics from the 14 bolt bible over at pirate and my question is this. Is it

A. 2 slim spindle nuts, flat washer, lock washer?

or

B. Large spindle nut, square key, snap ring?

or A and B.

I've got 1 set of each in the coffee can of parts with this thing. So either I'm missing parts, or somebody before was missing parts and made a hybrid axle.

OR this.



[k30bb468]

Your pics are not working, but it sounds like you have both styles of spindle locks.
Either style will work fine .

Older style is the 2 thin nuts with the locking washer

The newer style is the 1 thick nut with the square key & the snap ring(more of a retainer than a snap ring)

Hope that helps ya .



[dyeager535]

Looks like the parts manual scans here show the newer style.

http://dyeager535.topcities.com/partsmanual.html

The pics posted above are probably more help, but the diagram is there for you if you need it!



[chalet2506]

that's odd, they disappeared so I put them back in - now they pics are in there. So basically I've got what I need. Thanks.
