http://store.summitracing.com/partdetail.asp?part=DRT%2D11320010&view=2047&media=2
[ QUOTE ]
Vendor: Dart

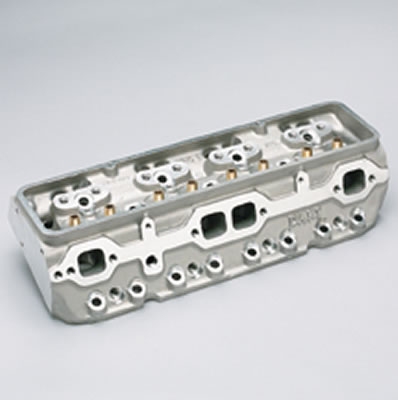

Product Line: Dart Pro 1 Aluminum Cylinder Heads
Material: Cast Aluminum
Finish: Cast
Performance heads at an affordable price.
Chevrolet: 262-400, 64cc combustion chambers, 200cc intake runners, accepts 2.02/1.60 in. diameter intake/exhaust valves, straight spark plugs, with valve job only, bare, Pro 1 cylinder head
Race-proven features and affordable pricing make this Dart Pro 1 355-T6 aluminum cylinder head one of the biggest values in racing. The head features 23 degree valve angles, interlocking hardened valve seats, and 11/32 in. bronze valve guides. Plus, it has straight spark plugs and accepts all early and late model accessory brackets.
Sold individually.
Warranty
At Summit Racing Equipment, we do business based on a very simple idea. If you're not 100% satisfied with our products, prices, or service, we'll give you your money back--GUARANTEED! Just return any new or unused part to us within 90 days from the date it was shipped to you, and we'll refund the full purchase price. (Excludes custom-ordered parts.)
Dart warrants that its products will be free from defects in material and workmanship under normal use for a period of 6 months. There is absolutely no warranty on any products that have been physically altered, abused, improperly installed or maintained, used in racing or improper applications, or not used in conjunction with the proper parts.
Application
This part fits the following applications:
Make Engine Year
CHEVROLET 262 -
CHEVROLET 265 -
CHEVROLET 267 -
CHEVROLET 283 -
CHEVROLET 302 -
CHEVROLET 305 -
CHEVROLET 307 -
CHEVROLET 327 -
CHEVROLET 350 -
CHEVROLET 400 -
Installation
This head is sold as a bare assembly. Valves, valve springs, locks, and retainers are required and sold separately.
Technical
Specifications:
* Combustion chamber volume: 64cc
* Intake runner volume: 200cc
* Intake valve diameter: Accepts 2.02 in. valves
* Exhaust valve diameter: Accepts 1.60 in. valves
* Valve spring diameter: Accepts up to 1.550 in. valve springs
* Valve guide diameter: 11/32 in.
* Straight spark plugs
* Steam holes must be drilled for 400 blocks
* Cylinders must have valve notch for clearance on engines with smaller than 4 in. bore
[/ QUOTE ]
Vendor: Dart
Product Line: Dart Pro 1 Aluminum Cylinder Heads
Material: Cast Aluminum
Finish: Cast
Performance heads at an affordable price.
Chevrolet: 262-400, 64cc combustion chambers, 200cc intake runners, accepts 2.02/1.60 in. diameter intake/exhaust valves, straight spark plugs, with valve job only, bare, Pro 1 cylinder head
Race-proven features and affordable pricing make this Dart Pro 1 355-T6 aluminum cylinder head one of the biggest values in racing. The head features 23 degree valve angles, interlocking hardened valve seats, and 11/32 in. bronze valve guides. Plus, it has straight spark plugs and accepts all early and late model accessory brackets.
Sold individually.
Warranty
At Summit Racing Equipment, we do business based on a very simple idea. If you're not 100% satisfied with our products, prices, or service, we'll give you your money back--GUARANTEED! Just return any new or unused part to us within 90 days from the date it was shipped to you, and we'll refund the full purchase price. (Excludes custom-ordered parts.)
Dart warrants that its products will be free from defects in material and workmanship under normal use for a period of 6 months. There is absolutely no warranty on any products that have been physically altered, abused, improperly installed or maintained, used in racing or improper applications, or not used in conjunction with the proper parts.
Application
This part fits the following applications:
Make Engine Year
CHEVROLET 262 -
CHEVROLET 265 -
CHEVROLET 267 -
CHEVROLET 283 -
CHEVROLET 302 -
CHEVROLET 305 -
CHEVROLET 307 -
CHEVROLET 327 -
CHEVROLET 350 -
CHEVROLET 400 -
Installation
This head is sold as a bare assembly. Valves, valve springs, locks, and retainers are required and sold separately.
Technical
Specifications:
* Combustion chamber volume: 64cc
* Intake runner volume: 200cc
* Intake valve diameter: Accepts 2.02 in. valves
* Exhaust valve diameter: Accepts 1.60 in. valves
* Valve spring diameter: Accepts up to 1.550 in. valve springs
* Valve guide diameter: 11/32 in.
* Straight spark plugs
* Steam holes must be drilled for 400 blocks
* Cylinders must have valve notch for clearance on engines with smaller than 4 in. bore
