I need a Good side profile drawing of 73-91 crewcab like a CAD drawing or something simular that I can printout and work out some Bed cage Ideas I have bouncing around
CK5
Register an account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members.
Crew Cab drawings
- Thread starter yellowK20
- Start date

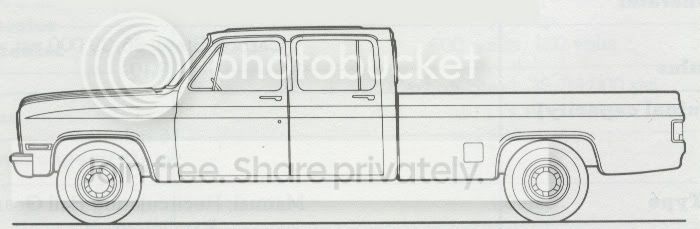

Does this help?
LOL...it would help if he had a membership and could see it.
That's almost mean...
Rene
That's almost mean...
Rene
four_by_ken
1/2 ton status
LOL...it would help if he had a membership and could see it.
That's almost mean...
Rene
I was thinking the same thing.
(cause I cant see it either)
I can see it just fine.
Pay up sucka's. Can you see this
. Use that Christmas money you were going to buy your girlfriend a ring with and pony up and buy a membership. It will last longer.
. Use that Christmas money you were going to buy your girlfriend a ring with and pony up and buy a membership. It will last longer.
haha, yeah we'll see. I used to be a full member but I just dont use the site as much as I use too.
And I always used Photo bucket to show my Pics so non-members could see the pics as well
And I always used Photo bucket to show my Pics so non-members could see the pics as well
Pay up sucka's. Can you see this
speaking of paying up how about tooling up another of those Dana 60 race Installers??? I loaned mine out and never got it back.........damn jeep guys
yeah why not I spend that much on dinner up here Ramen Noodles for me tonight
Thanks!! would you by chance have a 73-80 Crew Cab pic ??
I'm not up on what non-membership blocks you from, I've been a memeber since it started. No hard feelings...
You can use this for the 73-80 front marker and body line.
There is also this thread with a bunch of good clipart.
http://coloradok5.com/forums/showthread.php?t=244940
All for the '87 model year though. But there are some great 3/4 front and 3/4 rear shots.
PS, nice to see you re-up Gus!
Rene
http://coloradok5.com/forums/showthread.php?t=244940
All for the '87 model year though. But there are some great 3/4 front and 3/4 rear shots.
PS, nice to see you re-up Gus!
Rene
well thanks Rene, hows your Blazer project??
oh and thanks for all the NV4500 doubler info Mine came out pretty sweet
oh and thanks for all the NV4500 doubler info Mine came out pretty sweet
thanks that will work!!
After barely resisting the urge to dump a gallon of gas under it and light it I put it in storage well away from me. It was safer that way...
My K5 project has now become a frame up Crew Cab build using most of the same drivetrain, and hopefully correcting the build errors I made with the K5. The foundation for the crew cab build is pictured under my sig. It's real pretty...
The K5 shell and a few other parts went to a local who is also a CK5er.
Rene
right on, I'm getting ready to build a back halved crewcab on 44" boggers for wheeling and camping up here
i'm aiming for capable, but civilized...and not butt ugly. I'm 90% sure I'm gonna link the rear though. Front will be somewhat firm lift springs which should keep body roll down to a minimum. Roughly 134-138" wheelbase and 5 1/2 foot box.
