Custom dash inspiration

Discussion in 'Interior - Stock & Custom' started by WALREC, May 16, 2020.

  1. WALREC

    WALREC Registered Member Premium Member

    Joined:
    Nov 30, 2019
    Posts:
    16
    Likes Received:
    13
    Location:
    ROLL TIDE
    Whats up guys n gals. Im about to rip the perfectly good dash out of my K5. Although it is not a necessity and there are tons of other things that need to be done before its trail ready,, they all cost money and i have all the materials on hand to build a custom dash. I have a good idea of how i want it to turn out and pretty sure the layout will work well. That being said, i would love to see any diy dashes yall might have built for some more ideas.

  2. Bent77

    Bent77 lil meanie Staff Member Moderator GMOTM Winner

    Joined:
    Dec 3, 2002
    Posts:
    29,803
    Likes Received:
    38,247
    Location:
    NoCo
    Build(s):
    1
    nvrenuf likes this.
  3. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,887
    Likes Received:
    7,141
    Location:
    Jersey Shore
    Build(s):
    3


    sounds like you're doing a full cage/panel style deal...

    while I dig the DIY4X one, i really like the shape of the our pads, so i've tried to maintain those looks on some stuff i've done.... my K5 has a full metal version of the stock pad..


    [​IMG]




    [​IMG]




    and here's just a bezel i recently did in Mutt out of composite glass...




    [​IMG]

    6872xtc, MEMO43, nvrenuf and 2 others like this.
  4. centexk5

    centexk5 1/2 ton status Premium Member

    Joined:
    Jun 23, 2019
    Posts:
    565
    Likes Received:
    466
    Location:
    Georgetown, TX
    Build(s):
    1
    Someone on here made a dash out of square tubing and I think diamond plate. Simple, functional, and looked really good. I'm contemplating doing the same with mine when I get to that point.

  5. WALREC

    WALREC Registered Member Premium Member

    Joined:
    Nov 30, 2019
    Posts:
    16
    Likes Received:
    13
    Location:
    ROLL TIDE
    yea I went out n back for months on stock vs custom. I would see a stock dash and think, that's what I want,,(like yours Ryoken, that red on black is killer), see now you got me thinkin stock again,,,, then I would see an all out custom dash/console like a racing cockpit and of course that would be the bees knees. im not lookin to go all out race cockpit but a simple flat, angular style dash like what I think your referring to centexk5. I got it pretty close in my head just have to make it happen. I haven't really done anything yet that's worth documenting but I will probably try it on this project.

    ryoken likes this.
  6. AZ79K5Project

    AZ79K5Project 1/2 ton status Premium Member

    Joined:
    Jan 15, 2006
    Posts:
    2,111
    Likes Received:
    28
    Location:
    Arizona
    Cut mine up, move an AC vent and custom mounts for the gauges. The dash cover is next.

    MEMO43 likes this.
  7. diesel4me

    diesel4me 1 ton status Premium Member

    Joined:
    Jul 24, 2003
    Posts:
    26,590
    Likes Received:
    8,349
    Location:
    Massachussetts
    I kept the dash out of my '77 GMC that the previous owner made for it,it is very similar to the one pictured above!...
    It has a S-W tach,and 4 mechanical gauges for oil pressure,water temp,volts and vacuum,but I gave the S-W fuel gauge to my brother out of it for a truck he was building..it has the radio cut out in stock location and the "cubby hole" above it,they had an equalizer mounted in that spot..
    I have no pictures of it at the moment..have no use for it or plans to use it on anything ..I'll try to get a picture of it..

  8. rhinoblzr

    rhinoblzr 1/2 ton status Premium Member

    Joined:
    Jul 7, 2016
    Posts:
    196
    Likes Received:
    205
    Here's my dash. Simple layout.


    Desert_K5, ryoken and nvrenuf like this.
  9. ryoken

    ryoken Puppy Fabricator Premium Member GMOTM Winner

    Joined:
    Jun 13, 2003
    Posts:
    32,887
    Likes Received:
    7,141
    Location:
    Jersey Shore
    Build(s):
    3

    to be honest..... gutting it all and doing a plate, or tube/plate, etc type setup is vastly easier IMO.. working within the confines of keeping that dashpad style is challenging... part of the reason I did my K5 the way it is, was I wanted something unique and challenging, while showing props to some good factory styling... having console tube integrate into the factory dash was a neat idea i think.... albeit annoying and time consuming...

    sometimes I think race inspired stuff is awesome, but maybe a bit soulless... I kind of feel that way about Kerts dash.. when i first saw it, as the only one, it was badarse... but once you see it in a 1/2 dozen rigs it loses the mystique some...



    [​IMG]

    rhinoblzr likes this.
  10. nvrenuf

    nvrenuf I grind my welds. Premium Member

    Joined:
    Jan 7, 2002
    Posts:
    17,484
    Likes Received:
    4,368
    Location:
    Mobile, Al.
    Build(s):
    1

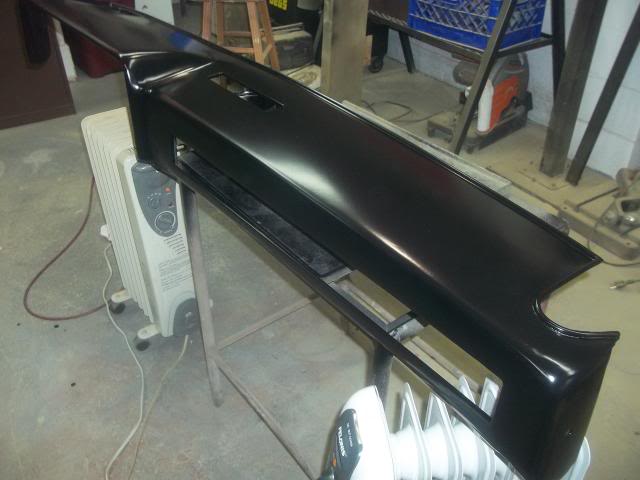

    I wish someone would produce this, an aluminum “cap” to replace the stock dash pad. It’s the best of both worlds, custom dash feel without having to cut the structure out of the truck.

    (pics stolen from an eBay ad in the for sale forum)



    ryoken, Desert_K5 and rhinoblzr like this.
