Dual Steering Stabilizer

Discussion in 'The Garage' started by Blazer Chalet, Feb 8, 2020.

  1. Blazer Chalet

    Blazer Chalet Registered Member Premium Member

    Joined:
    Dec 28, 2019
    Posts:
    58
    Likes Received:
    85
    Location:
    Texas
    I just installed a dual steering stabilizer kit on my Chalet. it made a world of difference going down the highway . Took all the slack out of the wheel and tracks straight with no effort. upload_2020-2-8_18-18-51.png

    MEMO43 and fourwheelerjeff like this.
  2. Blazer Chalet

    Blazer Chalet Registered Member Premium Member

    Joined:
    Dec 28, 2019
    Posts:
    58
    Likes Received:
    85
    Location:
    Texas
    Picture 043.jpg This is one of the critters on a friend ranch . He has about 35 of them.

    livid4dirt and fourwheelerjeff like this.
  3. H20 Toie

    H20 Toie 1/2 ton status Premium Member

    Joined:
    Jun 13, 2016
    Posts:
    421
    Likes Received:
    583
    Location:
    Valencia California
    If they made that big of a difference then you have other issues. you are covering up something that is worn out or loose.

    dirty ike, Larry, 1-ton and 2 others like this.
  4. MTBLAZER89

    MTBLAZER89 3/4 ton status Premium Member GMOTM Winner

    Joined:
    Aug 14, 2001
    Posts:
    8,109
    Likes Received:
    2,487
    Location:
    Oak Harbor, WA
    Build(s):
    5
    Steering stabilizers can't remove slop in the system.

  5. rampage

    rampage 1/2 ton status Premium Member

    Joined:
    Mar 20, 2001
    Posts:
    4,076
    Likes Received:
    1,777
    Location:
    Humboldt/Pacifica, CA
    I’ve been biting my tongue ever since you posted that pic, but I can’t hold it back any more ... (sorry (sort of :D))

    The ‘80’s called and they want all their shocks back. :rotfl:

  6. Blazer Chalet

    Blazer Chalet Registered Member Premium Member

    Joined:
    Dec 28, 2019
    Posts:
    58
    Likes Received:
    85
    Location:
    Texas
    Rampage you do your vehicle your way , and I will do mine RIGHT !

    rampage likes this.
  7. 1-ton

    1-ton 1/2 ton status Premium Member

    Joined:
    Apr 17, 2004
    Posts:
    4,491
    Likes Received:
    1,503
    Location:
    Las Vegas, Nevada
    Build(s):
    1

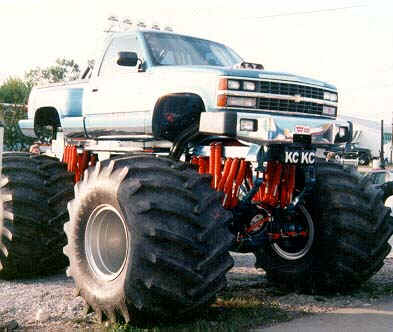

    A steering stabilizer makes a little difference on my crew cab with 36/13.50/16 Super Swampers tires, but not so much as I could not drive down the road with out it. Steering stabilizers must do something, or GM would not have installed them factory from the assembly line like mine came with. One of these days I am going to get the ultimate steering stabilizer...hydro assist.

    [​IMG]

  8. dyeager535

    dyeager535 1 ton status Premium Member

    Joined:
    Dec 13, 2000
    Posts:
    29,073
    Likes Received:
    1,000
    Location:
    Roy WA
    I lost the steering stabilizer in my truck (seal failed) and I thought I was experiencing death wobble at first. Then I thought lug nuts had come loose on the front end. Stock suspension, height, all that.

    Start to apply the brakes and the steering wheel would start to bounce back and forth, even holding it tight the problem did not go away. But it felt like the front axle was ready to come off. Definitely scary as heck. As I recall, it only did that under braking however, and it wasn't 100% of the time...took me a day or so to figure it out, and only by the obviously leaking damper. The rotors weren't warped significantly, but I'm guessing lack of a damper exacerbates what vibration warping of any kind induces.

  9. 1-ton

    1-ton 1/2 ton status Premium Member

    Joined:
    Apr 17, 2004
    Posts:
    4,491
    Likes Received:
    1,503
    Location:
    Las Vegas, Nevada
    Build(s):
    1
    You can never have too many shocks. :D
    [​IMG]

  10. centexk5

    centexk5 1/2 ton status Premium Member

    Joined:
    Jun 23, 2019
    Posts:
    270
    Likes Received:
    191
    Location:
    Georgetown, TX
    Build(s):
    1
    We put one on my dad's bronco to take some of the twitchy-ness out of the steering. New steering box, new tie rods, new ball joints, new bushings, and fresh alignment. Thing was tighter than factory and with the smaller steering wheel he put on the truck would jump lanes at the slightest input. The stabilizer helped dampen those and made it much nicer to drive.

  11. diesel4me

    diesel4me 1 ton status Premium Member

    Joined:
    Jul 24, 2003
    Posts:
    25,659
    Likes Received:
    7,282
    Location:
    Massachussetts
    When my 82 K2500 had a tie rod end fail,I replaced bot the one on the passenger side that was the typical short one,and the long bar to the drivers side that had the other tie rod end cast into the rod.
    To replace them both I had to take the steering stabilizer off,as it goes into that long bar,into a tapered hole..

    When I got the damper's shaft free from the tie rod,I discovered the damper was EMPTY,nothing but a shell,and the piston could be pulled in and out with zero resistance!..it was not doing a dam thing!..

    I happened to have a big yellow Heckthorn stabilizer I got years ago off a friends lifted K5 when he decided he needed a dual stabilizer,and I put that on,it was still like new..
    If anything,I think the steering felt better with the dead one on it..

    All a stabilizer does is dampen road shock and prevent kickback at the steering wheel,and with P/S you rarely ever get that anyways..it may also add some preload to the steering linkage and appear to make it feel "tighter",but I never noticed any adverse effects when the dead stabilizer was on my truck..

  12. frankin5

    frankin5 Super Mall Crawler Premium Member

    Joined:
    Oct 15, 2002
    Posts:
    2,570
    Likes Received:
    909
    Location:
    chico,calif
    It's not how many shocks you put on, it's the quality of shocks you put on.

    rampage and skunked like this.
  13. Blue85

    Blue85 Troll Premium Member

    Joined:
    Jul 26, 2000
    Posts:
    11,132
    Likes Received:
    2,276
    Location:
    Grand Rapids area
    Build(s):
    2
    That stabilizer in front of the tie rod is just begging to get smashed. If it takes a rock in the wrong place, you'll be unable to steer (at least full range) until you unbolt it. So why not just unbolt it now? :D

  14. Thomas Fournier

    Thomas Fournier Registered Member Premium Member

    Joined:
    Oct 19, 2015
    Posts:
    62
    Likes Received:
    10
    Location:
    Central coast california
    Build(s):
    1
    Can anyone shed light on a really good stabilizer? Brand at least???

  15. paratrooper307

    paratrooper307 1/2 ton status Premium Member

    Joined:
    Sep 26, 2010
    Posts:
    1,071
    Likes Received:
    95
    Location:
    North Carolina
    Personal opinion is that you're not going to find a whole lot of reason to pick one brand over another. A steering stabilizer's job is much simpler and it's under much less stress than a shock absorber in the suspension. I put a Rancho on mine when I refreshed the axle and it worked as well as the 30 year-old one that came off of it.

    Like it's been stated, if a stabilizer makes a big difference in your steering, you likely have another problem that it's masking.

    frankin5 and nvrenuf like this.
  16. Thomas Fournier

    Thomas Fournier Registered Member Premium Member

    Joined:
    Oct 19, 2015
    Posts:
    62
    Likes Received:
    10
    Location:
    Central coast california
    Build(s):
    1
    Copy that. So basically, if it ain’t broke don’t fix it, I’ll keep what I have on there (Rancho I think) lol

  17. cuervo

    cuervo Wears Boob Goggles! Premium Member

    Joined:
    Jan 2, 2004
    Posts:
    3,663
    Likes Received:
    757
    Location:
    Sweet Home Alabama!
    Where's that Toyota with like 43 shocks on it?
