Engine wiring harness (need pics)

[CaveBlazin]

Hello everyone I'm in need of a pic of how your wiring harness is running. I've got an 86 and Currently the harness is laying freely in the engine bay. I just need a pic where it runs to the headlights and over to the other side. Does it run in front of the radiator or behind it? I hope to have my ole blazer up and back on the streets in the next few weeks. Thanks!



[CaveBlazin]

I really just need a pic of where the harness goes after hooking to the front headlight..



[4xfrankie]

I really just need a pic of where the harness goes after hooking to the front headlight..

My 84 light harness runs down from the plug on the firewall, on the driver side wheel well. It then plugs in to the driver side headlight(short wires/plug)and goes into a hole right next to the drivers side head light.From that hole, it feeds along the bottom front edge of the rad support, all the way to the pass. side headlight. (in between the grille / rad support).It then comes back through another hole, and plugs into the pass. headlight. The harness grounds to the rad support, above the headlights in the engine compartment.The majority of the harness is contained in black plastic sheathing. Sorry, no pics. Shouldn't be too hard to figure out.



[Phil513]

My 84 light harness runs down from the plug on the firewall, on the driver side wheel well. It then plugs in to the driver side headlight(short wires/plug)and goes into a hole right next to the drivers side head light.From that hole, it feeds along the bottom front edge of the rad support, all the way to the pass. side headlight. (in between the grille / rad support).It then comes back through another hole, and plugs into the pass. headlight. The harness grounds to the rad support, above the headlights in the engine compartment.The majority of the harness is contained in black plastic sheathing. Sorry, no pics. Shouldn't be too hard to figure out.

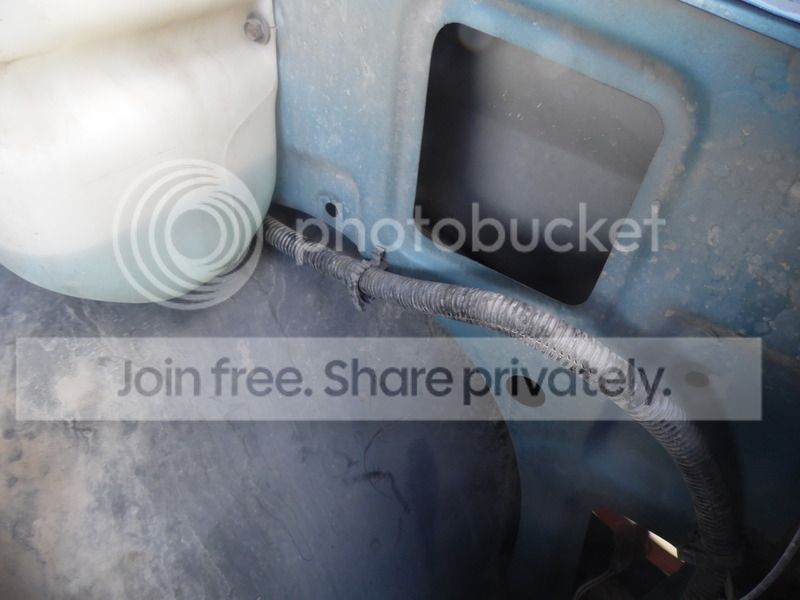

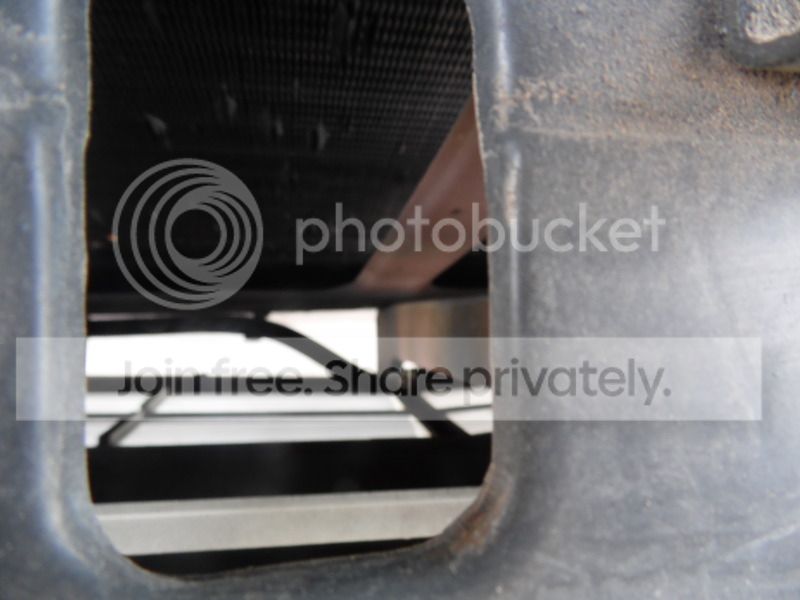

Just went and looked at my 88, it's the same as this. I can get pics in a bit, although I can't get a pic between the grill and radiator support.



[Phil513]

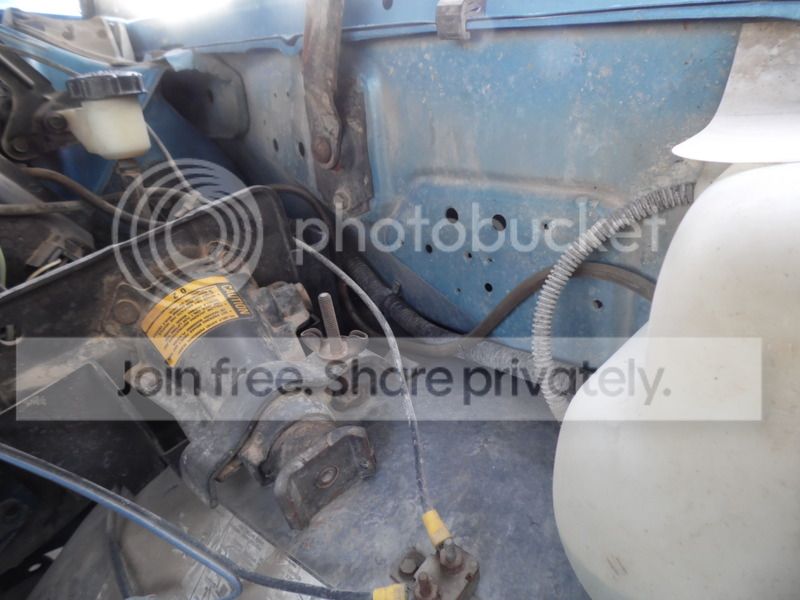

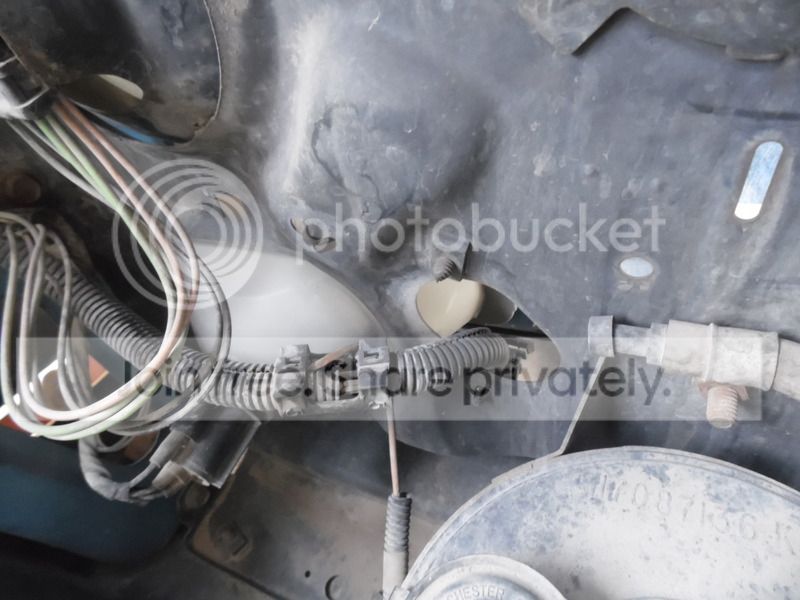

LOL! It's down there.



Can't get a pic of passenger side headlight. It's down under a bunch of stuff.



[CaveBlazin]

Ahh Perfect yall thanks for the help!!
