Help! Link to Disc Page lost! (FOUND! link inside!)

[dhdescender]

I was sure I saved a picture off a 14B FF swap. It was dimensions of the caliper bracket on a CAD drawing. I think It was a fairly low-profile site it was posted on (not pirate or CK5), somwhere in arizona seems to ring a bell.

he link to this website was off Ck5 (I'm 95% sure)....and I dont think it was a terribly old thread.

Searching has brought me nothing.
Help a brother out? /forums/images/graemlins/1zhelp.gif

Thanks!

-Kyle.



[dhdescender]

Re: Help! Link to Disc Page lost!

Haha! GOT IT!!!

ok...so I'm 95% wrong...it was a link of pirate.

But here it is for those of you capable of making your own bracketS!

http://www.florida4x4.com/tech/14ff-disk/index.php

Enjoy. I have not checked the accuracy of these drawings, but I will do so in the very near future.



[Thumper]

Re: Help! Link to Disc Page lost!

Hmm... dont see any drawings on that page...
I was going to do mine from drawings, but couldnt find any with measurements etc. so I am currently trying to figure out how I can modify a set of front back plates to work. Unless the drawings are found! /forums/images/graemlins/smile.gif

Mike



[dhdescender]

Re: Help! Link to Disc Page lost!

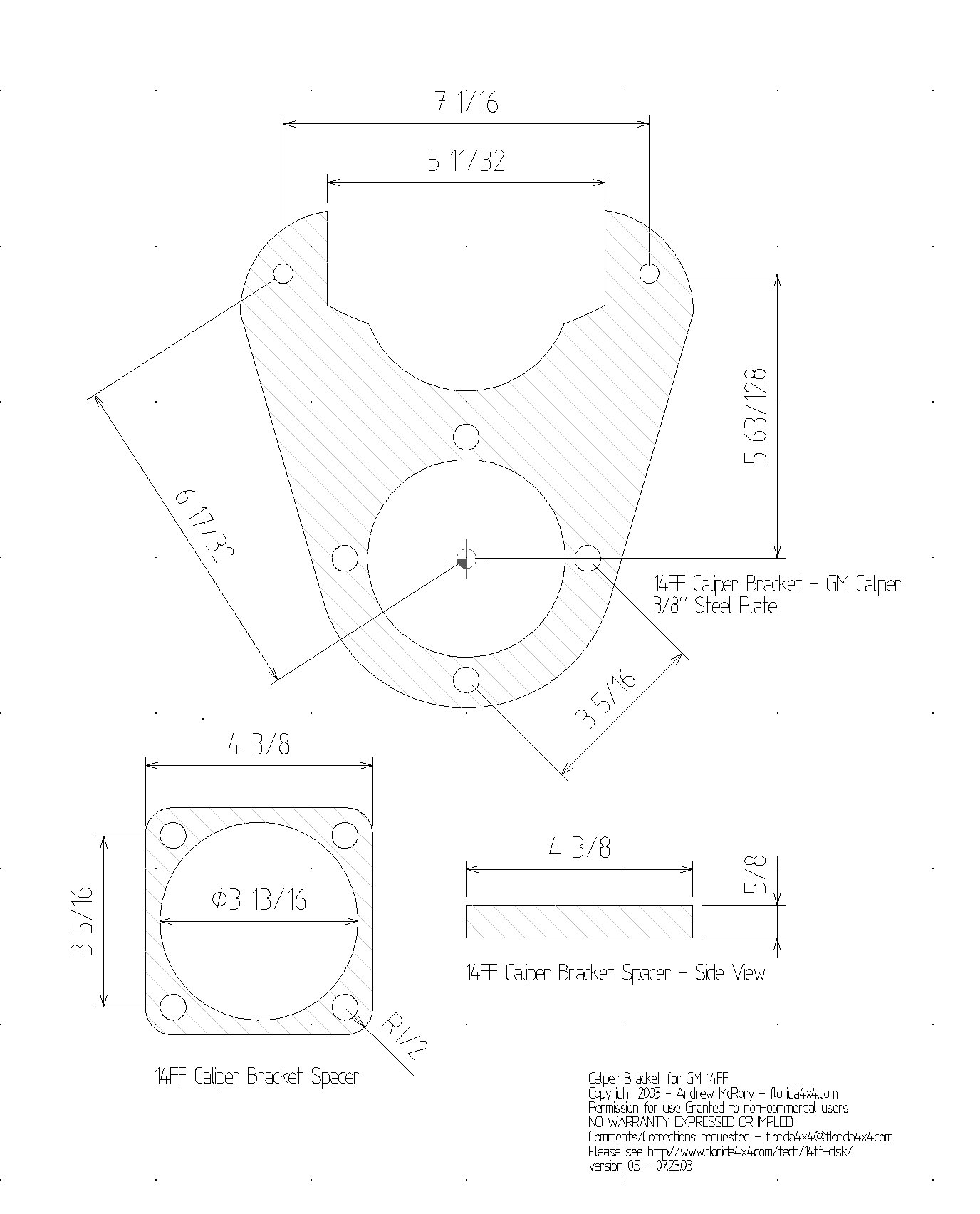

Here it is:
http://www.florida4x4.com/tech/14ff-disk/14ff-caliper-v0.5.jpg


Sorry, too big to post directly, I will resize it when i get home.



[**DONOTDELETE**]

Re: Help! Link to Disc Page lost!

Now save the pic to your hard drive !!
