inner rocker help

[TXblueSS]

Ok, I'm finally getting into replacing the floors on the Jimmy. I have the floor pans and outer rockers, and just ordered the inners. There is a LOT of rust, but it is limited to the floors in the driver's and passenger's tub.

The noobish question is: How exactly does the inner panel go in (location and orientation)? I have NO point of reference on the jimmy, as it is all rotted away.

Also, is the pan below that removable? I am going to do something to the under side of the floors when I am done with the metalwork (rust bullet, bedliner, or something else) What do you guys recommend?



[76zimmer]



[TXblueSS]

Thanks, but mine look different from the pic. This is why it is confusing.



[TXblueSS]

Also, what t-cases do I have here? I know next to nothing about them, except the first one is full-time, and the second is part-time 4wd. I am hoping for a 203 and 205, as I may do a doubler if that is the case.



[4X4HIGH]

That is an NP203 t-case.



[oakknight]

http://www.youtube.com/watch?v=HtxvWu12avA

Not sure how close the c10 and the jimmy floor plans are similar , I would think fairly close. Being very new to any fab or body work, I found this series of videos helpful.



[TXblueSS]

That is an NP203 t-case.

Thanks, but which one the blazer case or the jimmy? Any ideas on the other one? I appreciate all the help guys and gals.



[76zimmer]

def a 203 t/c...which if you have the trans you want, that is the start of the doubler as you need the mating 203 for the trans you want to run, and then you'll only use the range box case of the 203, then add the 205/doubler kit.



[TXblueSS]

def a 203 t/c...which if you have the trans you want, that is the start of the doubler as you need the mating 203 for the trans you want to run, and then you'll only use the range box case of the 203, then add the 205/doubler kit.

Ok, so the 1st 2 pics from my earlier post are of a np203, are these of a 205?



[4X4HIGH]

All of your t-case pics are NP203.



[76zimmer]

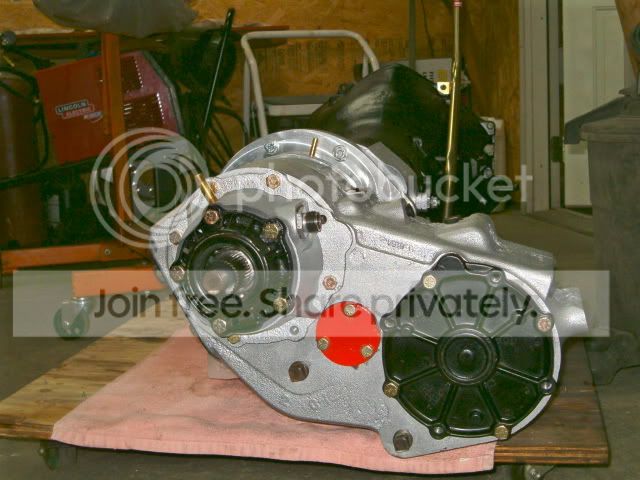

This is the rear of a 205 w/ bolt on yoke output shaft, as opposed to a slip yoke type output. Notice the idler shaft cover in the middle (orange)

This is a 203, upsidedown, but notice no idler shaft cover....



[TXblueSS]

got it, thanks a lot guys.



[TXblueSS]

got the old outer rockers off this morning, is this how the new ones go in? I am still a bit stumped on placement. I think this is pretty close, just need some guidance. These things have very little resemblance to what I have, or are they just too rusted to tell?

thanks again



[TXblueSS]

oh, and here are updated pics



[Vetteracerx]

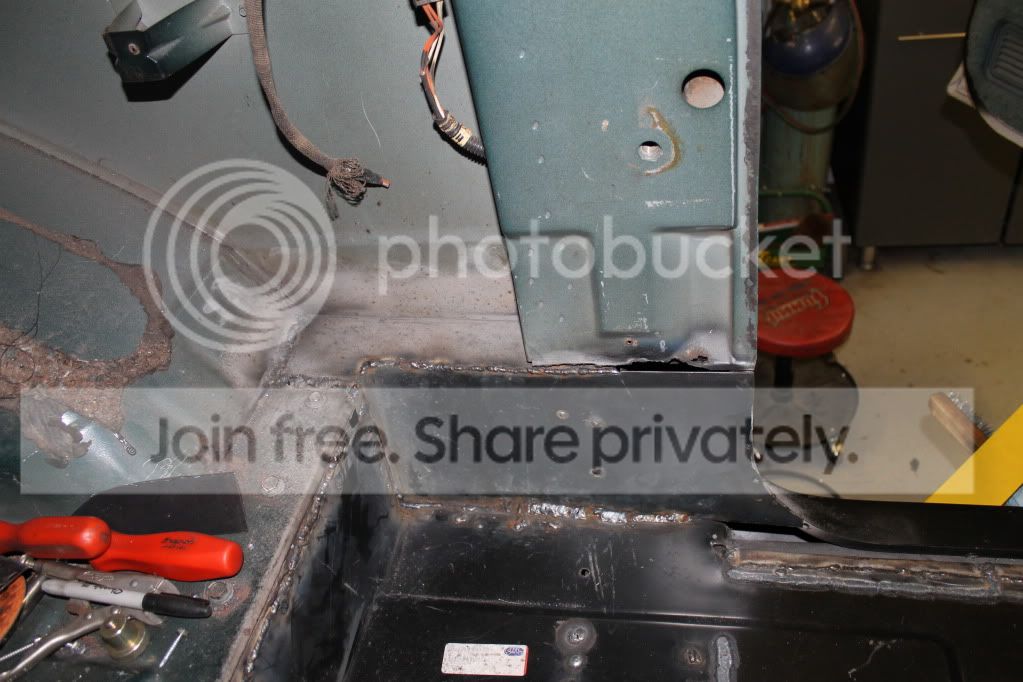

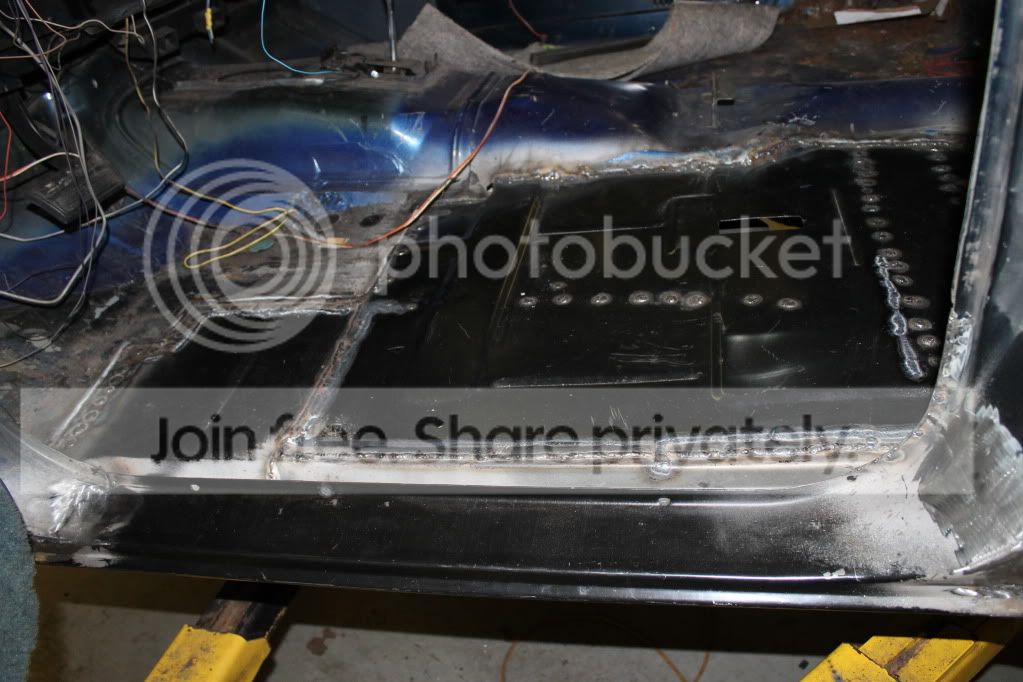

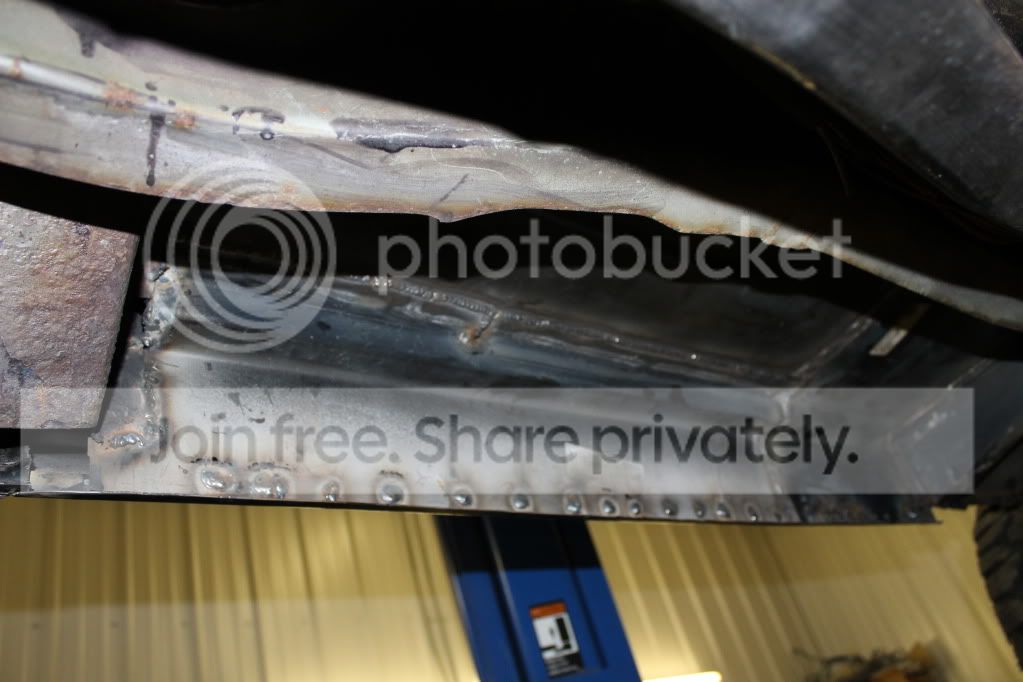

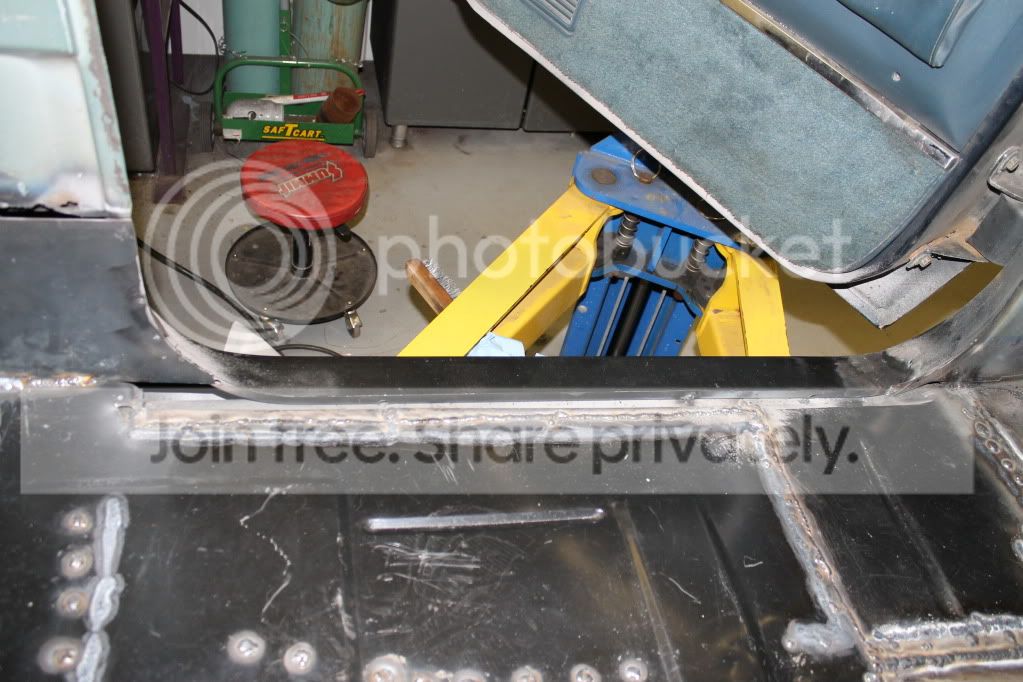

I straightened the rear corner and bent the top 90 degrees to match the front. I think those inners (same ones I got) are for a truck. I welded the ends to the floor supports.



[TXblueSS]

I straightened the rear corner and bent the top 90 degrees to match the front. I think those inners (same ones I got) are for a truck. I welded the ends to the floor supports.

ok, that's kind of what I was thinking. Thanks.



[Vetteracerx]



[Vetteracerx]

Did you unbolt the top door hinge? I have new ones from GM to put in. Is the top hinge inner bolt hard to get at?



[TXblueSS]

No, I haven't removed the top hinge from the body, but I did unbolt the door side of the top hinge to remove the door. It looks like an easy job from there...
