HI guys I am lookng for a frame dimension on a 72 k5. I am looking to make a new engine cross member but was wondering if anyone could measure or knew what the frame dimension is for the C part of the frame. Thanks Denny
CK5
Register an account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members.
looking for a frame measurment.
- Thread starter dheavychevy38
- Start date
hey there i am working on my 72 k5 as well, i can get you some measurements when i get home tonight. i take it if you are fabing an engine support you need the dimentions for that? or in that area let me know which.
ya thats a big 10 4

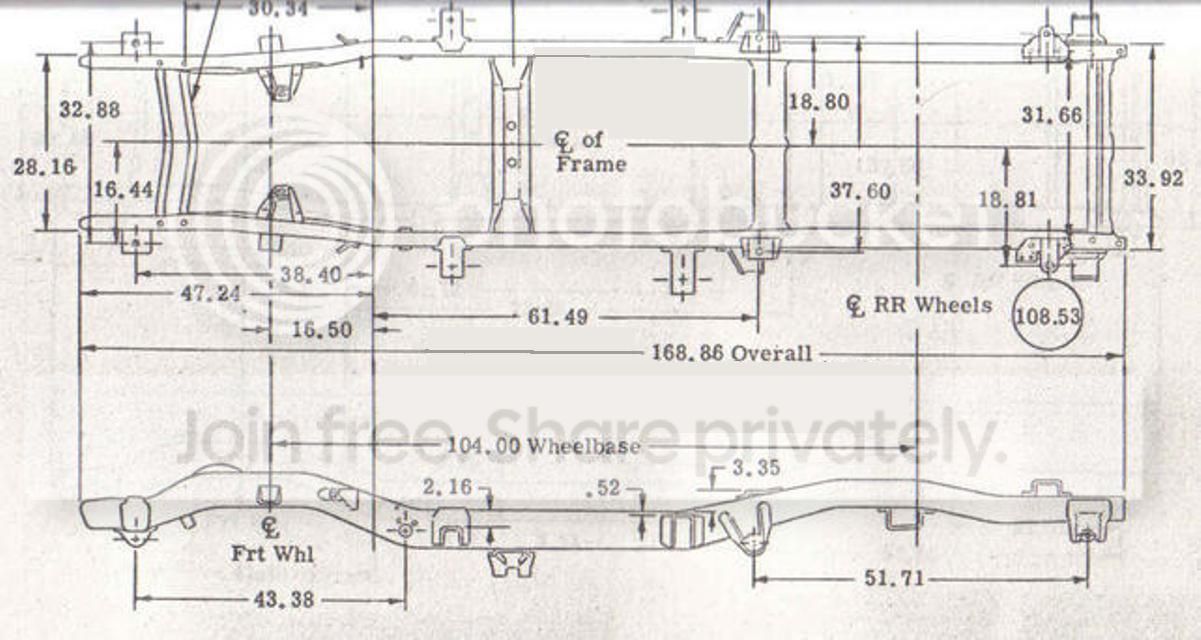

The height of the C varies depending on where on the frame you measure.... it's tallest in the center, and gets narrower at both ends.
This should at least get you started for overall dimensioning. Odds are good that a 40-year old frame has been tweaked a few times, so it's always interesting to compare "actual" numbers to the factory spec.
-G
This should at least get you started for overall dimensioning. Odds are good that a 40-year old frame has been tweaked a few times, so it's always interesting to compare "actual" numbers to the factory spec.
-G
Order one of Kert's. They are pretty awesome.
http://diy4x.com/cart/index.php?route=product/product&path=34&product_id=80
http://diy4x.com/cart/index.php?route=product/product&path=34&product_id=80
I would but now that I have been laid off I have 6 weeks off and nothing to do lol. Plus a pile of tube
. Just have to get the truck home.
. Just have to get the truck home.chulisohombre
1/2 ton status
Greg that's awesome. I didn't know it varied so much across the length of the frame. When I had my inboard mount made for my rear shocks I used 32 inches to span the frame rails. I'm glad mine was close to spec.
